grizzly 600 rebuild update(s) pics

[tyler1blaster]

***********READ FIRST**************

my dad and i started to dissamble the old grizzly today. ( we bought it a few months ago (mud everywhere) it smokes, basically a P.O.S.... we ran into some problems. lots of stripped bolts!! even a missing head bolt!?! dirty as hell. how can i remove the two strpipped valve cover bolts? they're a star pattern. i tried vise grips.

here are some pics. we only had about 2hrs to work on it.

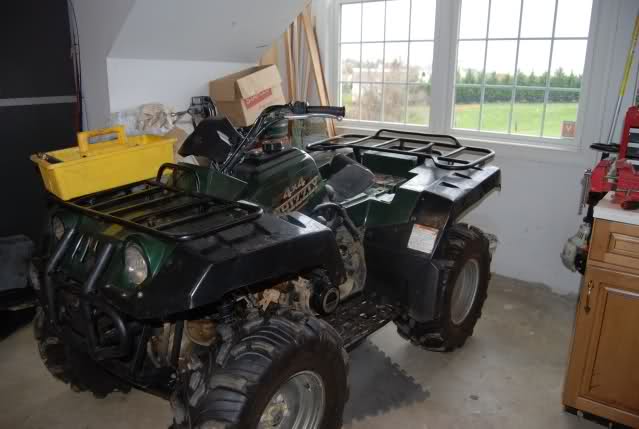

as it sat

no rack

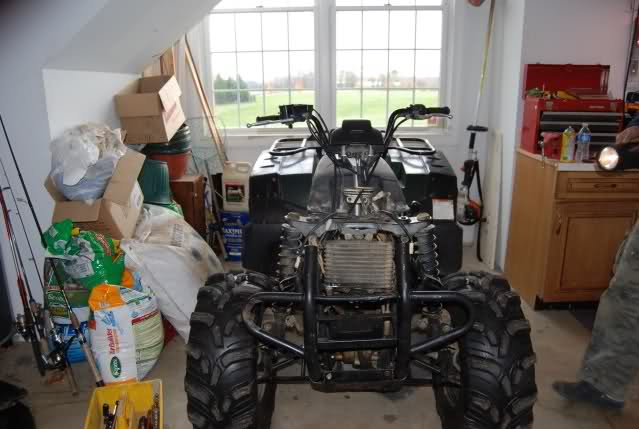

no plastics

WOWOWOW NO HEAD BOLT!

rich much?? lol

manual

top view

top dead center

more ....



[tyler1blaster]

Re: P.O.S 4 stroke build!

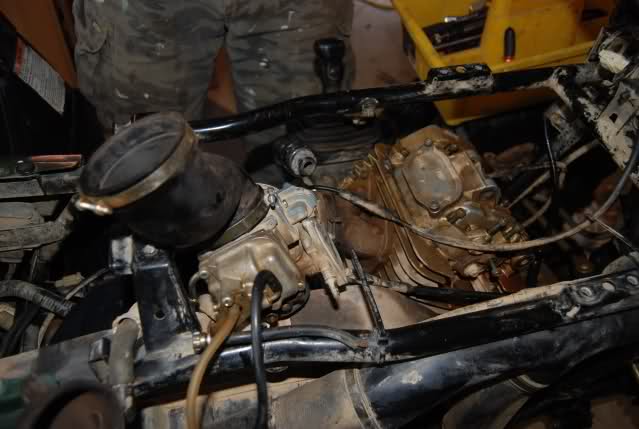

(carb on) offf

bolts we need. all of them were stripped except for the missing headbolt
it sits bare now tomorrow i will get into the valves and camshaft... any of yall know how to get a stripped valve cover bolt off?



[Uuhnt]

Re: P.O.S 4 stroke build!

I can see someone got an A in handwriting in grade school. LOL just kidding. Looks like a project for sure. I hate getting a new bike and having to deal with all of the stripped bolts from previous owners... That's so annoying.



[tyler1blaster]

Re: P.O.S 4 stroke build!

I can see someone got an A in handwriting in grade school. LOL just kidding. Looks like a project for sure. I hate getting a new bike and having to deal with all of the stripped bolts from previous owners... That's so annoying.

i know its really annyoing. i was getting very VERY angry. i kept saying i dont know how some one could abuse an atv that way. all of the ones that i bought new or near new still have that factory smell and that steel silver engine not that brown junk. my handwriting is very great i know. trust me its better when i take my time



[tyler1blaster]

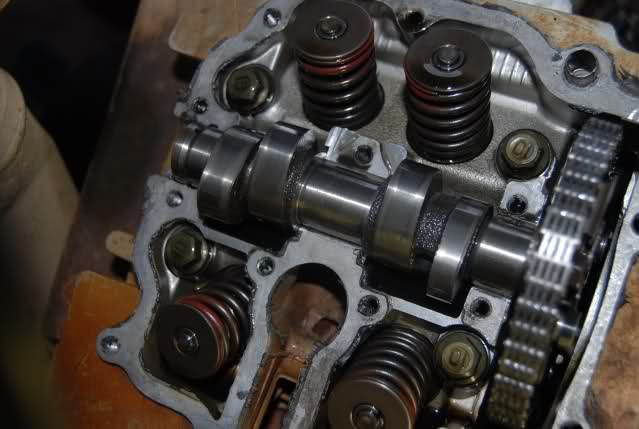

got into the motor today. i got the valve cover off and the cam shaft/ camchain.
you guys are lucky that you have s-smokes

FUN HUH?



[yzrider]

lookin good dude, hope to see it runnin perfect after this, best of luck to ya



[scotj77]

way to dive in and take care of that beast



[tyler1blaster]

way to dive in and take care of that beast

Its a pain in the ass. all of the stripped bolts. we'll get it finished though. i'm taking my good old time.
