XJ550 Blaster

Discussion in 'Engine Mods and Swaps' started by 79xs, Jul 22, 2010.

  1. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin

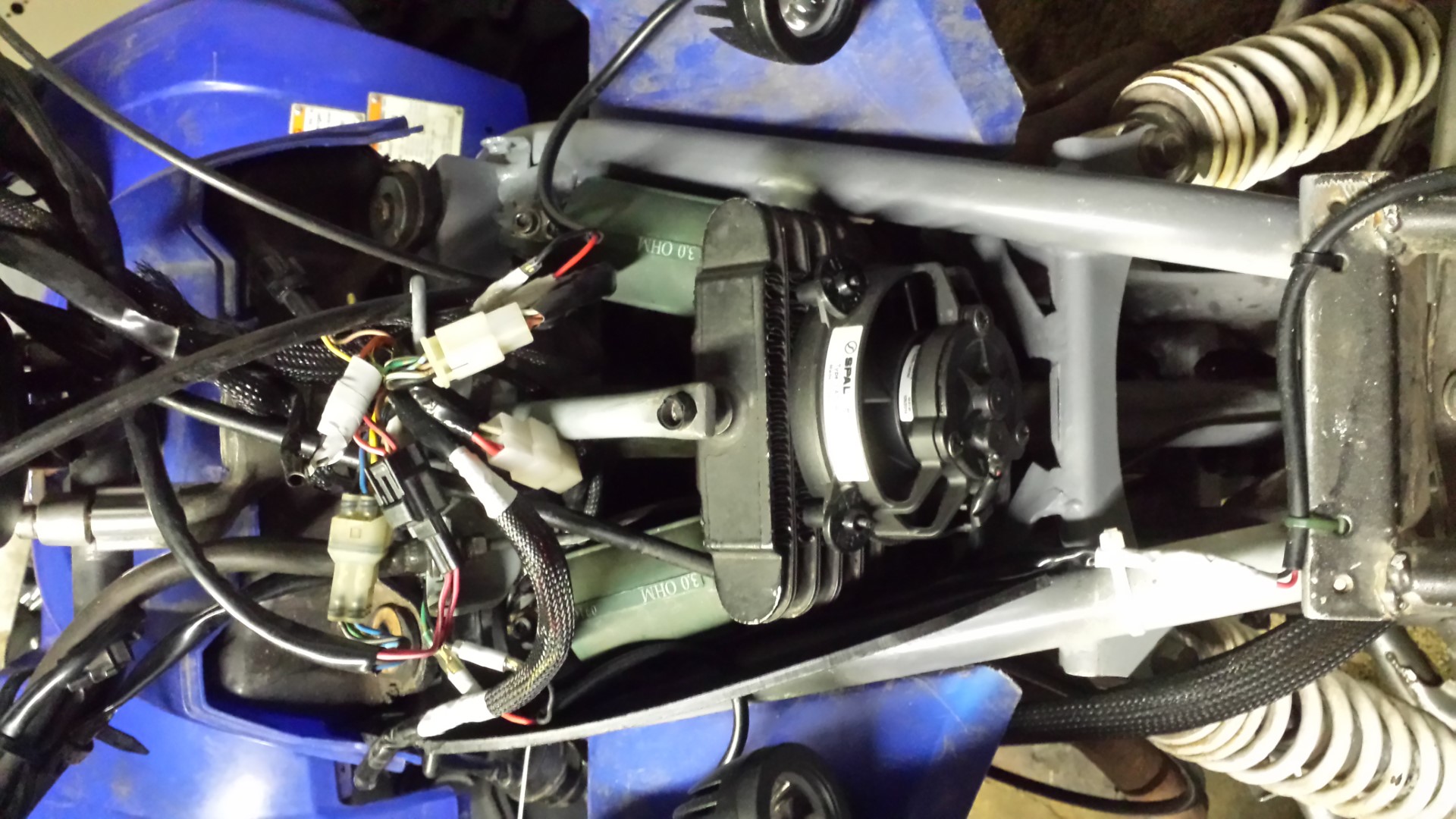

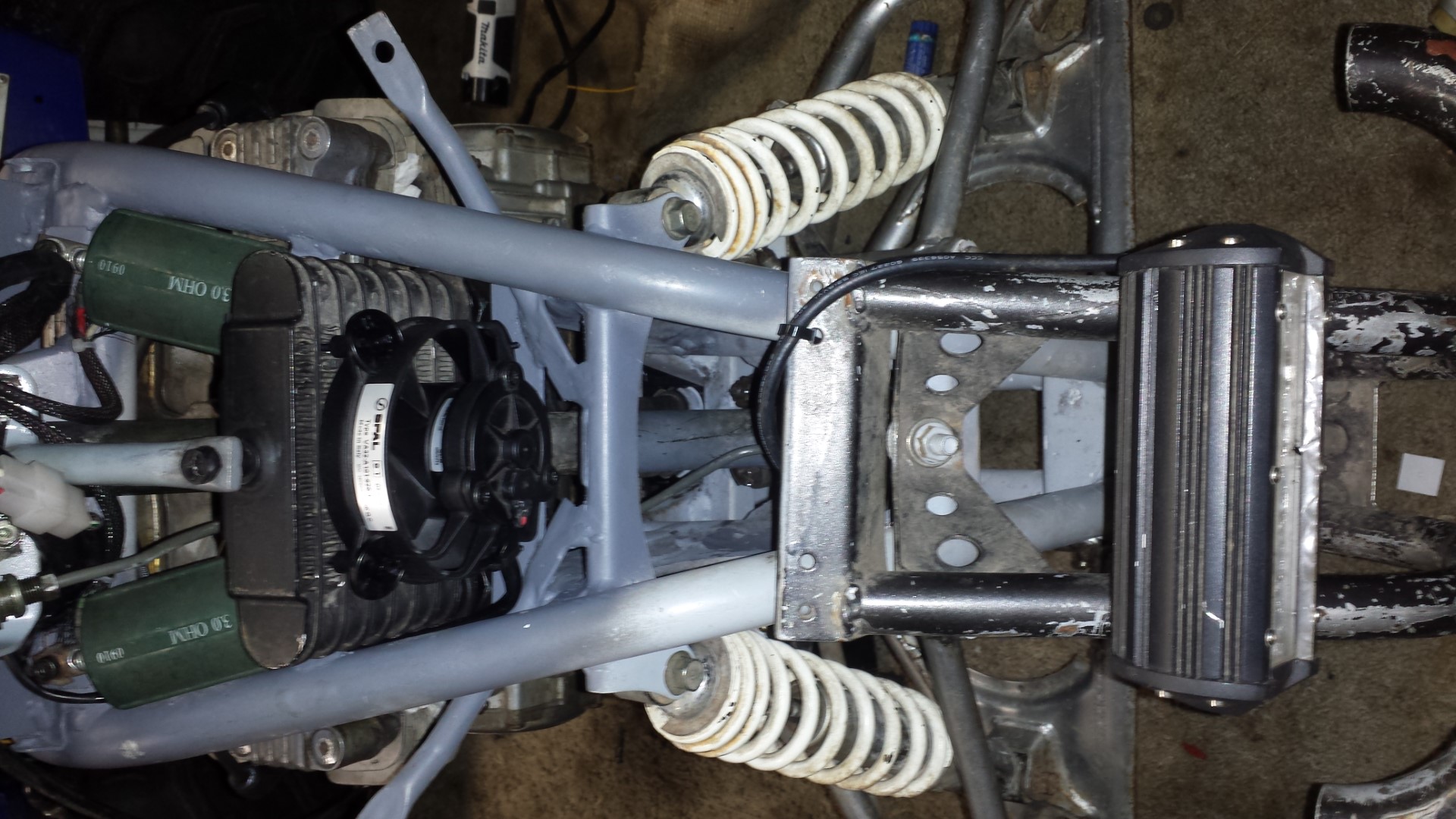

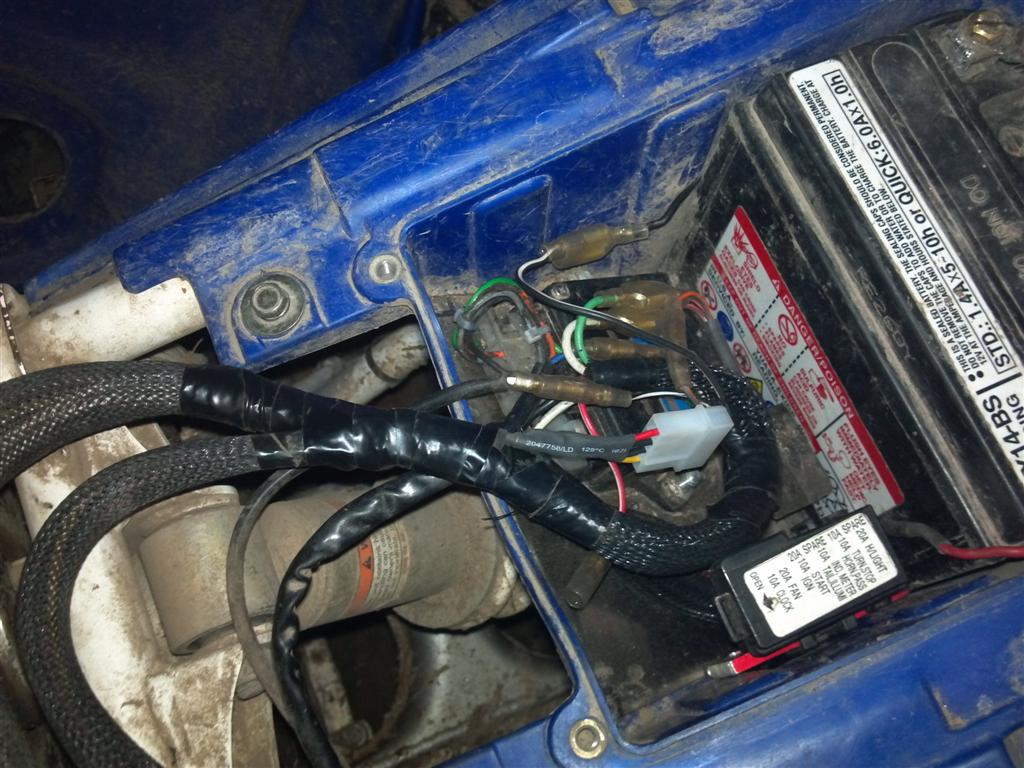

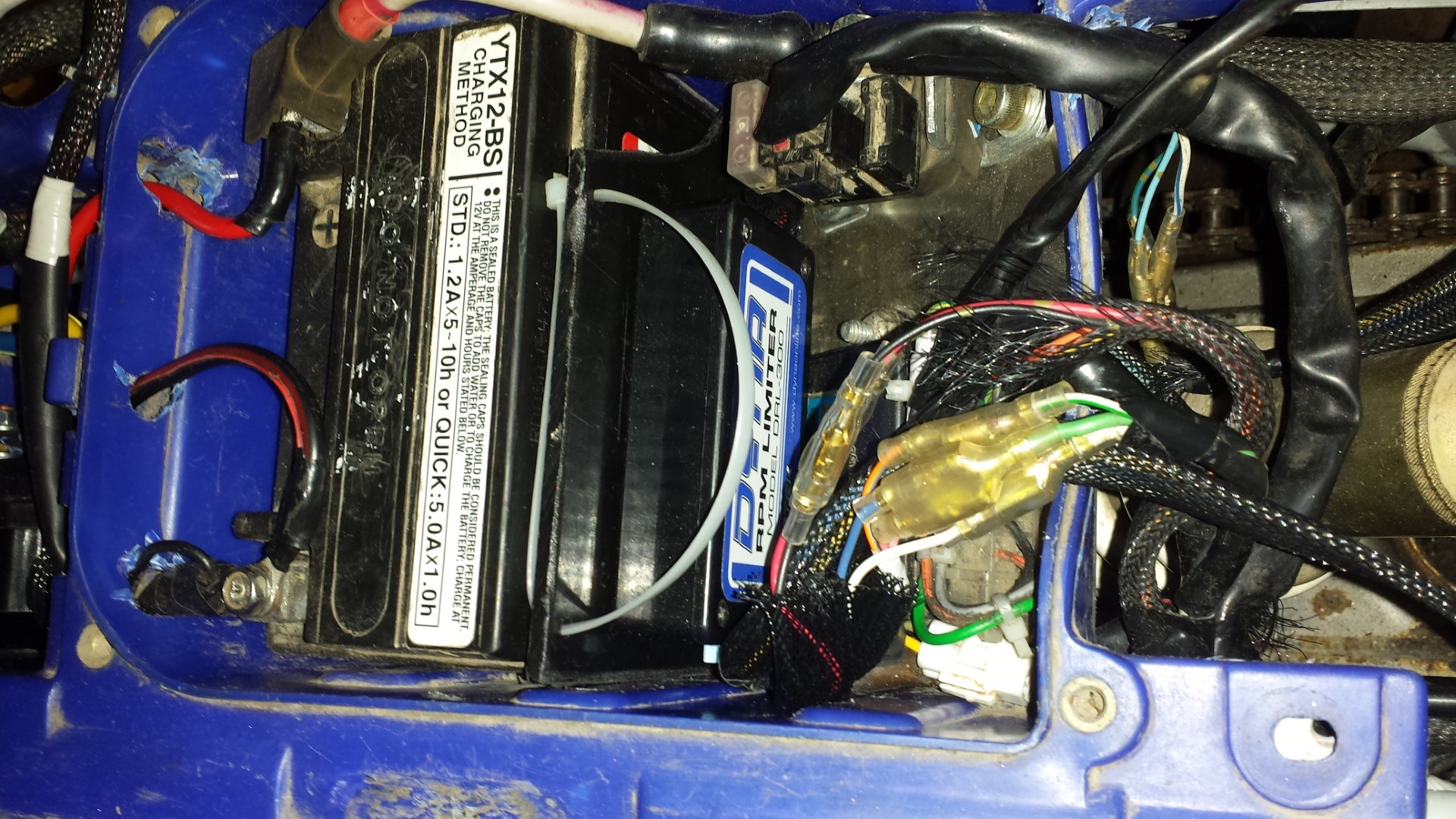

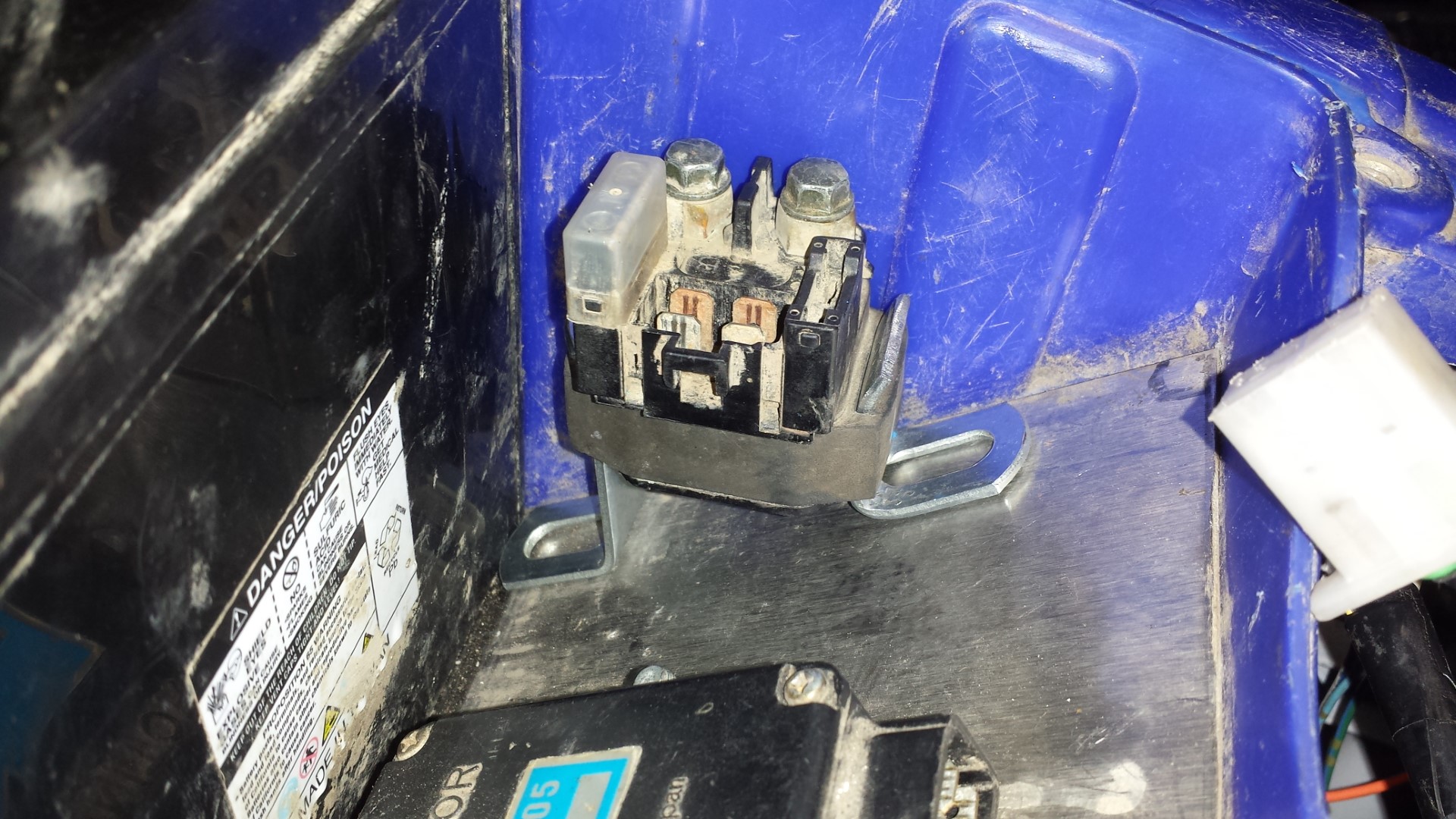

    I finished the wiring tonight. I mounted the fuse box and also ran the extra wires needed for the clutch switch. I mounted the rev limiter to the underside of the cover. I don't think I could fit anything else in that airbox.

    [​IMG]

    [​IMG]

    [​IMG]

  2. blasterBruce

    blasterBruce New Member

    Joined:
    May 13, 2008
    Messages:
    2,296
    Likes Received:
    13
    Trophy Points:
    0
    Location:
    Griffin Ga
    Alright time to check back in here with some updates !! Want to see a Riding vid of that bad boy !

  3. Longview

    Longview Member

    Joined:
    Mar 16, 2012
    Messages:
    1,073
    Likes Received:
    18
    Trophy Points:
    43
    Location:
    Attleboro, Massachusetts
    x2

    15151515151515

  4. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin
    I do plan to add a larger cooling fan. A fan off a R1 or R6. The motor gets a little grumpy after an hour of riding. I'll just keep an extra battery with my truck so I can run the fan full blast for 10-15 mins between rides.

  5. blasterBruce

    blasterBruce New Member

    Joined:
    May 13, 2008
    Messages:
    2,296
    Likes Received:
    13
    Trophy Points:
    0
    Location:
    Griffin Ga
    That Don't Sound Bad , I Know that Suzuki Quads had Fans on there oil Cooler I Believe , Maybe you could Adapt Something similar so you wont have to carry a second battery !

  6. turbowrenchhead

    turbowrenchhead New Member

    Joined:
    Jul 13, 2011
    Messages:
    402
    Likes Received:
    9
    Trophy Points:
    23
    I bought a +4 swing arm off of ebay, been running it a year and lots of jumps, no problems. The construction of the part looks like quality to me.


  7. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin

    Due to the massive forward weight of the motor (and me :D ), it's pretty easy to keep the front end down. It would look pretty cool though. I plan to weld the VIN number onto the frame and call this done. I:I


    Any other changes would be bolt-on. If we have a normal winter I may install a ski kit and studded tires. The river becomes 6+ miles of state trail when it's frozen.

  8. Chuckie25

    Chuckie25 Member

    Joined:
    Jul 25, 2012
    Messages:
    210
    Likes Received:
    3
    Trophy Points:
    49
    Occupation:
    Atv mechanic and aspiring 2-stroke builder
    Location:
    Louisiana
    Man this is a SWEET build!! The cleanest conversion I've seen so far (we do have a really clean one going on over on QRHQ with a GSXR1000 though but it isn't anywhere close to finished). Ride videos man ride videos!!! I just spent the past hour reading your thread and now it's 12:47am so I think I deserve them LOL

  9. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin

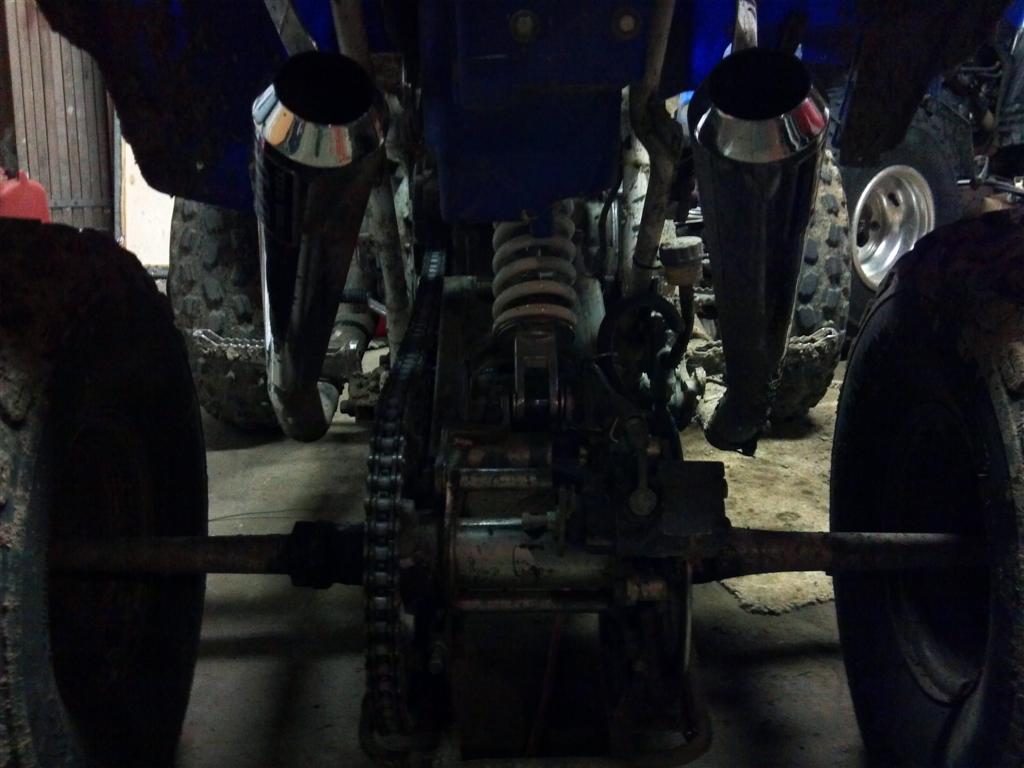

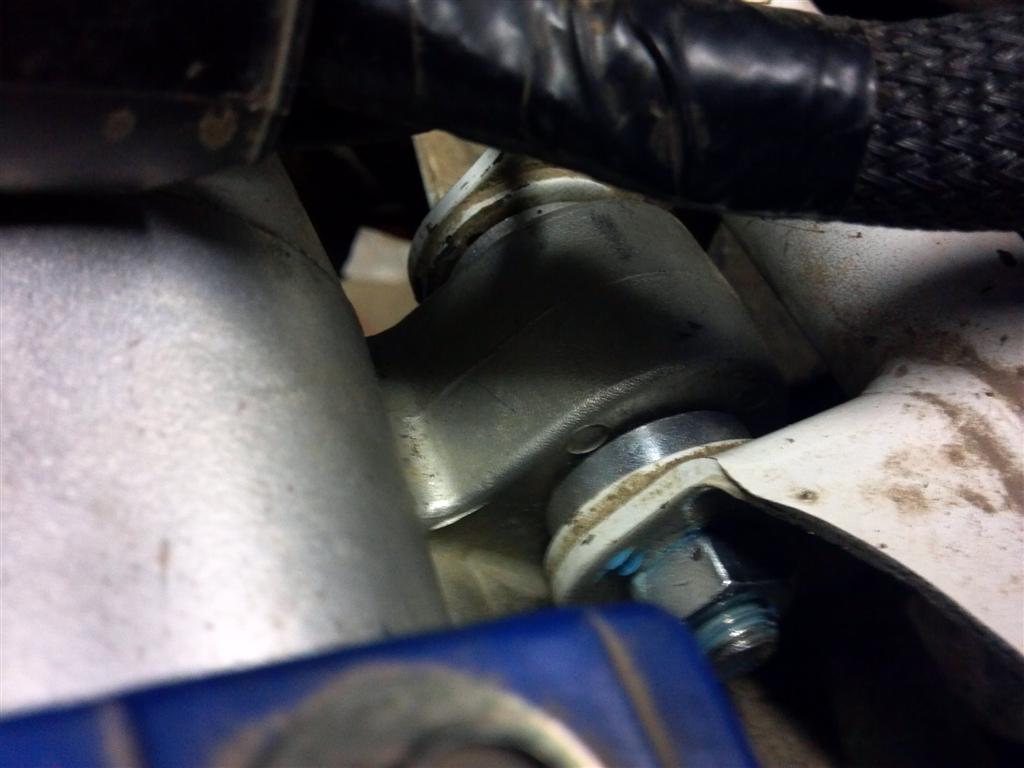

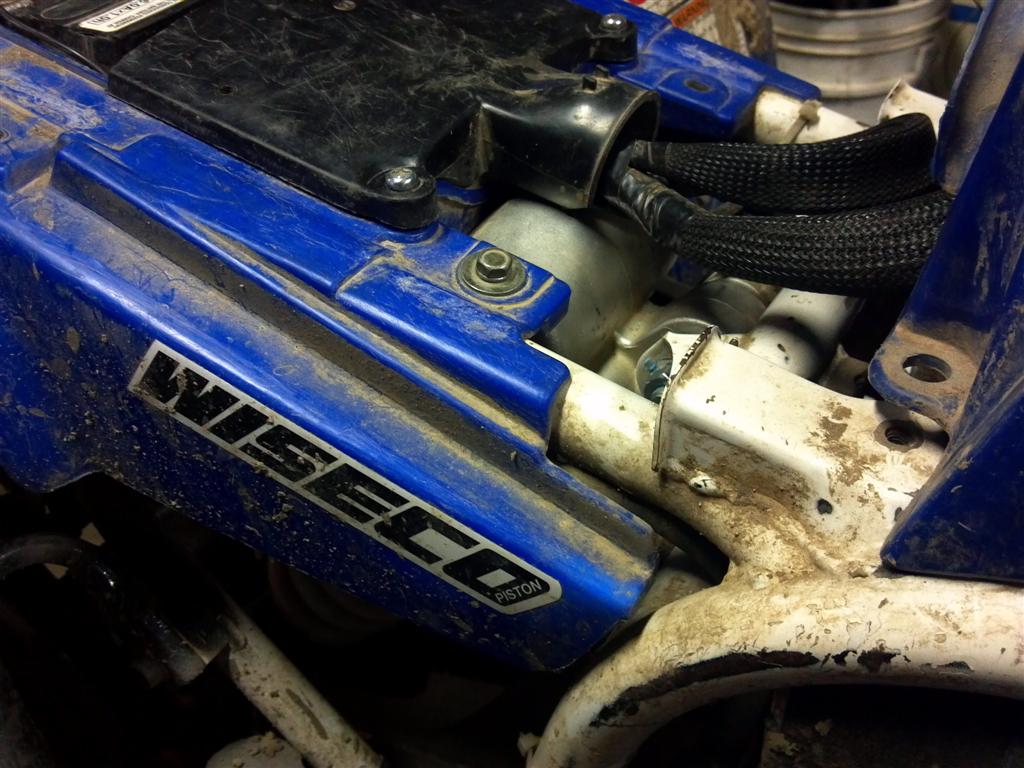

    Installed a 05 LTZ400 shock using a set of Ken Oconnor bushings. Everything seems to clear pretty well.

    [​IMG]

    [​IMG]

    [​IMG]

  10. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin

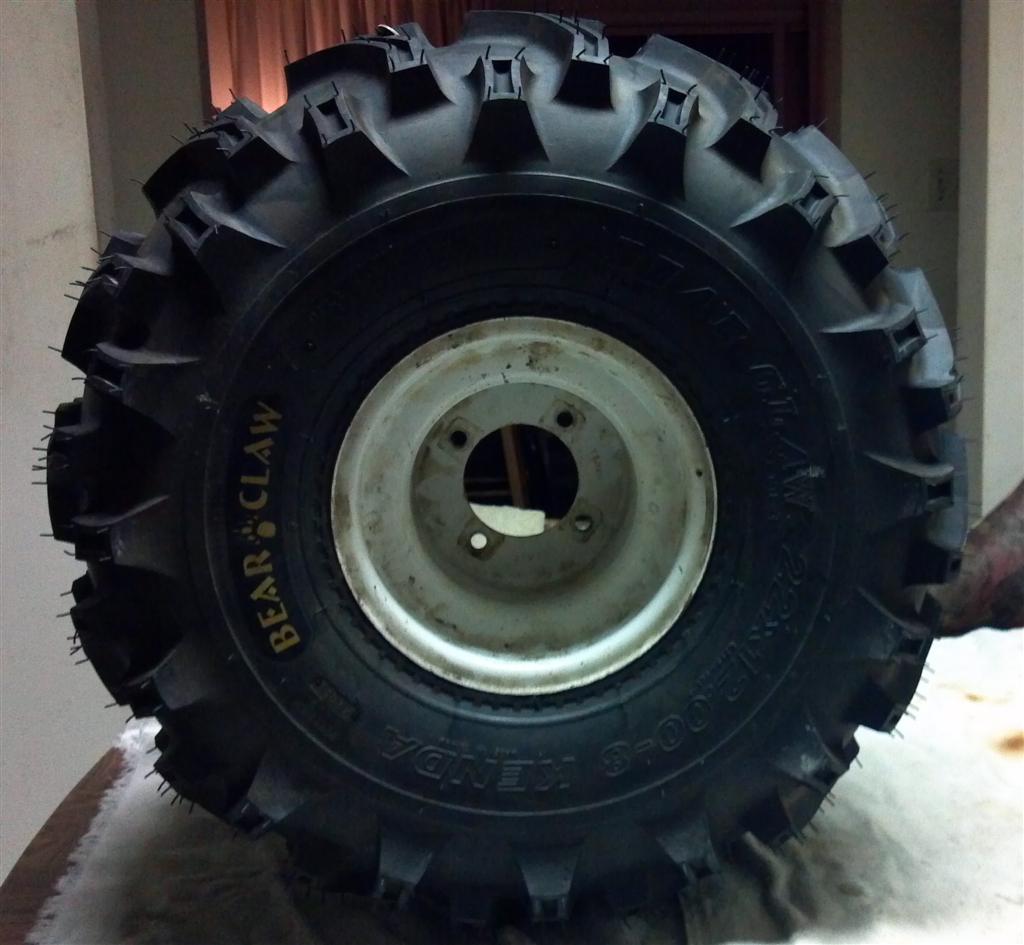

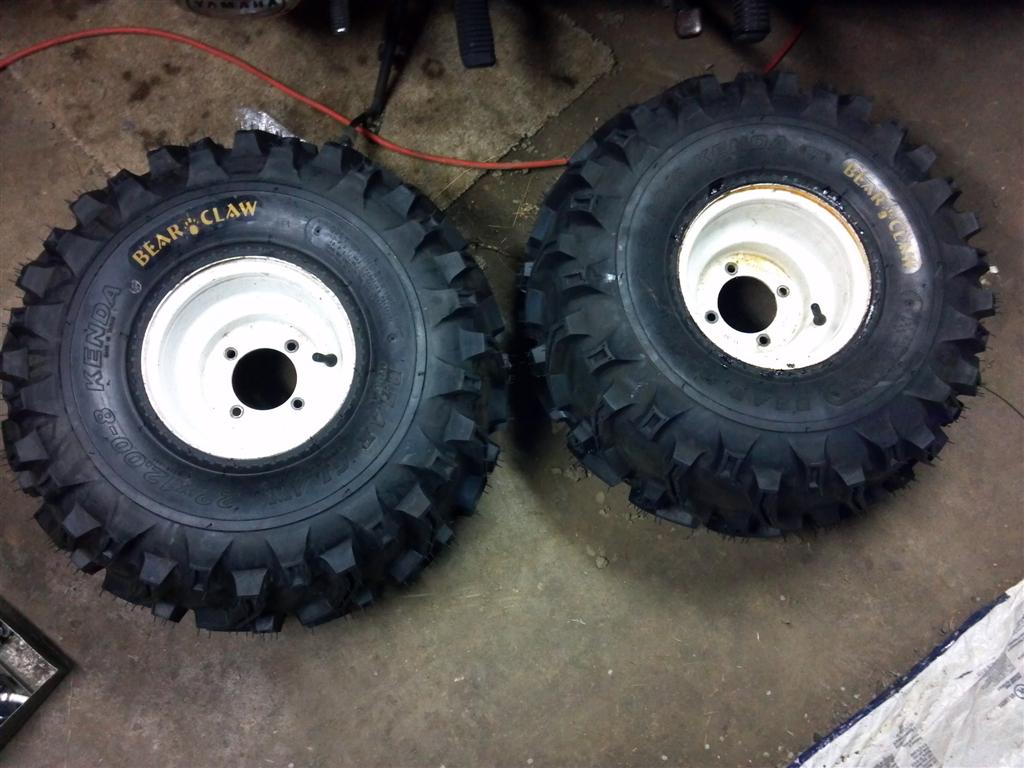

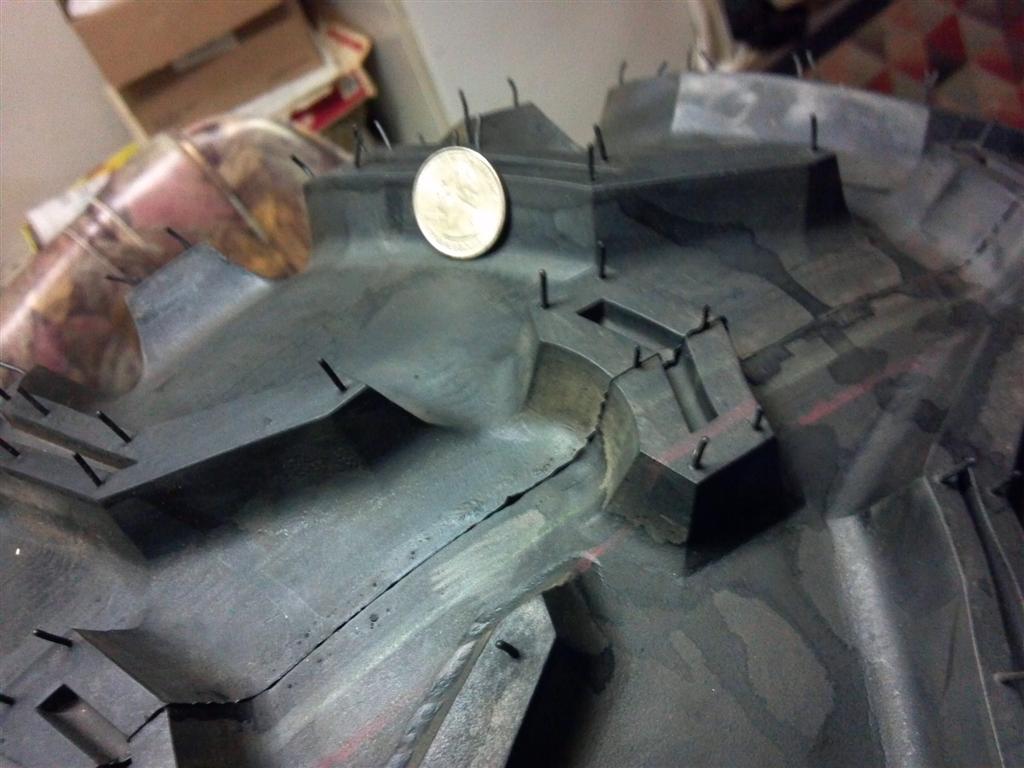

    Some new tires to help out in the mud/snow.

    [​IMG]

    [​IMG]

    [​IMG]

  11. frankin blaster

    frankin blaster New Member

    Joined:
    Aug 14, 2012
    Messages:
    370
    Likes Received:
    4
    Trophy Points:
    0
    Occupation:
    office clerk
    Location:
    weirton wv
    that is one bad machine good job bud

  12. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin
    Thanks.

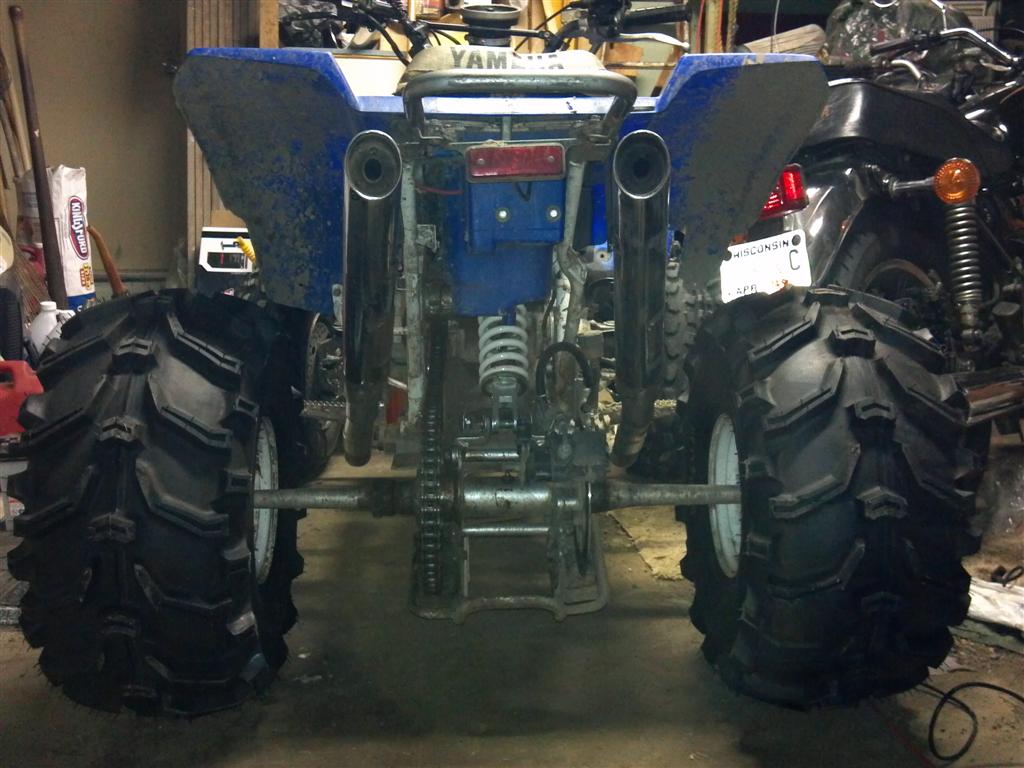

    Got the wheels on the quad now.

    [​IMG]

  13. 89blaster89

    89blaster89 Member

    Joined:
    Aug 26, 2011
    Messages:
    4,742
    Likes Received:
    24
    Trophy Points:
    80
    Location:
    Pacific northwest, washington
    wow get a vid now!! that thing will throw a huge roost i bet!!!!!:)

  14. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin
    Haven't posted on the old Blaster forum for a few months. My 550 blaster had it's third birthday this summer so I thought I would post some updates.

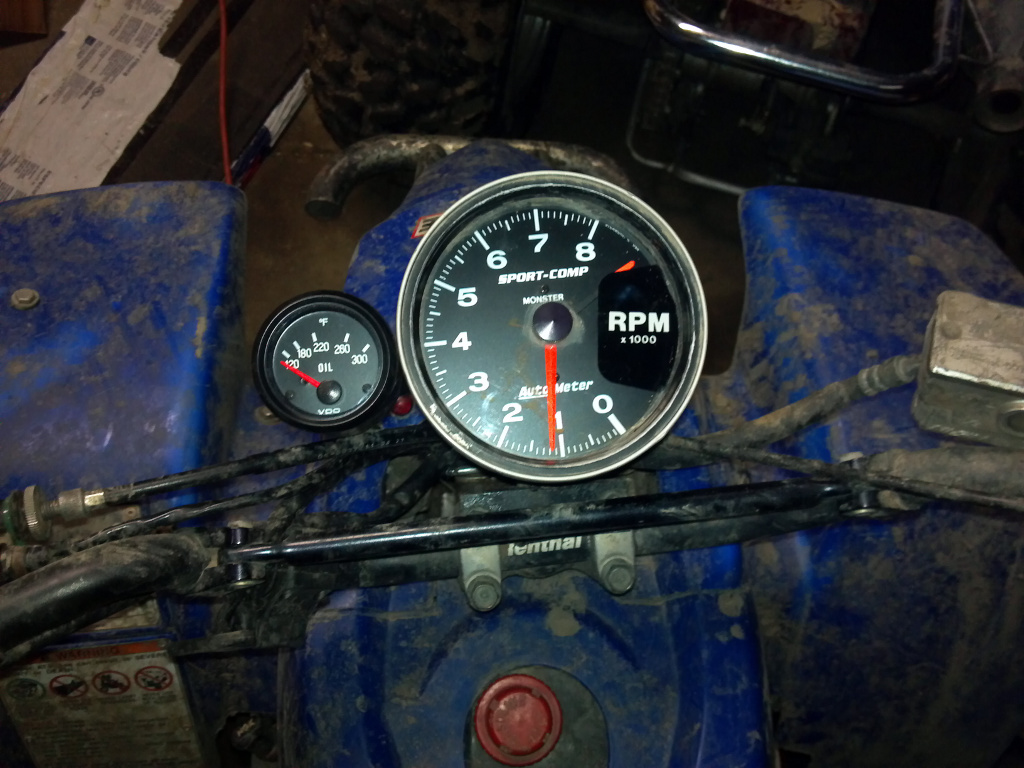

    It now has an oil temp gauge next to the tach.
    [​IMG]


    Also, the topic of "usability" comes up a lot with swaps like this. With that in mind, I edited up a quick video showing how it rides. I tried not to make it too boring.


    Last edited by a moderator: Feb 6, 2014
  15. turbowrenchhead

    turbowrenchhead New Member

    Joined:
    Jul 13, 2011
    Messages:
    402
    Likes Received:
    9
    Trophy Points:
    23
    What is the top speed on that thing?

  16. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin
    I haven't had enough room to take it up to full speed. On paper its around 100mph with the 50 tooth rear. It has a 6 speed. I picked that motor due to its physical size/shape.. its not going to be anywhere near an R6 or CBR600, but it is just about right for that small frame.

  17. 79xs

    79xs Member

    Joined:
    Jul 21, 2010
    Messages:
    203
    Likes Received:
    8
    Trophy Points:
    54
    Occupation:
    Network engineer
    Location:
    Southeast Wisconsin
    8 Year update.

    Added a oil cooler. The cooler is off a 1983 XJ650 Turbo. The lines and oil filter housing are from a 1985 FJ600. No hose clamps or custom lines, all OEM parts matched to make this a bolt-in.

    [​IMG]

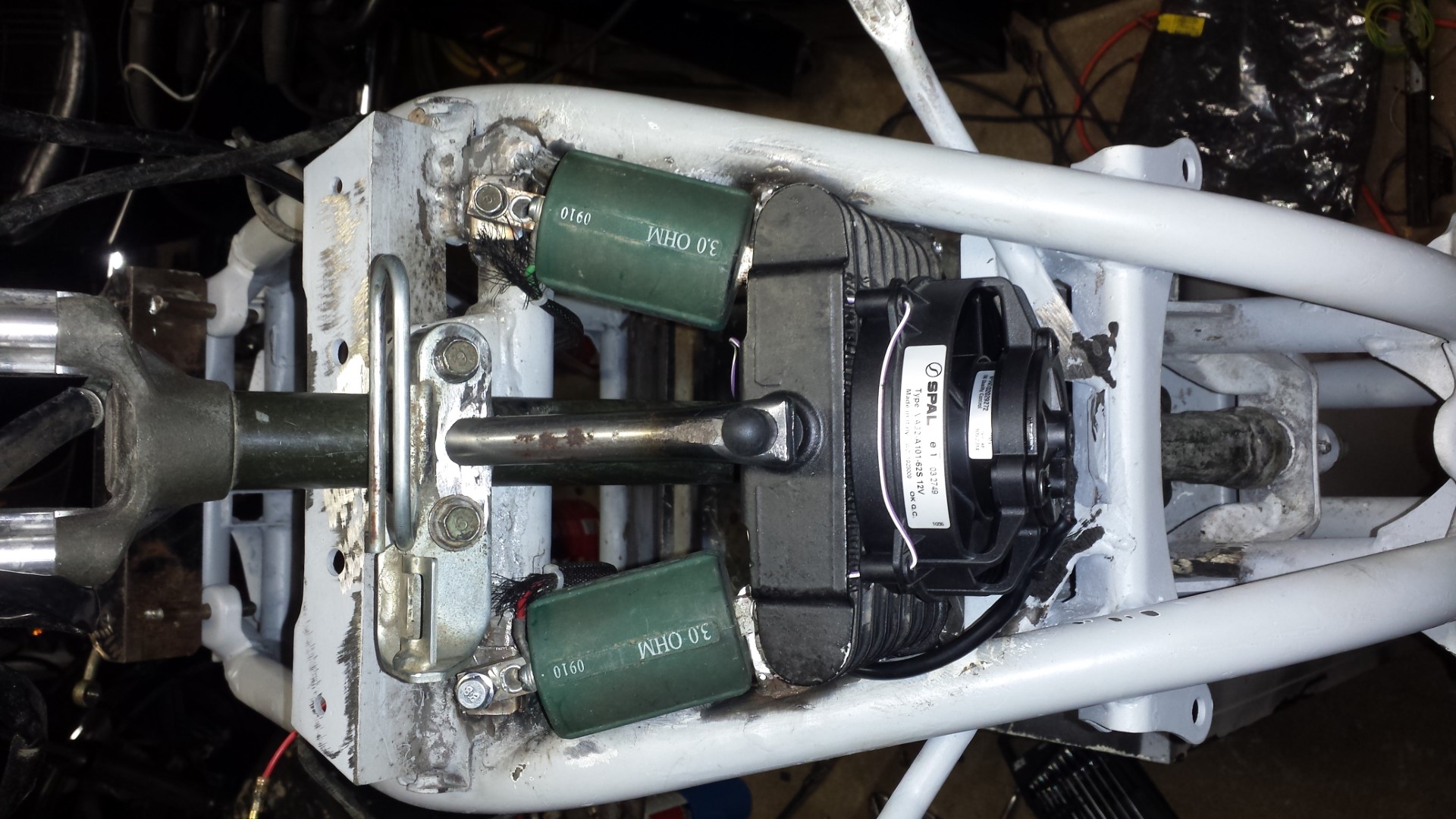

    Dyna coil mounts. The wires exit the bottom of the coils.
    [​IMG]



    Sealed NGK plug caps. I had a issue with water/mud causing miss-fires when using standard resistor caps.

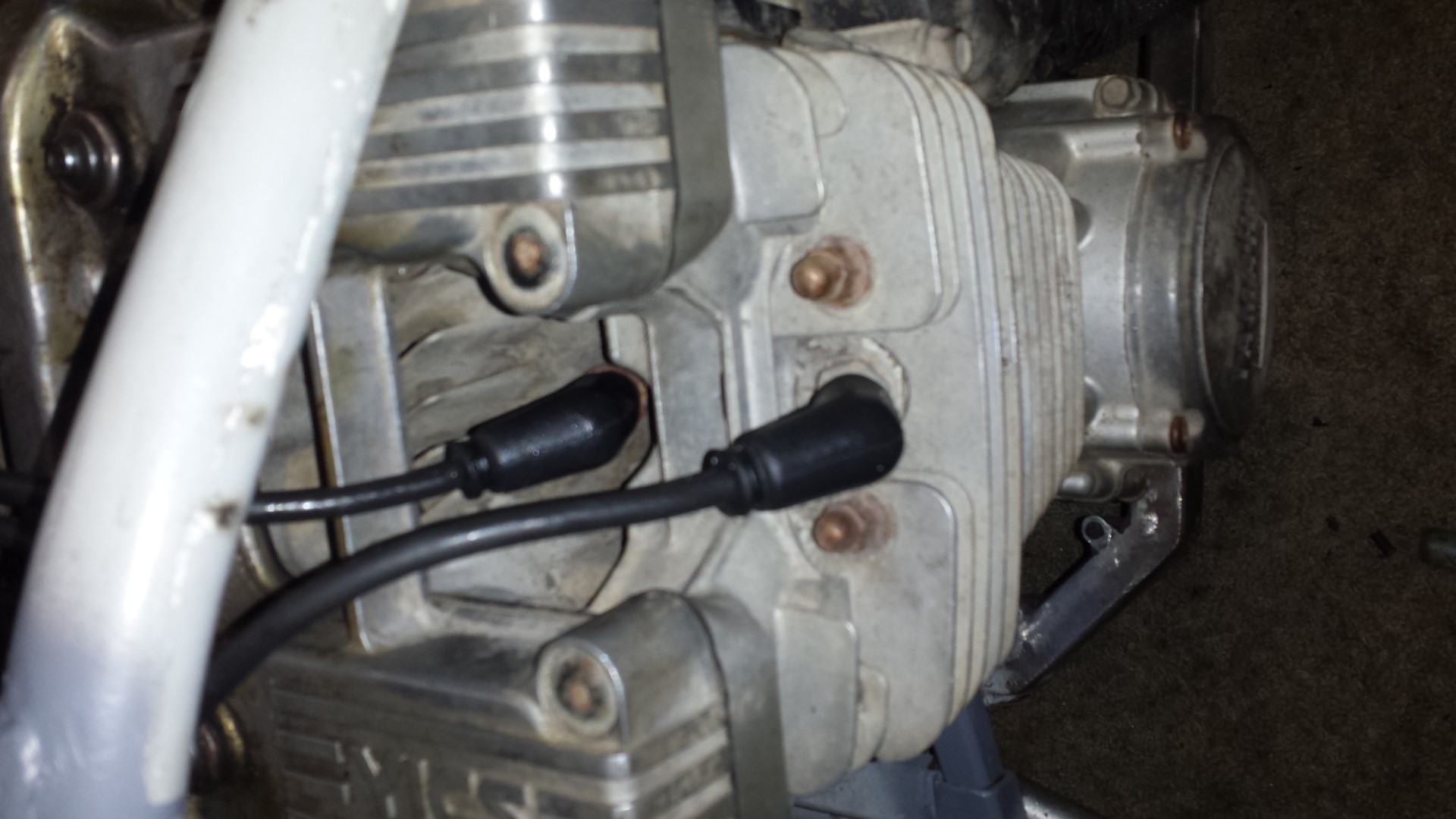

    [​IMG]



    Starting with a Raptor 660 harness, I made a complete new harness that uses OEM style sealed connections along with metric bullet connectors.

    [​IMG]

    [​IMG]

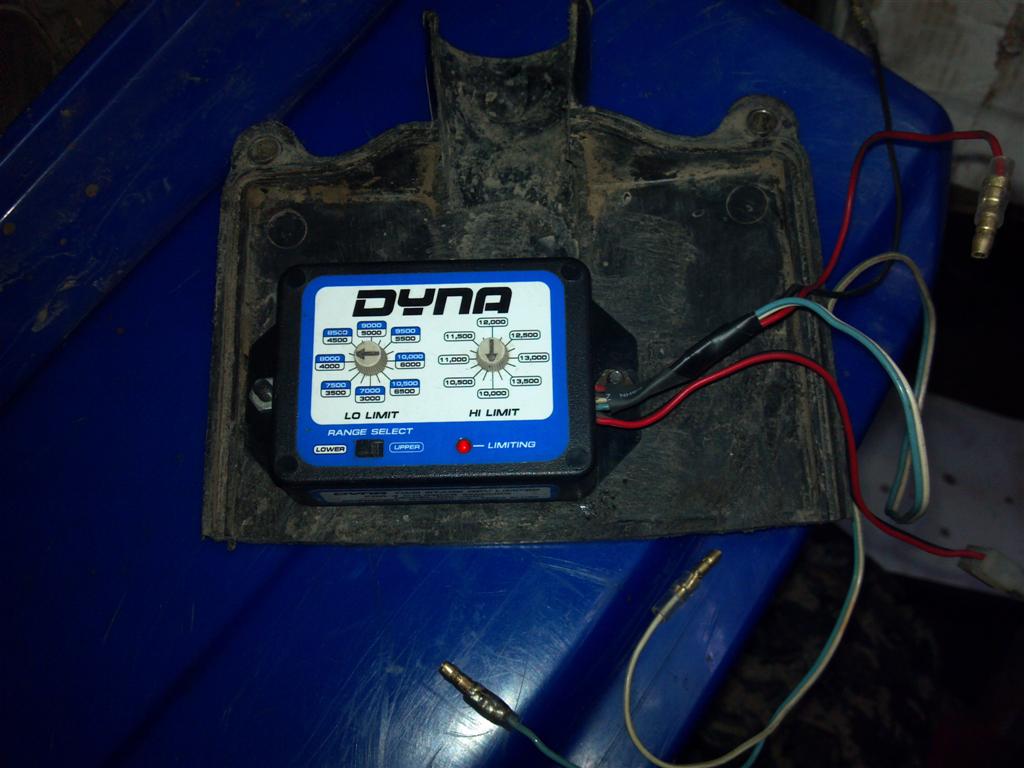

    Dyna rev limiter for that nice sound. The zip tie is used to pull the plastic plate out of the box. I swap between a standard rev limiter and launch control, depending on the mood.

    [​IMG]

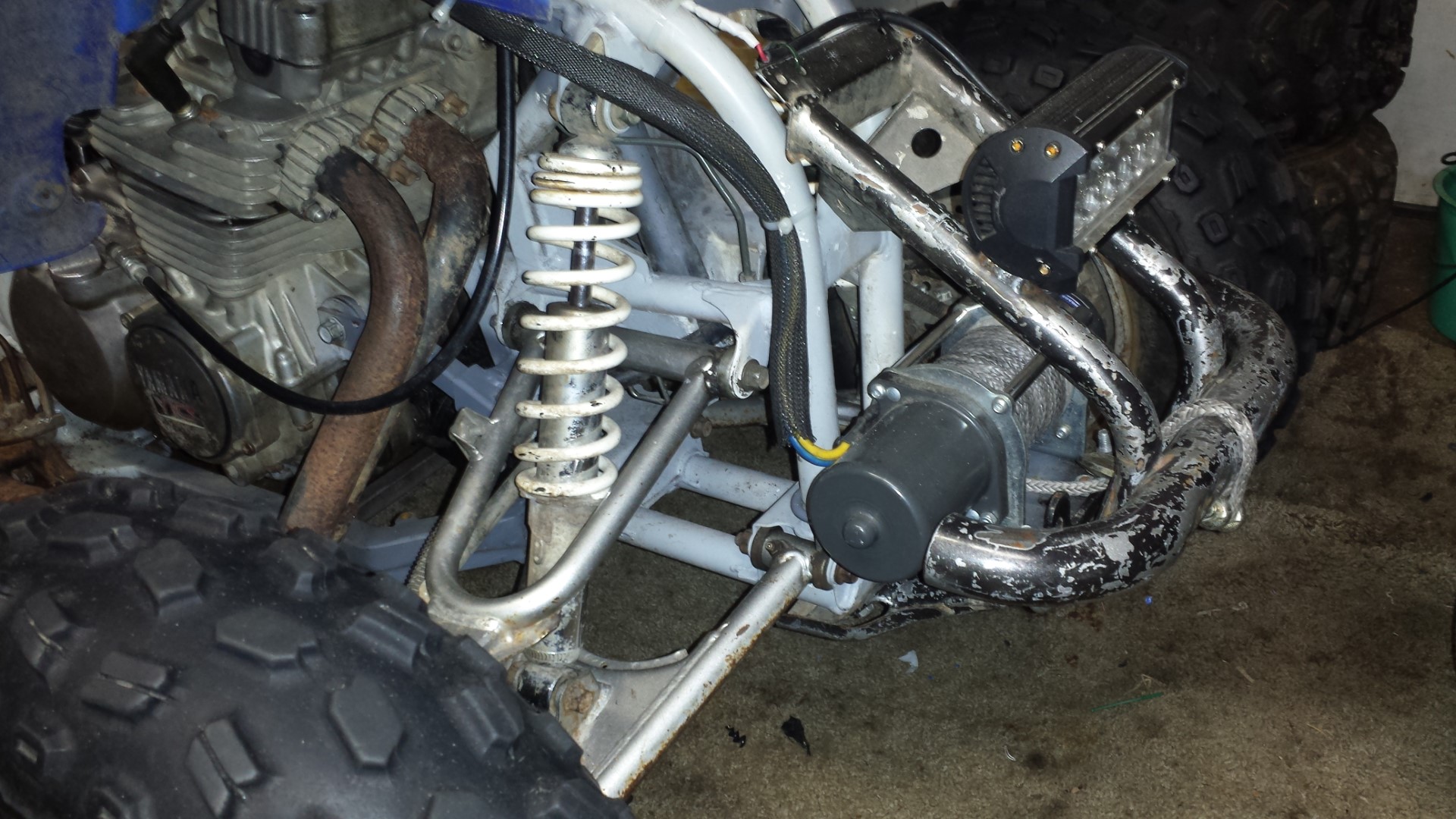

    Winch.
    [​IMG]

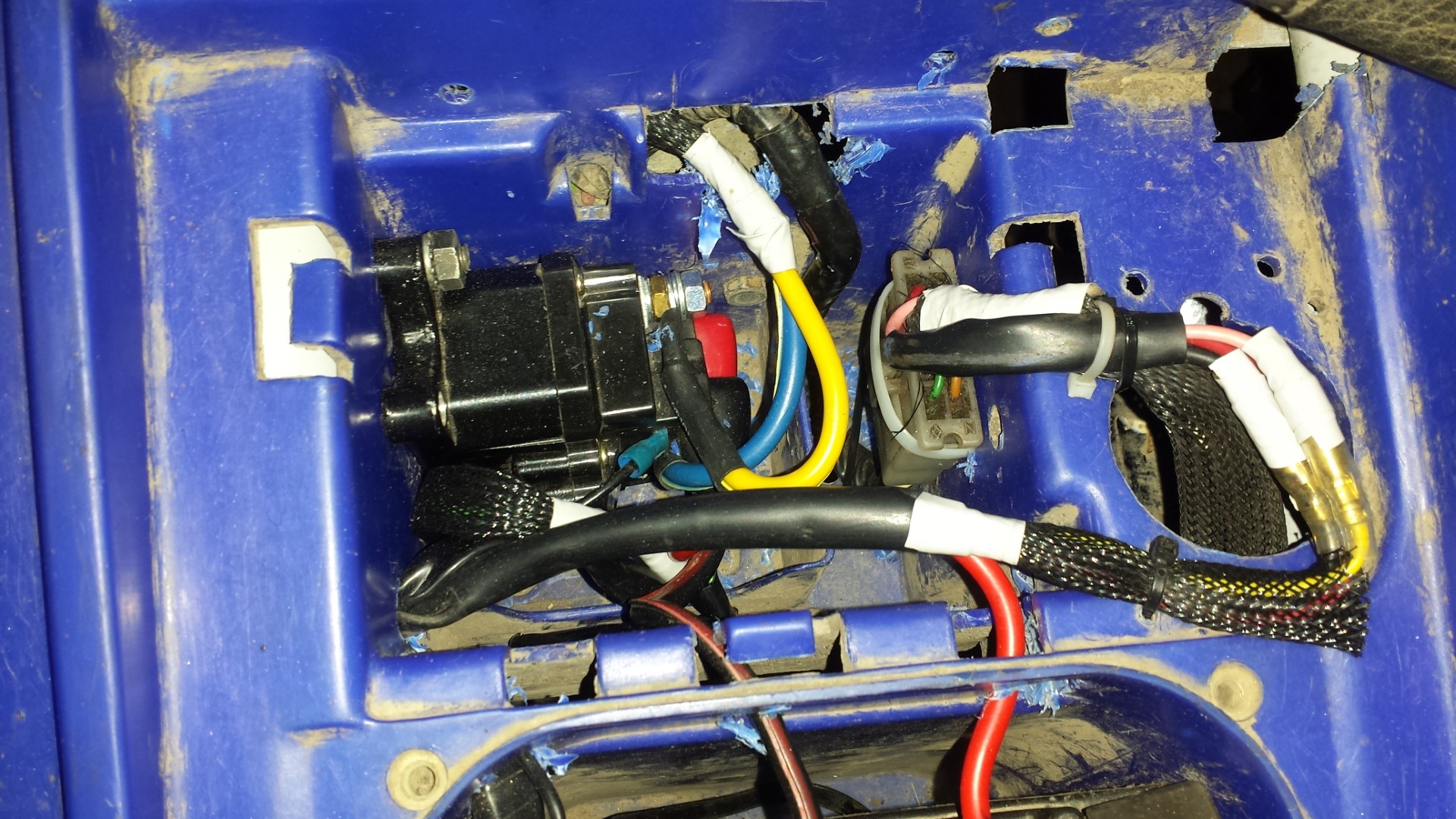

    Winch wiring is located in the rear, just behind where the stock air box would be.
    [​IMG]

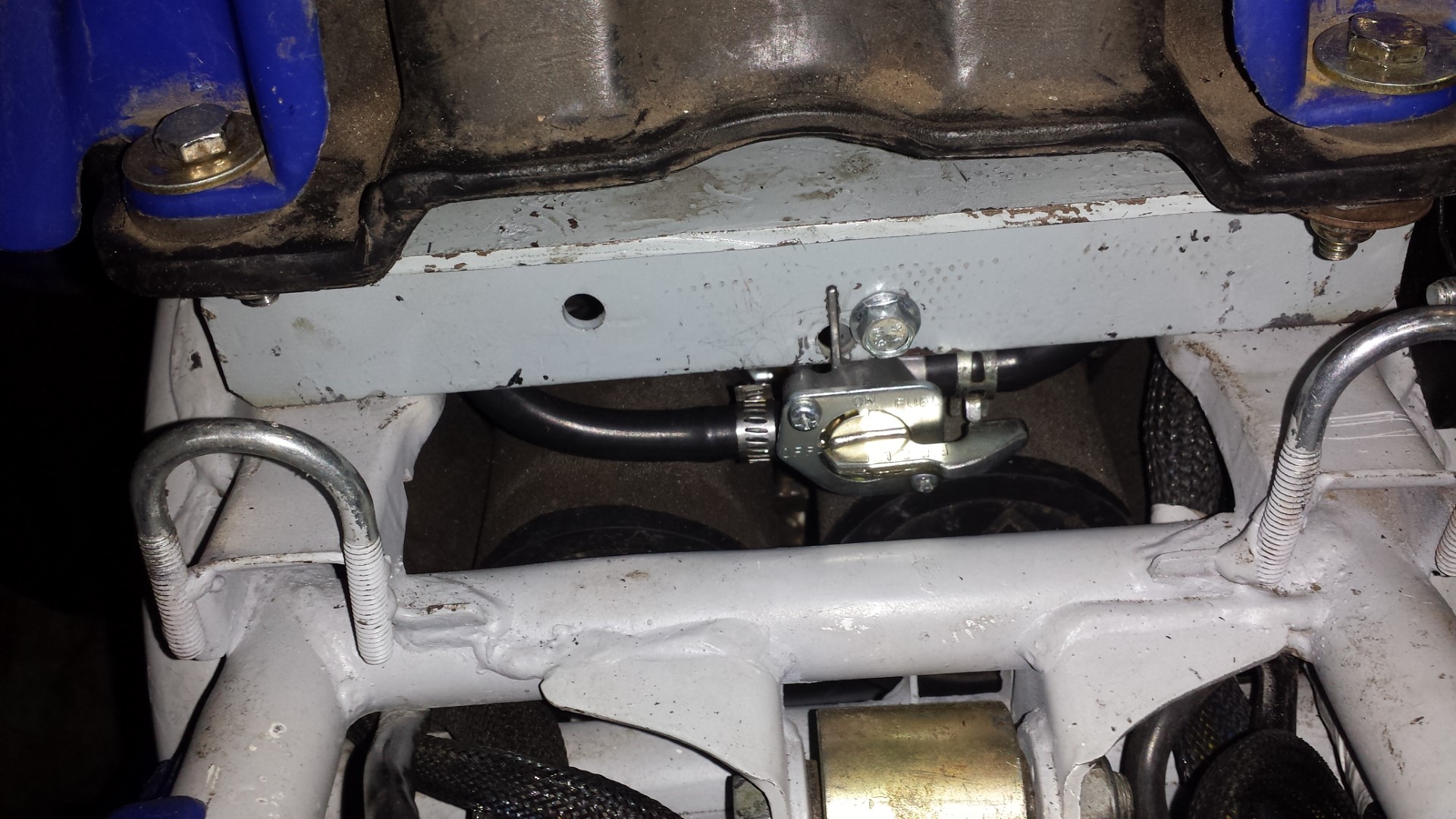

    The stock petcock is hard to reach since the tank is raised a few inches. I added a remote petcock under the tank, just in front of the seat. The U-bolts are a temp fix for the front seat mounts. The seat mounts up higher to match the tank.
    [​IMG]

    Awk08 likes this.
