custom air box

[mud runner]

thanks for the advice iv ben up at my grandparents for the past few days ill start back on it again today



[mud runner]

ok i just about got the bottom part cut out ill have pics up when i get it welded



[mud runner]

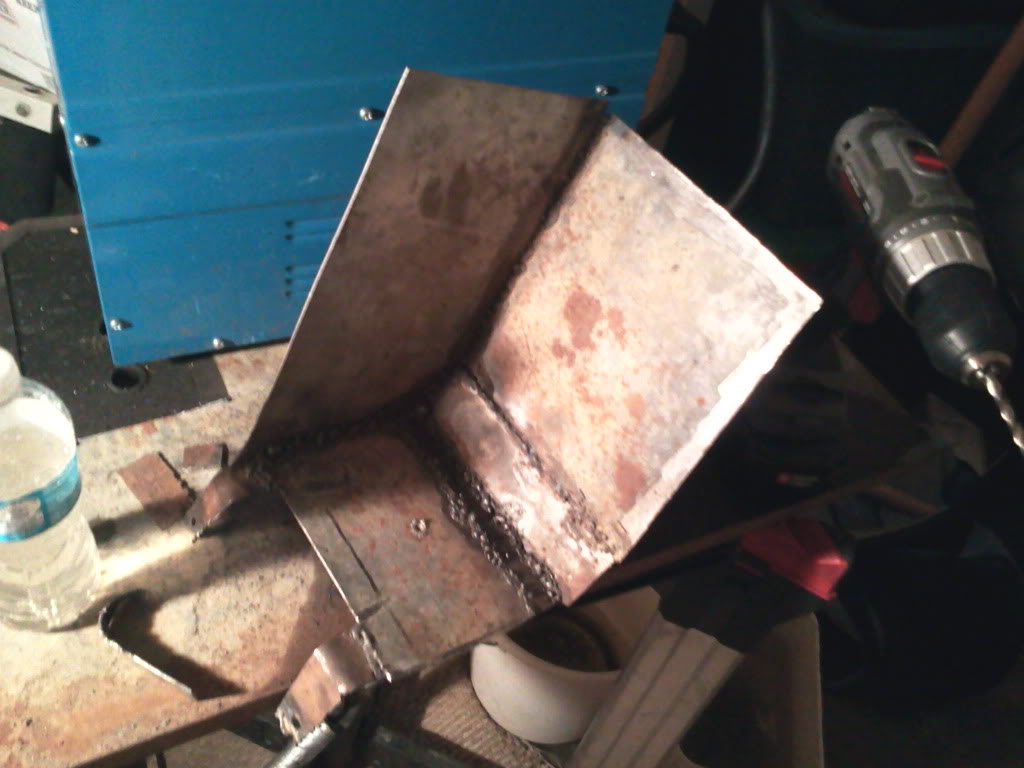

here it is



[Longview]

oh turn ur voltage up some...... if it adjusts which i would hope it would

I have the same welder, it's almost made just for tacks, it's impossible to bead with it I wouldn't even try what he's doing.



[mud runner]

I have the same welder, it's almost made just for tacks, it's impossible to bead with it I wouldn't even try what he's doing.

i think that is what this is for but i got a pretty good bead going after i got it down to bare metal



[Blaaster]

Are you pushing the handpiece toward the work or are you dragging it long.

Conventional welding demands that you keep the weld pool behind the electrode.

Mig welding works better if you feed the wire into the weld pool trying to push it.



[mud runner]

Are you pushing the handpiece toward the work or are you dragging it long.

Conventional welding demands that you keep the weld pool behind the electrode.

Mig welding works better if you feed the wire into the weld pool trying to push it.

i guess iv been draging it but ill try feeding wire i to the weld pool



[Blaaster]

run a grinding disk over them and reweld, turn the heat up a little and push the handpiece rather than drag it.

The idea is to burn a little and fill the void with filler wire.

. .



[mud runner]

Run a grinding disk over them and reweld, turn the heat up a little and push the handpiece rather than drag it.

The idea is to burn a little and fill the void with filler wire.

QUOTE]

ok i cant turn the heat up the only ajustment is for the wire feed



[Blaaster]

Slow the speed a little.



[mud runner]

and i have a question should i run a lid foe the box or no lid and if i do any ideas on what it should look like



[mud runner]

Slow the speed a little.

iv got it set at 3 1/2



[Blaaster]

If you do water you will need a lid, if not leave it open, but bear in mind there will be a difference of 2 main jet sizes.



[mud runner]

If you do water you will need a lid, if not leave it open, but bear in mind there will be a difference of 2 main jet sizes.

what diffrences will this have to jetting



[mud runner]

i got the other side cut out ill weld it on tomorrow and then all i will have to do is make the back piece



[mud runner]

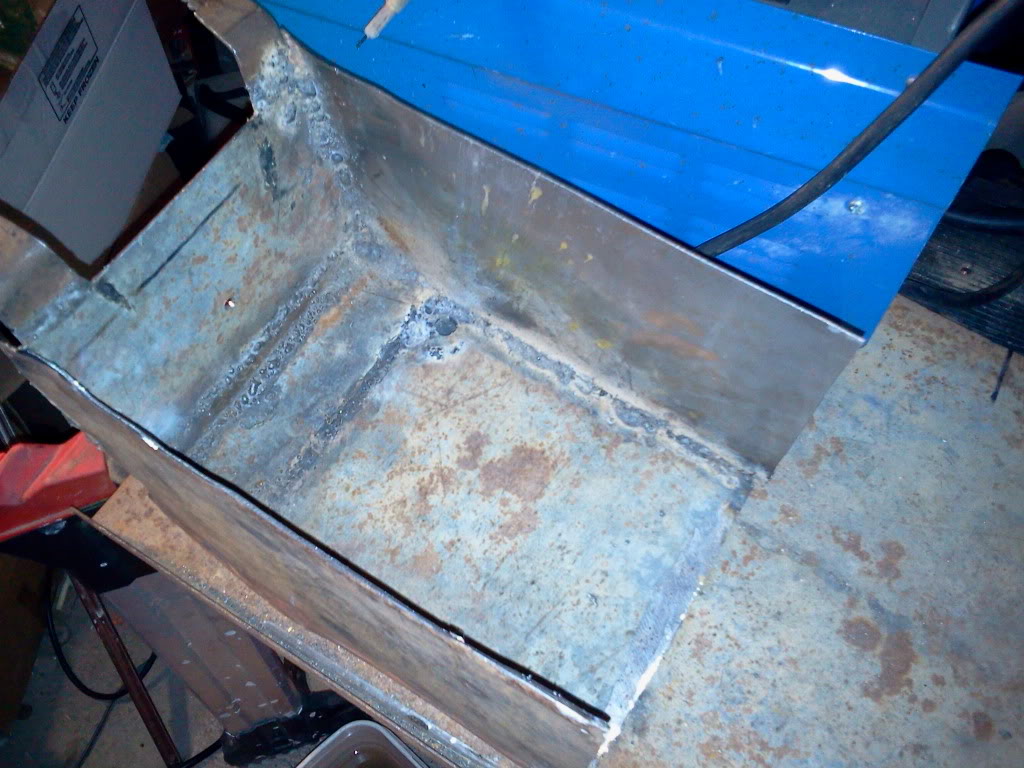

ok i got the other side welded on and im cutting the back out now



[mud runner]

ok i started makeing a drain plug for it ill have pics up tomorrow



[mud runner]



[gizzy2014]

coming along nicely.

did u clean that metal with grinder before welding it??????



[mud runner]

ya and im grind theoutside welds down now
