Clutch conical spring washer

[J4M1E333]

im having a nitemare trying to locate the part above,

i recently overhauled my clutch and when i took it apart it didnt have one, how important are these?
and does anyone know where i can locate one over here in the uk?

even better could someone take a picture of it, or link me to a picture of one so i can get some sort of idea what it looks like a link for them for sale or any help and rep will be given!! I:I



[lasxgames]

Clutch Primary Drive Gear Conical Spring Washer Details

Conical spring washer on the right side of the crankshaft that holds the primary drive gear on.

1.Remove the right side foot rest, kick crank, crankcase cover, gaskets and dowel pins.
2. Remove:
bolts
clutch springs
pressure plates
friction plates
clutch plates
nut (clutch boss) then lock washer
clutch boss
spacer
clutch housing
spacer
spring washer (conical) pay attn. to how it is installed.
ball
push rod.
This is all in order of the parts will disassemble.
the parts will reassemble in the smae order, make sure to use a lithium soap based grease. Only thing you need to watch out for is ensuring the conical spring washer is installed the right way. It should go wothout saying to always use a new gasket for the crankcase cover as well. Good luck!



[lasxgames]

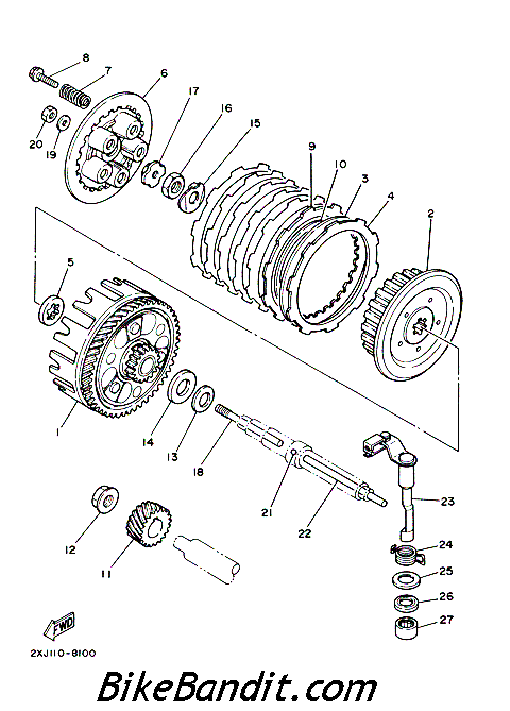

WASHER,CONICAL SPR


1: PRI DRIVEN GEAR
(U49)
36159-001 Enter 0-99 $127.94
2: BOSS,CLUTCH
(U49)
30209-001 Enter 0-99 $44.30

3:
PLATE,CLUTCH 1
(U49)
14127-001 Enter 0-99 $9.58

4:
PLATE,FRICTION
(USA)
40508-001 Enter 0-99 $7.67

5:
PLATE,THRUST 1
(U49)
25476-001 Enter 0-99 $14.97

6:
PLATE,PRESSURE 1
(U49)
30208-001 Enter 0-99 $28.25

7:
SPRING,COMPRESSION
(U49)
354353-001 Enter 0-99 $4.76 8:
BOLT,WITH WASHER
(U49)
344365-001 Enter 0-99 $1.02

9:
PLATE,FRICTION 2
(U49)
10729-001 Enter 0-99 $15.18

10:
SPRING,CLUTCH BOSS
(U49)
10731-001 Enter 0-99 $26.97

11:
GEAR,PRI DRIVE
(22T)
47160-001 Enter 0-99 $35.52

12:
NUT,SPEC'L SHAPE
(U49)
346211-001 Enter 0-99 $9.79

13:
WASHER,CONICAL SPR
(U49)
347960-001 Enter 0-99 $5.10

14:
WASHER,PLATE
(U49)
347375-001 Enter 0-99 $2.84

15:
WASHER,LOCK
(U49)
348310-001 Enter 0-99 $3.20

16:
NUT,HEXAGON
(U49)
345694-001 Enter 0-99 $8.39

17:
PLATE,PUSH
(U49)
14241-001 Enter 0-99 $7.07

18:
ROD, PUSH 1
(U49)
14239-001 Enter 0-99 $5.95

19:
WASHER (6TA)
,(USA)
676-001 Enter 0-99 $0.56

20:
NUT (6TA)
(USA)
363294-001 Enter 0-99 $1.62

21:
BALL 3/16
(5PA1)
360994-001 Enter 0-99 $0.29

22:
ROD,PUSH 2
(U49)
23601-001 Enter 0-99 $6.66

23:
PUSH LEVER ASSY
(U49)
30210-001 Enter 0-99 $51.18

24:
SPRING,TORSION
(U49)
355164-001 Enter 0-99 $3.48

25:
WASHER,PLATE
(U49)
347211-001 Enter 0-99 $2.24

26:
OIL SEAL,SO-TYPE
(U49)
358755-001 Enter 0-99 $5.41

27:
BEARING,CYL.#15
(U49)
360415-001 Enter 0-99 $15.51

CLOSE

Wish Lists
Please sign in here to add to your wish list.





(0 Questions : 0 Answers)
Product Q&A

Ask your questions. Share your answers.



Q&A HOME

BROWSE Q&A

SEARCH Q&A


Be the First to Ask a Question!


Policies & Guidelines



[lasxgames]

2005 Yamaha YFS200T BLASTER OEM Parts, 2005 Yamaha YFS200T BLASTER OEM Motorcycle Parts - BikeBandit.com



[yb200]

WASHER,CONICAL SPR
(U49)
347960-001 Enter 0-99 $5.10 14:

thats what you need #14



[murderedblaster]

If i am just changing plates i don't have to take that off to get the plates off do I... if I don't have to, i rather not...



[lasxgames]

no you don't have to the basket can stay in



[murderedblaster]

lasxgames thats music to my ears!!!!



[sr5bidder]

hell I'm not the only one who was missing the spring washer I ordered from the stealership and its taking awhile (coming from the left coast)



[lasxgames]

we swapped out clutches in 15 min between races



[murderedblaster]

15 min your making me feel confident about these plates



[lasxgames]

take your time though the trick is putting on the side cover with the kick start in the right postion.



[J4M1E333]

thanks for all the reponses guys!!! the only trouble is, bikebandit want 62 dollars to ship to the uk, just for the washer so thats a little steep, anyone have any other suggestions? if someone really wants to help a brother out, could someone take a picture of what it actually looks like? so i can have a stab at finding one from else where!!

im itching to get this thing back together and go and tear it up!! I:I

if things get drastic, YB u fancy getting me one and shipping if i pay you in advance?



[sr5bidder]

do they not have yamaha dealerships in the uk? also I have seen alot of dealers on the net in the uk that deal online



[lasxgames]

send me your address I'll checkout shipping



[J4M1E333]

i'll PM it you, Thanks for helping me out man!! gonna try my hardest to find one tonight if not, ill look into getting it shipped over
