Swingarm lineup

[79xs]

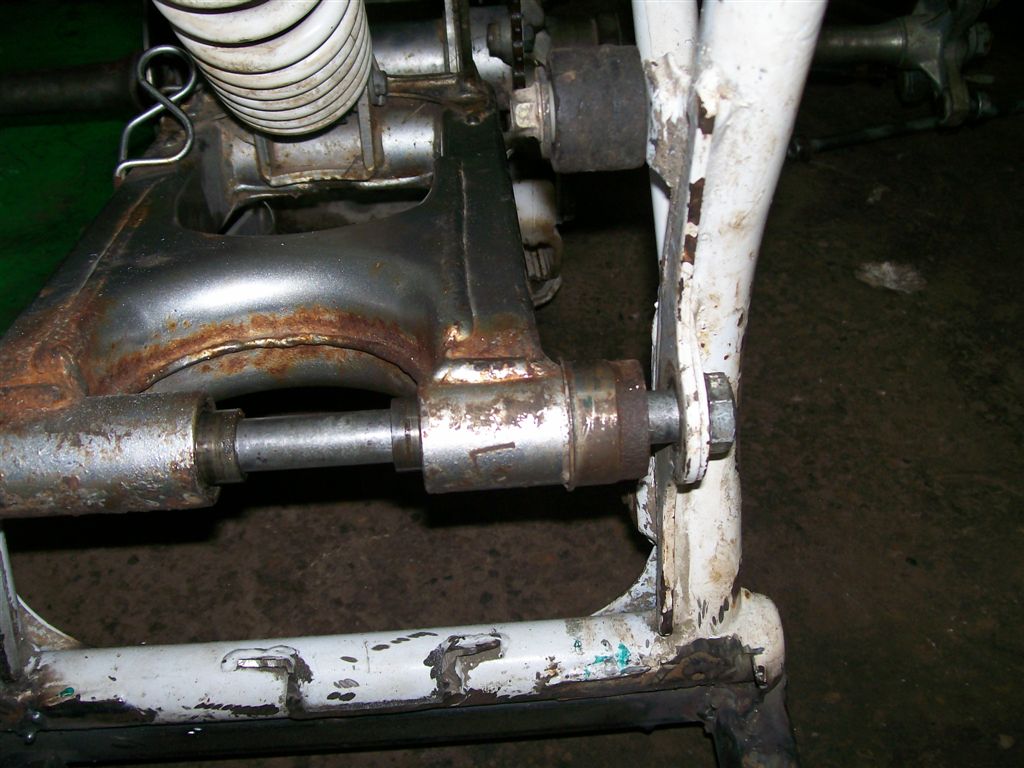

Hellow everyone.... I'm starting a motorswap into a blaster frame. Below I have a picture of my swingarm pivot. I'm missing the seals and endcap for the right side of the atv (when sitting on it) . Am I missing any parts in the picture? (other than the chain guide) I pushed everything to the lef so it was easy to see. I am using this swingarm for my mockup so I want to make sure I line up the chain right. The shock seems to want the swingarm 1/8th of an inch away from the frame mount. Thanks a bunch.



[Blaner]

all seems good, yes the shock is not directly central in the frame and on the swingarm, for some reason yamaha made it offset.



[phragle]

you need to completely forget about what was there and properly line it up with the new motor, sise to side and up and down



[79xs]

you need to completely forget about what was there and properly line it up with the new motor, sise to side and up and down

Yes, i'm doing that but with the motor itself. I am making the motor mounts so that the motor/sprocket will be in the correct location to match the stock swingarm location.



[phragle]

make sure the weight balance is right... you dont want to shift the motor too far to one side or the other.
