Some pics of my rebuild

[BustedassYZ]

Well the engine rebuild vids that got posted make this seem kinda crappy but figured I'd still share anyways. Everything went smooth with no hickups, well I did manage to lose the ball for the clutch actuator rod. After looking around I found a wheel bearing to a scooter that i stole a ball outta, perfect fit. She fired right up after I remembered to turn the kill switch on lol

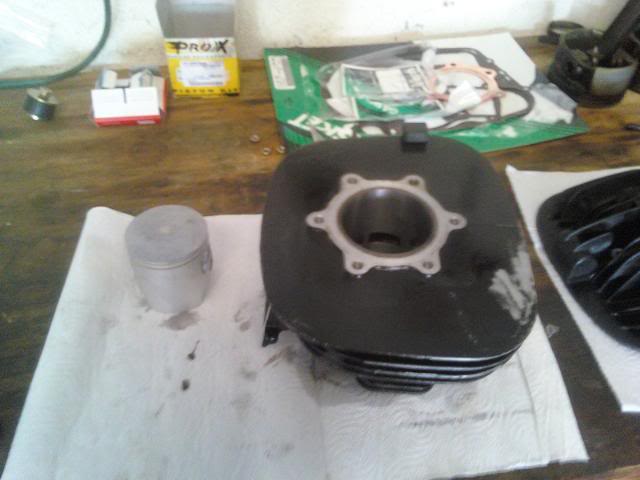

Cylinder and my .30 over piston after machining

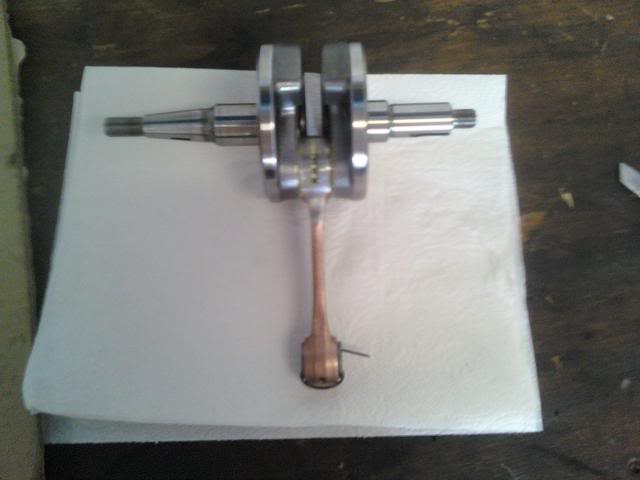

My Crank after I sent it out to Vince at Mr.Crankshaft to get rebuilt, he did an excellent job like always, I highly recommend him. He charges $140 for a blasty Crank.

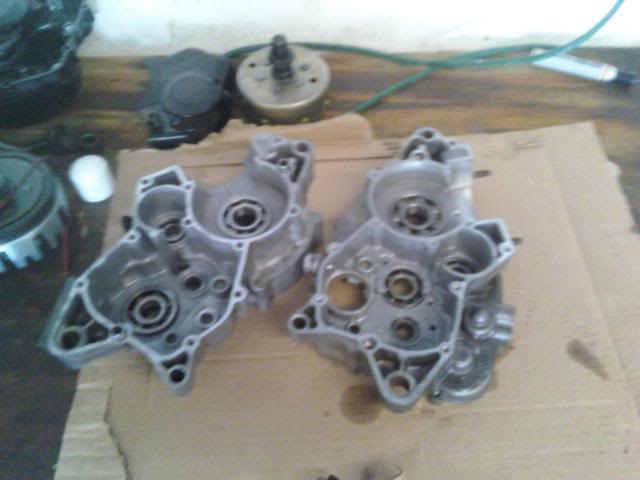

Cases

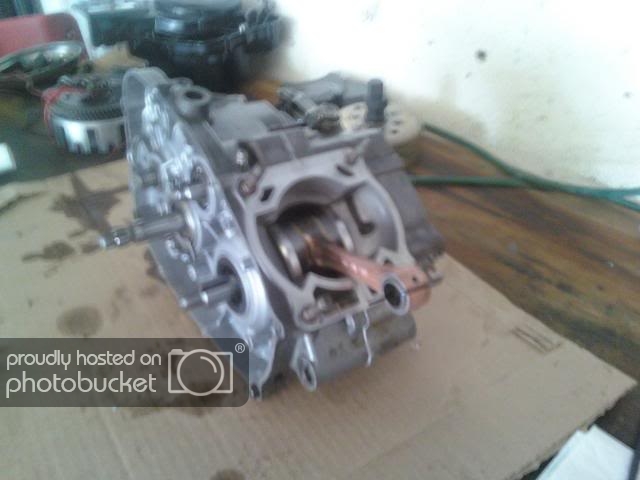

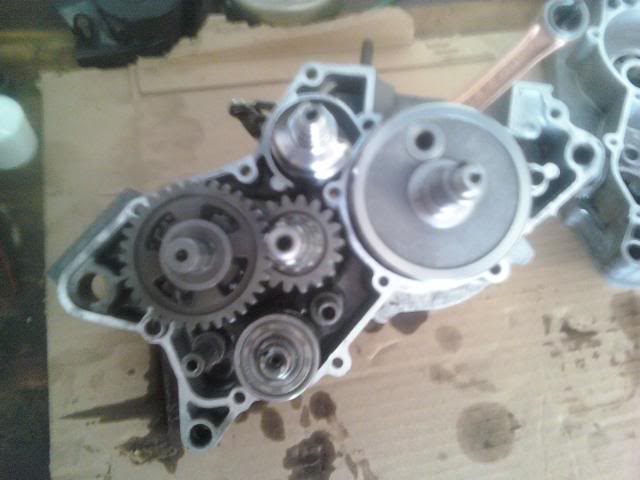

Crank and tranny assembled

Top end installed

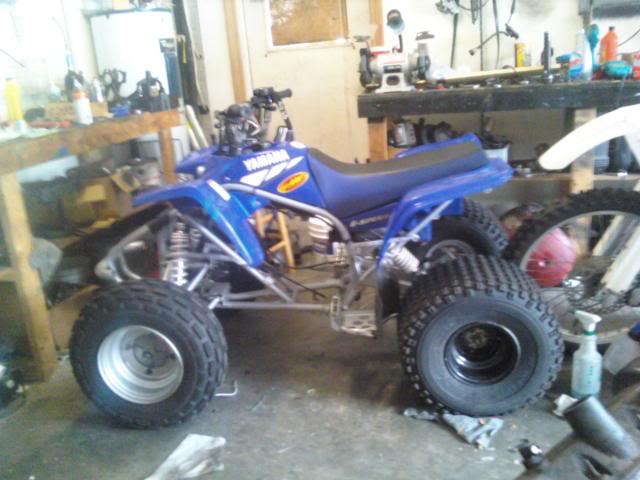

My poor blaster, my YZ is keeping it company

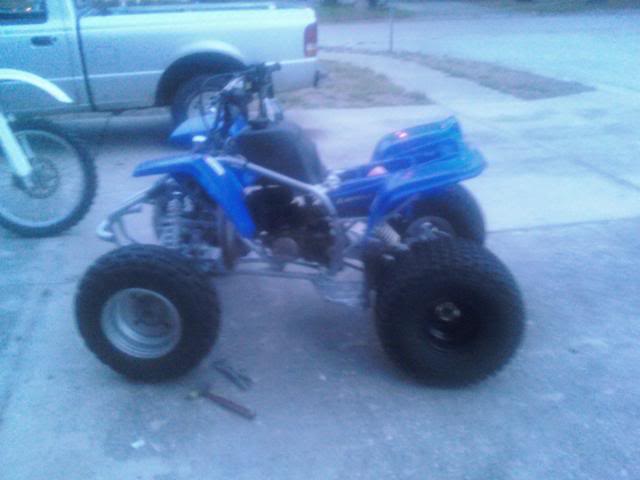

Engine installed and test running it



[speedracinshift]

fun times man most of us have been there before i just built mine and havent even broke it in yet and i am ganna put a 240 kit on mine



[blasterfreek30]

good start man looking good



[brandoz28]

looking good man, they're really not too bad to rebuild



[slickerthanyou]

Cool, looks good! wish I had enough experience to rebuild mine!



[bagds10]

awesome. i am trying to rebuild mine but no funds to buy parts. but ill get her in a while



[BustedassYZ]

Ive Ran a tank of gas through it, it runs alright, not 100% though. It starts first kick and idles perfect, but it kinda breaks up in the midrange. The reed block has a little peice of the rubber missing where the reeds seal. I'm gonna get a new cage and go from there.



[rpriggs]

not bad bro how mmuch u have n motor total?



[BustedassYZ]

Piston kit $85
Main bearings $60
Gasket kit $30
Crank Rebuild $160 with shipping
Machine work $50
Vitos full bolt kit was $40 or something like that.
Yamabond, carb cleaner and other stuff was about $25

So about $450 for being a dumbass....... Man I wish I didn't just add that up, Now I feel bad lol That's more then half of what I paid for the bike to start with.



[earlysummer84]

i dont know clearly about these engines. i guess it's difficult to rebuilt them.
