Raptor 700 Heel Guards

[blowncash]

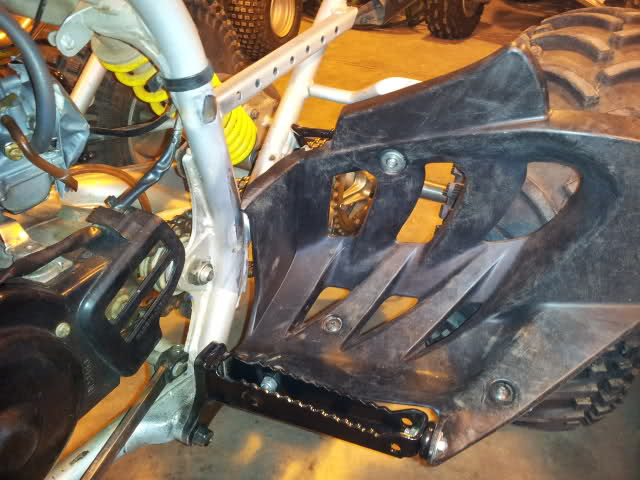

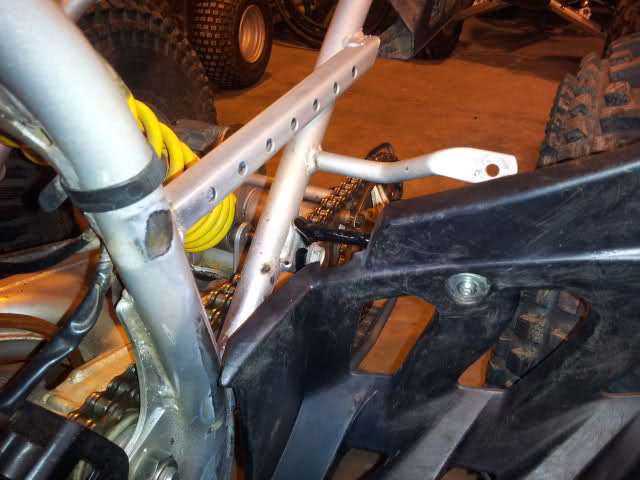

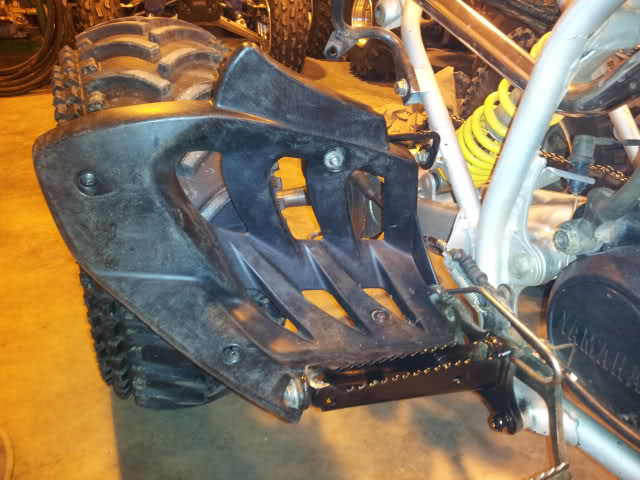

Here are some pictures of my version of mounting the raptor heel guards. I used the factory frame mount pieces . I cut them off and twisted them so they would line up with the heel guard mounting frame and welded in a piece of 5/16 rod. Its very strong and looks almost factory.If you do this ,twist these things slowly (I didnt heat them and that will help)cuz they will break,mine were close to breaking and I welded them back up so no future problems.



[01BLAST3R]

lookin good man great diy!!!



[Awk08]

nice job bro !!!!!



[01BLAST3R]

they look good dont they awk???



[blowncash]

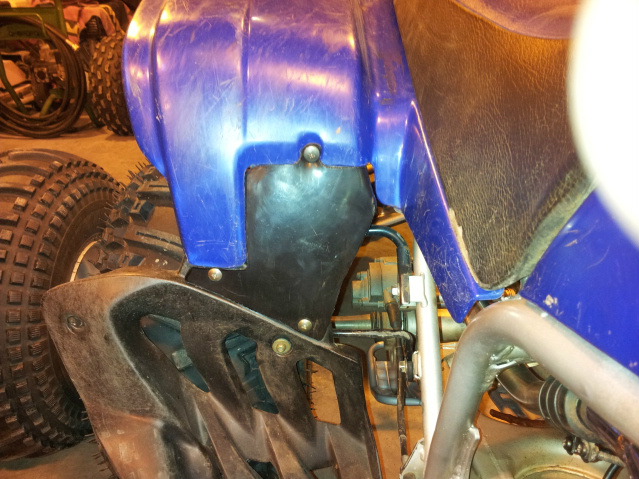

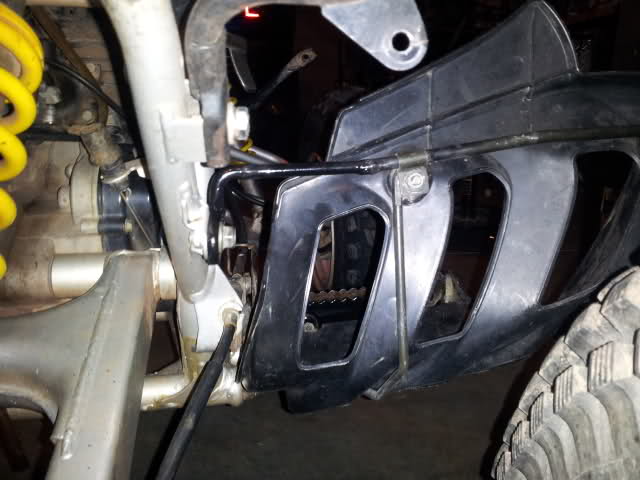

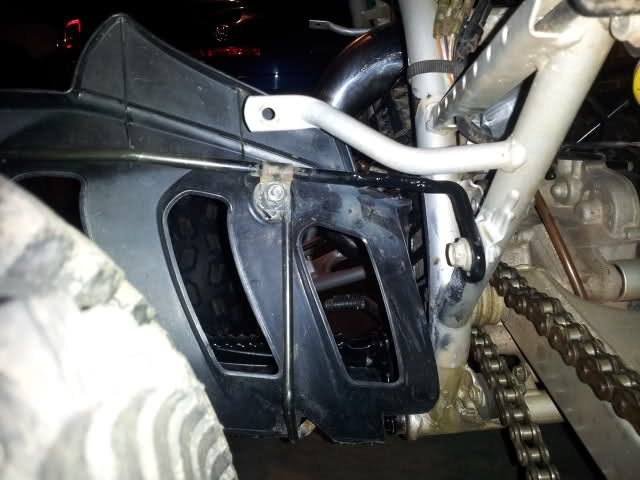

Heres what I did to mount the fenders to the raptor heel guards. It kinda tweeks the rear fenders up a little but its hardly noticable! I made a template outta card board and cut a piece out of a 5 gal black pail to fill in the right side.



[Awk08]

thats also a good idea, as the ones on my sons are just cut off straight stock black plastics
i like that 5 gal. bucket idea, and attaching them is a nice touch

have some reps for inginuity !!!!!!



[blowncash]

Thanks! A little heat from a heat gun and that pail molded right into place! LOL



[01BLAST3R]

great work man lookin good



[05blaster3]

pretty good idea



[piezzi]

Looks good, dude....nice job!

Those look exactly like YFZ heel guards....maybe the mouting hardware is a little different, but the black plastic part looks the same to me.



[jaddict]

Here are some pictures of my version of mounting the raptor heel guards. I used the factory frame mount pieces . I cut them off and twisted them so they would line up with the heel guard mounting frame and welded in a piece of 5/16 rod. Its very strong and looks almost factory.If you do this ,twist these things slowly (I didnt heat them and that will help)cuz they will break,mine were close to breaking and I welded them back up so no future problems.

Thanks for pics it will help me when installing mine. Just got them today.I:I



[tumblingtwerp9]

Got any pictures with the rear plastics on?



[blowncash]

There are pics at the begining of this thread. Ill post some side shots of the whole bike



[blowncash]

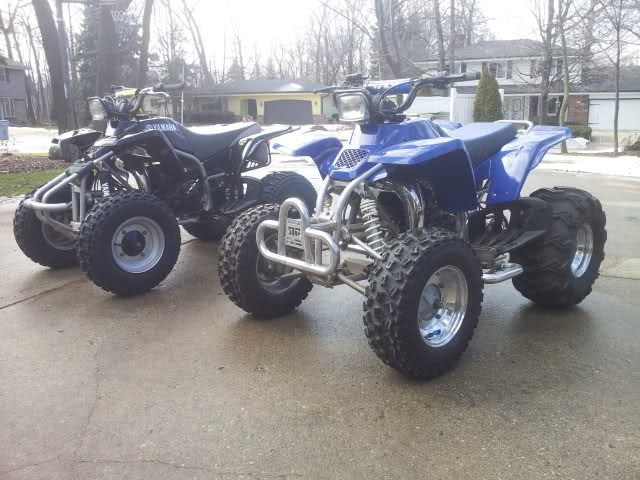

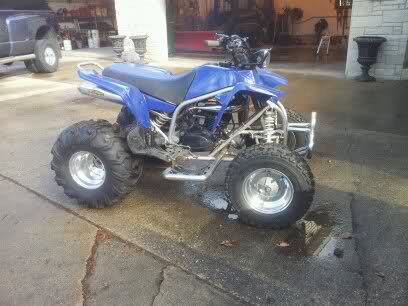

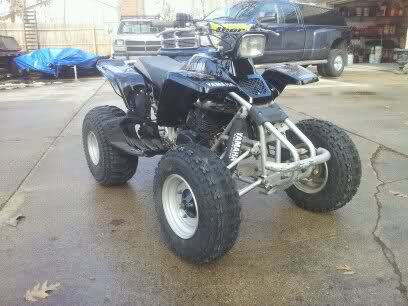

Heres some...



[blowncash]

If you want a different pic let me know and Ill take it for you if I dont have it.
