how do you remove the axle from the carrier

Discussion in 'Suspension' started by coggonbrien, May 16, 2011.

  1. coggonbrien

    coggonbrien New Member

    Joined:
    Oct 12, 2010
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Production Supervisor/Farmer
    Location:
    Iowa
    what's the proper way to remove the axle from the carrier of an 02 blaster? i have the swingarm removed with the axle and carrier installed. i would like to leave the carrier in the arm if possible.

    Thanks
    David
  2. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    its probably best to have the carrier out of the S.arm, if you are not going to use the bearings again, you can man-handle it and hit if out while holding it on a workbench or something... it should come out fairly easily unless you have no grease in there...
  3. TechBlaster

    TechBlaster Just say NO to "Stock" Forum Supporter

    Joined:
    Aug 6, 2009
    Messages:
    981
    Likes Received:
    24
    Trophy Points:
    18
    Occupation:
    ISSO
    Location:
    MY TOWN, PA
    To be honest the easiest way to remove the axle is leaving the carrier in the swingarm, and just lifting the rear of the bike. Remove the 2 large nuts on the left(haha, I said 2 nuts) and then work the sprocket hub off, and the brake hub clips need to be removed, etc. Remove the wheel hubs, then spray the ish out of the carrier ends inside, after removing the rubber covers toreveal the internals. The axle will come out to the right side, or brake side, only way out. Tap it from the left side with a rubber mallet, and as said depending how bad the carrier bearings are seized, no grease, etc is how hard it will take to get it out. I had to pound the ISH outta mine, but did not care as I was tossing it and re-installing a banshee axle anyway, but again had to beat the piss out of it to get it to break free.

    2002 blaster, just like yours...

    good luck!!! I:I
  4. Roostinshee

    Roostinshee New Member

    Joined:
    Dec 16, 2008
    Messages:
    334
    Likes Received:
    5
    Trophy Points:
    23
    Occupation:
    Mechanical Engineer
    Just a tip, if you are planning on saving the axle. Use a big wooden block to pound the ends and wrap the axle threads with electrical tape or teflon tape...:D
  5. coggonbrien

    coggonbrien New Member

    Joined:
    Oct 12, 2010
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Production Supervisor/Farmer
    Location:
    Iowa
    thanks guys :) i will be reusing mine and possibly the bearings depending on the condition. any guestimate what new bearings/seals would run?
  6. cole454

    cole454 Member

    Joined:
    Dec 27, 2010
    Messages:
    1,269
    Likes Received:
    17
    Trophy Points:
    43
    Occupation:
    IT Specialist
    Location:
    Wolcott, Indiana
  7. coggonbrien

    coggonbrien New Member

    Joined:
    Oct 12, 2010
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Production Supervisor/Farmer
    Location:
    Iowa
    hmm never heard of them thanks!!!
  8. cole454

    cole454 Member

    Joined:
    Dec 27, 2010
    Messages:
    1,269
    Likes Received:
    17
    Trophy Points:
    43
    Occupation:
    IT Specialist
    Location:
    Wolcott, Indiana
    If they haven't been replaced before I'd bet they're due for replacing.
  9. scotj77

    scotj77 Member

    Joined:
    Feb 11, 2010
    Messages:
    5,541
    Likes Received:
    67
    Trophy Points:
    48
    Occupation:
    Cabinet installer
    Location:
    Orlando, fl
    if the axle won't come out of the carrier with the nuts removed. take the whole carrier and axle off the quad and slam the left side of the axle down hard repeatedly on a block of wood while holding it by the carrier. it will come loose sooner or later.
  10. stabor1122

    stabor1122 New Member

    Joined:
    Sep 26, 2010
    Messages:
    1,333
    Likes Received:
    17
    Trophy Points:
    0
    Occupation:
    Service Tech
    Location:
    Xenia, Ohio
    Maybe and maybe not. I had to cut the carrier and bearings off mine. I had beat it, heated it, and sprayed the hell out of it with and entire can of PB Blaster. Would not budge. It was an 01 with original bearings and no grease or zerk. If you get it out replace the bearings. They are not that expensive. Also install a grease zerk in the carrier if there is not one in there. You will be glad you did if you ever ha e to take it out again.
  11. norman420

    norman420 New Member

    Joined:
    May 13, 2007
    Messages:
    172
    Likes Received:
    9
    Trophy Points:
    18
    Or...

    slide a deep well impact socket over the threads, so the forces of the blow (he he, I said blow) go against the axle rather than the threads.

    N
  12. Larry's Shee

    Larry's Shee Member

    Joined:
    May 23, 2009
    Messages:
    5,022
    Likes Received:
    85
    Trophy Points:
    53
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    If I ever get the %#@&ing sprocket hub off the axle, i can work on the brgs. I have heated to dull red, PB Blastered ,more heat, beat with pipe protector over threads , tried one homemade puller, have new design puller in the works. Hate the thought of spending $20 at auto parts to have it pressed.

    Probably take either grinder or cutting torch to brgs because I'm getting so tired of it X( , gotta be ready for Memorial day weekend. I:I Probably won't get swing arm brgs in. Wish I had something bigger than a 2lb hammer. Never force it, get a bigger hammer :D
  13. stabor1122

    stabor1122 New Member

    Joined:
    Sep 26, 2010
    Messages:
    1,333
    Likes Received:
    17
    Trophy Points:
    0
    Occupation:
    Service Tech
    Location:
    Xenia, Ohio
    Same situation I had. 8lb sledge would not move mine. I litterally cut the carrier in half, then the same with the bearings, spacer and sprocket hub. I had spares of all of them so I was not concerned with saving them. Bought a spare axle from AWK just in case my other one was not salvageable when I got it out. It actually cleaned up nicely with a wire wheel once I got it all apart. Still have a spare axle that I will sell cheap to help someone out if they need it and return the favor that was extended to me.
  14. super noober

    super noober Can't Stop, Won't Stop!

    Joined:
    Feb 17, 2009
    Messages:
    7,774
    Likes Received:
    69
    Trophy Points:
    0
    Occupation:
    Nothing worth bragging about
    Location:
    upstate ny
    i had this problem once and once only, when i finally got the damn thing out and reinstalled we installed a zerk fitting into the carrier and i keep it full of grease and now the axle falls right out every time with ease.
  15. Larry's Shee

    Larry's Shee Member

    Joined:
    May 23, 2009
    Messages:
    5,022
    Likes Received:
    85
    Trophy Points:
    53
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    I woosed out. Even with a puller made with5/8 threaded rod and some other junk and heat and impact, the hub would not come off. Lucky for me a complete carrier/axle/hubs came up on CL for $50. I:I tite brgs, no rust/corrosion . Going pull it apart and put zerk in it.
  16. stabor1122

    stabor1122 New Member

    Joined:
    Sep 26, 2010
    Messages:
    1,333
    Likes Received:
    17
    Trophy Points:
    0
    Occupation:
    Service Tech
    Location:
    Xenia, Ohio
    Here is some pics of the carnage I had to deal with. Lesson learned....Install and use grease zerks.

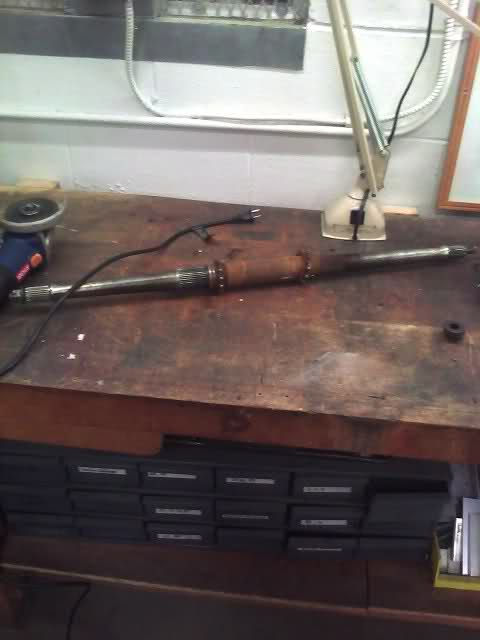

    After the 8lb sledge wouldnt move it.
    [​IMG]

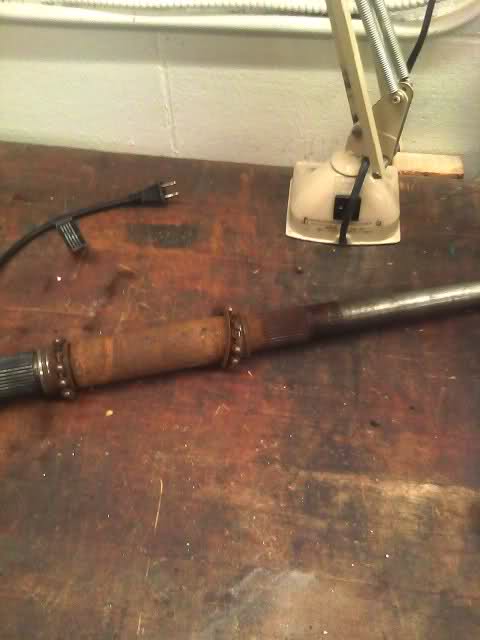

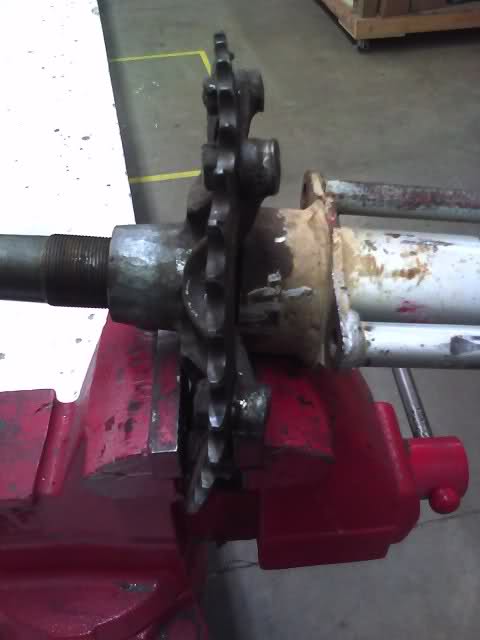

    After cutting off the carrier, sprocket hub, and spacer.
    [​IMG]
    [​IMG]
  17. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    wow poor bearings!!!!!!!!!!
  18. coggonbrien

    coggonbrien New Member

    Joined:
    Oct 12, 2010
    Messages:
    103
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Production Supervisor/Farmer
    Location:
    Iowa
    what size of wrench to use on the large axle nuts?
  19. stabor1122

    stabor1122 New Member

    Joined:
    Sep 26, 2010
    Messages:
    1,333
    Likes Received:
    17
    Trophy Points:
    0
    Occupation:
    Service Tech
    Location:
    Xenia, Ohio
    Large pipe wrench seems to be the popular answer but I think the actual size is 50mm or roughly 2".
  20. Larry's Shee

    Larry's Shee Member

    Joined:
    May 23, 2009
    Messages:
    5,022
    Likes Received:
    85
    Trophy Points:
    53
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    Actually should put anti-seize on axle where spacer goes and on splines for all hubs. I'll have to get my son to post pics of my puller that deformed and still didn't budge the hub. That's what 20 years of rust will get ya.
