What wires you must have!

[00blasterRESTO]

Hey I am redoin the blaster and I think I chopped my wires right. but was wondering If any one wanted to post a diagram or pics or drawing or somethin of what wires are a MUST HAVE on the blaster.... I want it to run and have a kill switch. bam thats it.... I got a good Idea on stuff but wanting to see a proven method.



[00blasterRESTO]

bump........



[00blasterRESTO]

BUMP!!!!!



[96'Blaster240]

i want to do the same thing on the blaster i just got, wires are everywhere, theres no lights on the quad no key all i want is for it to run and have a kill switch. so if some1 could post up pics or a diagram it would help more than 1 person



[newnick]



[96'Blaster240]

thanks nick, that's perfect



[00blasterRESTO]

thanx nick, much appreciated



[tryingtobefaster]

if this dont work what the hell else is there thanks nick



[96'Blaster240]

my blaster was getting no spark, i wired it up just like in the diagram, and she sparks perfectly when the switch is on and she stops when it's off thanks agian nick if it wasn't for you i would be pulling out my hair trying to figure this out xD



[newnick]

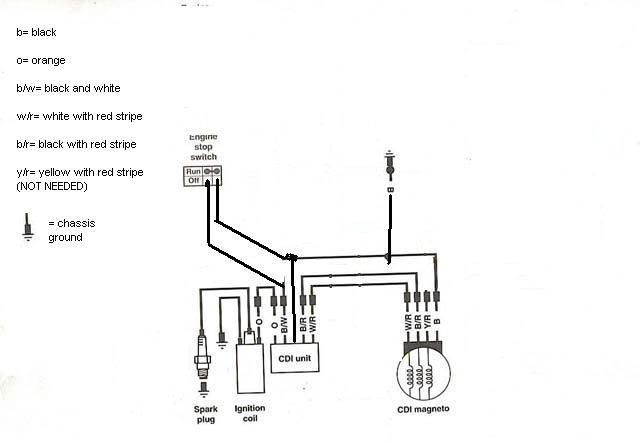

I copied this diagram from Project Blasters website, it came from someone at Planet Blaster before that, so thanks go to someone other than myself.
I've used it as a guide as well and haven't had any trouble with it.



[Supavoy]

Diagram

Hi

If you need the FULL diagram, goto this page.

http://www.blasterforum.com/general-support/2111-12v-battery-blaster-2.html

Regards

Supavoy
