rear brake hydro caliper bracket?

Discussion in 'Brakes' started by gridlock, Aug 9, 2016.

  1. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    Has anybody seen this?
    http://www.ebay.com/itm/YAMAHA-BRAK...60-/311667435929?_trksid=p2141725.m3641.l6368

    s-l1600.jpg For-Yamaha-Warrior-350-Blaster-Raptor-YFM-350-660-font-b-Rear-b-font-font-b.jpg

    ad says its for a 03-06 blaster hydraulic caliper, does it look like it would convert a 88-02 to bolt on 03-06 hydraulic caliper?
    I have been searching the net trying to find a schematic for this bracket
    or one that will work with the warrior or banshee hydro caliper, this isnt really for me but I was looking to make a cheaper alternative for the blaster community but if this Chinese bracket for $7 is a direct bolt on then its clearly a winner s-l1600.jpg For-Yamaha-Warrior-350-Blaster-Raptor-YFM-350-660-font-b-Rear-b-font-font-b.jpg IM000299.jpg

  2. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
  3. jbuckster07

    jbuckster07 Active Member

    Joined:
    Mar 20, 2011
    Messages:
    881
    Likes Received:
    264
    Trophy Points:
    115
    Occupation:
    Head Estimator/ Project Manager - Eclipse Co
    Location:
    Akron, Ohio
    the gold caliper is from a gszr 1000 streetbike. The bracket used was designed and sold by a member here Awk08. Unfortunately I do not believe he is making them anymore. The black bracket will work IF your carrier is a 2003-2006 ONLY. If you do not have a 03-06 carrier, that bracket WILL NOT WORK.

    gridlock and Markblaster like this.
  4. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    740
    Trophy Points:
    175
    Some one needs to draw this bracket up in cad to scale. So people can make it. Maybe Awk08 can share some measurements or drawing?

    gridlock likes this.
  5. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    I believe eventually I will be able to make one through trial and error but if someone did have the schematic of one that would make it much easier, I have the older carrier on mine and I have the 03-06 brake caliper so if no one posts one ill give it a shot and post my results......... good or bad lol

    Last edited: Aug 9, 2016
    Markblaster likes this.
  6. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    I was afraid of that, thanks jbuckster07

  7. jbuckster07

    jbuckster07 Active Member

    Joined:
    Mar 20, 2011
    Messages:
    881
    Likes Received:
    264
    Trophy Points:
    115
    Occupation:
    Head Estimator/ Project Manager - Eclipse Co
    Location:
    Akron, Ohio
    There is no schematic. The easiest thing to do is just trial and error. thats what I did.

    Larry's Shee likes this.
  8. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    suprised nobody has taken the time to do this since its one of the most done upgrades after the TORS removal, there is all kinds of info and youtube videos on it as well, maybe that will change

  9. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    through all my searching yesterday i did find a PDF file on the dimensions of a Brembo caliper if this helps anybody


    Attached Files:

  10. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    Hey Hutchracer,

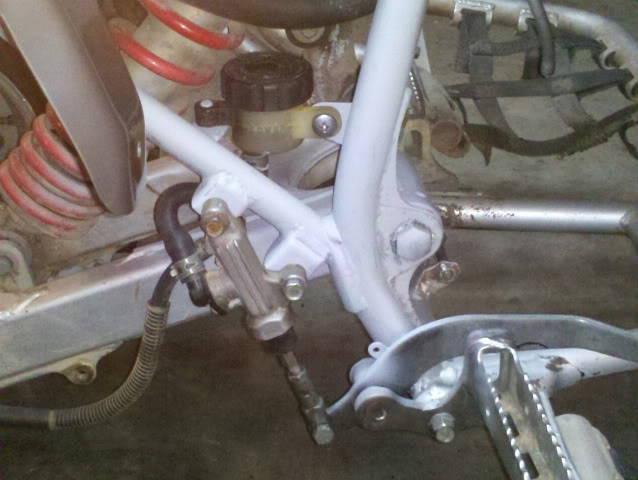

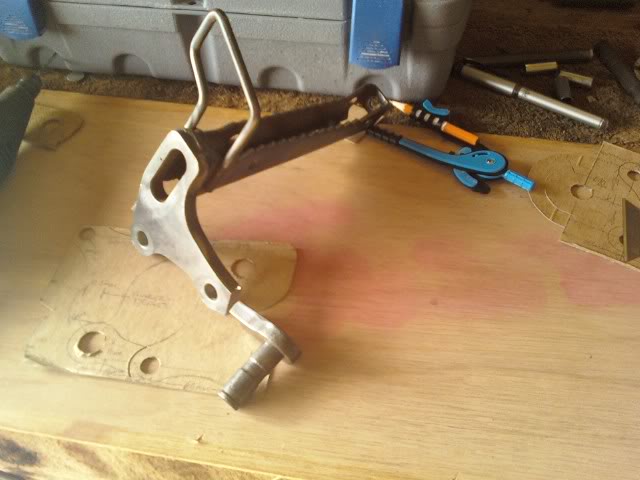

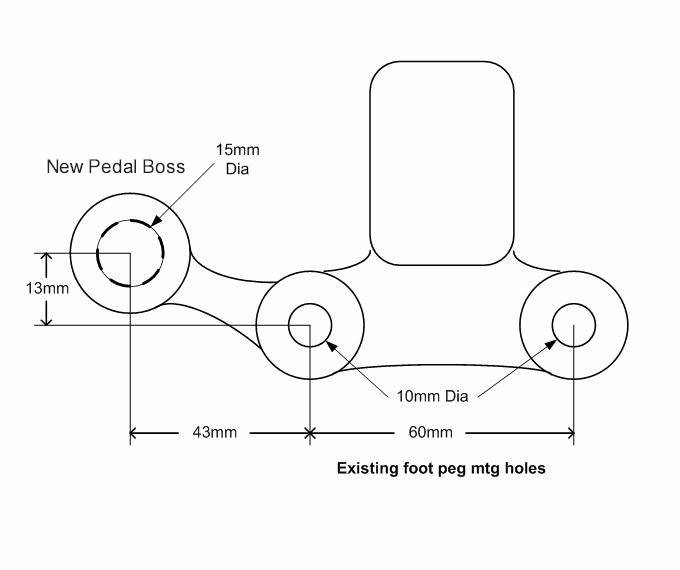

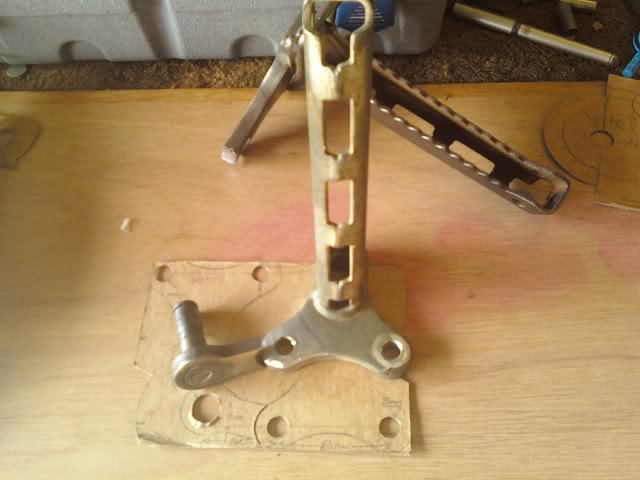

    Yeah, I used the left side blaster peg on the right and welded the pivot boss from a Warrior right side pedal to it:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

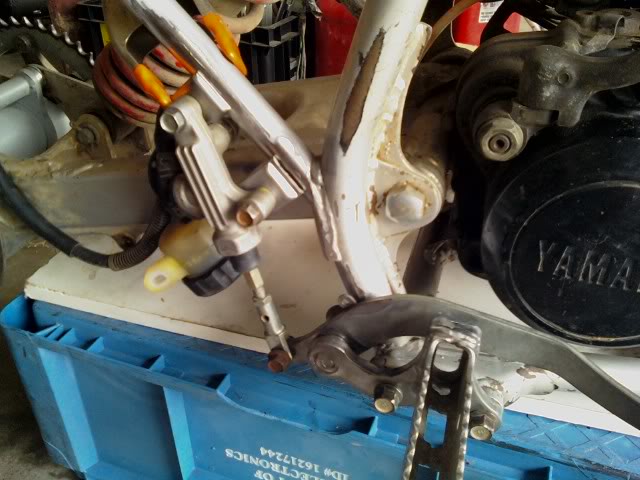

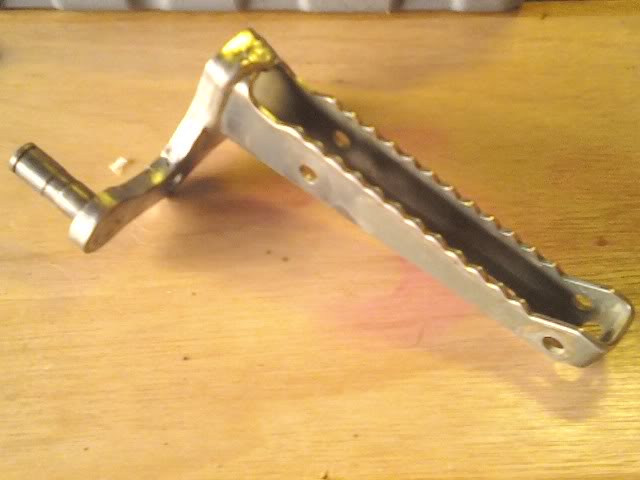

    I had to weld some tabs from an old donor frame to the correct position on my blaster frame and supporting tabs for the Banshee rezzi as well:

    [​IMG]

    [​IMG]

    If you go this route, be sure to tuck the rezzi ALL the way down into the crotch of the frame or you will interfere with the exhaust.

    I wish I could give you some finished pics but I'm only just test riding my mods (this weekend?)

    taken from here http://www.atvriders.com/vbb/showth...sion/page2&s=06e81c2f43fb4fce3cc35b4f836d1ae7

    doug99 and Markblaster like this.
  11. gridlock

    gridlock Member

    Joined:
    Dec 4, 2010
    Messages:
    67
    Likes Received:
    19
    Trophy Points:
    44
    here is more what I was looking for bracket.jpg bracket_swingarm.jpg caliper_installed.jpg

    now if this would have had dimensions, most could make it on their own, this gives me something to start with though

    Markblaster likes this.
  12. BlasterFun484

    BlasterFun484 Member

    Joined:
    Mar 23, 2013
    Messages:
    684
    Likes Received:
    143
    Trophy Points:
    96
    Gender:
    Male
    Occupation:
    Owner of HPM , Owner of Kind Glass
    Location:
    Collegeville, PA
    a few other companies make a conversion kit but are highly over priced.. I have been playing with many different materials, brands, kits, to come up with an affordable conversion myself but life and my other product designs have been more important. The bracket and foot mount you came up with i very creative and looks like it will work well for you. Good Job!
