January 2014 ATV/BIKE-OTM Entries

Discussion in 'Entries To BOTM' started by Awk08, Jan 2, 2014.

  1. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,240
    Likes Received:
    2,175
    Trophy Points:
    175
    Occupation:
    Electrician/Contractor
    Location:
    Pa.
    Gonna switch it up a little this month to see how it goes ?

    ATV/Bike of the month.
    ANY and ALL, ATV's, BIKE's, BUGGIE's, and even modified wheel barrows are welcome to enter
    RUN WHAT YA BRUNG :)

    for anyone entering a bike ect. feel free to switch details...... a-arms to forks ect.
    or whatever else fits your ride in the entry form, just keep the details in the category they belong

    Entries for ATV/BIKE Of The Month (January 2014) are now open!


    Please make sure you have read the following thread before creating your entry.

    Blaster Of The Month Entry Details, Rules and Requirements...



    Entries should be posted below by copy and pasting the completed modification form with your details.​




    Only entrants for this months contest should post thier entries in here ! ​



    Have a great time and GOOD LUCK!​

    Last edited by a moderator: Feb 6, 2014
  2. Blaaster

    Blaaster Moderator Staff Member Technician Forum Supporter

    Joined:
    Jul 18, 2011
    Messages:
    15,386
    Likes Received:
    1,098
    Trophy Points:
    165
    Gender:
    Male
    Occupation:
    Pensioner
    Location:
    eastern australia

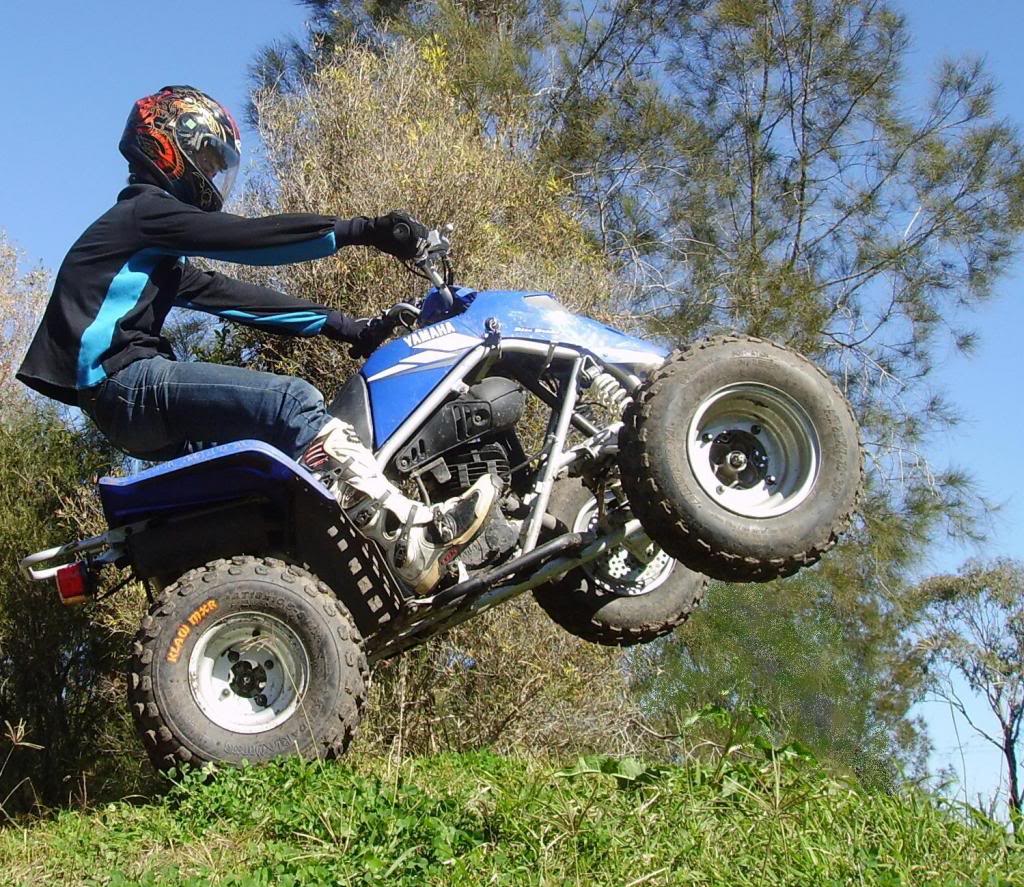

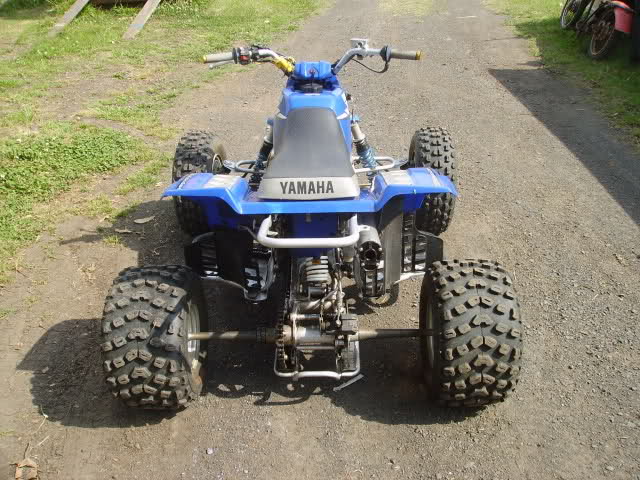

    [​IMG]
    Before fitting the DMC Alien.
    [​IMG]
    [​IMG]

    Year | Make | Model :

    1. 2006
    2. YFS 200
    3. Blaster



    Chassis | Suspension | Controls:
    A Arms: Stock, with Diamond J 6inch widening and lowering kit.
    swingarm: Stock.
    Steering Stem: Stock.
    Stabilizer: ??? 7 position
    Axle : Banshee
    Carrier: Stock.
    Locknut: Stock.
    Hubs F|R: Stock.
    2 1/2" stud spacers all round.
    Bars: Stock.
    Throttle/Clutch Lever: Twister/Stock.
    Grips: Stock.
    Nerfs: Chinaman modified
    Bumper: Stock.
    Grab Bar: Stock.
    Front Shocks: Dual rate YFZ450 Works
    Rear Shock: Stock, with lowering thingy.
    Brake Lines: Stock.
    Rotors F|R: Stock.
    Rims F|R: Stock.
    Tires F|R: Kenda Klaw.

    Body: Stock.
    Frame: Stock.
    Plastic: Stock, some removed.
    Graphics|Seat Cover: Nil.
    Number Backgrounds: Nil.
    Handguards: Nil.
    Bar Pad: Nil
    Fuel Tank: Stock.

    Engine|Drive System:
    Cylinder|Head: W W Holden, 22cc Toroidial
    Bore & Stroke: Stock.
    Displacement: 195cc
    Carburetor: 26mm Mukini, #320 main , needle on second lowest clip.
    Air Filter|Box: Foam pod directly on carb throat.
    Pipe|Silencer: DMC Alien
    Clutch|Plates: Stock.
    Gearing F|R: Stock.
    CDI|Killswitch: Tether.
    Cooling: Air.
    Custom mods:...........Mild port and polish of exhaust port.
    Pre mix ratio 25:1
    2 stroke oil Castrol R30.

    Last edited: Jan 3, 2014
  3. boomadge

    boomadge New Member

    Joined:
    Dec 21, 2011
    Messages:
    108
    Likes Received:
    6
    Trophy Points:
    23
    Gender:
    Male
    Occupation:
    QC/engineering Tech
    Location:
    New York

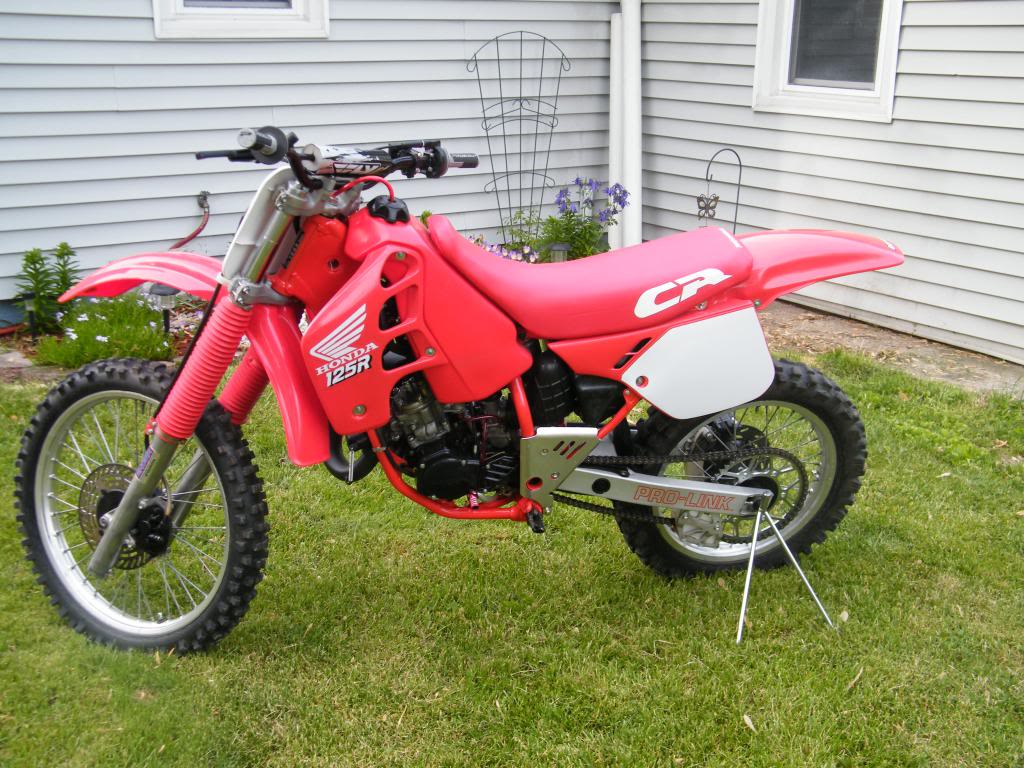

    [​IMG]

    Year | Make | Model :

    1.1989
    2.Honda
    3.CR125R



    Chassis | Suspension | Controls:
    Forks: 43mm Showa conventional cartridge w/ 5w
    swingarm: Stock
    Steering Stem: +1 riser
    Hubs F|R: stock
    Bars: Fly midbend
    Throttle/Clutch Lever: Motion pro
    Grips: Pro Grip 801
    Rear Shock: KYB (rebuilt,revalved,recharded for 160lb rider by works connection)
    Brake Lines: New OEM
    Rotors F|R: New OEM
    Rims F|R: 21"stock/18"stock
    Tires F|R: Dunlop/Dunlop

    Body:
    Frame: Fighting red custom powder coat
    Plastic: OEM fighting red with HRC alum pro circuit stator cover
    Graphics|Seat Cover: Oem honda
    Number Backgrounds: HRC factory OEM
    Handguards: none
    Bar Pad: FLY
    Fuel Tank: Stock 2 gallon/on off no res

    Engine|Drive System:
    Engine type: 2 Stroke, case reed, power valve
    Cylinder|Head: Sleeved with wiseco/stock head (light port cleanup)
    Bore & Stroke: stock 54 mm x 54 mm
    Displacement: 124cc
    Carburetor: Keihin PJ34
    Air Filter|Box: UNI filter/stock box
    Pipe|Silencer: Pro circuit (works)/Pro circuit factory 304
    Clutch|Plates: Oem fibers/wiseco steel plates
    Gearing F|R: 15 / 53
    CDI|Killswitch: Stock/stock
    Cooling: Liquid
    Reeds:Boyesen

    Custom Mods:
    All custom color matched powder coating,forks/shocks reworked by works connection.
    Wiseco steel clutch plates and vortex sprocket chain combo. Works connection frame guards where puchased from great britain as they could not be found to fit the 89 in the USA. All else new oem honda/hrc right down to the nuts and bolts.. About 400 hours of labor :)
    Parts Proof can be found rf2comp_zpsbe102db8.jpg Photo by boomadge | Photobucket

    Last edited: Jan 4, 2014
  4. darrencurry08

    darrencurry08 Member

    Joined:
    May 7, 2012
    Messages:
    304
    Likes Received:
    4
    Trophy Points:
    38
    Location:
    Northern Ireland

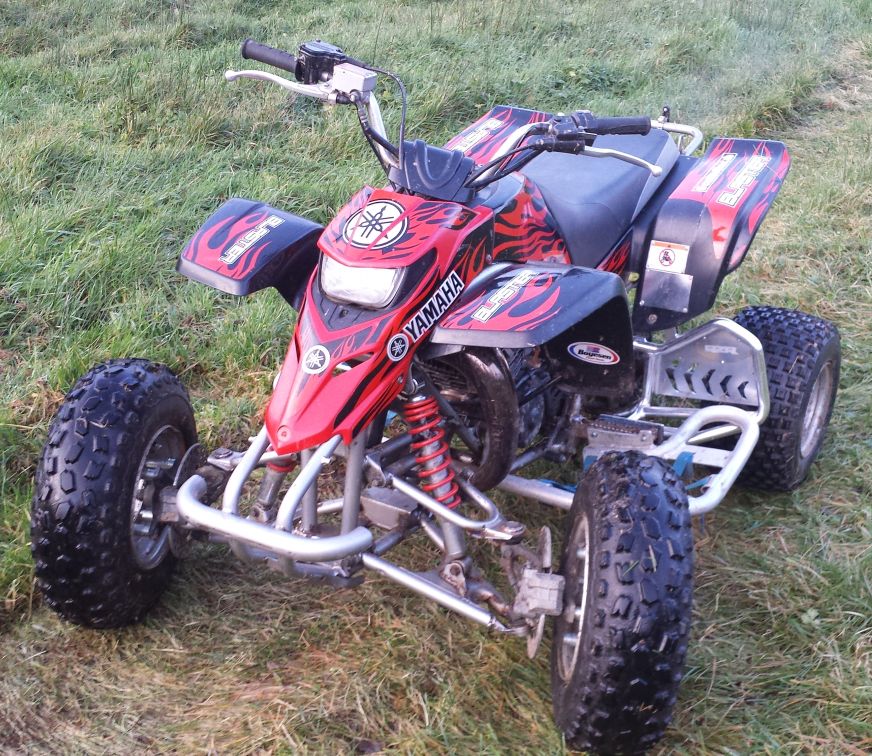

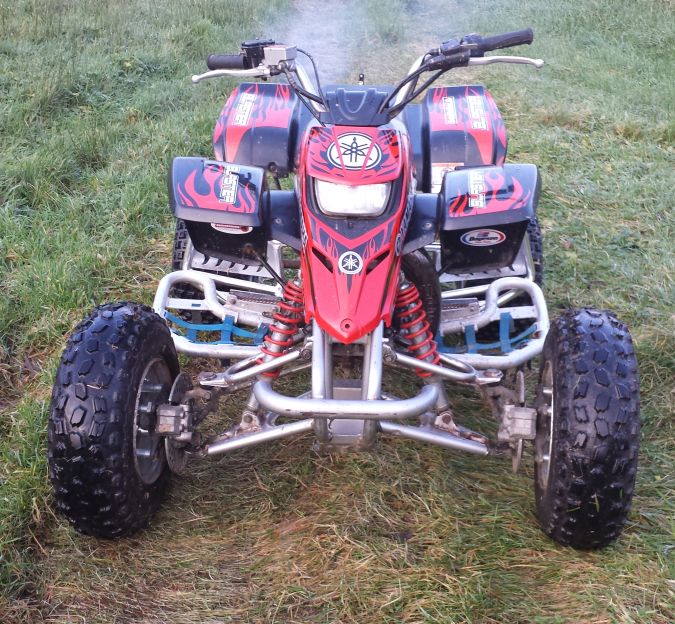

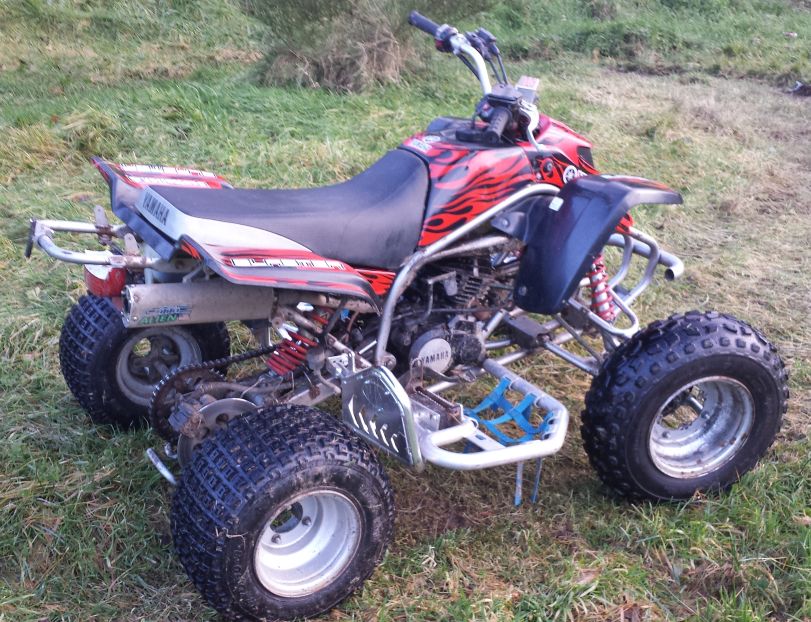

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Year | Make | Model :

    1. 2003
    2. Yamaha
    3. Blaster

    Chassis | Suspension | Controls:

    A Arms: Stock
    swingarm: Stock
    Steering Stem: Stock
    Stabilizer: Stock
    Axle : Stock
    Carrier: Stock
    Locknut: Stock
    Hubs F|R: Stock
    Bars: Stock
    Throttle/Clutch Lever: Stock
    Grips: Stock
    Nerfs: Goldspeed
    Bumper: Stock
    Grab Bar: Stock
    Front Shocks: Stock
    Rear Shock: Stock
    Brake Lines: Stock
    Rotors F|R: Stock
    Rims F|R: Stock
    Tires F|R: Stock front/ 18-9.50-8 Rears

    Body:

    Frame: Stock
    Plastic: Stock
    Graphics|Seat Cover: Random Yamaha Flame Graphics /w Stock seat cover
    Number Backgrounds: None
    Handguards: None
    Bar Pad: None
    Fuel Tank: Stock

    Engine|Drive System:

    Cylinder|Head: Stock
    Bore & Stroke: Bored but not sure on size
    Displacement: Stock
    Cam: Stock
    Carburetor: Stock, #300 Main Jet
    Air Filter|Box: Stock /w Air lid Removed
    Pipe|Silencer: DMC Alien
    Clutch|Plates: Stock
    Gearing F|R: Stock
    CDI|Killswitch: Stock
    Cooling: Air

    Custom mods:........... Mild Diy Porting, Boyeson Dual Stage Reeds, 32:1 Pre Mix,
    2.5” Spacers All Round, QZR Heel Guards, Racing Ignition Coil, TORS Removed

    Last edited by a moderator: Jan 7, 2014
  5. Durby

    Durby Supporting Member Forum Supporter

    Joined:
    Nov 16, 2012
    Messages:
    337
    Likes Received:
    99
    Trophy Points:
    85
    Occupation:
    PC/Telephone systems support manager for a Casino
    Location:
    Oroville, CA
  6. Quadman1

    Quadman1 Member

    Joined:
    Mar 29, 2013
    Messages:
    758
    Likes Received:
    29
    Trophy Points:
    64
    Occupation:
    Riding
    Location:
    Pa
    ^^^^ can't go wrong there. Awesome looking quads that should be finished.

  7. Durby

    Durby Supporting Member Forum Supporter

    Joined:
    Nov 16, 2012
    Messages:
    337
    Likes Received:
    99
    Trophy Points:
    85
    Occupation:
    PC/Telephone systems support manager for a Casino
    Location:
    Oroville, CA
    he took a lot of pride in building these bikes~ brandy
