Extended swing arm rear brake line Clamp

[Markblaster]

Hi all just wanted to share my mounting setup for rear brake line on a extended swing arm. Running a +3 swing arm but will work on +2 up to +12.

Using a aluminum brake line clap from Alter Ego Motorcycles

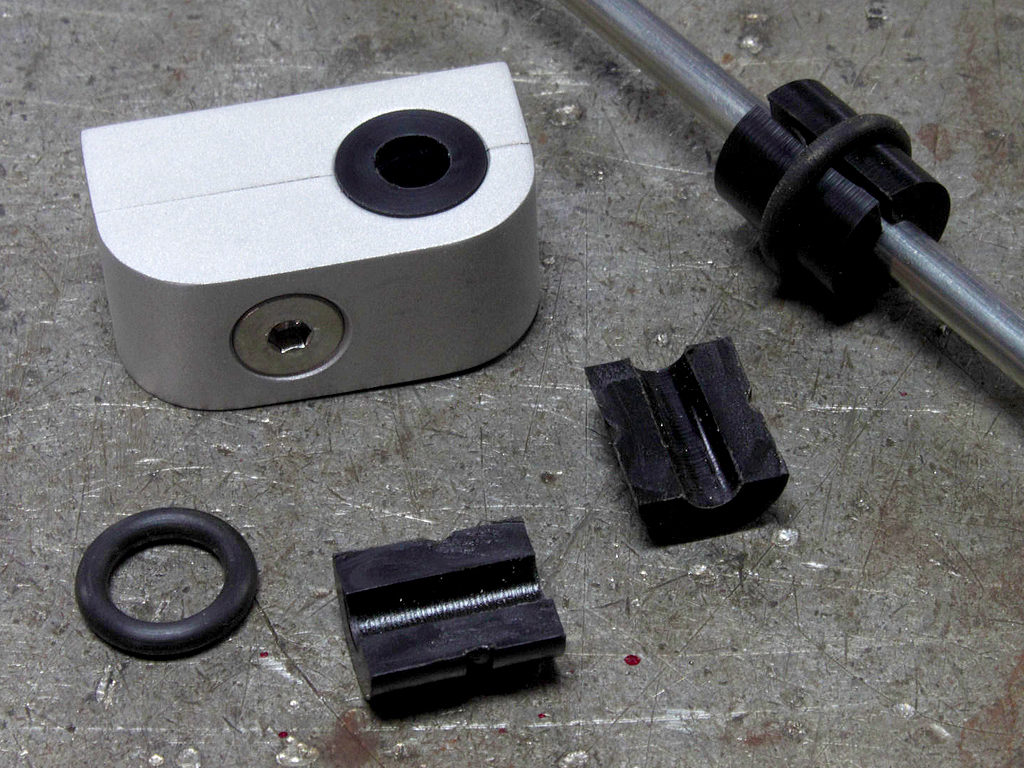

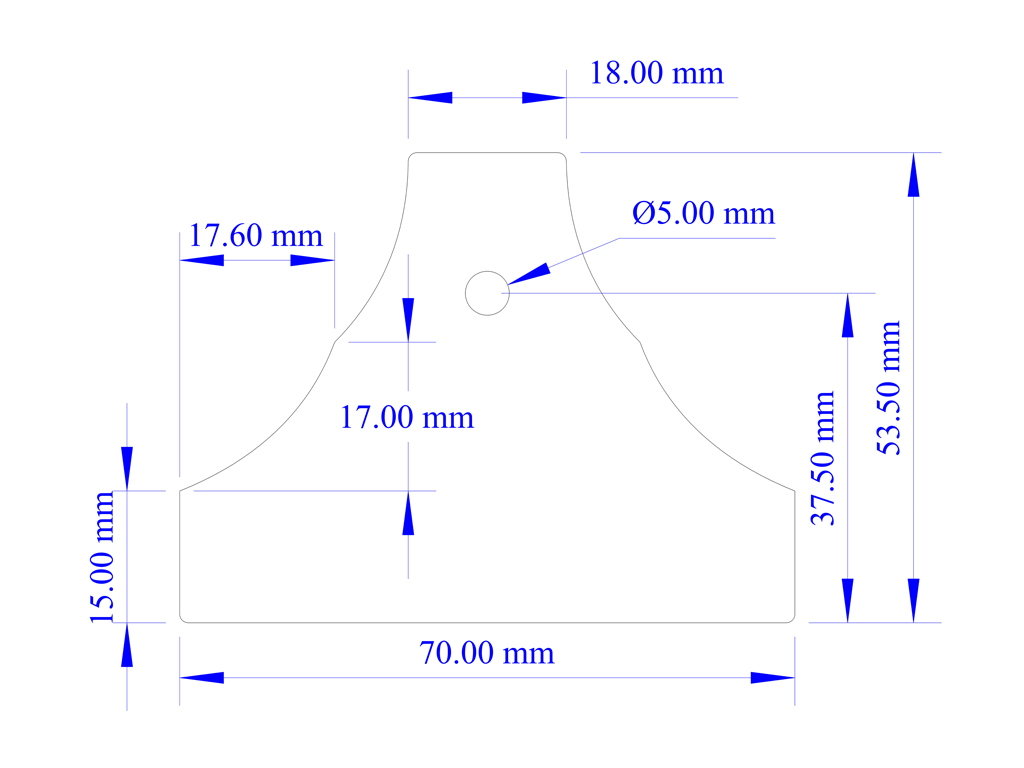

Drawing of the plate you will need to make. Made mine out of 3mm thick steel.

Download PDF: CLICK HERE
Download DXF: CLICK HERE

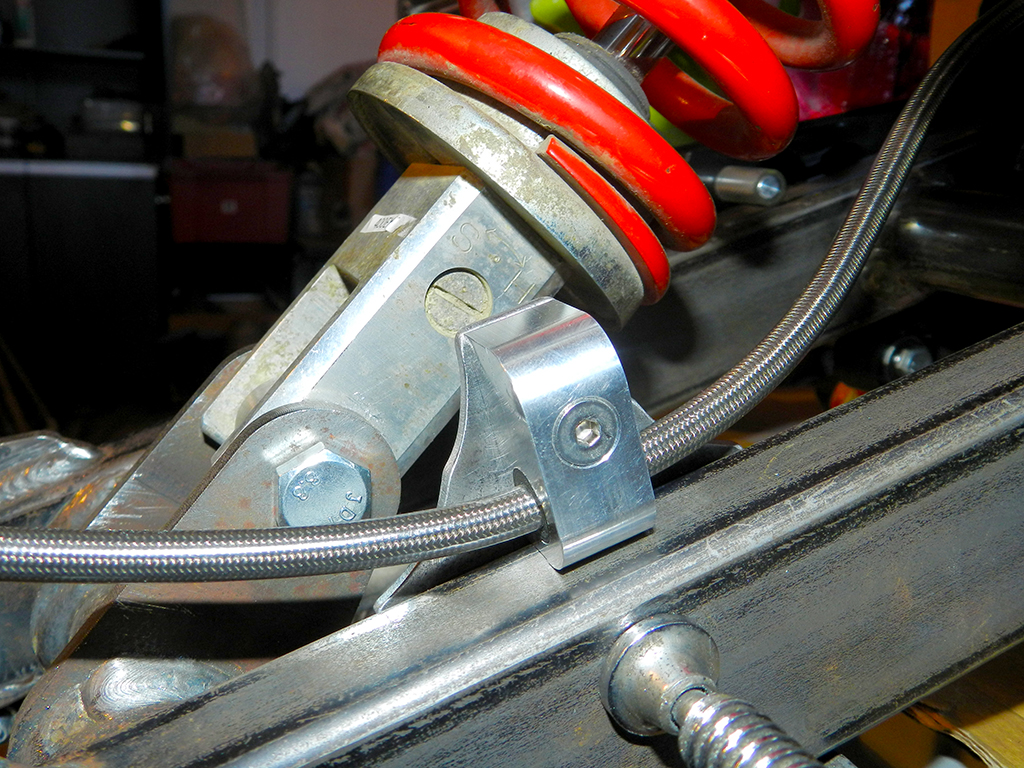

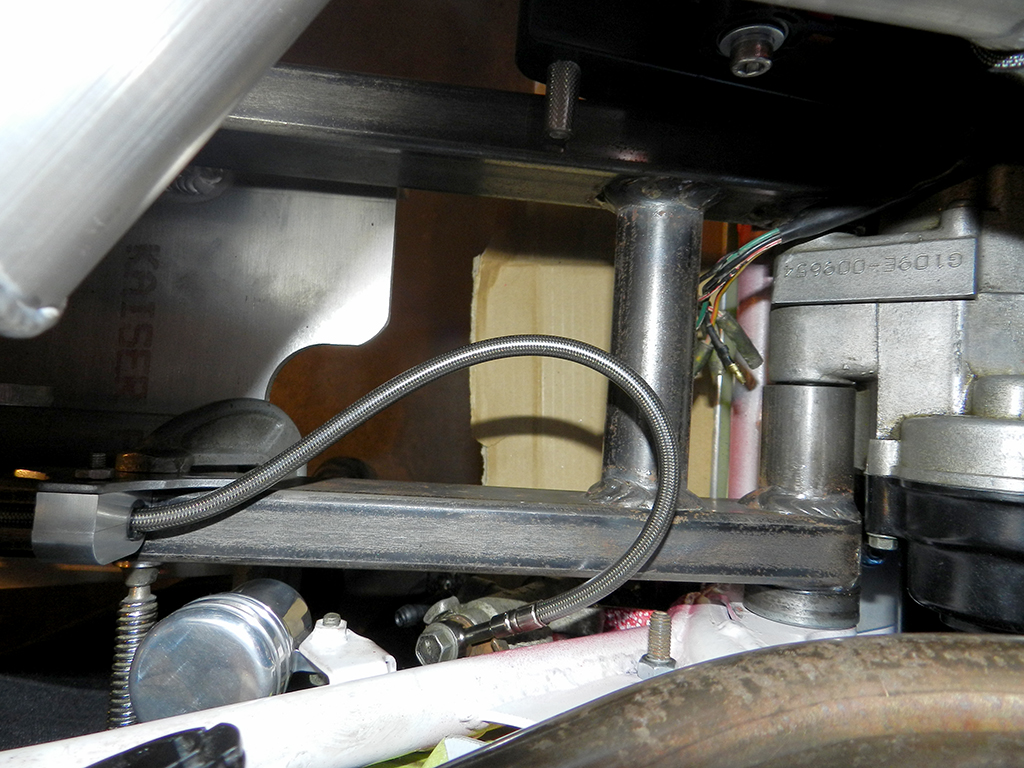

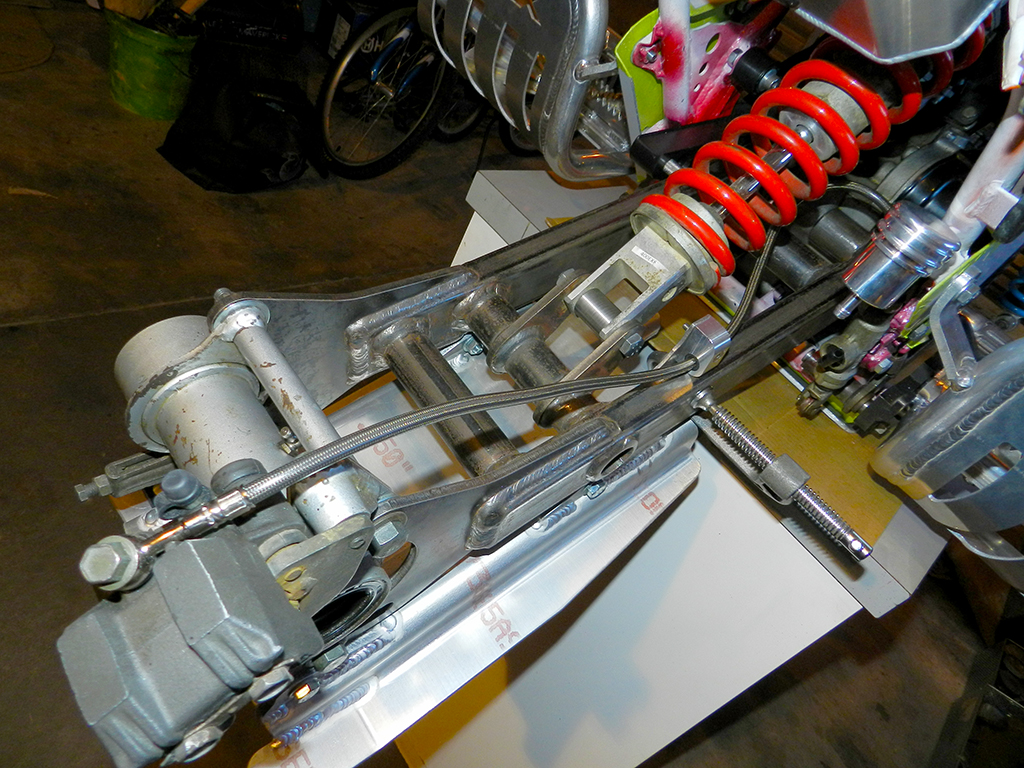

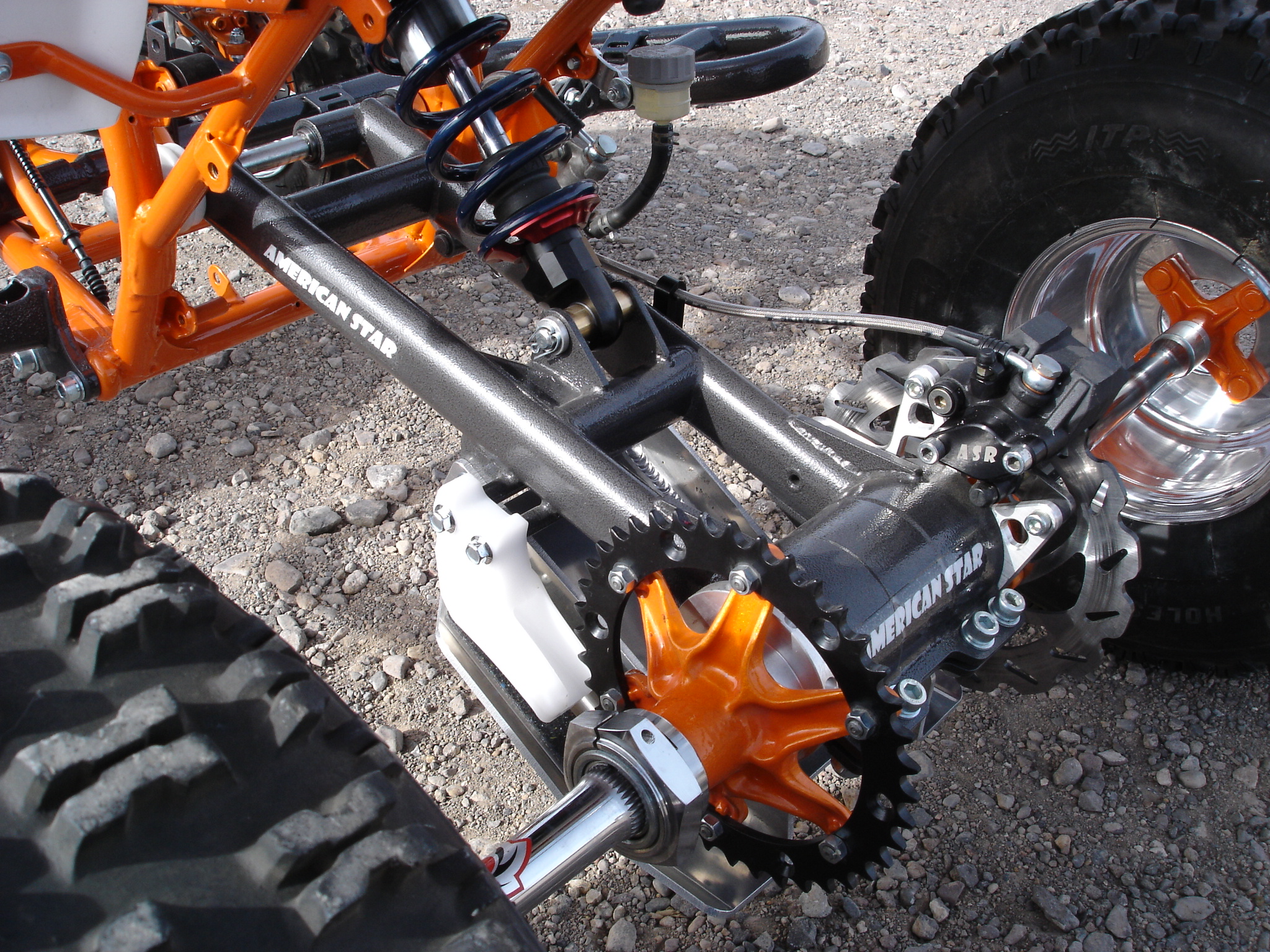

Installed Photos.



[Awk08]

nice job !



[jbuckster07]

I used a black zip tie XD



[Markblaster]

I'm not that ghetto.



[Awk08]

I'm not that ghetto.

I don't know dude, that loop is pretty ghetto, LOL



[Markblaster]



[Blaner]

very nice! dunno about those swingers though, as pretty as they are, i get the cringes when i see how i have destroyed much more robust ones in the passed!



[Markblaster]

I'm not into extreme riding. No big jumps for me lol. Be lucky to get a foot off the ground is as high I have been.
