    Not sure if this has been posted before, but I thought I would share what I came across in a 400ex owners manual. A lot of us buy used 400ex rear shocks, but have no idea where the previous owner set the compression and rebound screws to. This info is to reset the adjustments to factory stock dampening. Also, 400ex's are set up from the factory for 160 lb. riders. Hope this is helpful to some of you!

    Rebound - Bottom Screw


    Turn CW until stop (Full Hard)

    Turn CCW Approx. 1 3/4 turns until reference punch marks line up.


    Light load / Smooth roads - Turn CCW to soften


    Firmer / Rough Roads - Turn CW to stiffen



    Compression - Top Screw


    Turn CW until stop (Full Hard)

    Turn CCW Approx. 2 1/2 turns until reference punch marks line up.


    Reduce compression (Softer) - Turn CCW


    Increase Compression (Firmer) - Turn CW

    Blastinit, Aug 1, 2013
    #1
    Markblaster, littlegreen250, PRChrist and 6 others like this.
  2. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,427
    Likes Received:
    2,289
    Trophy Points:
    175
    good info, reps given !
    and stickied for ease of future reference

    Awk08, Aug 1, 2013
    #2
  3. Blastinit

    Blastinit Member

    Joined:
    Apr 14, 2013
    Messages:
    99
    Likes Received:
    15
    Trophy Points:
    50
    Gender:
    Male
    Location:
    SW Washington
    Thanks AWK! I appreciate the Rep! Glad I could finally supply some useful info!I:I

    Blastinit, Aug 1, 2013
    #3
    deeeebeeeeee likes this.
  4. shizzle8787

    shizzle8787 Member

    Joined:
    Aug 16, 2012
    Messages:
    194
    Likes Received:
    4
    Trophy Points:
    49
    Occupation:
    supervisor
    Location:
    Illinois
    Cool I could use this once I get my shock! Rep earned

    shizzle8787, Aug 2, 2013
    #4
  5. Blastinit

    Blastinit Member

    Joined:
    Apr 14, 2013
    Messages:
    99
    Likes Received:
    15
    Trophy Points:
    50
    Gender:
    Male
    Location:
    SW Washington
    Blastinit, Aug 2, 2013
    #5
  6. Blastinit

    Blastinit Member

    Joined:
    Apr 14, 2013
    Messages:
    99
    Likes Received:
    15
    Trophy Points:
    50
    Gender:
    Male
    Location:
    SW Washington
    Blastinit, Aug 2, 2013
    #6
  7. Herpderplol

    Herpderplol BRRAAAAAAAAAPP

    Joined:
    Aug 22, 2012
    Messages:
    6,290
    Likes Received:
    496
    Trophy Points:
    136
    Gender:
    Male
    Occupation:
    Spending Money
    Location:
    Dickinson, ND
    Herpderplol, Aug 2, 2013
    #7
  8. Blastinit

    Blastinit Member

    Joined:
    Apr 14, 2013
    Messages:
    99
    Likes Received:
    15
    Trophy Points:
    50
    Gender:
    Male
    Location:
    SW Washington

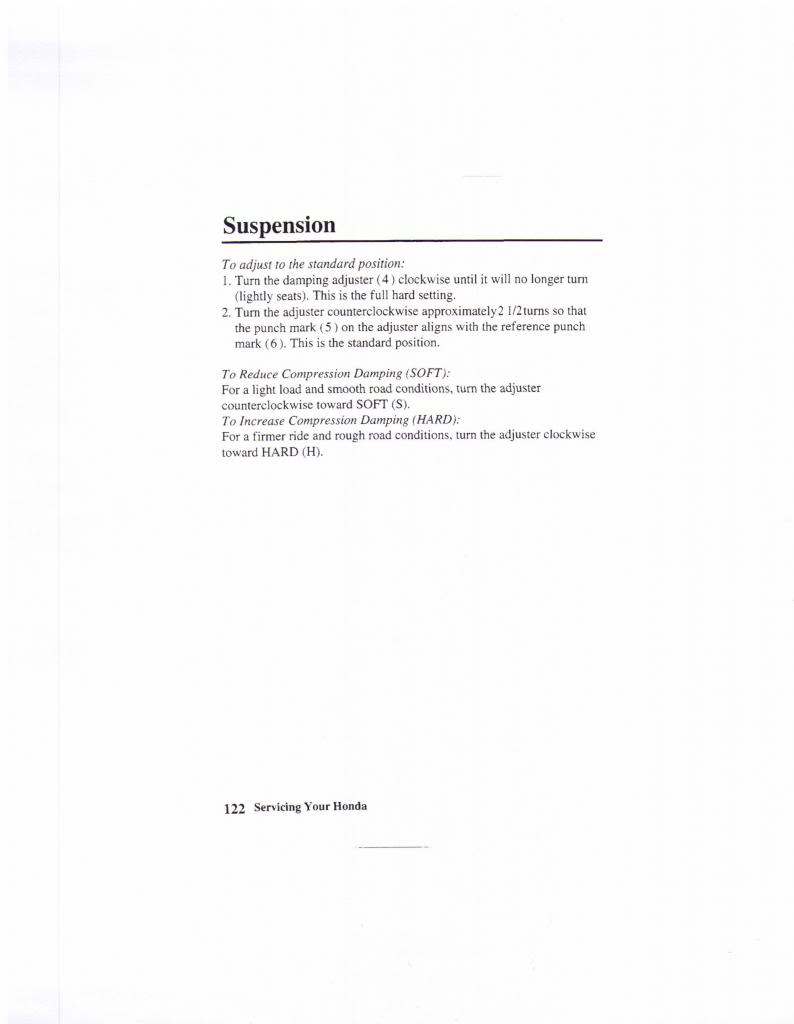

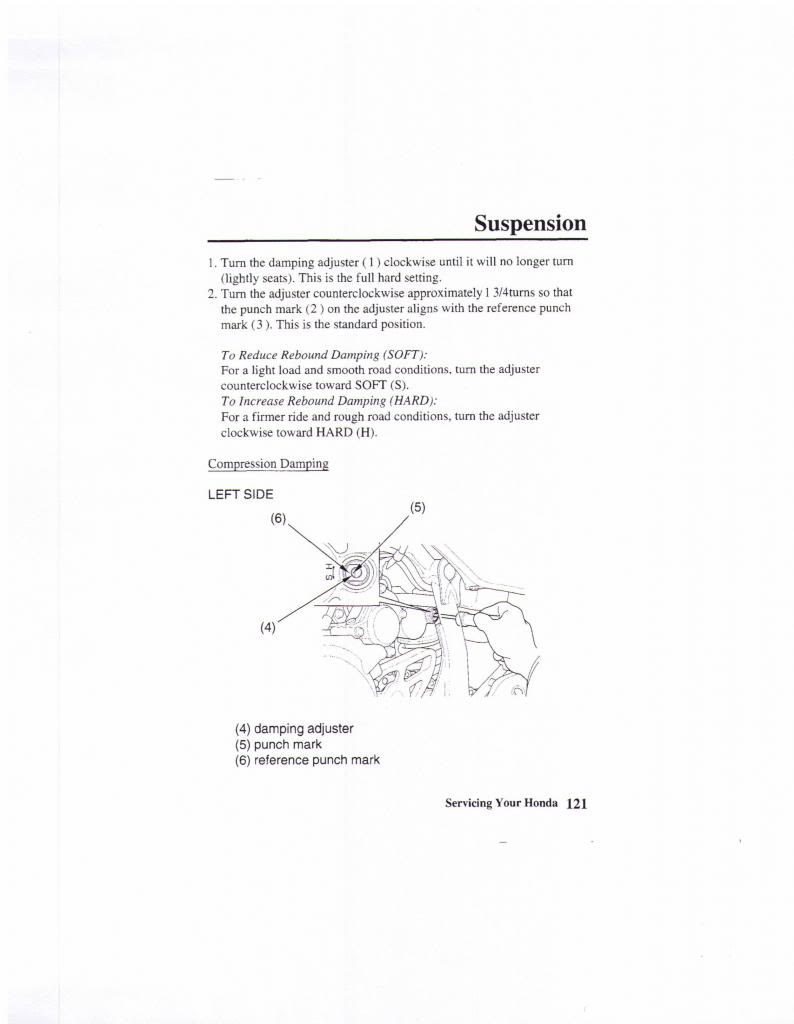

    Okay, I'll try it this way!

    [​IMG]

    [​IMG]

    [​IMG]

    Blastinit, Aug 2, 2013
    #8
  9. sy82nj

    sy82nj Member

    Joined:
    Apr 1, 2011
    Messages:
    79
    Likes Received:
    2
    Trophy Points:
    34
    Occupation:
    floor tech
    Location:
    fayetteville,nc
    really helpful seeing i just got my shock in today.

    sy82nj, Feb 12, 2014
    #9
  10. bansheedave

    bansheedave Active Member

    Joined:
    Nov 4, 2010
    Messages:
    2,162
    Likes Received:
    449
    Trophy Points:
    140
    thats good for setting compression and rebound. you also should set spring sag. setting sag will also detemine if a heavier or lighter spring will be needed per the riders weight. once sag, compression and rebound are set, your ride will be almost flawless

    bansheedave, Feb 12, 2014
    #10
  11. Maniacmotomouth

    Maniacmotomouth Member

    Joined:
    Nov 1, 2013
    Messages:
    219
    Likes Received:
    19
    Trophy Points:
    69
    Occupation:
    Accounts receivable at a institutional food distri
    Location:
    Batesville arkansas
    GREAT WRITUP. Thanks so much!!!
