Motor mount bolts

[Jgp2004]

Hi all ive had a search but cant fond what im after, i bought a blaster in many parts now im getting ready to rebuild it and im missing the 2 engine mount bolts front and bottom can anyone help and tell me what size they are so i can go get replacements
Many thanks in advance



[speedyslyder]

looks like about 23 bucks for them?
i think the actual sizes are written on here somewheres if you want to just goto a hardware store
would half to look for that thread
#'s 2- 3 -4 -5
https://www.rockymountainatvmc.com/oem-schematic/2



[Markblaster]

Sizes are in the service manual. or get your ruler out. I got new ones for my quad.

http://www.blasterforum.com/threads...ervice-and-owner-manuals-free-download.17325/

front bolt: m10 x 1.25
bottom rear m8 x 1.25



[Jgp2004]

Thanks you alot ill measure length and go get some bought



[Markblaster]

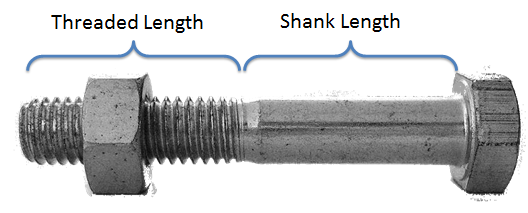

Make sure the shank of the bolt is the right length.
You don't really want the threads on the frame mounting hole.

Get a bolt that has the right shank length and cut the threaded part shorter.
