Hub amd rim conversion

borednstreched

New Member
Nov 19, 2011
337
6
0
coulmubs n.e.
I recently swapped suzuki lt250s hubs amd rims on to my 01 blaster.
Very simple, the spindles are almost identical in length and diameter.:eek:
They are hydros, fixed rotor/floating caliper. Ive yet to fab brackets for the calipers to mount
To then knuckle. Since I tend to use my rear brake more anyway. ill have pics up later

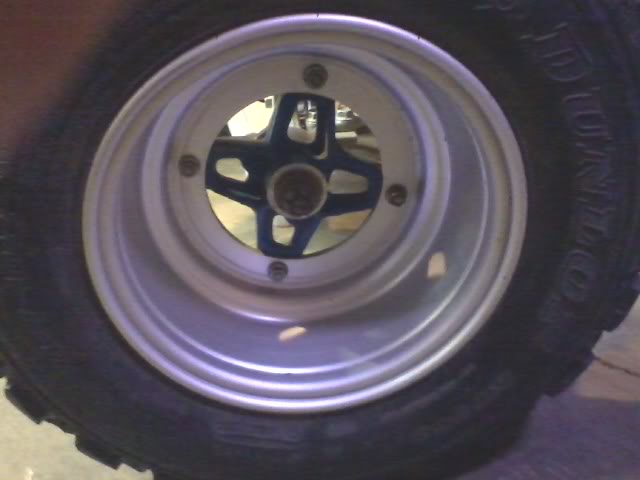

The rims are 1 piece aluminum, rolled lips. Much lighter than the stock rims. the hubs are also aluminum, open spoke design. Rotors attach to the back of the hubs.

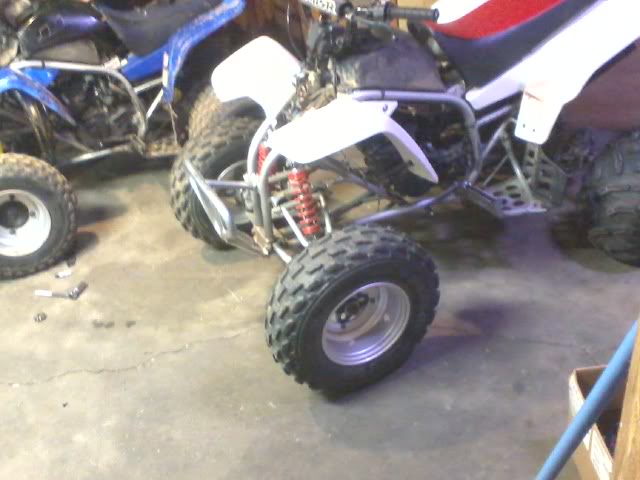

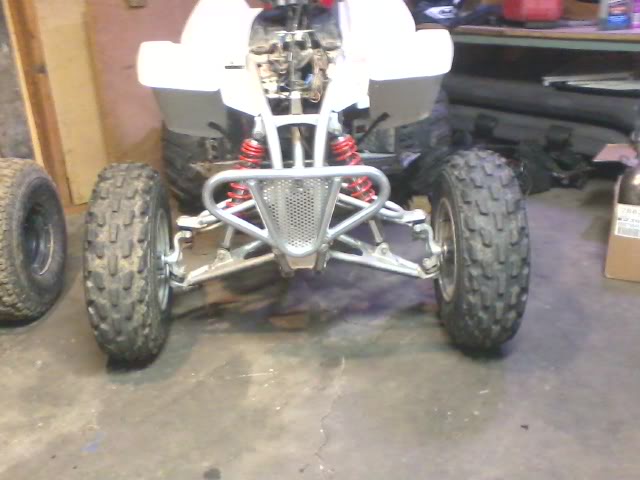

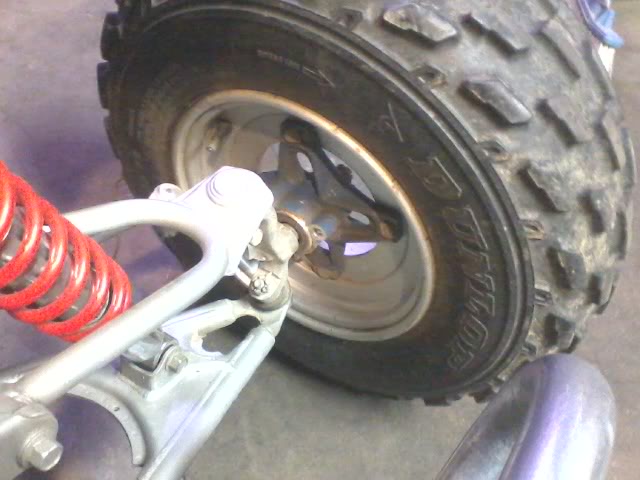

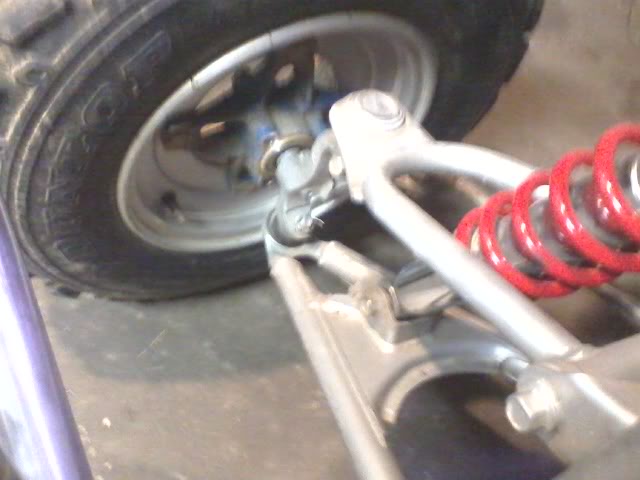

heres the pics, more to come once i get the knuckles ready for the calipers





the knuckles are proving to be a pain in the ass, so im going to hold off on the front brakes for a little while, as im swapping the rear to hydro as well.

R they nine inch or eight inch rims. Would like to know caues I can get some 9 in tires for free and my buddy has an lt 250 rims and hubs I just nevr got them didn't think they would fit
