YZ 490 motor in blaster

[03yzb490]

I got an 03 yamaha blaster i blew up the motor pretty hard like 7 times one summer so decided not to fix it, a friend gave me a yz490 motor with everything but a carb. I got the motor all welded in with the help of a friend. I need to find a pipe that will work tho. Has anyone done this project and knows what pipe fits???

I got a yz125 pipe that i bent a lil to fit in the frame but im afraid its gonna be to small an have way to much back pressure.



[chris61988kb]

your correct, that pipe will not work, it will not let that motor breathe what so ever. look on ebay for a 490 pipe. if you want to go after market look around for custom exhuast builders.



[chris61988kb]

hey question by the way, you needed to weld that thing in? i heard it was direct bolt on?

also, can you take some pictures of the motor in the frame, some shots of whatever fabrication work you did, for instance the supossed welds ect, i plan on doing this swap myself and id greatly appreciate!!!!



[Jabes]

yeah I want to see pics of it to please



[03yzb490]

email me if you want to see images, super13drooper@aol.com



[Jabes]

why don't you just post them on the forum so that way other people can see them in the future or are you not able to figure out how to post them?



[03yzb490]

im not quite able im starting to figure it out. i should have images up shortly.



[Jabes]

did you read the announcement on how to do it?



[03yzb490]

uh huh. i am using photobucket tho does that matter?



[03yzb490]



[03yzb490]



[03yzb490]

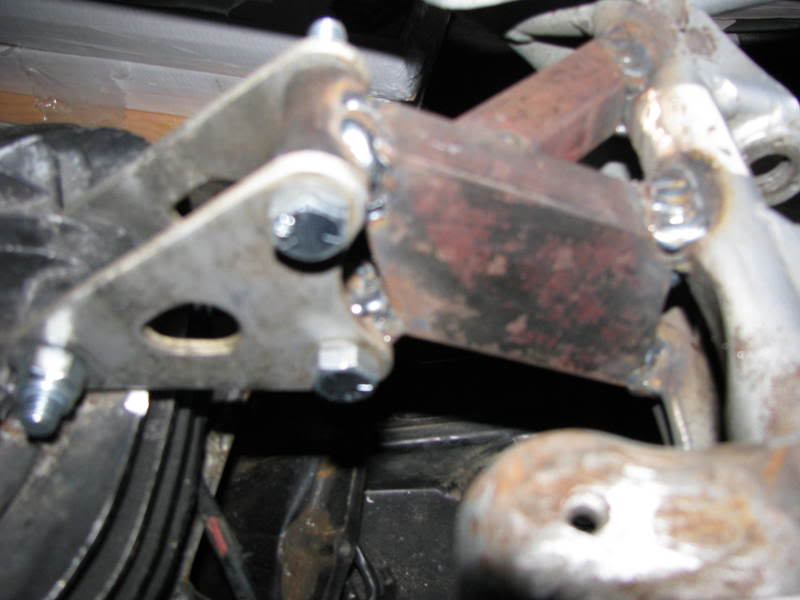

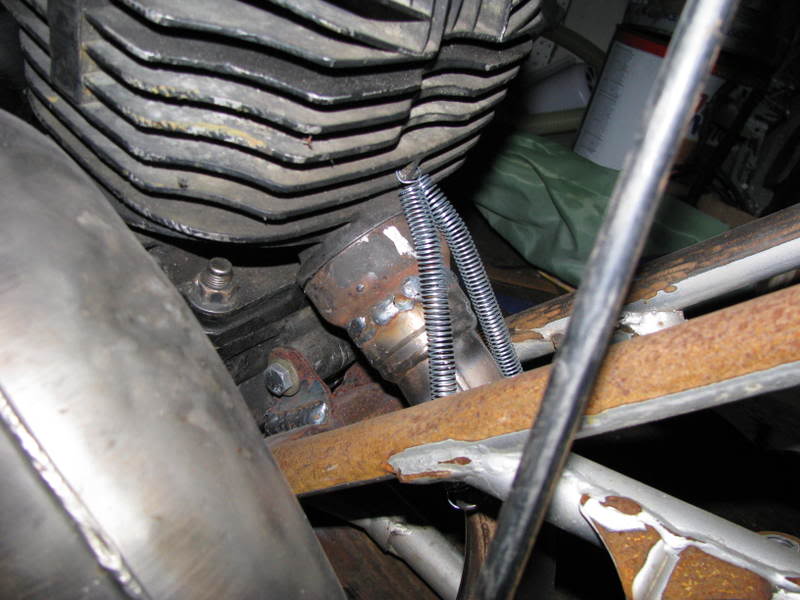

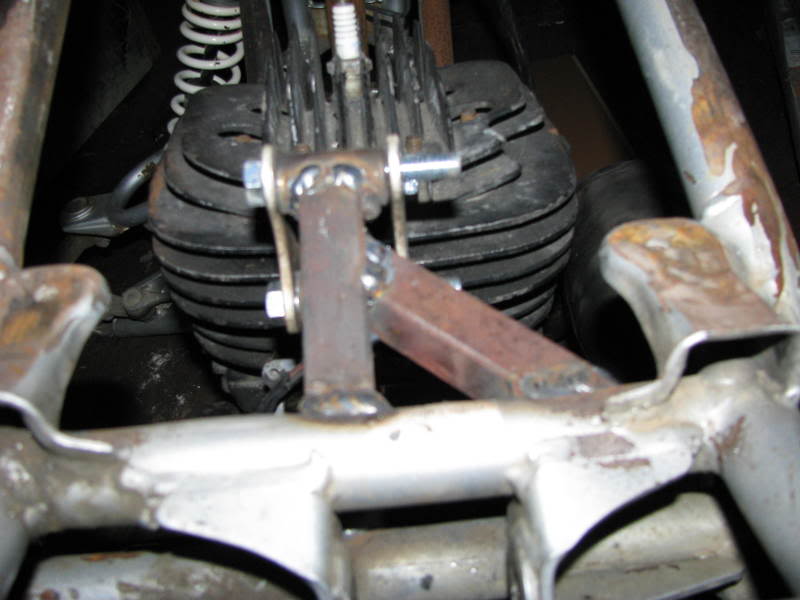

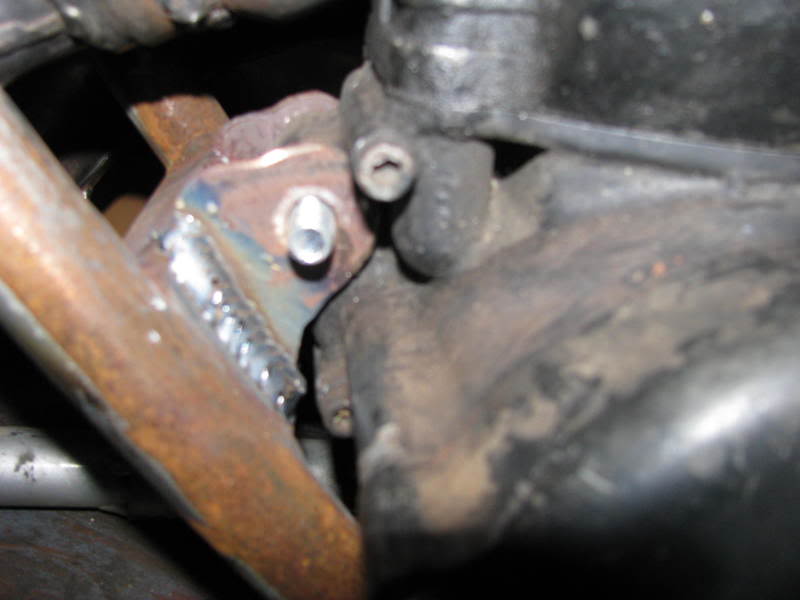

these are pics of my 490 build as you notice the frame has alot of surface rust, this is because it ended up sitting in a leaky shed as a bare frame for a year.



[Rich]

any pics of the swing arm rear mount fab.



[Jammies]

Did you look at the date of this thread? It's unlikely the original poster is even still a member.



[Larry's Shee]

Have to call Rich the Double Grave Digger the other 490 thread is about as old.

Welcome Rich I:I, sometimes kinda crazy round here.
