Wiring Diagram Help

[Kieran]

I have a wiring diagram from a 250 Zongshen, but wiring is all pretty much same as a ex250 (honda).

Confused on a few things, there is something which has the same symbol as a diode, but it says Positioner 6A/400v, anyone know what this is?

Also anyone know what this is?

Thanks



[Kieran]

I know this is a baster forum and i hate bumping, but does anyone know what that pic is of? Some say neutral switch but i dont think so.



[royalt67]

It's Ok dude, bumping is fine.

I can't see your pic, but the rating is similar to what they would say for a fuse. Do you wanna email me the pic and I will look at it?
royalt67@hotmail.com



[royalt67]

Huh, I was expecting a pic of a diagram. That looks like a switch, which yeah, some wiring conventions would use a symbol similar to diode for.

Where was it attached? Is it a throttle position sensor?



[Kieran]

No sorry man, seperate question to the first, that was on the quad and i dont know what it is, so i thought someone might recognise it.

I will try to send you the wiring diagram for the first question and it will clear it up alot.
I understand all cdi wires and where they go from the diagram, which has alot of lights as it from a 250 motor bike, so i just eliminated all the un essential things. Also i Plan to run the lights on a separate circuit.

Thanks.

EDIT: See if any of these work for you.

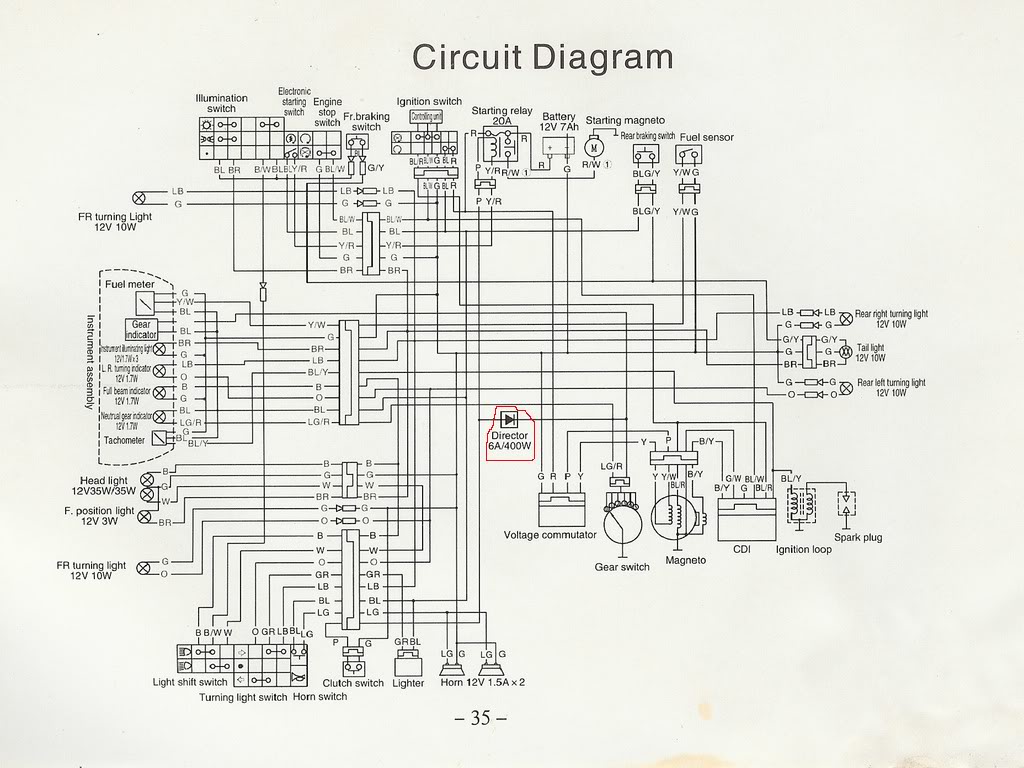

http://s742.photobucket.com/albums/xx61/kieranm09/?action=view&current=250ccdiagram.jpg

This diagram is different is that it says Director instead of positioner



[Kieran]

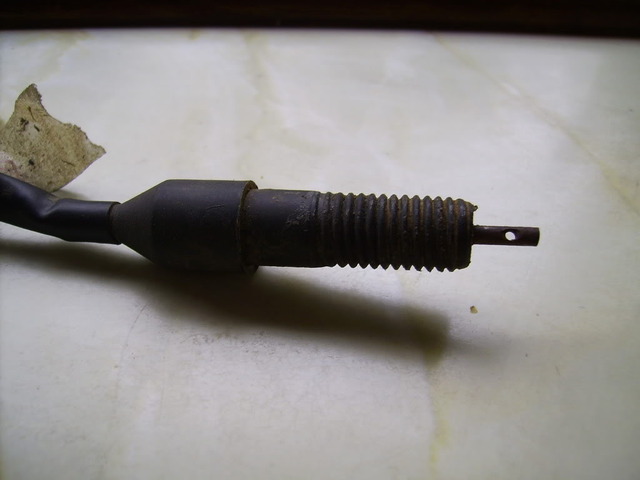

Found out that the pic i posted is of the brake light sensor.
http://www.maplesports.co.uk/acatalog/FootBrakeSensor.jpg



[royalt67]

Sorry Kieran, I've been busy. I will look at that tonight. I can't see the pic here.



[royalt67]

That really is a diode. It is in the circuit that prevents you being able to start in gear without pulling the clutch lever in first.



[Kieran]

Thanks man appreciate it. So if i was to bypass it (Take it out from the circuit) would it start normally or work the other way and prevent it from starting?

Thanks
