Discussion in 'General Support' started by Chuckthizzle, Jun 10, 2013.
I have a 2005 Blaster will these parts interchange?
2002 Steering stem
2002 Handle Bars
You need to modify the hood for the plastics to fit

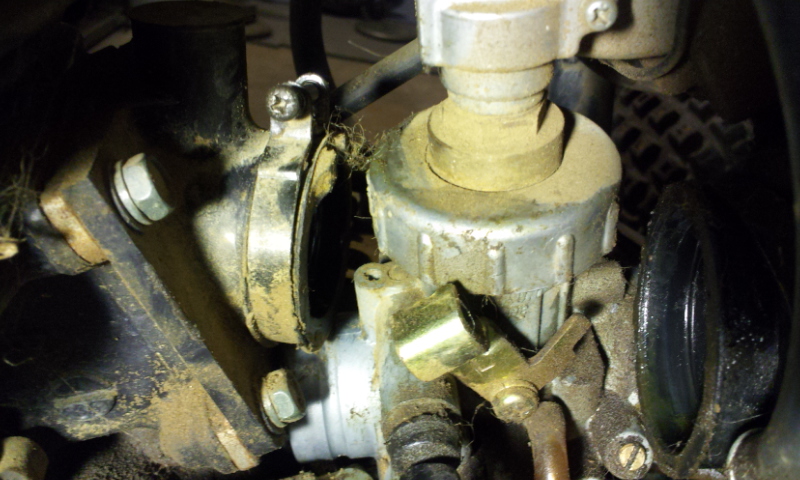

Herp your one hell of a helper man you inspired me to get my hands dirty I started pulling out the carb tonight. I worked 16 hrs today at work but still came home and worked on the quad a bit. So those 2 parts will bolt right up? On top of the carb I could not get this piece loose idk what it is
I cant click on the image.... Try uploading them this way
Its never failed on me yet.

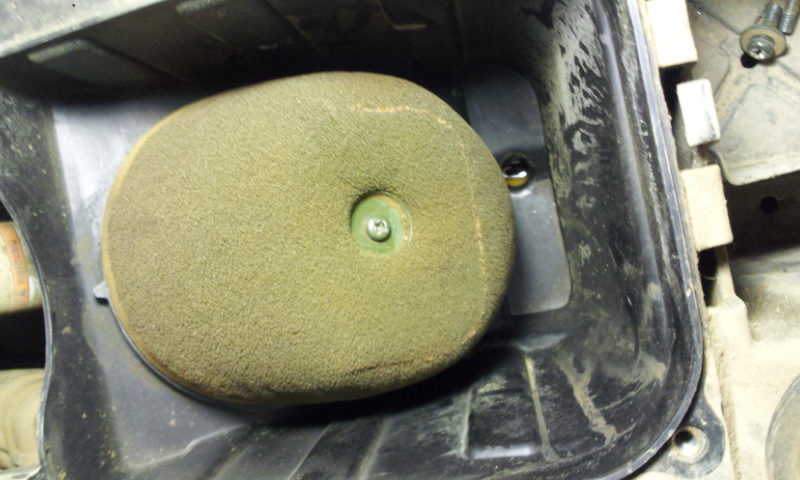

and is this the air filter? it smelled like strong gasoline and had some oil like substance on the bottom of it
The 2 tubes coming from the carb bottom right of this picture are really oily and connect to nothing :-/
If you are trying to get the thing off the top of the carb. Unhook the little black hose on the other side, then pull the whole carb out by the bottom, tipping it a little as you pull it out
Once its out, get a good grip and take off the top.
The big brick is the TORs (throttle override system) that everyone removes.
And yes thats the airfilter..... You need a new one
i suggest this Air Filter 1988 2006 Yamaha Blaster 200 YFS200 YFS 200 More Air Flow | eBay
Havent tried the brand, but its the same as k&n so i think its fine, otherwise get uni or k&n it you are uneasy about it
Wait, take a picture of the other side... they litt hose should be connected... Or is it pre-mix?
The two hoses that go to nothing are vents. Quite common to have some oil on and around carb after a period of time. It's from the fuel splashing/evaporating out of carb. Unless the filter is damaged, clean it, oil it, run it.
IMO, I'd be leary of K&N knockoffs
Ok I'm at work now but tonight I will take more pics and the backside of the carb.
Still cant remove that piesce, there is the throttle cable on the back side
Ok got it off there was a black tube going to the other side of the quad into the engine cover that has YAMAHA ON IT
The little tube is the oil injection.
Throttle cable goes into the front fyi...
