XJ550 Blaster

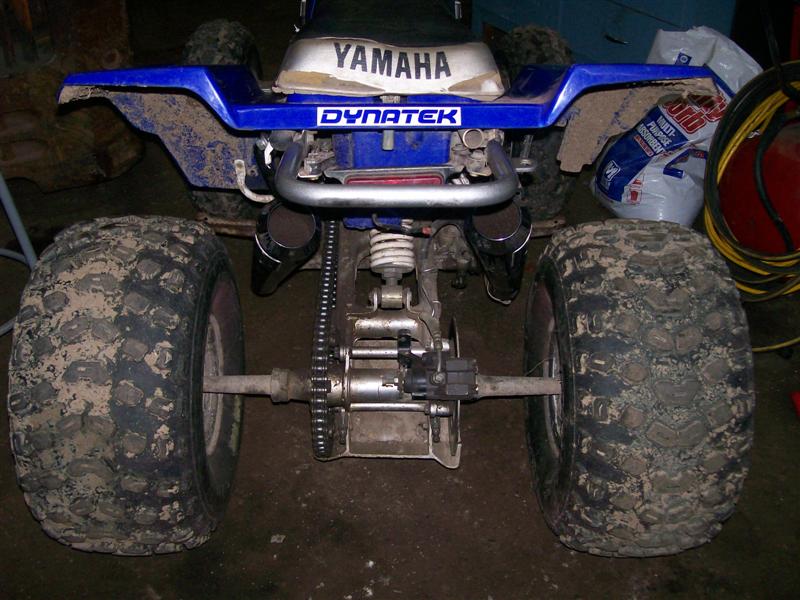

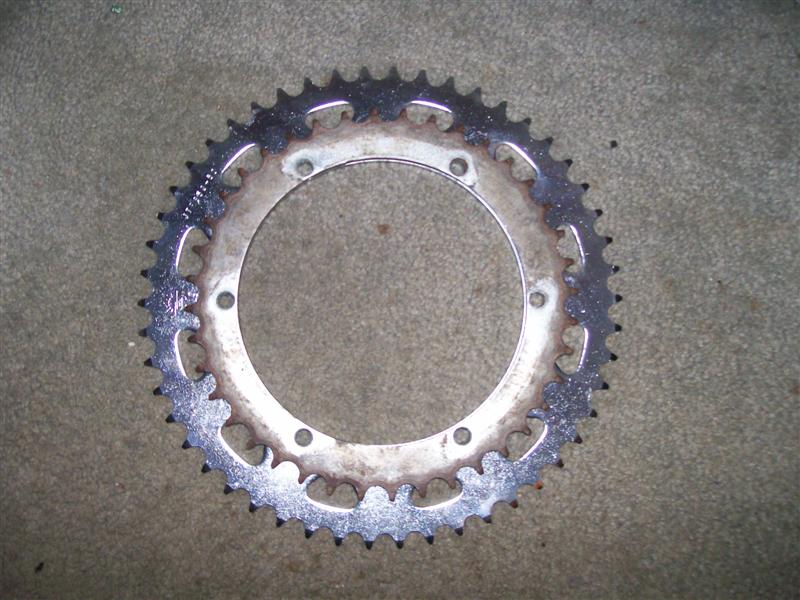

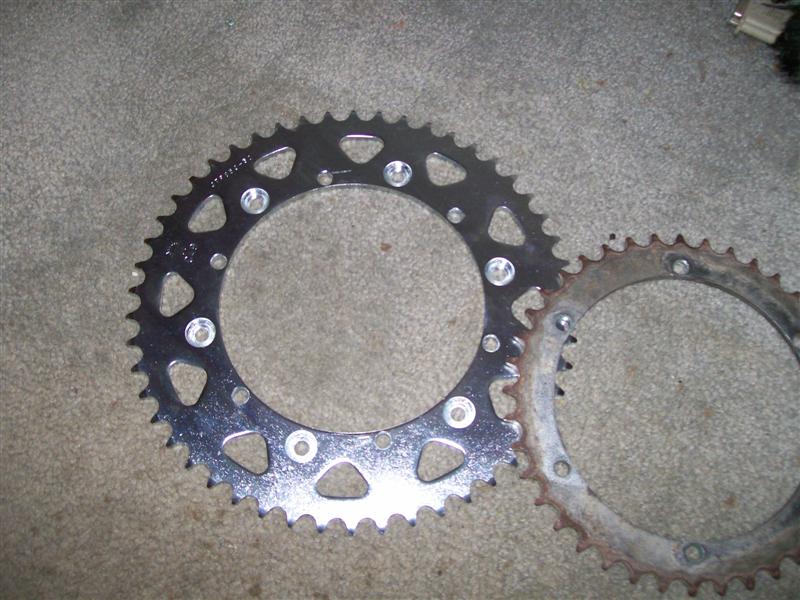

I did some more work over the weekend. Got the 15 tooth front sprocket installed. I also have the option of running trail legal pipes now. The pipes REALLY quiet it down. I have both before and after videos of the sound.



D&D pipes with the new header design:

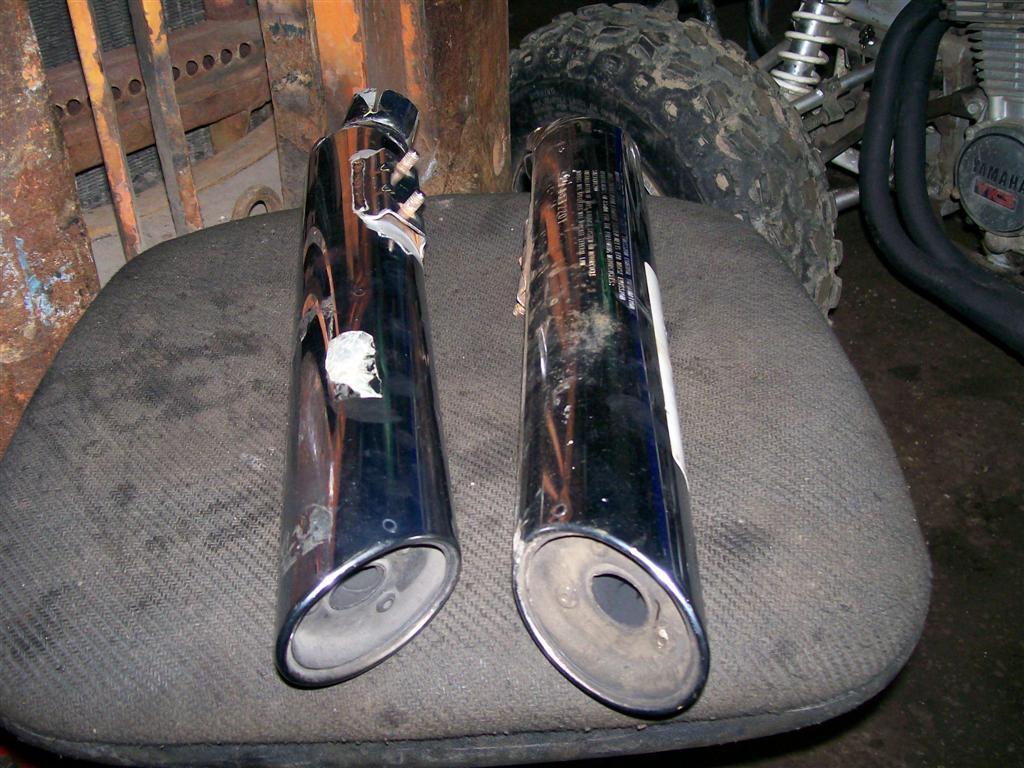

Trail legal pipes:


Last edited by a moderator:

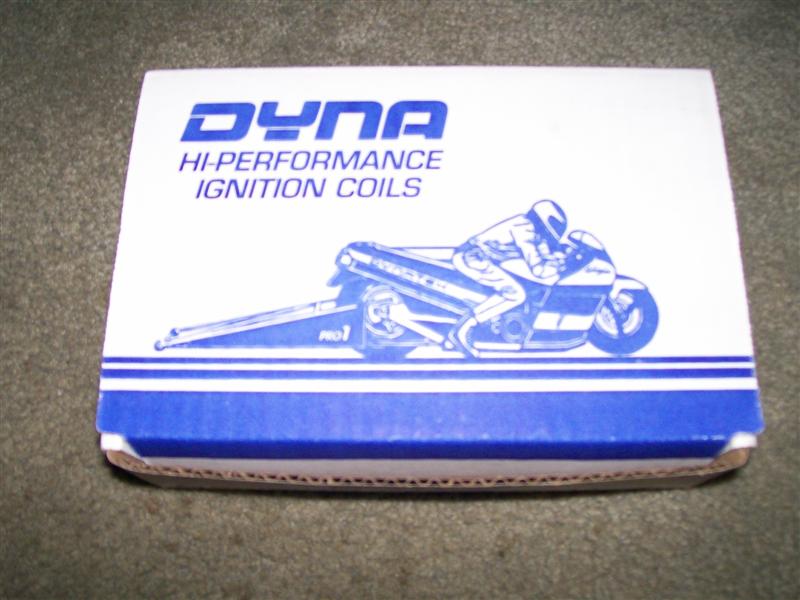

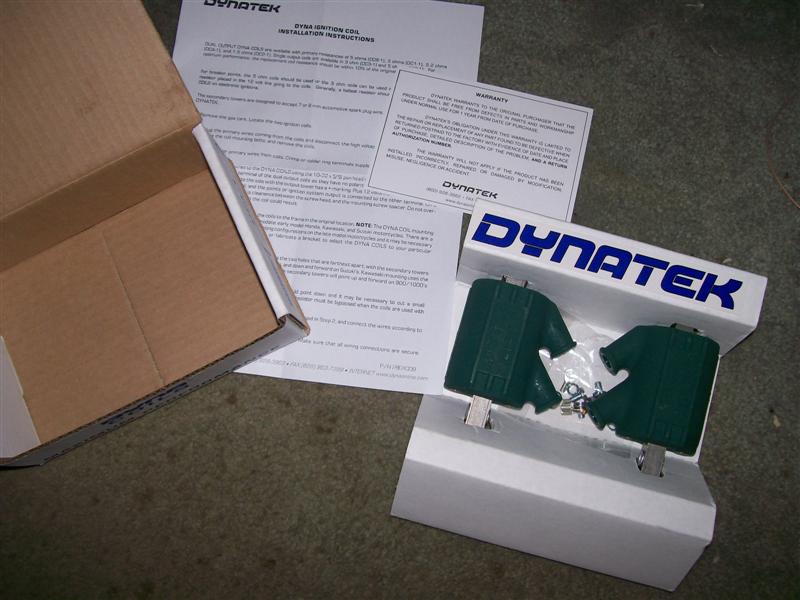

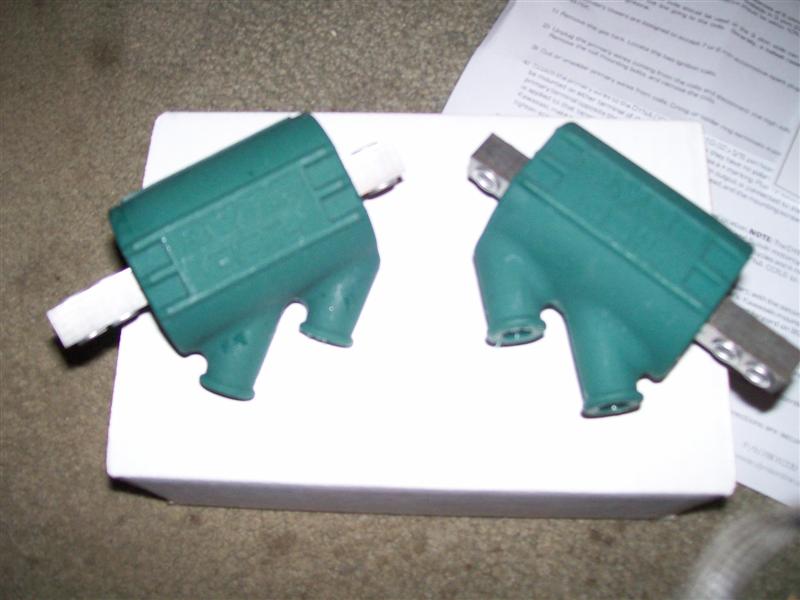

I found out that my stock coils had cracks in them. My new replacement coils showed up today. Dynatek DC1-1s. I'll post some install pictures this weekend.

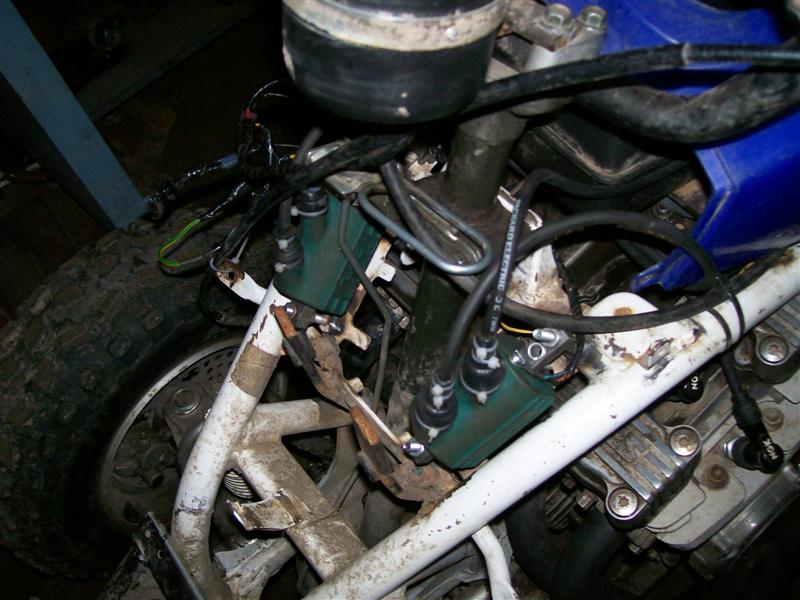

Got the new coils installed. I went for the easy mockup/install. I Used two nuts to lock bolts onto each end of the coil. I then held the coil up to the frame and tacked them on. Last. I unbolted the coils and finished welding the bolts to the frame.


I got the rear skid plate fixed up this afternoon. I started with a stock skid plate.

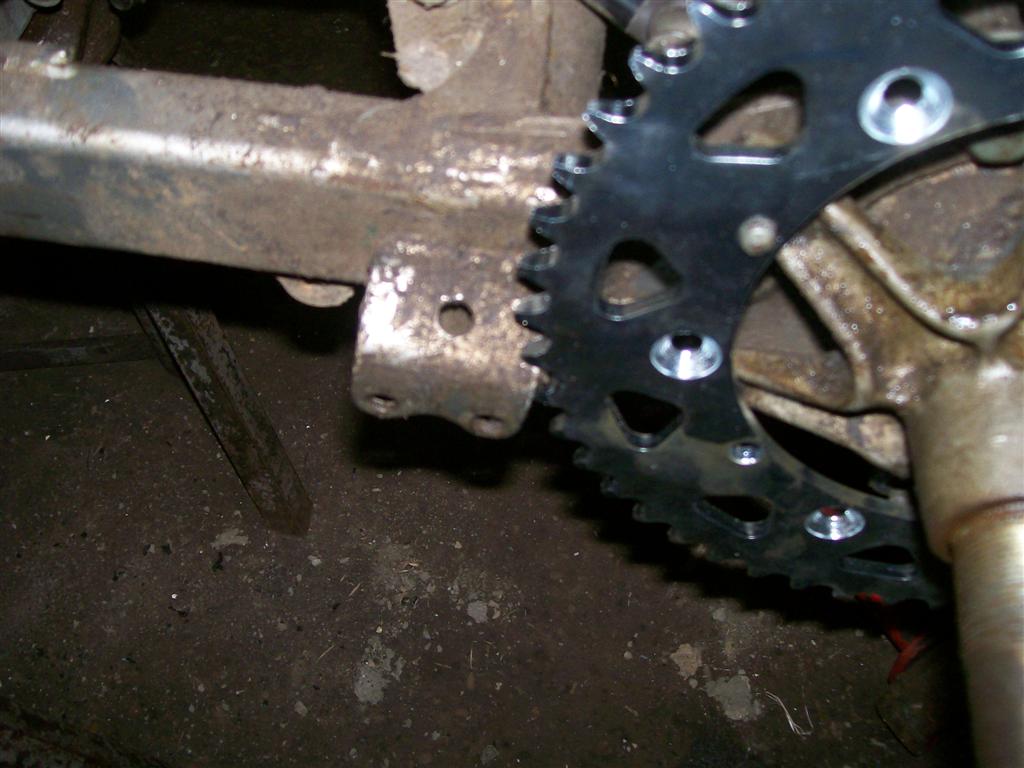

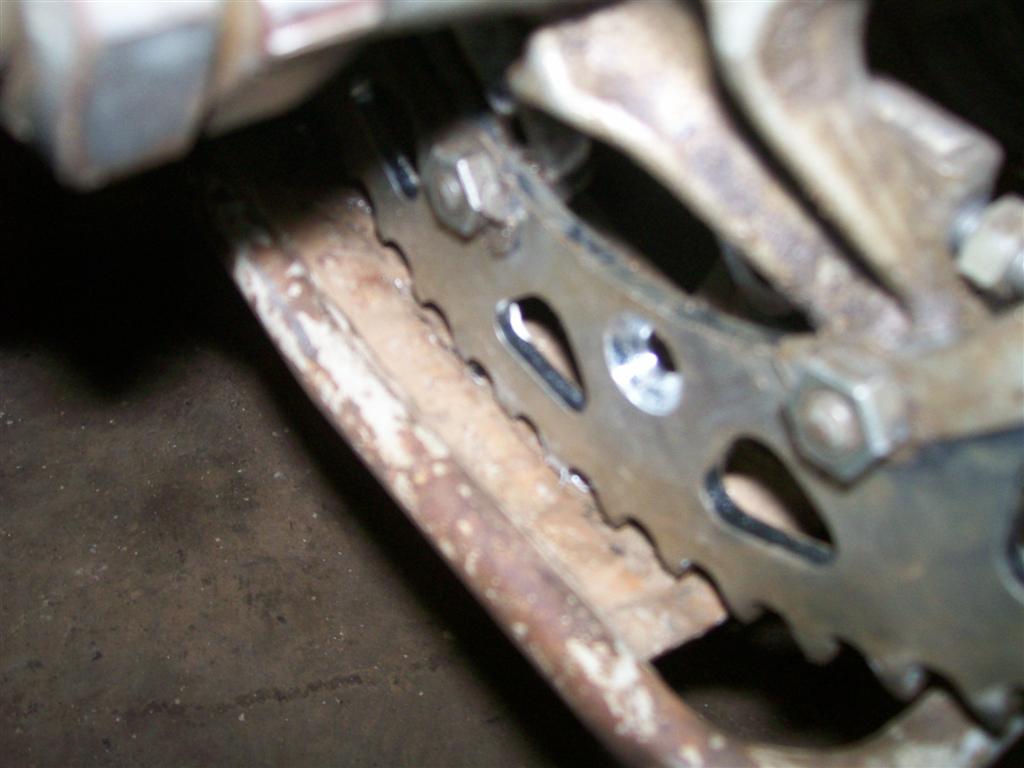

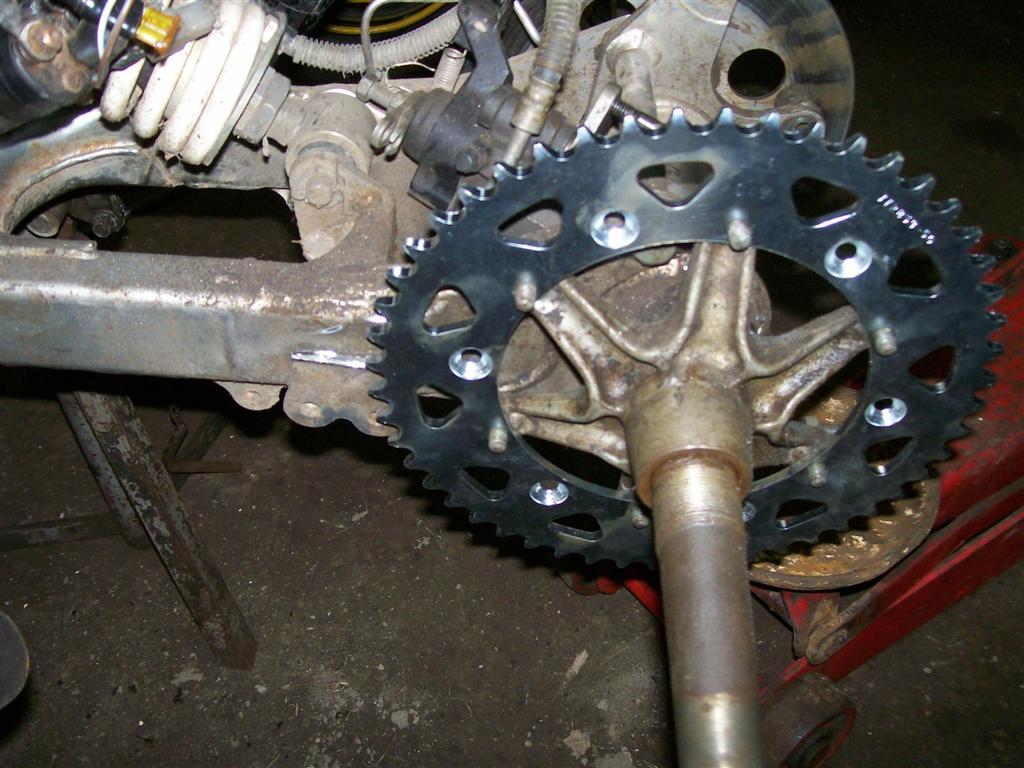

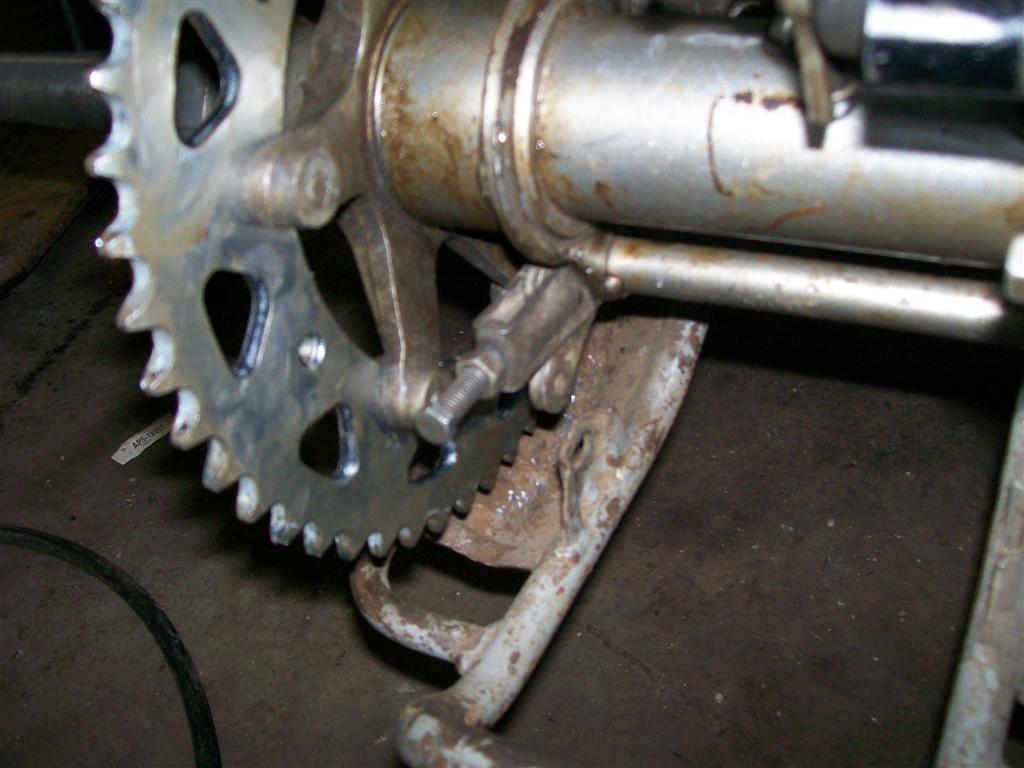

As you can see, it did not clear the new sprocket:





Here is the amount of space I would need to clear the sprocket+chain:

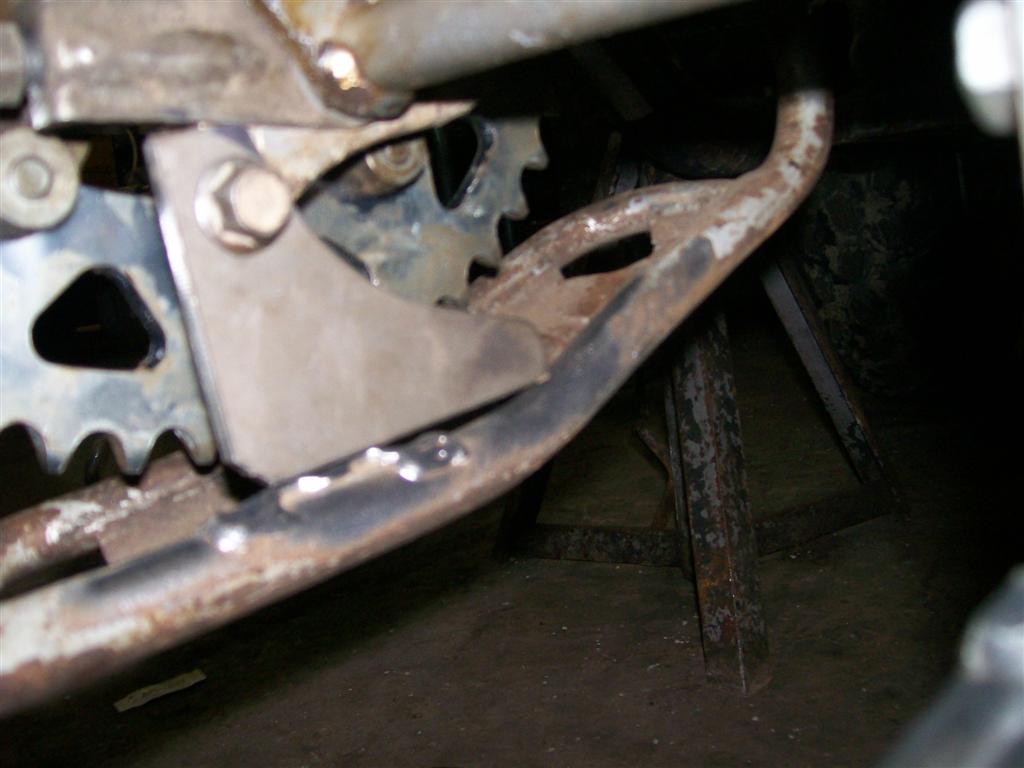

I keep a selection of gussets around just for quick little projects like this. I used one on each side:





Welded it all up:

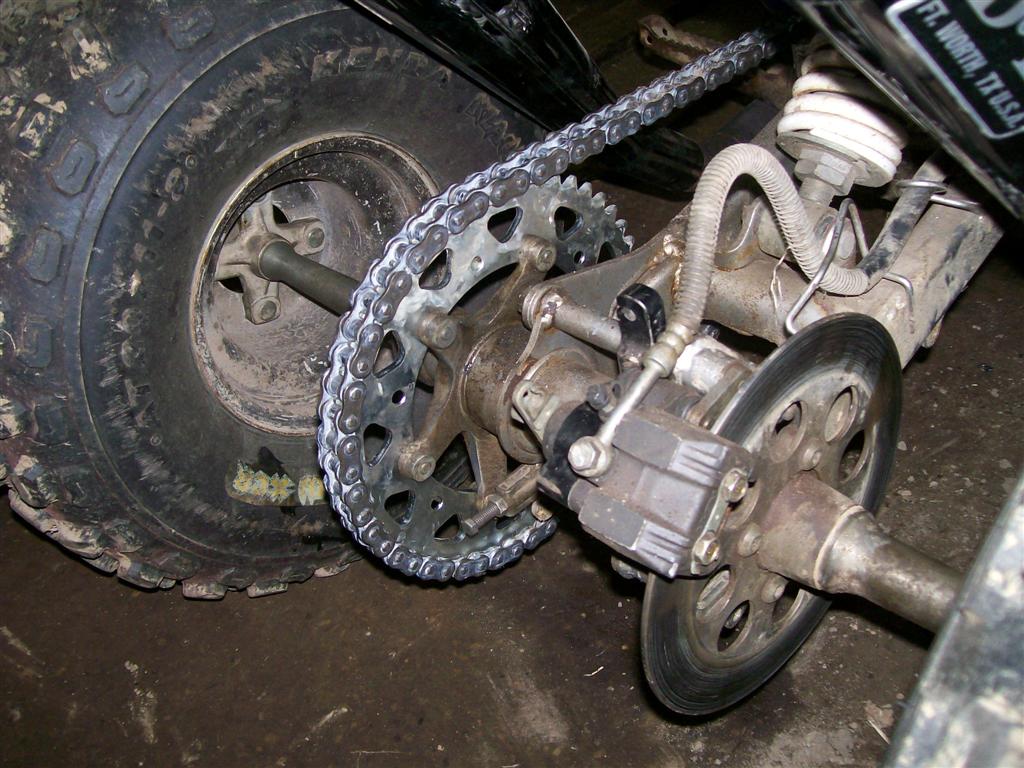

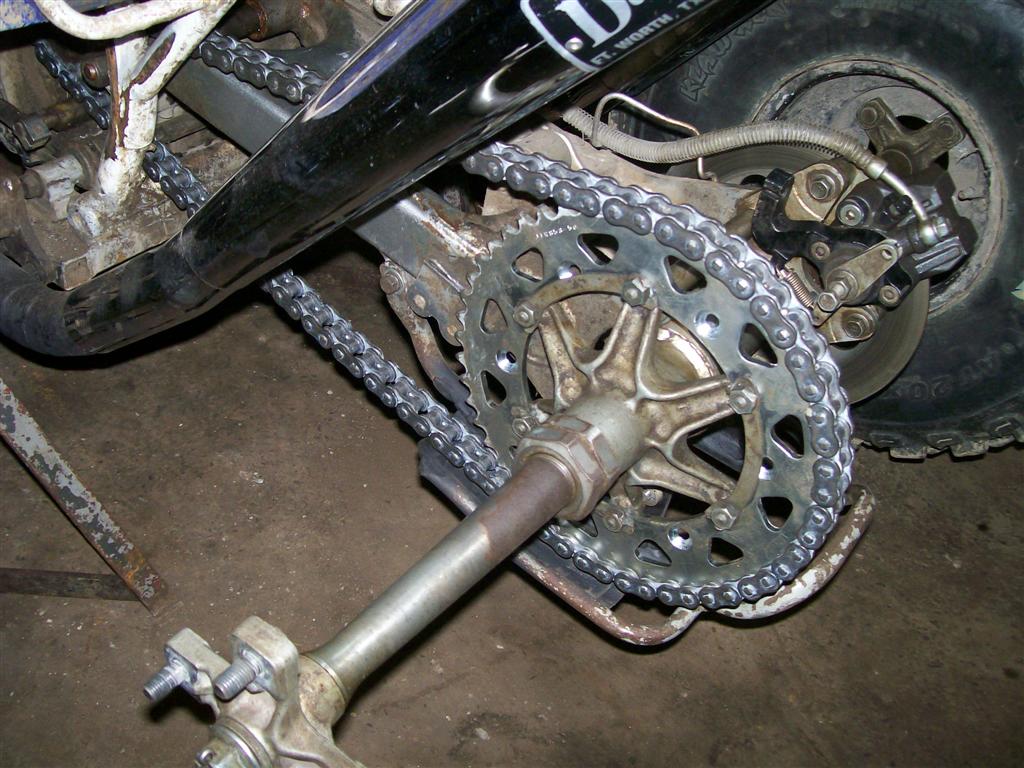

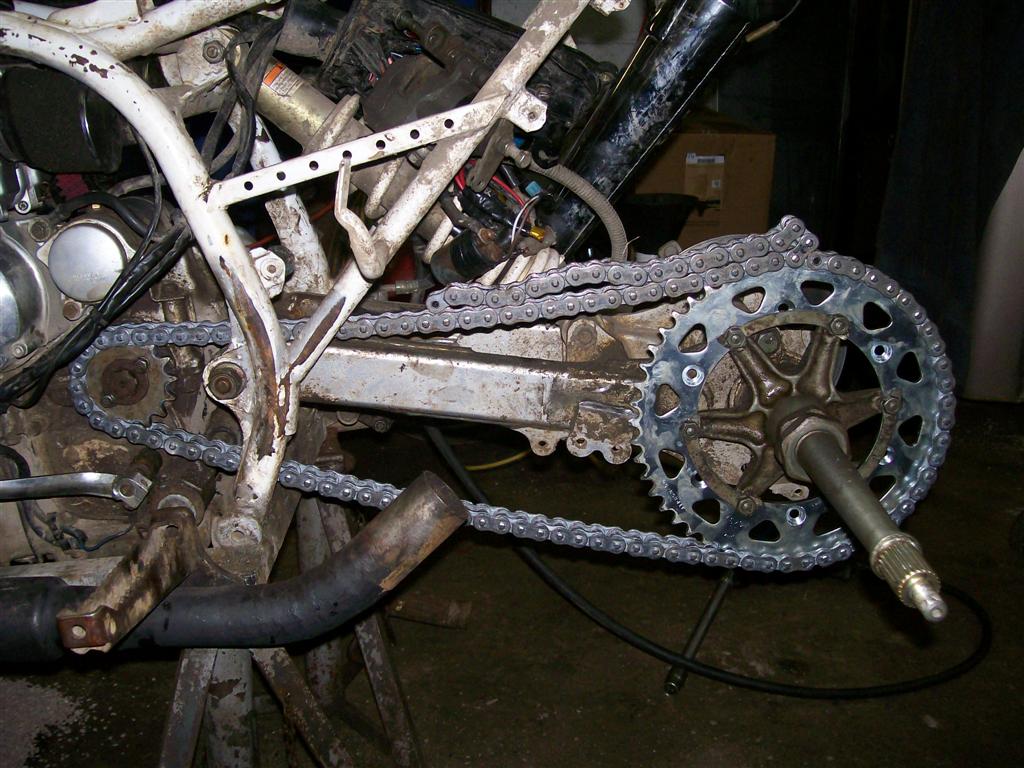

Now lets install the chain.......opps





I cut the round bar out. Added a section of plate to help keep it strong:

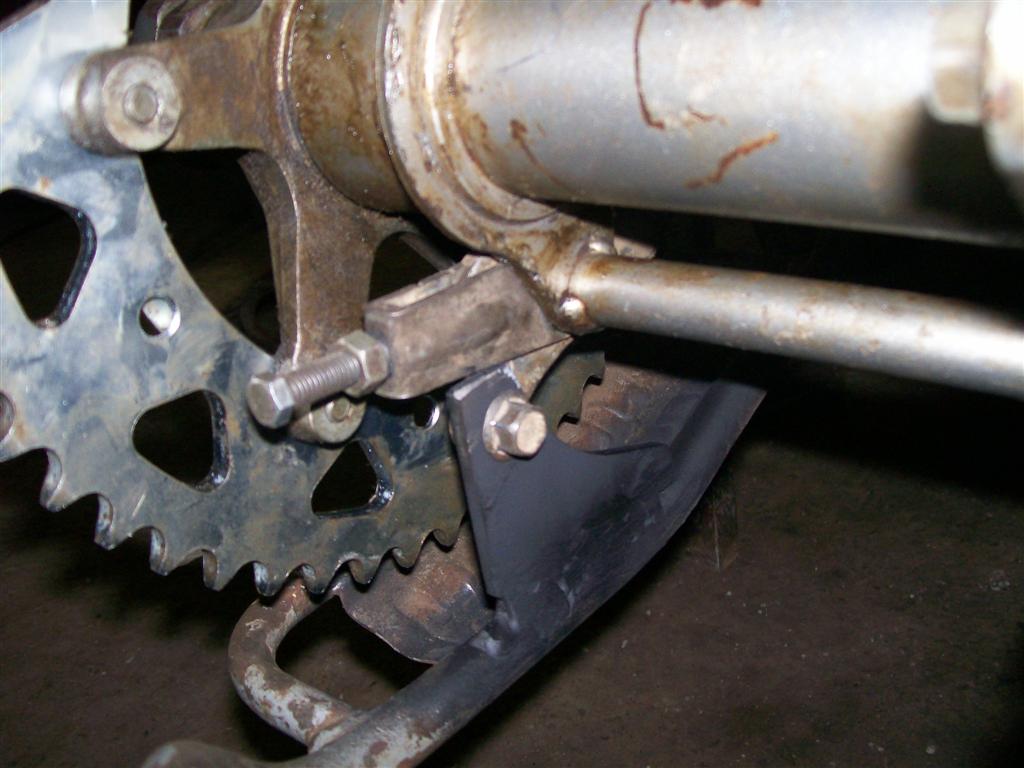

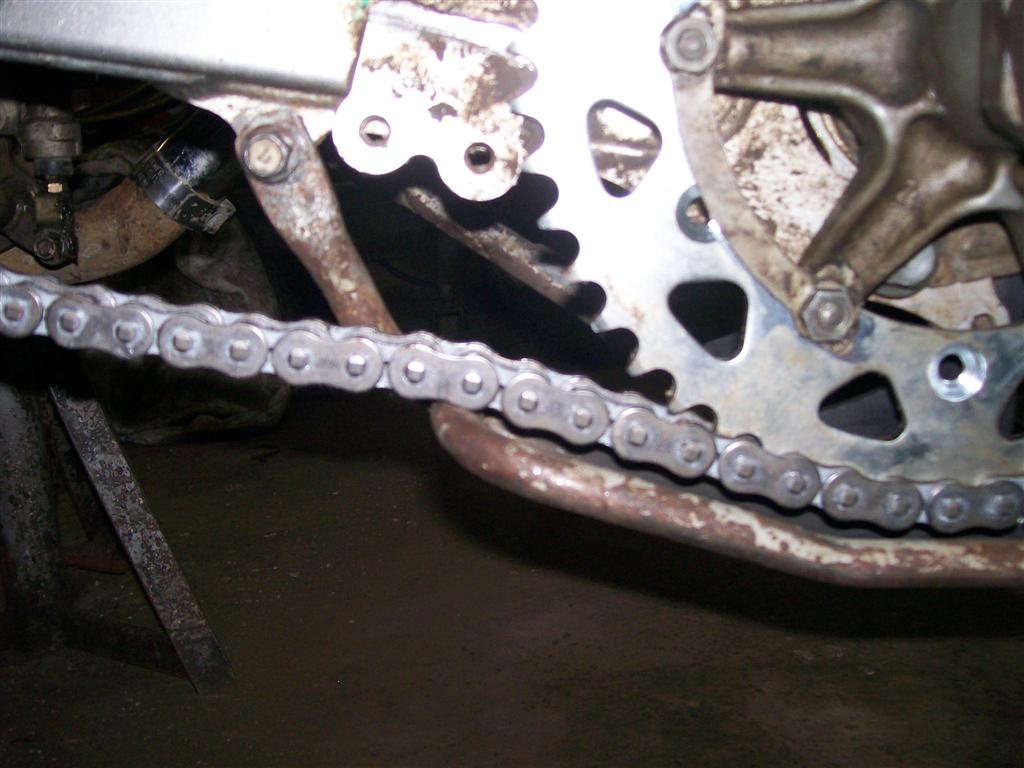

Clears the chain now:




Tomorrow or next weekend I will be making the motor skid plate.

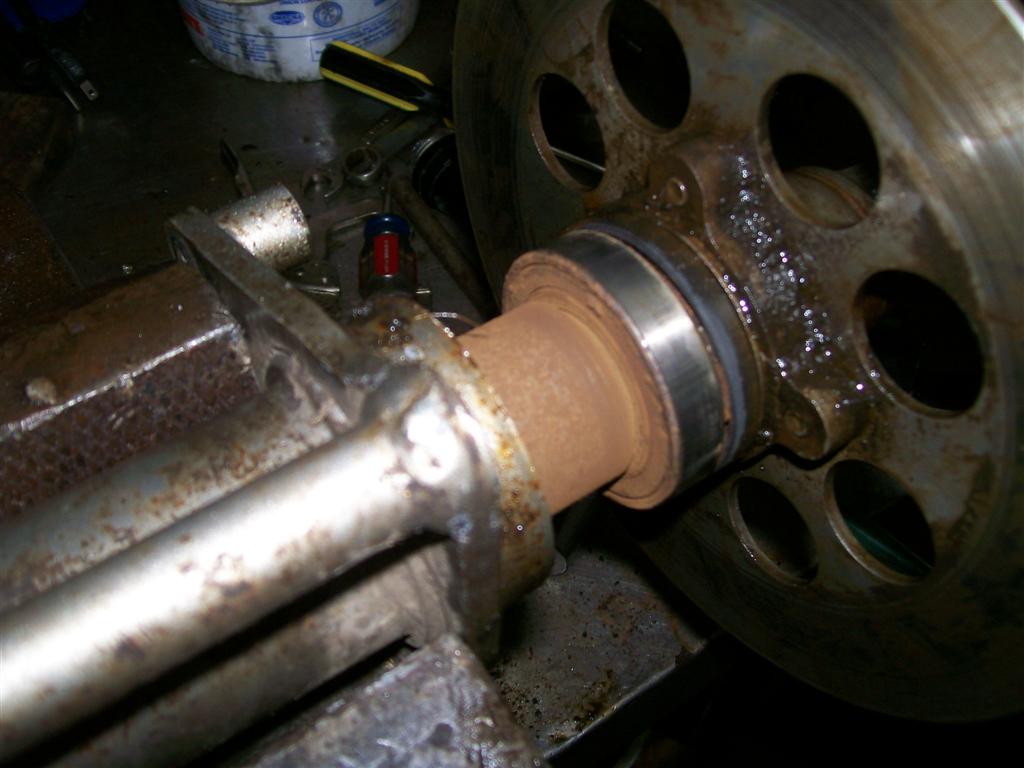

I went to replace my axle bearings and found this....

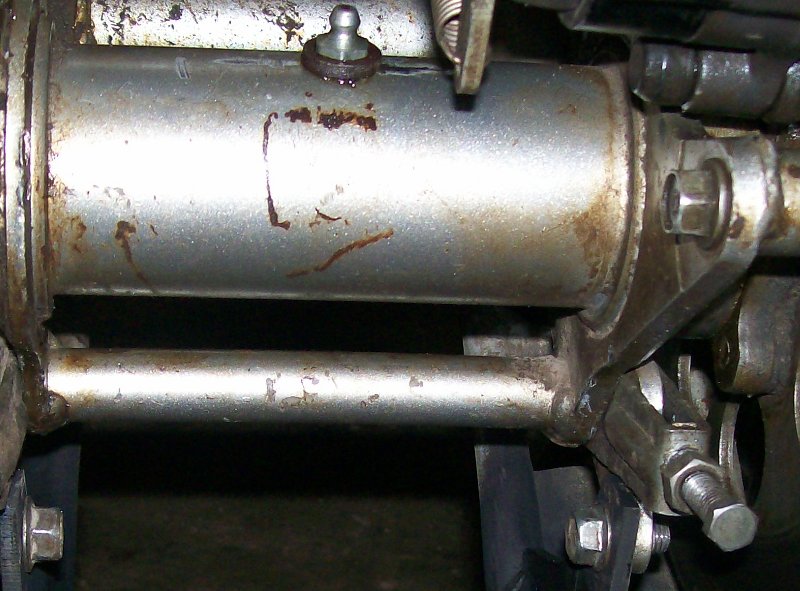

I cleaned everything up. I also installed a grease fitting along with the new bearings/seals.
