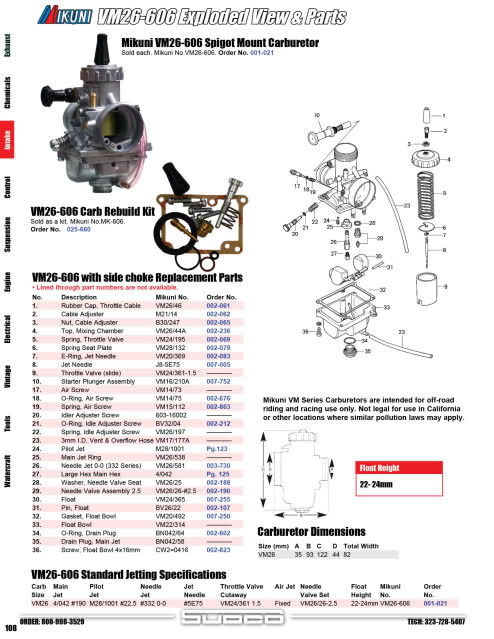

Stock mikuni carb diagram

[slickerthanyou]

Some useful info for the stock carb users!!

Notice there is part numbers for caps, cable adjusters, and idle adjustment for all you tors elimator guys!



[blasterdemon7]

Very nice. Could be a big help .Have some rep.



[Rah Shortz]

So i just need to up grade...lol



[Blasterjohny]

Hard to see the mm size of the stock carburetor anyone knows what's size each end of it mite be? Fixin to order a carburetor wanted it to bolt right up to stock breather tube



[Slydog]

Hard to see the mm size of the stock carburetor anyone knows what's size each end of it mite be? Fixin to order a carburetor wanted it to bolt right up to stock breather tube

Looks like 35mm outside diameter on engine side 44mm outside diameter
On air filter side. This is a really old thread



[Blasterjohny]

Looks like 35mm outside diameter on engine side 44mm outside diameter
On air filter side. This is a really old thread

Yeah I seen it was old just wanted to double check size



[Slydog]

Yeah I seen it was old just wanted to double check size

Its not very clear when blownup.you check out the site i mentioned on your other tread?
