Raptor 660 Rear Brake Install

Discussion in 'Custom Fabbing' started by blackhawk, Apr 7, 2010.

  1. blackhawk

    blackhawk New Member

    Joined:
    Mar 26, 2010
    Messages:
    5
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    South Western, PA
    My son and I have been wanting to put hydraulic rear brakes on his Blaster. I searched the forum and never really found a whole lot on this conversion so I figured I would post a couple of pics on how we managed to make them work.

    We found a complete rear brake assembly from a Raptor 660 on ebay. I really don't have any dimensions. We just used cardboard to cut the patterns and mark the holes.

    [​IMG]

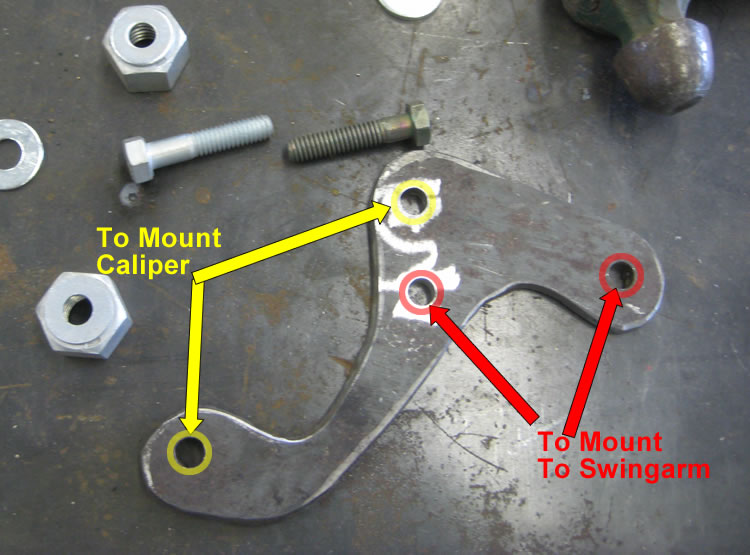

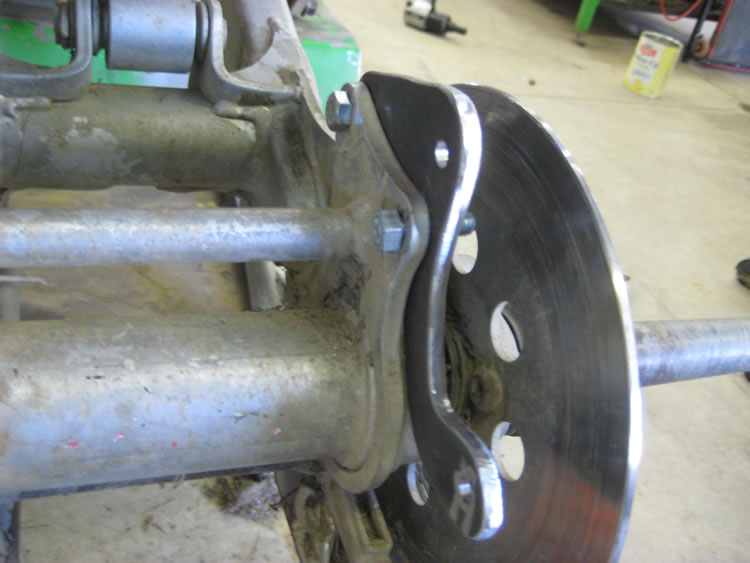

    Spacers welded to the bracket to get the caliper at the right distance to the disk.
    [​IMG]
    [​IMG]


    Sorry for the fuzzy pic. Hopefully you get the idea.
    [​IMG]

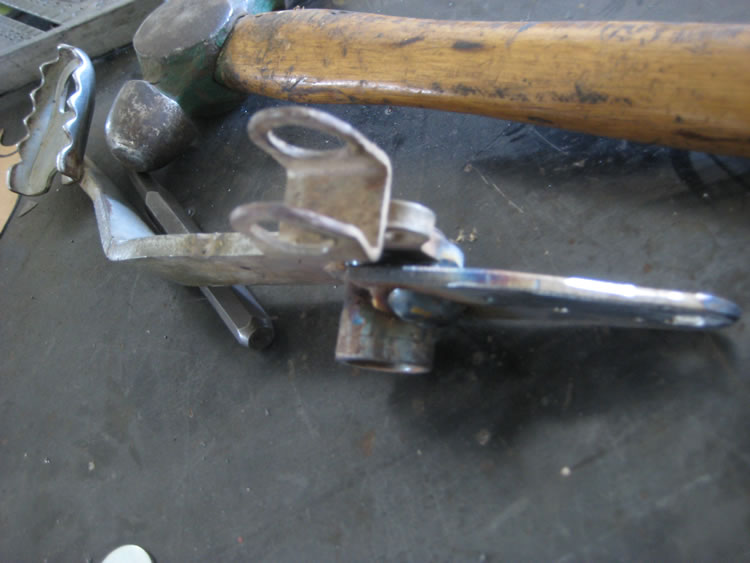

    Here is the tab welded to the back of the stock brake lever.
    [​IMG]
    [​IMG]

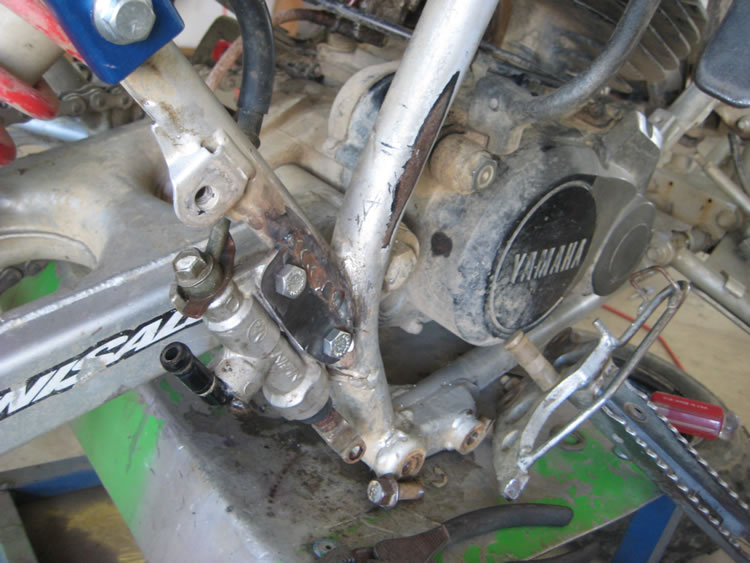

    Master cylinder bracket
    [​IMG]

    We had to make a small tab for the reservoir.
    [​IMG]

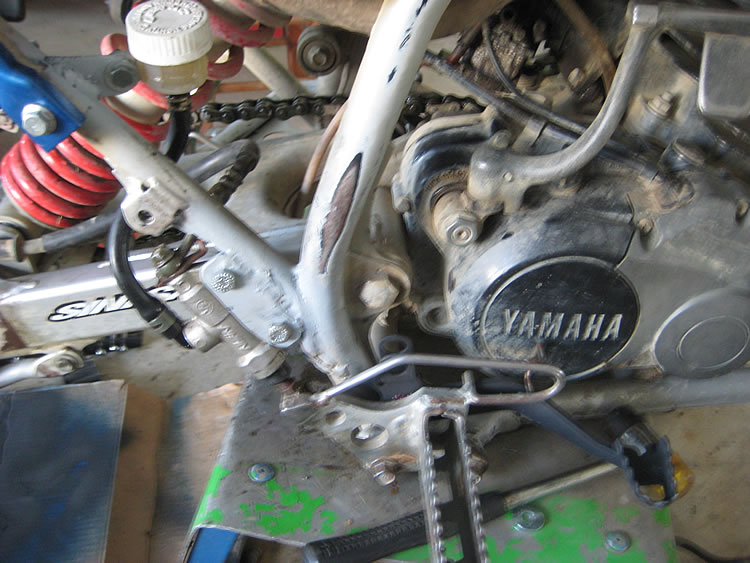

    Completed and works Great!!
    [​IMG]

  2. brandoz28

    brandoz28 Member

    Joined:
    Sep 24, 2009
    Messages:
    10,767
    Likes Received:
    96
    Trophy Points:
    53
    Location:
    Iowa
    great write up, and great work +rep

  3. jfblasterboy65

    jfblasterboy65 Member

    Joined:
    May 14, 2007
    Messages:
    732
    Likes Received:
    12
    Trophy Points:
    54
    Gender:
    Male
    Occupation:
    NYS Worker
    Location:
    Westtown, NY
    pics dont work for me man.....

  4. brandoz28

    brandoz28 Member

    Joined:
    Sep 24, 2009
    Messages:
    10,767
    Likes Received:
    96
    Trophy Points:
    53
    Location:
    Iowa
    woah they went away

  5. stephen12091985

    stephen12091985 New Member

    Joined:
    Jan 1, 2009
    Messages:
    4,233
    Likes Received:
    22
    Trophy Points:
    0
    Location:
    (321)titusville,florida
    yep pics dont work

  6. stephen12091985

    stephen12091985 New Member

    Joined:
    Jan 1, 2009
    Messages:
    4,233
    Likes Received:
    22
    Trophy Points:
    0
    Location:
    (321)titusville,florida
    nice job man looks good.gave you some rep for that

  7. jfblasterboy65

    jfblasterboy65 Member

    Joined:
    May 14, 2007
    Messages:
    732
    Likes Received:
    12
    Trophy Points:
    54
    Gender:
    Male
    Occupation:
    NYS Worker
    Location:
    Westtown, NY
    that looks so good man looks like a clean set up.... never new the raptor master cylinder was different then the banshee....

  8. DirtDiggler

    DirtDiggler DUNEFREEK

    Joined:
    Nov 24, 2009
    Messages:
    2,286
    Likes Received:
    27
    Trophy Points:
    84
    Occupation:
    Emergency Response Pipefitter for the local natura
    Location:
    Tacoma , Wa
    pretty much like the gixxer set up , bracket is essentially the same . Looks great , way better than the cable mechanical fiasco they originally came with

  9. DReeds

    DReeds New Member

    Joined:
    Jan 14, 2010
    Messages:
    772
    Likes Received:
    12
    Trophy Points:
    0
    Occupation:
    Pornstar!
    Location:
    Jersey Fool!!
    Great way to become a member of this site...1st post..1st thread= GREAT info...rep points given man.

  10. blackhawk

    blackhawk New Member

    Joined:
    Mar 26, 2010
    Messages:
    5
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    South Western, PA
    Thanks guys. Been reading about hydros for the front that will be our next step. This is a GREAT site, lots of info!

  11. slickerthanyou

    slickerthanyou New Member

    Joined:
    Dec 23, 2009
    Messages:
    7,615
    Likes Received:
    140
    Trophy Points:
    0
    Very cool! Like detailed photos!

  12. pwelker

    pwelker New Member

    Joined:
    Jul 20, 2010
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    where is your return spring for the cable? i think this is by far the best setup ive seen, so im gonna do this on mine. my only problem is once you remove the bracket where the old brake cable sat and the return spring hooked up, where do you hook up the new return spring?

  13. Blasterb0y794

    Blasterb0y794 New Member

    Joined:
    Feb 4, 2008
    Messages:
    5,084
    Likes Received:
    57
    Trophy Points:
    0
    Occupation:
    Sandblaster/powdercoater
    Location:
    New York
    very nice DIY! Just for everyone out there, the raptor 660 and the banshee rear calipers are the same.

  14. Kenny38

    Kenny38 Member

    Joined:
    Feb 6, 2020
    Messages:
    74
    Likes Received:
    7
    Trophy Points:
    45
    What’s the dimensions??
