Project super sleeper shee

Discussion in 'Yamaha' started by Paulie B, May 15, 2012.

  1. Chuckie25

    Chuckie25 Member

    Joined:
    Jul 25, 2012
    Messages:
    210
    Likes Received:
    3
    Trophy Points:
    49
    Occupation:
    Atv mechanic and aspiring 2-stroke builder
    Location:
    Louisiana
    I watch your trail ride videos all the time lol. Your shee has always been one of my favourites cause it's not super flashy.

  2. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,655
    Likes Received:
    256
    Trophy Points:
    130
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    I cut the dogs on a Ford toploader transmission many years ago.
    One problem I had was huge driveline backlash.
    Made it hard driving on the street, but it never missed a shift!

    Does this mod do the same thing, increase driveline backlash?

  3. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    By cutting off half the dogs you are giving the gears 50% more time to get engaged.
    My trail set-up already had problems shifting under load at high rpms.
    The dogs literally were getting in the way.
    This should fool them into thinking my rpms are only half of what they really are.

    I'll def let you know how it works out but my research on the subject says this is how to get it to shift like butter.

    Other mods I have on board to shift:
    Modded shift star
    Modded shift shaft for more travel on the shifter
    weaker spring on the shift star detent lever
    a bearing on the shift star detent lever instead of a bushing
    a bearing on the shift drum instead of a bushing

    After this there are only 2 more things that you could possibly do for about $500 which I refuse to do:
    Use billet shift forks and have the entire trans and shafts micro polished...PB

  4. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    Thanks alot brother!

  5. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    I got the crank back from Wildcard. Brandon did a great job.
    The welds on the pins look professional as expected and he upgraded the bearings free of charge for my wait which = a class act in my book.
    BUT

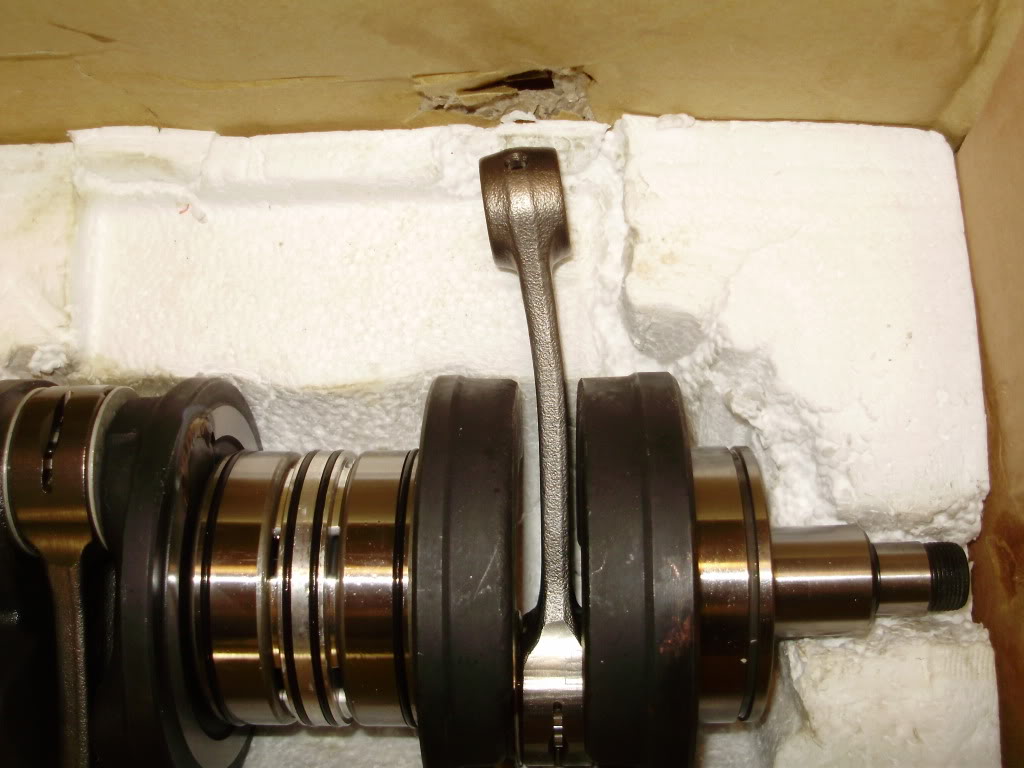

    Whats wrong with this picture? Anybody want to guess how much less pride you gottah take in your job at the US Post Office to bend a Hotrod like this?
    And they wonder why allegedly the PO lost millions last year.
    Yes it was insured. Yes the the PO will lose $$$$$ on repairing it.....
    [​IMG]
    [​IMG]
    [​IMG]

  6. blasterBruce

    blasterBruce New Member

    Joined:
    May 13, 2008
    Messages:
    2,296
    Likes Received:
    14
    Trophy Points:
    0
    Location:
    Griffin Ga
    Wow , thats sad to see man , Hope they get you fixed asap , That is just carelessness at its best right there

  7. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    It's already back in Wildcards hands and Brandon said he will get it done asap thankfully so I can still goto Busco.
    I'm grateful because the insurance claim is gonna take weeks.

  8. blasterBruce

    blasterBruce New Member

    Joined:
    May 13, 2008
    Messages:
    2,296
    Likes Received:
    14
    Trophy Points:
    0
    Location:
    Griffin Ga
    Sweet good to hear !

  9. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,293
    Likes Received:
    2,194
    Trophy Points:
    175
    Occupation:
    Electrician/Contractor
    Location:
    Pa.
    damn sorry to see that happen to you PB, hope it all works out for ya !
    but it looks like it was packed with the rod ends and crank ends only protected by the cardboard box ???

    something that expensive would have been packed in a crate/cooler/tote with tons of packing around it had i been the shipper

  10. mmajay

    mmajay 800 V Twin

    Joined:
    Aug 6, 2010
    Messages:
    1,636
    Likes Received:
    17
    Trophy Points:
    0
    Occupation:
    Machinist/welder
    Location:
    Busco Beach NC/ Goldsboro
    Good luck getting money from the PO. I had the same problem and i got nothing because they claimed it was not packed to there standards and it was packed perfect. I also took extra insurance out but after a month of waiting i got a letter saying they are not responsible because of the type box. I sure hope you have better luck but i somehow doubt it.

  11. itstyler

    itstyler Member

    Joined:
    Jan 20, 2011
    Messages:
    383
    Likes Received:
    6
    Trophy Points:
    54
    Looks like the damage is on the shop that mailed it like that not the post office. Its got nothing between rods/either end of the crank, and the cardboard box. Should have been some more foam action there for sure.


    I like the color scheme on the bike, i really need to tear mine to the frame and paint it.

    Also ran the 2into1 carb setup for awhile its great for trail riding imo.

  12. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    There was a foam cover that matches the one it is sitting in.
    The crank came from taiwan then Florida, then to MD then back to Florida then to Utah all in that box.
    It was the trip from Utah to MD that caused the damage.
    Wildcard is handling the claim I:I

  13. blasterfreek30

    blasterfreek30 Member

    Joined:
    Jan 27, 2008
    Messages:
    9,634
    Likes Received:
    126
    Trophy Points:
    94
    Location:
    north nj
    that sucks paulie...damn PO!

  14. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    Might as well make the final update to this thread and send her on to the archives.
    Wildcard Racing came through and I got my crank 4 days before the Busco trip- yeah!
    I can't thank my man Brandon, and Shay enough.
    The big motor sucked so much air through the stock carbs I had to reverse jet it.
    I had to go back down to stock 25 pilots and move the clip on the needle all the way to the top.
    3 7 0 main jets seemed to work best.
    With the bottom end jetting being as lean as I could make it, it was still rich and stumbling in the midrange.
    It did pretty good running in the unofficial arm drop nite drags once I got the hang of it.
    Quads, dirtbikes, 250s, 450s, 750s, even 800s all went down :D

    So there you have it. A stock head, stock carb, stock airbox, trail piped, stock swingarm, w/ heavey azz Kenda Bearclaw mud tires Banshee can ride everywhere all weekend and still be a star at the track lol
    My mission is complete, a super sleeper shee :D

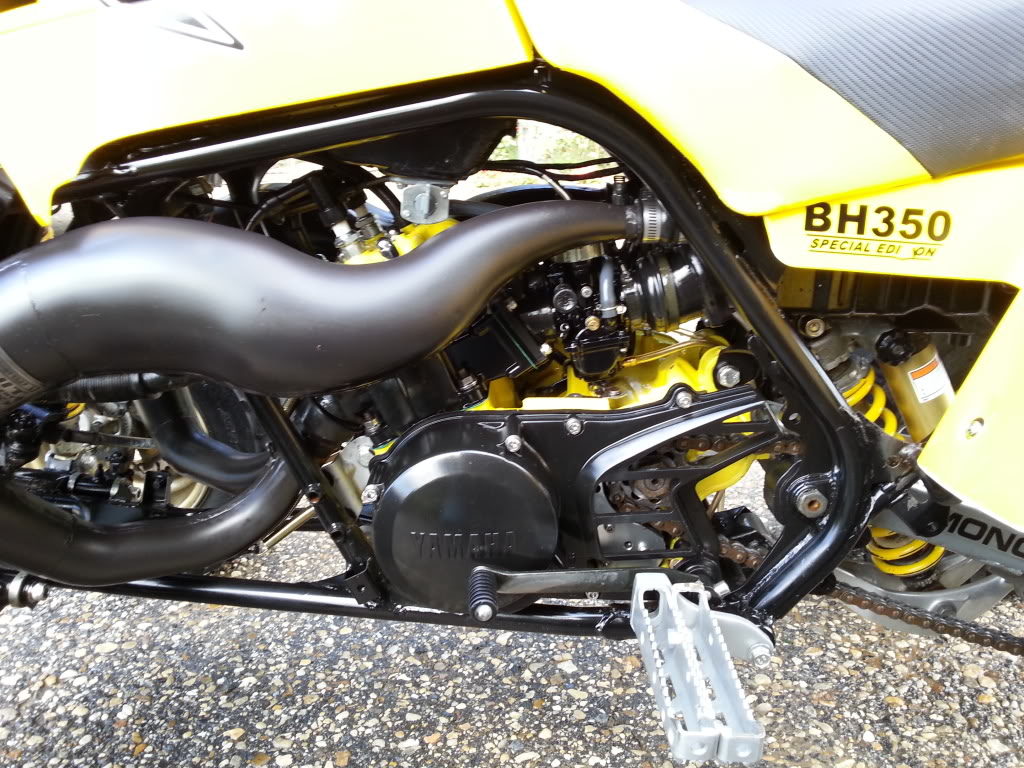

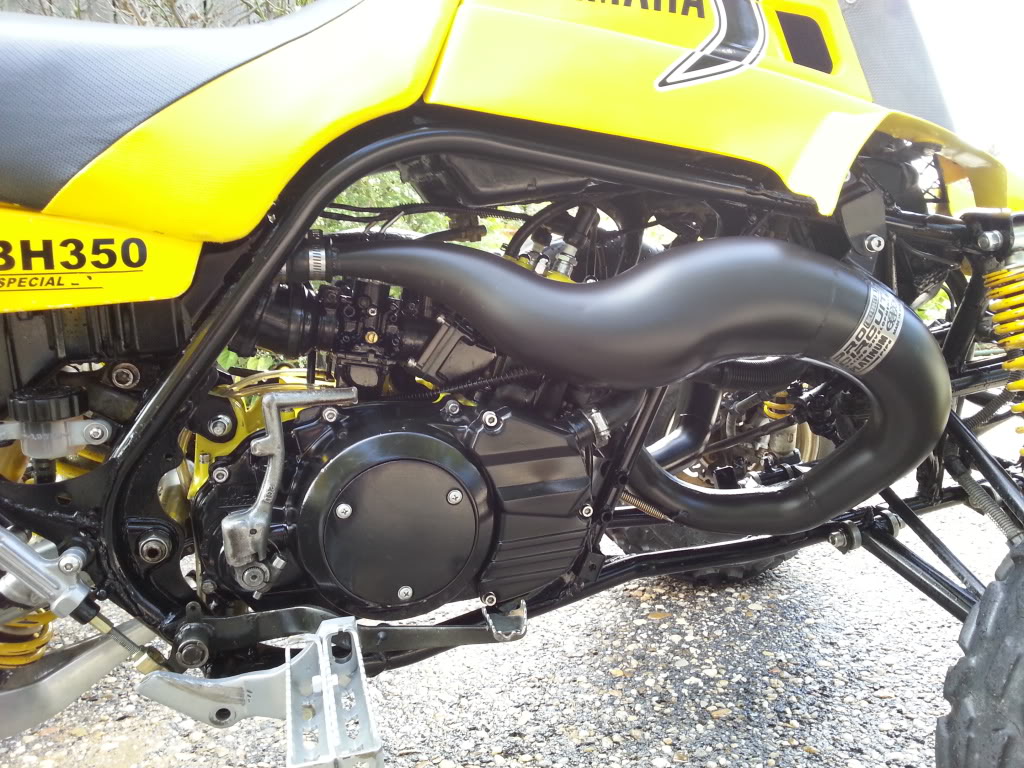

    Heres some pics of the new motor in frame.

    [​IMG]

    [​IMG]

    Vid against a couple 250's.


    Last edited by a moderator: Feb 6, 2014
  15. blasterfreek30

    blasterfreek30 Member

    Joined:
    Jan 27, 2008
    Messages:
    9,634
    Likes Received:
    126
    Trophy Points:
    94
    Location:
    north nj
    i wish i couldve rode that thing man...looks awesome

  16. 2smoker85

    2smoker85 Member

    Joined:
    Dec 13, 2008
    Messages:
    4,596
    Likes Received:
    39
    Trophy Points:
    90
    Occupation:
    engineman/navy
    Location:
    Edgewater MD

    good luck getting ur money from the PO they LOST my buddies movado(1k watch) and after 4 weeks even furnishing the tracking number the reciept for the watch and a statement from the shop he bought it from because he sent it back due to wrong type, they decided the watch was only worth 250.00... so its pointless to insure anything these days, they are just going to put it right in ur pooper when u file a claim, its worse than filing a claim on ur insurance....good luck paulie

  17. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    58
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    Next year man! You could have rode it anytime you know lol

    I already got it back :)

  18. blasterfreek30

    blasterfreek30 Member

    Joined:
    Jan 27, 2008
    Messages:
    9,634
    Likes Received:
    126
    Trophy Points:
    94
    Location:
    north nj
    i dont know if i would want to lol....knowing what mine does and hearing and seeing what urs will do..might be kinda scary lol

  19. Surfrjag

    Surfrjag Member

    Joined:
    Mar 18, 2010
    Messages:
    2,760
    Likes Received:
    34
    Trophy Points:
    85
    Occupation:
    tug boat
    Location:
    chesapeake, va
    That thing ripped paulie! Sit on the tank! Lol

  20. little3mil

    little3mil New Member

    Joined:
    Sep 17, 2009
    Messages:
    1,956
    Likes Received:
    65
    Trophy Points:
    0
    Occupation:
    going f a s t
    Location:
    florida
    the Hannah sleeper sounded awesome PB and was doing work the whole trip! man i love the detail and how clean you keep your sh*t. cheers to you sir
