Pankz' First frame up build, yes...its another Blaster :)

Discussion in 'Full Rebuilds' started by Pankz, Apr 19, 2017.

Page 3 of 4
  1. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,425
    Likes Received:
    2,284
    Trophy Points:
    175
    Occupation:
    Electrician/Contractor
    Location:
    Pa.
    Duh :confused:
    I didn't look at the pics


    I have a 34PJ, never used a 35pwk. either works

    If you order new, use a reputable carb shop and get a tune you need right from the start ?
    I like Carb Parts Warehouse in Ohio, should put in the parts listed below, at least the slide n needle ?

    if buying used, or ordering new, for both carbs, we've found:

    must haves >
    #6 slide
    needles...DGH for higher elevations, CEL for lower elev's

    45 48 50 pilots
    150 thru 162 mains
    are the ranges that work for most, you'll need to tune and plug chop for your specific mods, temps and elevation

    Awk08, Apr 26, 2017
    #41
    Pankz likes this.
  2. dirtysquared

    dirtysquared DirtyDirty

    Joined:
    Jun 30, 2013
    Messages:
    2,825
    Likes Received:
    875
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Foreman For a Water Company
    Location:
    South Western PA
    I've used a 34PJ and I've had a 35 or 36 ( I can't remember now) on a RM 125.

    They both were good carbs, the only thing didn't like about the PJ is that the idle control is tied into the choke circuit. To the PWK has it's own separate idle screw. But all in all, they both got the job done. It was just something I wasn't fond of.

    I'll second Awk's statement about carb parts warehouse. They are good people to deal with, and they have just about anything you could want carb related.

    dirtysquared, Apr 26, 2017
    #42
    Pankz likes this.
  3. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Sold on carb parts warehouse. I will give them a call.

    So the #6 slide, is this the ticket for either a PJ or a PWK? Are the mains and pilots the same jets I have for the 38 pwks on my yz250? I already have 45 - 52 pilots on hand. I think the smallest main I have on hand is a 162.

    So I guess I'll call and order a 35pwk, with a #6 slide, DGH and CEL needles, and the 150 range of jets. Sound right?

    Thanks so much for the advise and opinions both of you.

    Pankz, Apr 26, 2017
    #43
    Awk08 likes this.
  4. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,425
    Likes Received:
    2,284
    Trophy Points:
    175
    Occupation:
    Electrician/Contractor
    Location:
    Pa.
    Sounds right

    And good call on Dirtys part about the idle screw difference, the PWK's are definitely better and easier.

    Awk08, Apr 27, 2017
    #44
    Pankz likes this.
  5. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Just picked up a package from Mr. Ken O'Connor. Oh yay! More pics coming...

    Package.jpg Package 2.jpg

    Pankz, Apr 27, 2017
    #45
    jus_me, Markblaster, dirtysquared and 1 other person like this.
  6. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    759
    Trophy Points:
    175
    Markblaster, Apr 27, 2017
    #46
  7. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    More to come...


    Pankz, Apr 27, 2017
    #47
  8. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    JUST got home from work, picked it up on my lunch break. It wasn't easy keeping my head in work this afternoon ;)

    Pankz, Apr 27, 2017
    #48
  9. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    20170427_182040.jpg 20170427_181854.jpg 20170427_181937.jpg 20170427_181836.jpg

    Pankz, Apr 27, 2017
    #49
    82cutty and Markblaster like this.
  10. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Couple of questions.

    Use the stock plug? Even with the 240 kits ported?

    What are these parts for?

    These get pressed in like a bushing? Flat side in, rounded side out?

    Last edited: Apr 28, 2017
    Pankz, Apr 27, 2017
    #50
  11. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    759
    Trophy Points:
    175
    Looking other parts diagrams I can find this.


    pin 2.jpg

    Hope that helps.

    Last edited: Apr 28, 2017
    Markblaster, Apr 28, 2017
    #51
    jus_me and Pankz like this.
  12. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    759
    Trophy Points:
    175

    Then 2 washers. They for the rear engine/swing arm mount? If so I had a look at mine and mine are flat side out.

    Markblaster, Apr 28, 2017
    #52
    Pankz likes this.
  13. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Yeah those are for the mount.

    You found it, the oil pipe holder! Why I didn't buy it. Ken sent that back

    The other one isn't a pin, its a tiny rubber cap...maybe it was capping the oil pump before?

    Pankz, Apr 28, 2017
    #53
  14. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    759
    Trophy Points:
    175

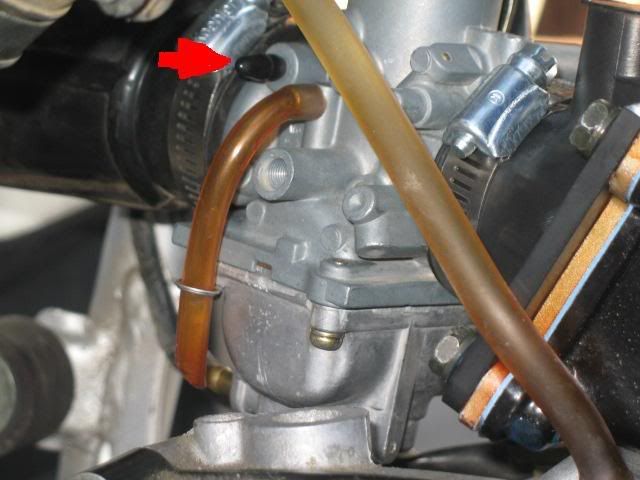

    Oh that maybe the rubber cap off the carb when you do the oil delete?

    [​IMG]

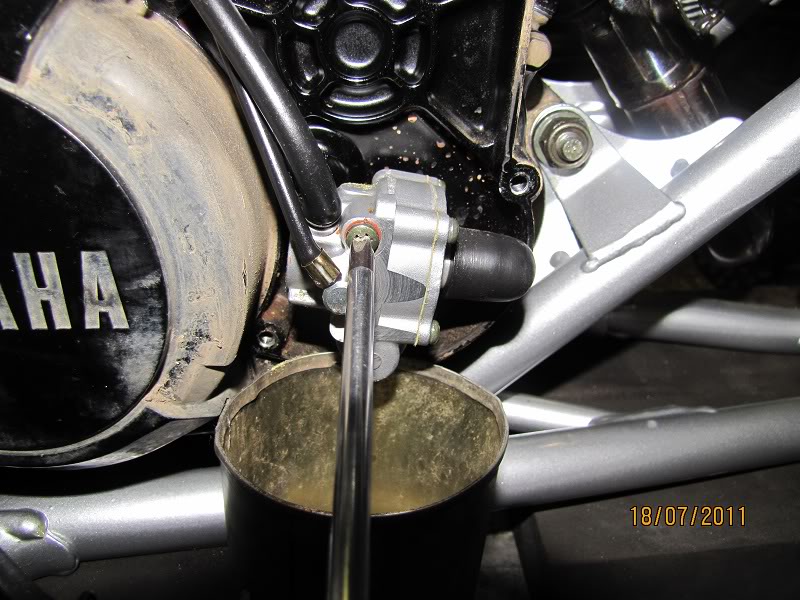

    Or maybe it was a cap for on the pump after the hose was removed?
    [​IMG]

    Last edited: Apr 28, 2017
    Markblaster, Apr 28, 2017
    #54
    Pankz likes this.
  15. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    759
    Trophy Points:
    175
    Markblaster, Apr 28, 2017
    #55
    Pankz likes this.
  16. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Thanks Mark! I have KOR to thank, they put it together for me :)

    What has been done.

    Rebuilt stock crank
    Vito's timing plate
    Lightened flywheel
    All new bearings and seals
    New crankcases, port matched
    New shift shaft
    New kick axle assembly
    New clutch arm assembly
    New drive axle
    New clutch cover
    Rebuilt Vito's 240 BBK ported
    Head mod
    Case saver
    Oil block off plate
    All new hardware

    Pankz, Apr 28, 2017
    #56
    jus_me likes this.
  17. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    It does indeed look like that cap on your carb. Bike had a 34mm Mikuni on it, and it stayed at home. Oil pump was still installed so I guess it was installed there.

    Thanks for your help Mark!

    Pankz, Apr 28, 2017
    #57
  18. jus_me

    jus_me Active Member

    Joined:
    Aug 8, 2012
    Messages:
    3,594
    Likes Received:
    516
    Trophy Points:
    177
    Location:
    N.Y
    Nice build going Pankz ! Love that frame color. Wait till you fire this baby up, you will be happy I am certain.

    Referring to the reed cage etc.. Make sure to not overtighten as it is easy to do and can/will warp things and cause a leak. The yamabond will help with that though. The bushings go flat side out and u can tap them in with a hard rubber mallet.


    Ohh yeah. Don't forget to leak test !! And re torque head after heat cycles ;)

    jus_me, Apr 29, 2017
    #58
    Pankz likes this.
  19. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Thanks for stopping by and taking a peek!

    I installed my intake last night per recommendations, and torqued to spec. I bought a leak tester from awk08 but need to run out today to grab a plug. Stock plug for 240kit? When I picked this bike up it had a br9es.

    I installed the pivot washers backwards. Lol. I just really figured the flatside should face the machined surface, and the smooth side towards the pivot pins. What is the reasoning for installing them the other way, I'll pop them out and flip them if need be.

    On retorquing the head. How in the...?!?

    Pankz, Apr 29, 2017
    #59
  20. Pankz

    Pankz Member

    Joined:
    Mar 9, 2017
    Messages:
    83
    Likes Received:
    37
    Trophy Points:
    69
    Gender:
    Male
    Occupation:
    Carpenter
    Location:
    California
    Don't worry guys. When I read this I read cylinder. When I installed the motor I looked at those cylinder base bolts and wondered how the hell.

    I am keen on re-tourquing the head bolts after my heat cycles ;)

    Pankz, May 3, 2017
    #60
