OMI Products Greaseable Steering Stem Mount VS Stock!

Discussion in 'Miscellaneous Parts' started by 79 bronco, Mar 8, 2014.

Page 1 of 2
  1. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Last edited by a moderator: Sep 23, 2014
    79 bronco, Mar 8, 2014
    #1
    Markblaster likes this.
  2. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Last edited by a moderator: Sep 23, 2014
    79 bronco, Mar 8, 2014
    #2
  3. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,425
    Likes Received:
    2,288
    Trophy Points:
    175

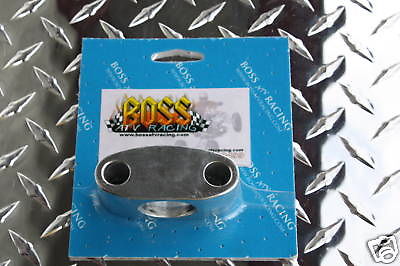

    mmmmm billet :)

    [​IMG]

    Awk08, Mar 8, 2014
    #3
  4. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    I know joe, That Boss billet adds some nice Bling! It was hard decision between the OMI with a grease fitting, and the Boss with bling! :)

    79 bronco, Mar 8, 2014
    #4
  5. harley1-5

    harley1-5 Active Member

    Joined:
    Jul 28, 2013
    Messages:
    3,465
    Likes Received:
    236
    Trophy Points:
    115
    Gender:
    Male
    Occupation:
    Oil field pumper
    Location:
    Elko County Nevada
    I like it grease is good

    harley1-5, Mar 8, 2014
    #5
  6. rich1

    rich1 Member

    Joined:
    Jan 6, 2014
    Messages:
    871
    Likes Received:
    79
    Trophy Points:
    64
    Occupation:
    OBD 1,2 Cert.Ford Tech,Cert Gunsmith
    Location:
    N.C./RTP
    I would buy one if they made it with oil-lite bushings ,you wouldn't need any grease !

    rich1, Mar 9, 2014
    #6
  7. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,425
    Likes Received:
    2,288
    Trophy Points:
    175
    i've seen Bronco attack the biggest mudholes around here,
    (he thinks it 4wd, but we haven't told him the truth yet)
    if anyones steering bushing is subjected to mud/water, and needs regreased often, it is his :)

    Awk08, Mar 9, 2014
    #7
  8. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Markblaster, Apr 3, 2016
    #8
  9. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    After stripping my quad to get it powered I found out the OMI bushing had a problem. I had installed it with grease on the o-rings and o-ring grooves and grease all on the inside of it.

    But the ends have started popping out so did some measuring. Found out that the 0-ring slot is 3mm wide and the o-ring is 3.5mm wide.


    The lip / edge is only 1.6mm thick so bends easy. I dont no way they didnt make it 3 times as thick as there is lots of room.

    Don't think I want to use it now. Was thinking about removing the lip that is bending out and making a new aluminum plate that goes of the outside held on with 2 little bolts threaded into the bushing. wound need to make 4 of the one of each side of both bushings.

    stem plate.JPG

    That ballet one is another option I'm looking at.

    79 Bronco you might want to check you one. Let me know how it looks. :)

    Last edited: Nov 12, 2016
    Markblaster, Nov 12, 2016
    #9
  10. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Wow! I can see how the lip, edge is bent in pic.
    How well did the o-rings fit in the o-ring grooves before you installed it?

    The o-rings fit in mine very nice. you can see that in my pics.
    I will take a look at mine to see if it looks like the lip edge is bent. :confused:

    79 bronco, Nov 12, 2016
    #10
  11. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    O-rings fitted tight in grooves and I would say when the 2 bolts got done up it would have made it a even more tight fit and pressed the edge out.

    Markblaster, Nov 12, 2016
    #11
  12. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    How you go 79 bronco? I contacted OMI protucts about my one and attached photos to see if they had any ideas about it. Got a reply and they sending me another one. :eek: Now that is a perfect service.

    I even order one of the billet ones. Will make a thread about it when I have it

    Random question day. will the stock seals fit in the OMI unit?

    Just looked at your photos close up. Looks like your one maybe pushing up?

    Last edited: Nov 15, 2016
    Markblaster, Nov 15, 2016
    #12
  13. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    I took a look at the top, and it looked fine. Can not see underneath very well. When i get some free time i will take it off, and give a good look.

    79 bronco, Nov 15, 2016
    #13
    Markblaster likes this.
  14. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175

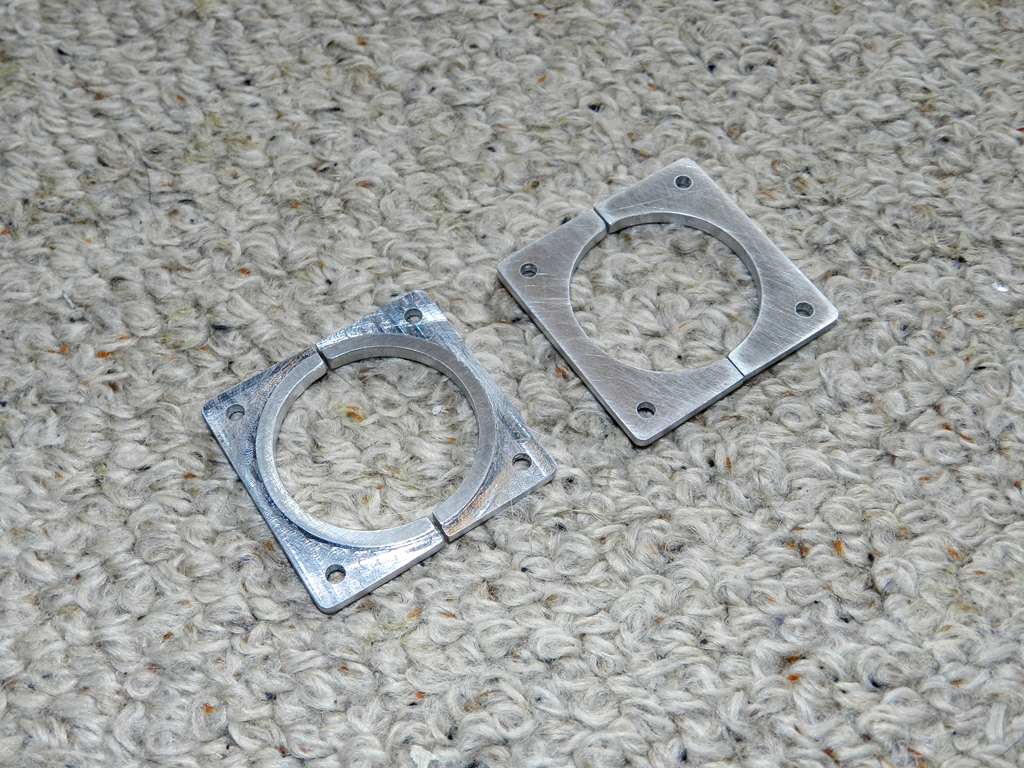

    Got my aluminum parts today to modify the OMI clamp.
    [​IMG]

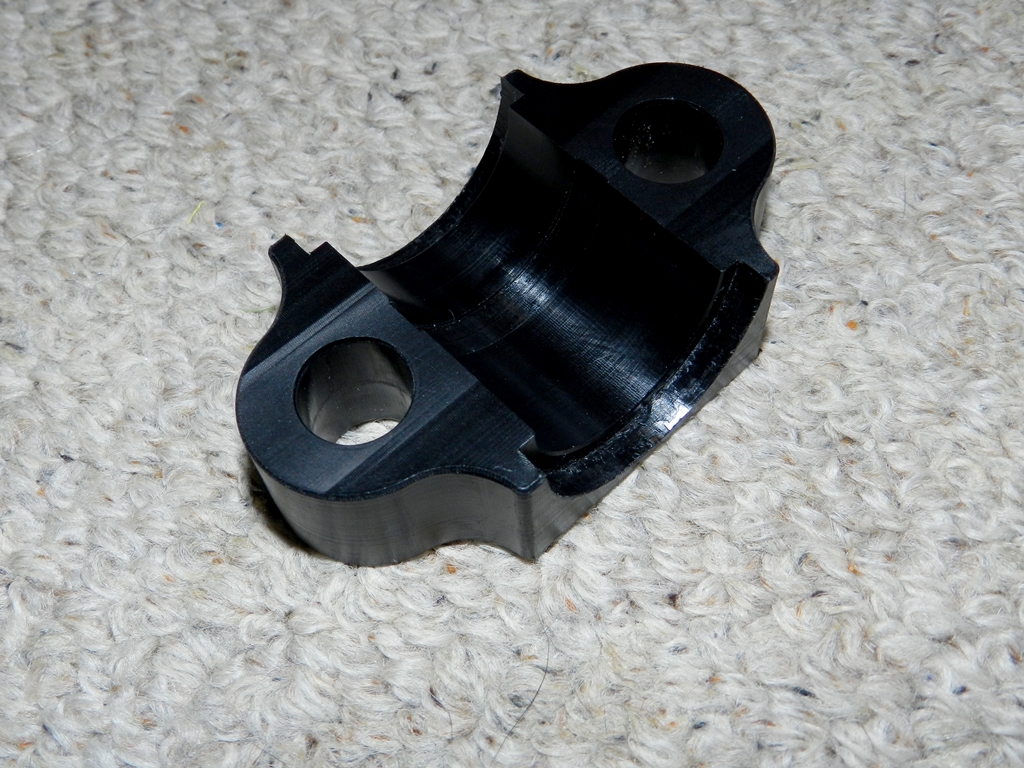

    Cut the lip off.
    [​IMG]

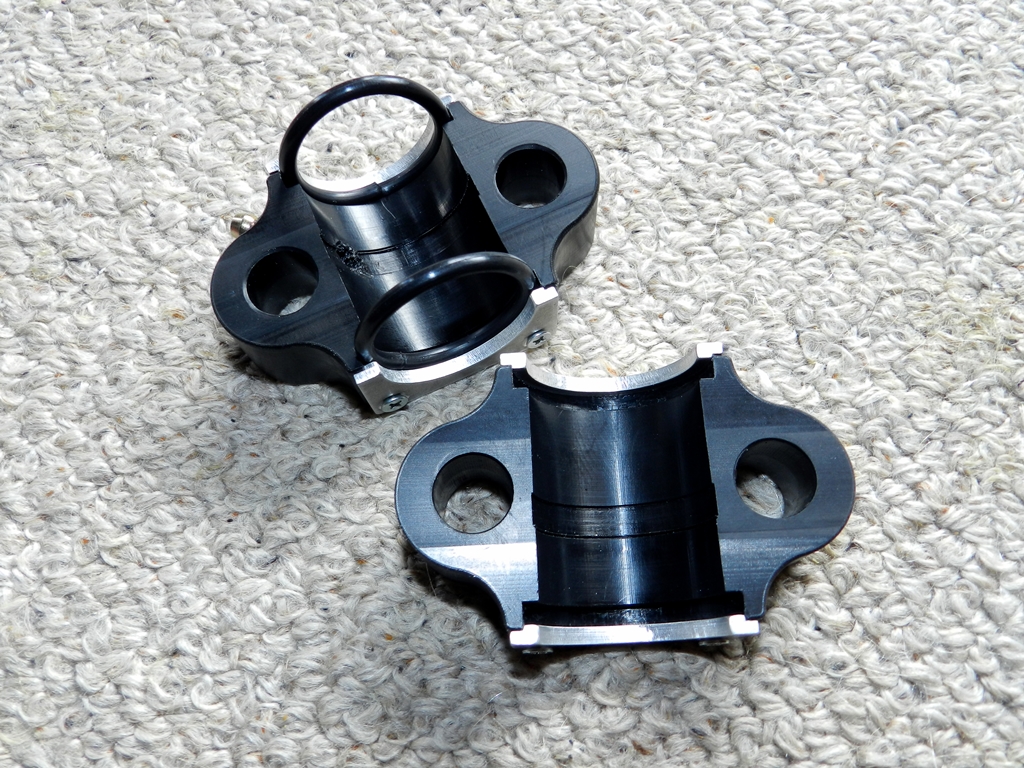

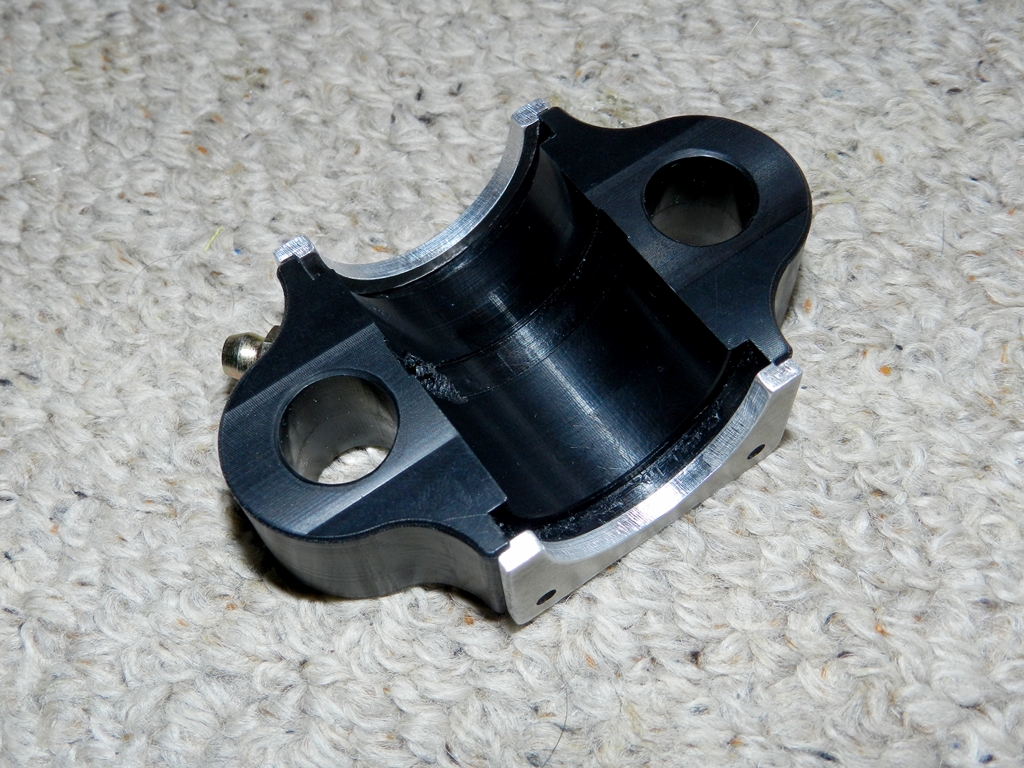

    Nice fit. Also the o-rings fit a lot better now that I made the slot 3.5mm wide.
    [​IMG]

    [​IMG]

    Just need to get some screws or bolts now.

    [​IMG]

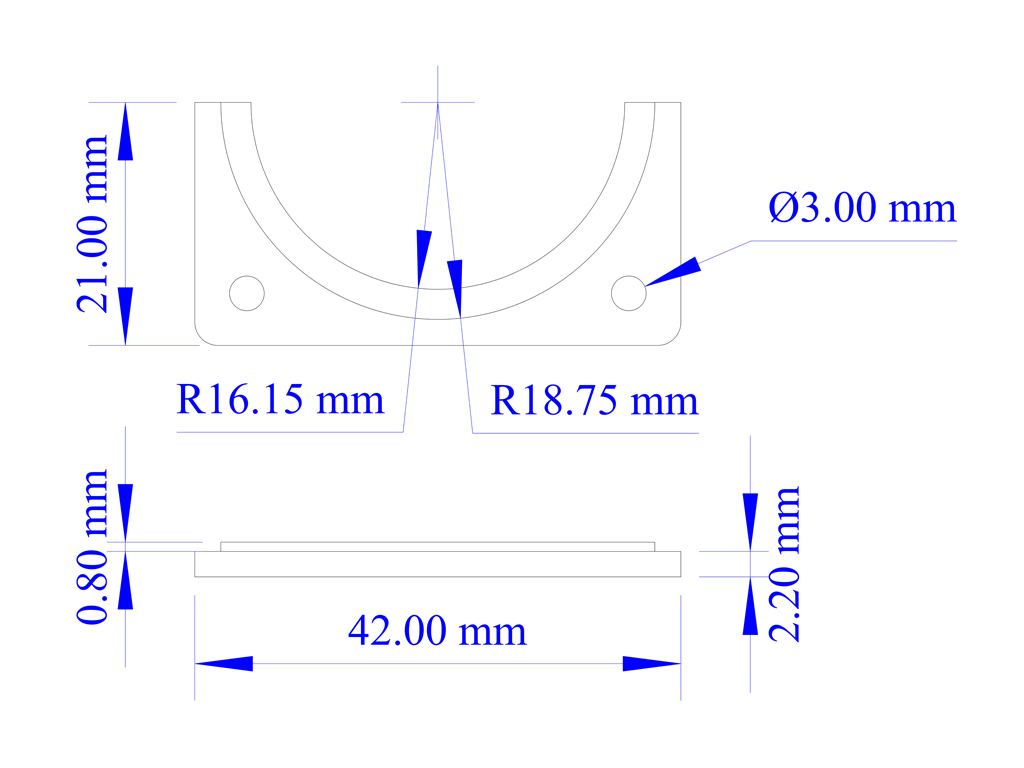

    Download PDF: HERE
    Download DXF: HERE

    Last edited: Dec 8, 2016
    Markblaster, Dec 8, 2016
    #14
    79 bronco likes this.
  15. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175

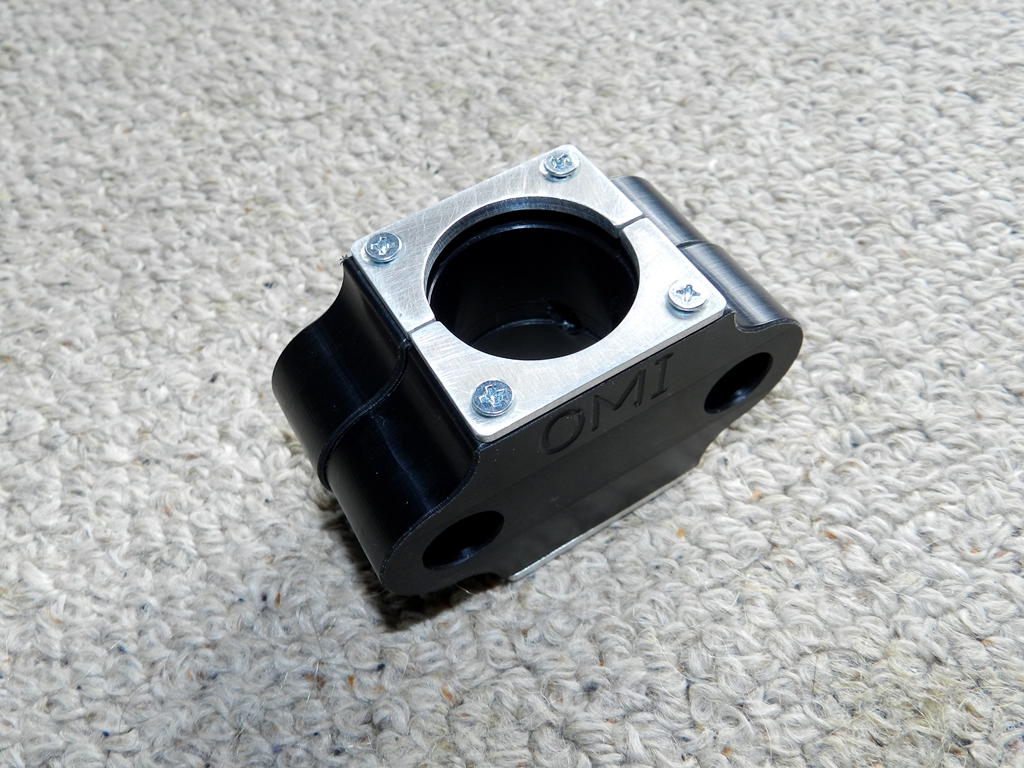

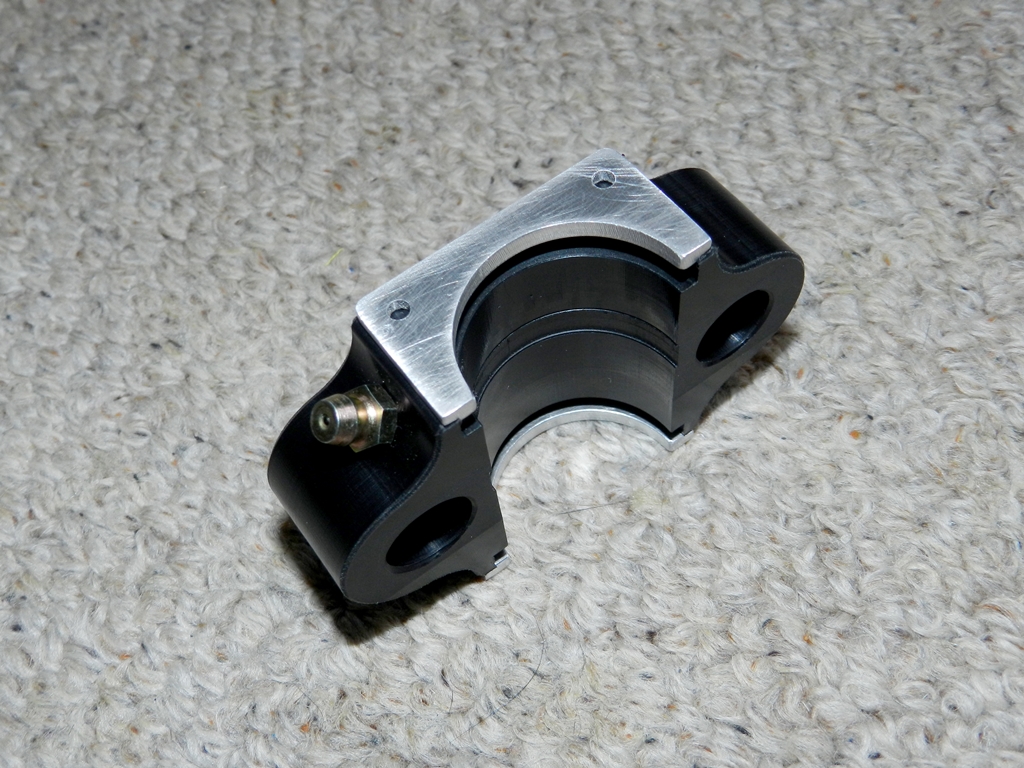

    Finished.
    [​IMG]

    [​IMG]

    Markblaster, Dec 9, 2016
    #15
    79 bronco likes this.
  16. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Took mine off and it looked fine, but the grease was all pasty, and my steering stem looked like it had a lot of wear under the mount!

    Im thinking i went a little crazy with the paint. Then the paint rubbed off mixing in with the grease making the grease pasty.

    102_9271.JPG 102_9269.JPG

    79 bronco, Apr 22, 2017
    #16
  17. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Interesting exhaust mount.

    Markblaster, Apr 22, 2017
    #17
  18. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Unique pipe takes a unique mount. ;)

    79 bronco, Apr 22, 2017
    #18
    Markblaster likes this.
  19. jbuckster07

    jbuckster07 Active Member

    Joined:
    Mar 20, 2011
    Messages:
    879
    Likes Received:
    264
    Trophy Points:
    115
    Occupation:
    Head Estimator/ Project Manager - Eclipse Co
    Location:
    Akron, Ohio
    Speaking of, what pipe is that!? Guessing home made????

    jbuckster07, Apr 23, 2017
    #19
  20. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,419
    Likes Received:
    773
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Thats the Xcalibur pipe! Its a stainless steel big bore stroker pipe! Some people call it the BeeHive pipe, Shawn named it the armadillo pipe. lol



    79 bronco, Apr 23, 2017
    #20
