JB Welding holes !!

Discussion in 'Engine Mods and Swaps' started by Triplecrown421, Feb 26, 2012.

  1. Triplecrown421

    Triplecrown421 Member

    Joined:
    Oct 8, 2011
    Messages:
    623
    Likes Received:
    5
    Trophy Points:
    55
    Location:
    nova scotia
    I bought my bike off of a friend that blow it up. There was a hole the size of a bottle cap just under the crank and there was tranny fluid coming out of it, so that wasent good. after tearing the topend off we found out what had happend. the bottem half intake side of the piston had broke off and when it fell into the bottom of the motor the crank forced it through the case. aswell as busting a crack through the tranny side of the case. the crank bearings were all good. i dont have any pictures of the hole but i do have some of our fix for it. 2 packs of JB Weld and alittle bit of fiberglass. we used asetone and a file to rough it up before applying.

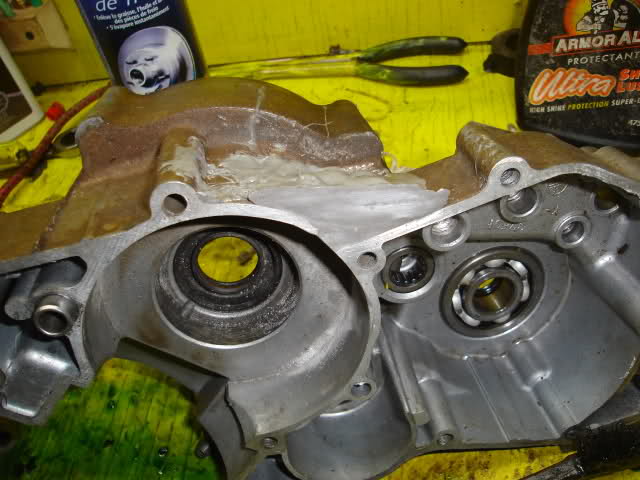

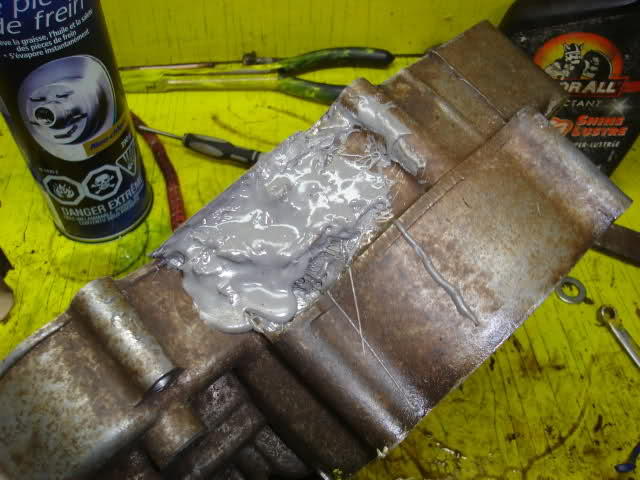

    left side case
    [​IMG]
    [​IMG]
    [​IMG]

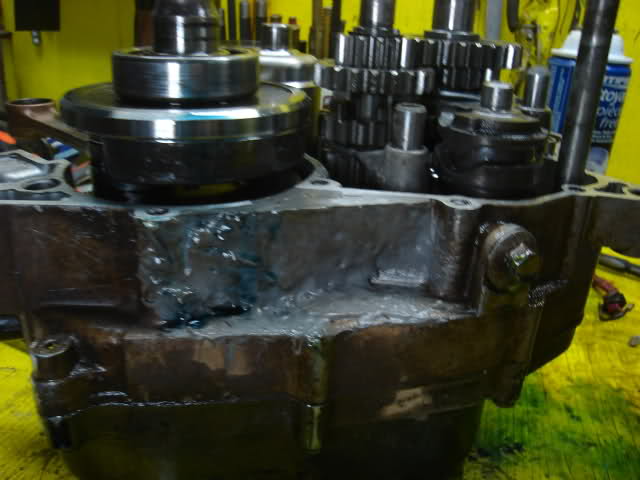

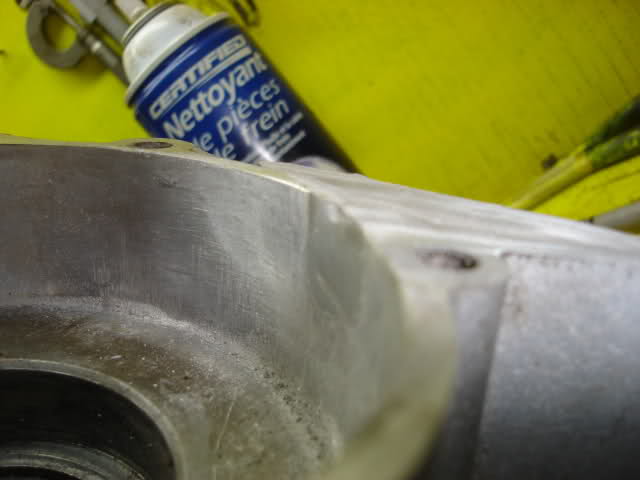

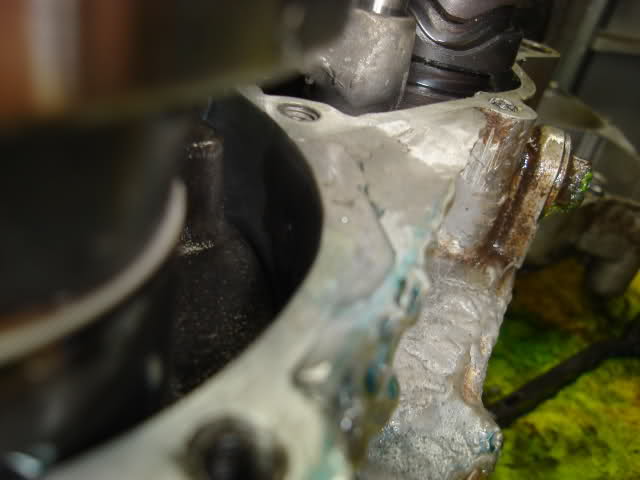

    right side
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    The case can now be repulled apart if needed to, the way we did it was by sealing the cases togeather and using electrical tape between them, then build our jb up in layers on each sides of it. after pulling the cases and tape off minor touchups are needed to make sure it seals after. aswell as fileing was needed to be done on the inside to make sure the crank will still pass it.
    This dos look abit sketchy and if applyed wrong can be problem prone. but after installing a new piston/bore this motor runs like a top. i have been running this bottom end in my bike since and havnt had a problem with it. i also did an air leak test on the motor a year after this fix and still held air fine.
    lol and yes This is rigging it up at its finest

  2. tertal

    tertal Member

    Joined:
    May 5, 2011
    Messages:
    265
    Likes Received:
    1
    Trophy Points:
    44
    Occupation:
    Home Depot
    Location:
    Texas
    how's it holding up. Well, assuming if you had a chance to run it.

  3. blasterdemon7

    blasterdemon7 I'm not mad. I'm winning.

    Joined:
    Nov 19, 2009
    Messages:
    13,649
    Likes Received:
    251
    Trophy Points:
    125
    Gender:
    Male
    Occupation:
    Automotive warrenty agent.
    Location:
    Delaware
    I don't know if I would trust JB for a job like that.

  4. brandoz28

    brandoz28 Member

    Joined:
    Sep 24, 2009
    Messages:
    10,767
    Likes Received:
    92
    Trophy Points:
    53
    Location:
    Iowa
    he said he's been running it that way.

    I would have put a new set of cases in there...just couldn't trust a repair like that long term. maybe get me through a weekend, but definitely not a permanent fix

  5. Triplecrown421

    Triplecrown421 Member

    Joined:
    Oct 8, 2011
    Messages:
    623
    Likes Received:
    5
    Trophy Points:
    55
    Location:
    nova scotia
    when i bought the blaster there wasent much for parts around so we made for what we had. This was done over a year ago and i have been running it since, i run my bike hard. the bike just had a topend rebuild and is workin awsome.

  6. Triplecrown421

    Triplecrown421 Member

    Joined:
    Oct 8, 2011
    Messages:
    623
    Likes Received:
    5
    Trophy Points:
    55
    Location:
    nova scotia
    we have the parts and cases now to build new motors so im not worried much. Just kinda running it for now cuz it works. ill try and get a video of the bike up one of these days. As for JB its pretty strong stuff if its used right.

  7. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    You've got balls to post those pictures!
    Mere mortals cannot stand the sight of such things.
    It makes their heads spin and explode. They see you as crazy and heretical.

    I see my join date is Dec 2010 so it was before that. You got me into Blasters.
    This motor has had the 30hp DT200 top end on it, and now has the modified head and lowered cylinder.
    We have been on some good all day trail rides but usually it is a couple of hours of hill climbs and jumps.
    We have them out at least once a week even in bad weather. Gotta have over 100 hours on it by now?

    You didn't mention or show how you roughed up the case with a coarse file before the acetone and epoxy.
    Just barely visible in some of the picts is the fiberglass mat that is an important part of this.
    Not bad for a first time repair. Not pretty, but with the careful filing and case lapping it hasn't leaked.

  8. Larry's Shee

    Larry's Shee Active Member

    Joined:
    May 23, 2009
    Messages:
    7,637
    Likes Received:
    650
    Trophy Points:
    149
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    See, I had to come and check it out (AGAIN?) because I'm going to do a repair on a Warrior that got chain wacked. I was thinking of imprgnating fiberglass cloth with JB and using it like a bandage. 2 layers w/2nd larger than first. I haven't seen the job yet so I can't really say if there is a chance :eek:

    Cody Dixon likes this.
  9. Triplecrown421

    Triplecrown421 Member

    Joined:
    Oct 8, 2011
    Messages:
    623
    Likes Received:
    5
    Trophy Points:
    55
    Location:
    nova scotia
    I have done one of these repairs to a 250x motor that had a chain slip off an bust around the sprocket. Hardest part is cleaning all the oil from the aluminum, asetone and rough file maarks dos the trick well.

    As for these holes i repaired over 21/2 years agoo ^^^^^. Jb has held fine leak tests pass everytime...... Dont believe the hype, i spent something like $15 to fix these cases an have put 100`s of hours on it since.....whos laughin noww B)

  10. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    Larry, getting the metal clean is the biggy, whether with welding or epoxy.
    Clean it all up as best you can, then the acetone, then I'd suggest sand blasing if you can, to give it some tooth to hold on to.
    A thin coat of the original JB Weld epoxy (not the Qwik Set stuff) and lay your fiberglass cloth on. Saturate it.
    Keep laying more cloth on and saturating it to build it up if you need to.
    You can cover it with plastic and box it up to mold it to shape if you want.
    Let cure 24hrs and file or grind to shape.

    It won't work everywhere, but for unstressed areas it hold remarkably well.
    I have been sticking it inside my intake ports for over 30 years, without failure.
    I have sealed cases with it even longer than that, and had failures, usually from inadequete prep, dirty aluminum.

    It won't take the heat of the exhaust side, it needs a lot of rough surface area to hold, and it needs to be clean.
    It ain't a miracle, but pretty darned close... :)

    Steve

  11. Larry's Shee

    Larry's Shee Active Member

    Joined:
    May 23, 2009
    Messages:
    7,637
    Likes Received:
    650
    Trophy Points:
    149
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
  12. Larry's Shee

    Larry's Shee Active Member

    Joined:
    May 23, 2009
    Messages:
    7,637
    Likes Received:
    650
    Trophy Points:
    149
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    BTW, if I do this Warrior repair I'll get some pics.

  13. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,412
    Likes Received:
    55
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    Im a fan of JB weld or in other words epoxy. It can be a damn good fix and I have actually used it to to fix to date and still going strong:
    A drag ported 27cc weed wacker motor- I ported through the intake transfer roof on one side.
    A busted 79' YZ400 case where the clutch rod boss was hit and split from a chain.
    A busted 79' YZ400 case where who know what cracked the case after a big end bearing let go.
    A stripped Banshee carb idle adust screw- it worked for the 2 years I ran stock carbs.

    If you do the stuff to properly prepare the surface for it to bind to (clean and rough its not that hard) it's a big time and $$$$ saver.
    What sucks is it always gets a bad rep because people don't do that- which is the reason I avoid buying anything that has been repaired by it unless I did it myself.
    Another thing worth mentioning is there are many kinds of epoxy. They vary in the times they take to dry and the viscosity they are (thickness) like loctite, educate yourself on which is right for your repair.

  14. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    Still running, just saying...

    DeJay1206 and jus_me like this.
  15. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    STILL running. I gotta bring it up every couple years...

    Larry's Shee likes this.
  16. Larry's Shee

    Larry's Shee Active Member

    Joined:
    May 23, 2009
    Messages:
    7,637
    Likes Received:
    650
    Trophy Points:
    149
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    I may try your intake " stuffing" while I have cylinder off for stroker plate removal

  17. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    Less is more! Good luck!

    Sorry I've been a stranger, but my Blaster has been working too well, busy with the new job, and working on an old CanAm.
    [​IMG]

  18. Larry's Shee

    Larry's Shee Active Member

    Joined:
    May 23, 2009
    Messages:
    7,637
    Likes Received:
    650
    Trophy Points:
    149
    Occupation:
    Unemployed carpenter
    Location:
    Ortskaville, MI
    Year and model ??

  19. best

    best Active Member

    Joined:
    Dec 17, 2010
    Messages:
    1,642
    Likes Received:
    247
    Trophy Points:
    110
    Gender:
    Male
    Occupation:
    Operations Manager and Search&Rescue Director
    Location:
    Nova Scotia
    1979 250 Qualifier. It runs, compression is good. It has an unusual aluminum swing arm. I've picked up a second bike for spare parts and should have enough to put together a complete bike. I've moved so I don't have my shop so I'm working in an unheated, unpowered, unlit shop. Feels like I'm 16 again!

    Cleaning 38 years of grease and stuck bolts. So far haven't broke anything. Brakes, spokes, stuck axles, hardened rubber, brittle plastic, rust, luckily no cracks found yet. In my search for parts I picked up a 1977 as well. Hardly any of the chassis parts fit. Those were years of rapid change in the competitive dirtbike world.

    To keep on topic, I haven't had to resort to JB Weld so far, and it's a good thing. Temps in my shed hav been down in the -10c range. JB Weld wouldn't set properly in these temps. Also working on a woodstove and solar lights...

  20. Cody Dixon

    Cody Dixon New Member

    Joined:
    Oct 10, 2018
    Messages:
    2
    Likes Received:
    2
    Trophy Points:
    3
    Gender:
    Male
    I am here to say that I have successfully repaired my blaster 200 that was chain slapped. I used sand paper and roughed up the area I needed to apply to it has held and with no leaking. I just need new seals now. And I had a neighbor pour mountain dew in my tank so I drained my tank and cleaned the carb a little but I gotta do it again. I got a carb rebuild kit and a new gas valve for turning the gas on and off. I am new to all this and have been doing nothing but research.

    Awk08 likes this.
