    Gusset BL6-1 I'm confused about.
    I scaled the image up that's at the top of this thread to the right size and all gussets fit perfect apart from one.

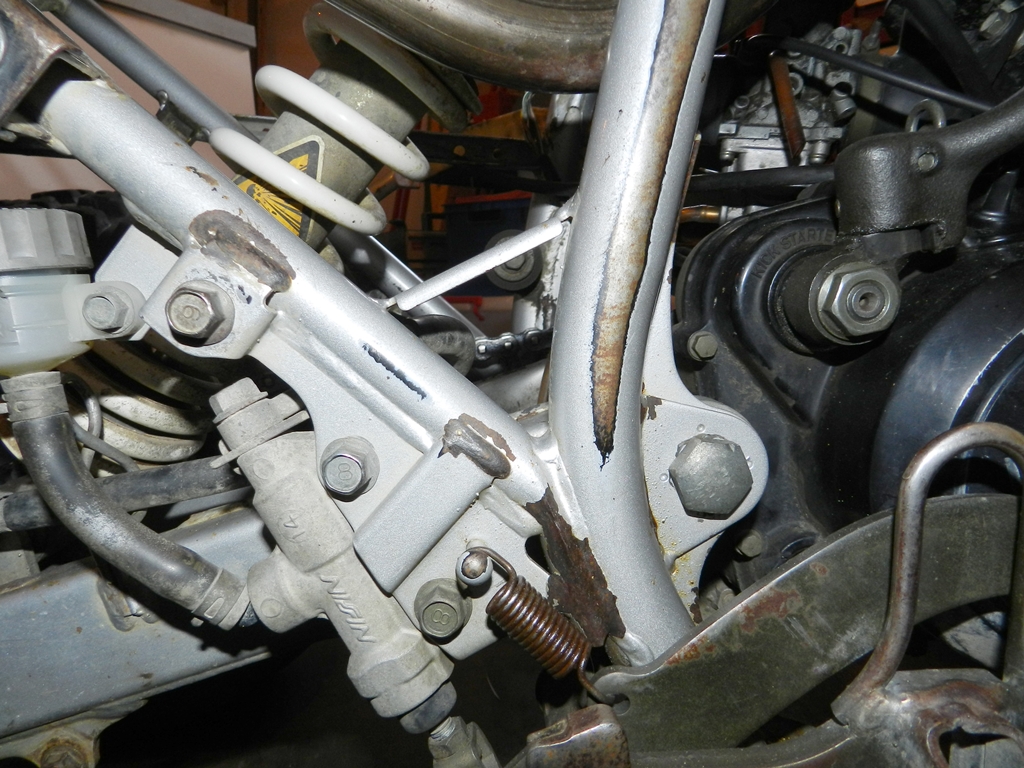

    This is the spot it goes?
    [​IMG]

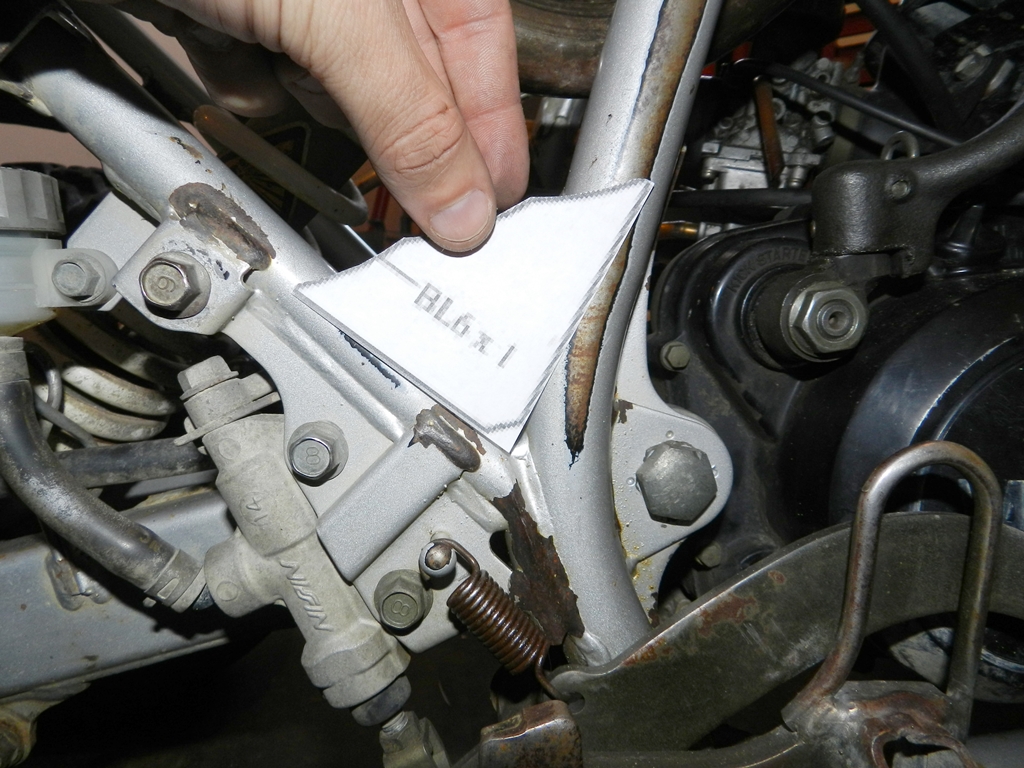

    But this is the gusset.
    [​IMG]

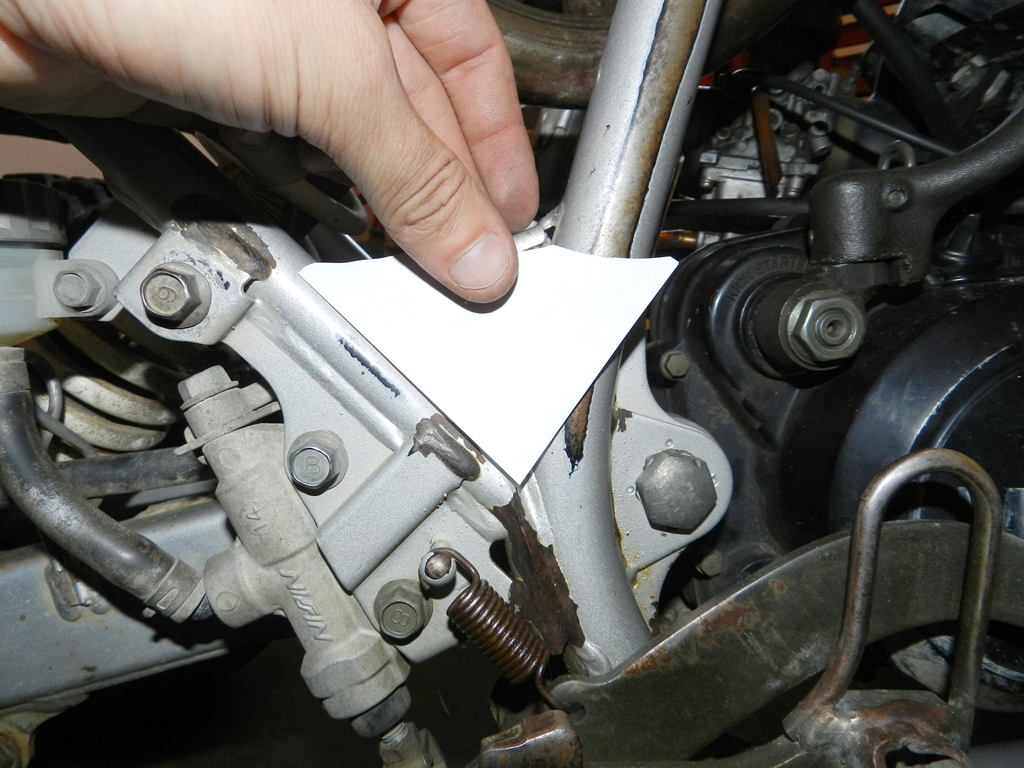

    Turn it round.
    [​IMG]

    Any one else had this problem?

  2. jus_me

    jus_me Active Member

    Joined:
    Aug 8, 2012
    Messages:
    3,594
    Likes Received:
    514
    Trophy Points:
    177
    Location:
    N.Y
    By the looks of the diagram it "looks" like it goes there.. Have you tried te b5 but on the side you are showing in the pics? The angles from the B5 and B6 are obviously different. the B5 should be used for both the left and riht side in the same location ?

  3. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175
    Just went and check and yes BL5 fits. Thanks.

    So I wounder what BL6 is for?

  4. jus_me

    jus_me Active Member

    Joined:
    Aug 8, 2012
    Messages:
    3,594
    Likes Received:
    514
    Trophy Points:
    177
    Location:
    N.Y
    Upper part of frame ,between frame subframe ?

  5. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175

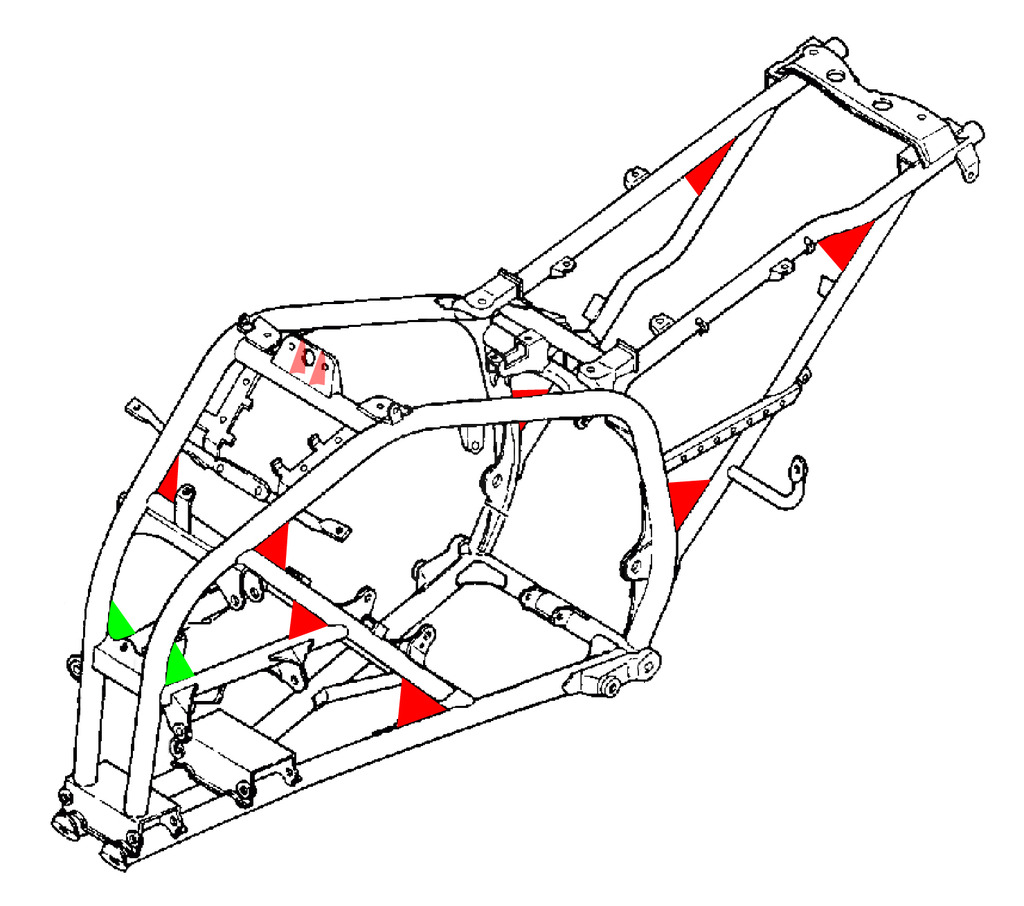

    Had a look and the only place I can find on the frame is at the front above the upper a arms. Size of the gusset is a bit on the big side for there. The ones in Green.

    [​IMG]

    Maybe they just did a error on there image and no one picked up on it.

  6. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,418
    Likes Received:
    768
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    Dont add that GUSSET!

    Adding that gusset may make mounting custom FRAME GUARDS extremely difficult!
    BUT adding that gusset in the RIGHT spot, like flush with the frame will give you a nice spot to bolt a custom frame guard to. o_O

    jus_me likes this.
  7. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175
    LOL yeah. could always make a spacer to go in the middle of frame guard and gusset.

  8. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175
    This may help some people out. Made the image to scale. So all you have to do is print it on your printer. Make sure you have your printer set to Do Not Scale. Un-tick Fit To Page or shrink to fit. After printing it glue it to your sheet of steel and start cutting, grinding, file.

    Download JPG file: HERE
    Download PDF file: HERE
    Download EPS file: HERE

    If this is breaking any rules let me know. Or you can remove it. Just thinking it be a help to people.

    The website http://www.tprusa.com/ is no longer working and I cannot find any places that sell a kit.

    I will be getting it laser cut with a couple of other custom brackets.

    Awk08 likes this.
  9. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175
    Also here is the gusset for the bottom of the frame right where the rear a arms bolt up/ where the frame bends out.
    Seen some photos of it on frames and people talking about it so draw it up.

    Download JPG file: HERE
    Download PDF file: HERE
    Download EPS file: HERE

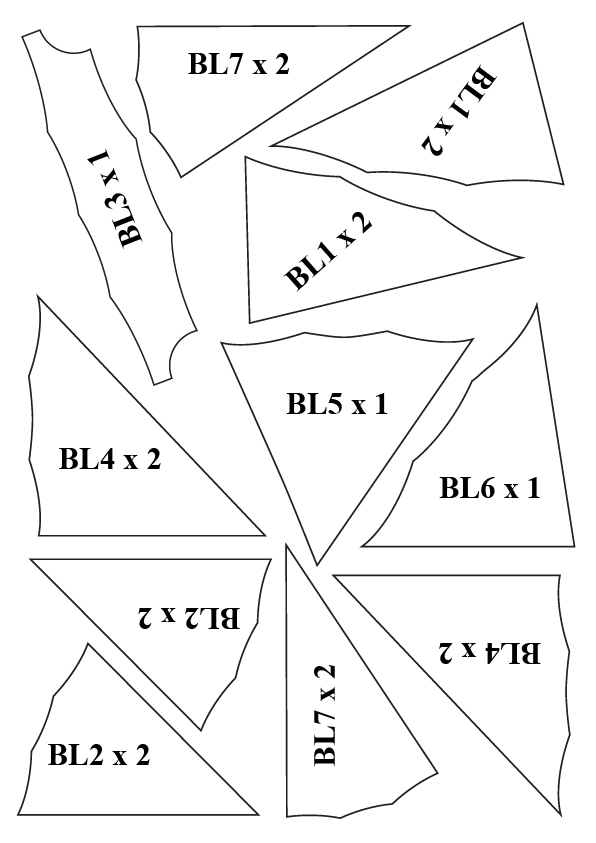

    Images of the files.
    [​IMG]

    I will be getting them laser cut this week and will upload a photo of them all as soon as I get them.

    Last edited: Jan 28, 2016
  10. Dex94

    Dex94 Member

    Joined:
    Dec 29, 2015
    Messages:
    80
    Likes Received:
    17
    Trophy Points:
    59
    Gender:
    Male
    Occupation:
    Mechanical Tech @ JF Subsea Excavation
    Location:
    Scotland

  11. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175
    Done mine out of 3mm thick steel. 1/8" plate.

    Should have them tomorrow.

    Dex94 likes this.
  12. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    756
    Trophy Points:
    175

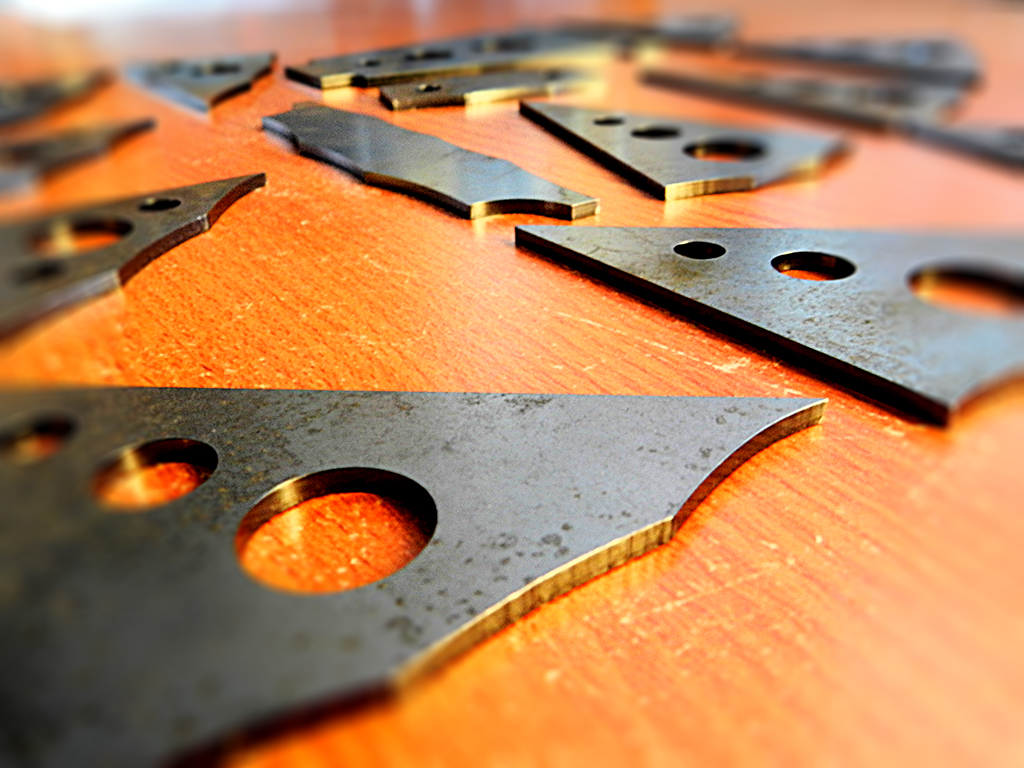

    Package turned up today. Gussets inside.

    [​IMG]

    [​IMG]

    79 bronco likes this.
  13. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,418
    Likes Received:
    768
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    NICE!
    Some day im going to gusset and repaint my old frame, or just find a cheap frame to gusset and paint, then do the everything swap.

    DKavcak likes this.
  14. Markblaster20

    Markblaster20 Member

    Joined:
    May 14, 2020
    Messages:
    11
    Likes Received:
    10
    Trophy Points:
    45
    Laser cutting file for gussets. Go ahead everyone and build build build.


    Attached Files:

  15. DKavcak

    DKavcak Member

    Joined:
    Nov 6, 2019
    Messages:
    290
    Likes Received:
    75
    Trophy Points:
    64
    Gender:
    Male
    Occupation:
    Lab Technician
    Location:
    Blakeslee, PA
    I have the same idea. I just parted my Blaster out, but my buddy and I are swapping frames since his didn't come with a title.

    I might keep his frame, gusset it, and just make a bonkers quad slowly ;)

  16. Slydog

    Slydog Active Member Technician

    Joined:
    Nov 3, 2019
    Messages:
    1,460
    Likes Received:
    251
    Trophy Points:
    119
    Gender:
    Male
    Occupation:
    Diesel mech
    Location:
    Florida
    Hmmm. Do it as a side project?

  17. DKavcak

    DKavcak Member

    Joined:
    Nov 6, 2019
    Messages:
    290
    Likes Received:
    75
    Trophy Points:
    64
    Gender:
    Male
    Occupation:
    Lab Technician
    Location:
    Blakeslee, PA
    Perhaps
