Grab bar number plate bracket

Discussion in 'Custom Fabbing' started by Markblaster, Jun 17, 2016.

  1. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    739
    Trophy Points:
    175
    Hi all. Just finished drawing up my new rear number plate mounting bracket that mounts to the grab bar. Will be CNC cut out of aluminum.

    It will mount to the two tabs on the grab bar
    [​IMG]

    [​IMG]

    Download PDF: CLICK HERE
    Download DXF: CLICK HERE

    Might help if some one wants to make there own. 7x10" Boards will fit or make a custom size one like I will be.

    Upload photos of finished product Soon. Also will let you know the angle to bend it to.

  2. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    739
    Trophy Points:
    175

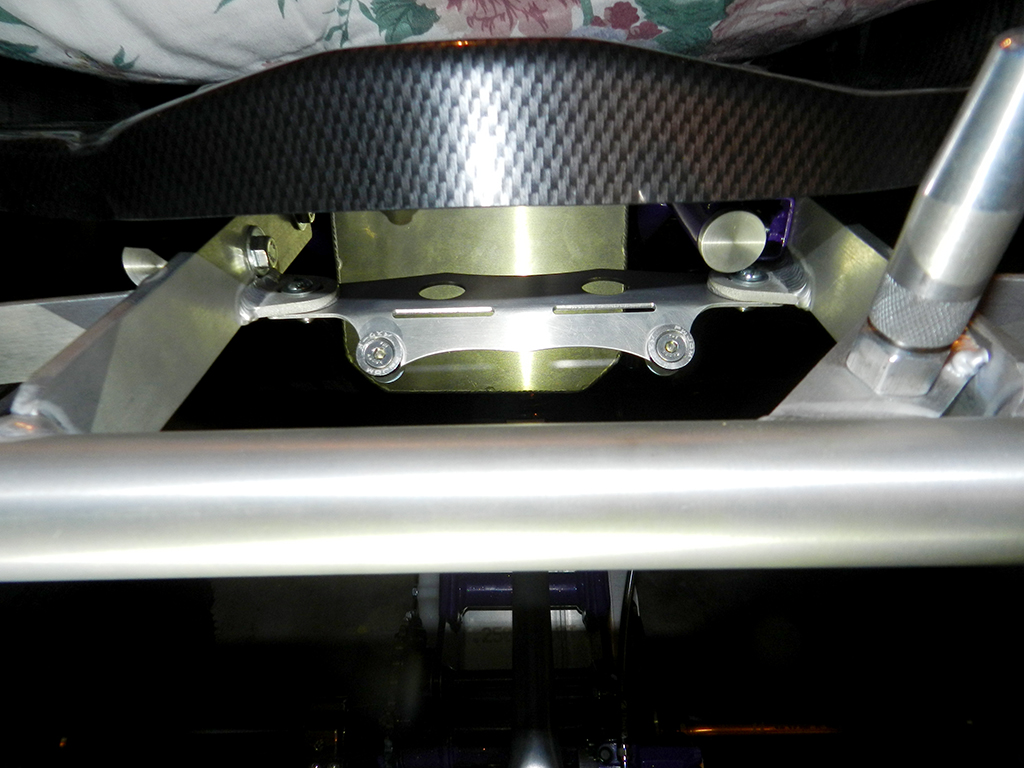

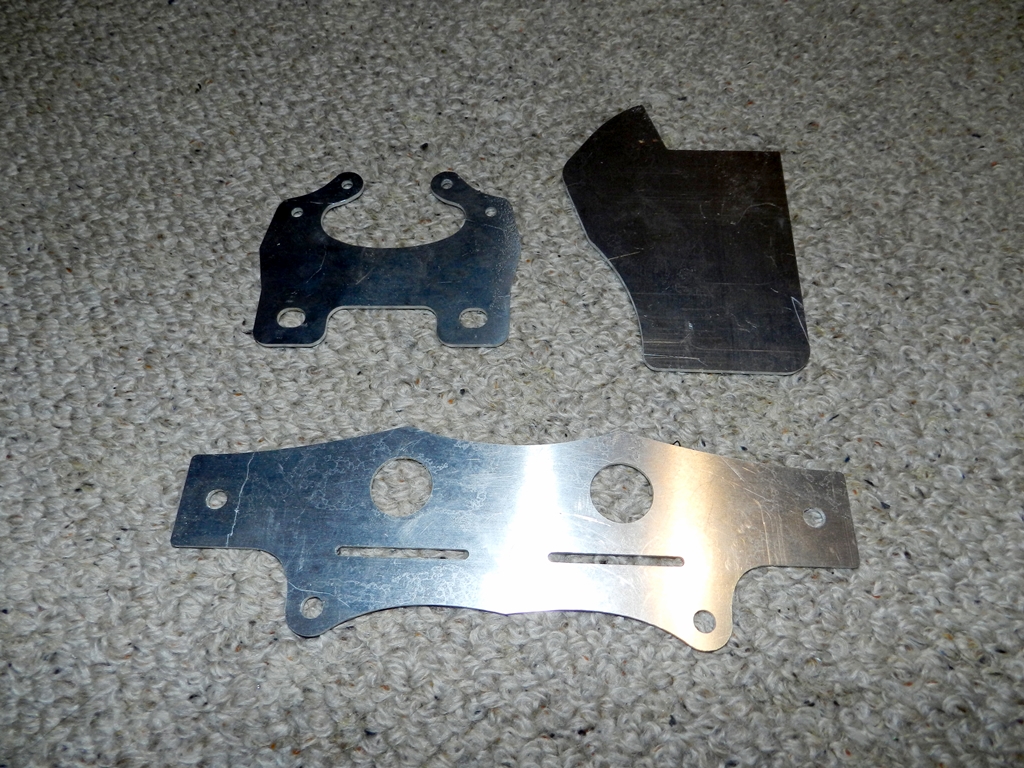

    Bottom plate is the cnc cute bracket. Just need to bend it.
    [​IMG]

    Meyers likes this.
  3. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    739
    Trophy Points:
    175

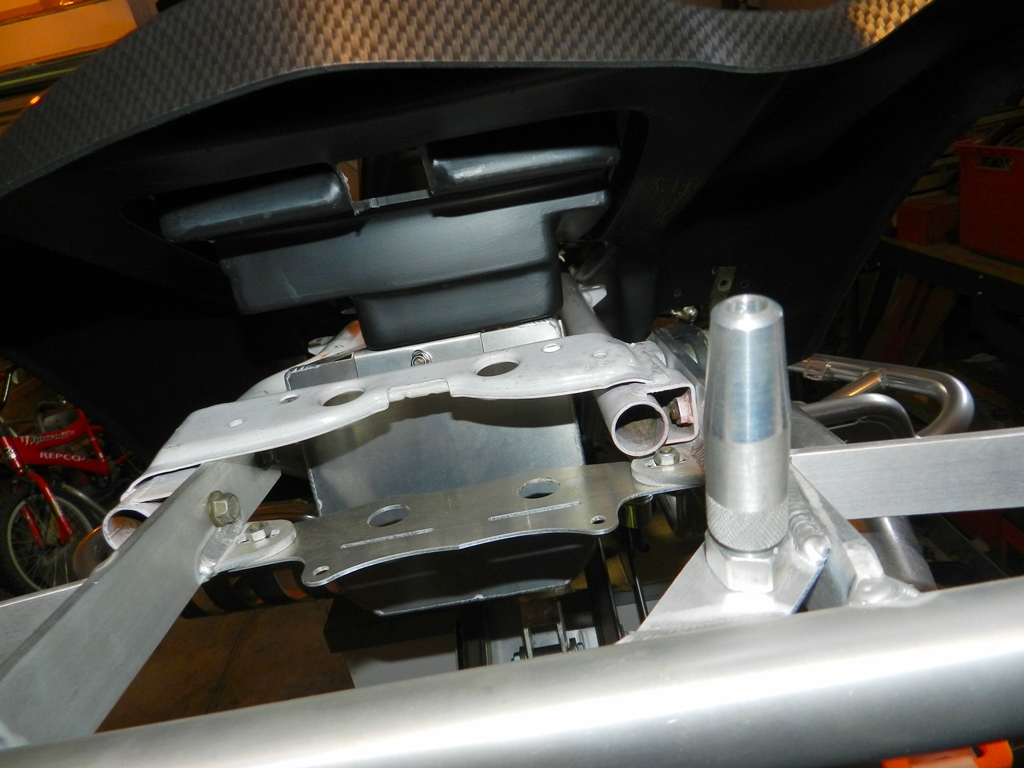

    Just need to bend the bracket and buy/make a number plate.
