Front brake line route

Discussion in 'Brakes' started by Markblaster, Aug 3, 2016.

  1. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Hi. Any one got photos of there braided front brake lines on extended A arms. How they are routed around the a arm / frame.

    Thanks

    Markblaster, Aug 3, 2016
    #1
  2. jbuckster07

    jbuckster07 Active Member

    Joined:
    Mar 20, 2011
    Messages:
    879
    Likes Received:
    264
    Trophy Points:
    115
    Occupation:
    Head Estimator/ Project Manager - Eclipse Co
    Location:
    Akron, Ohio

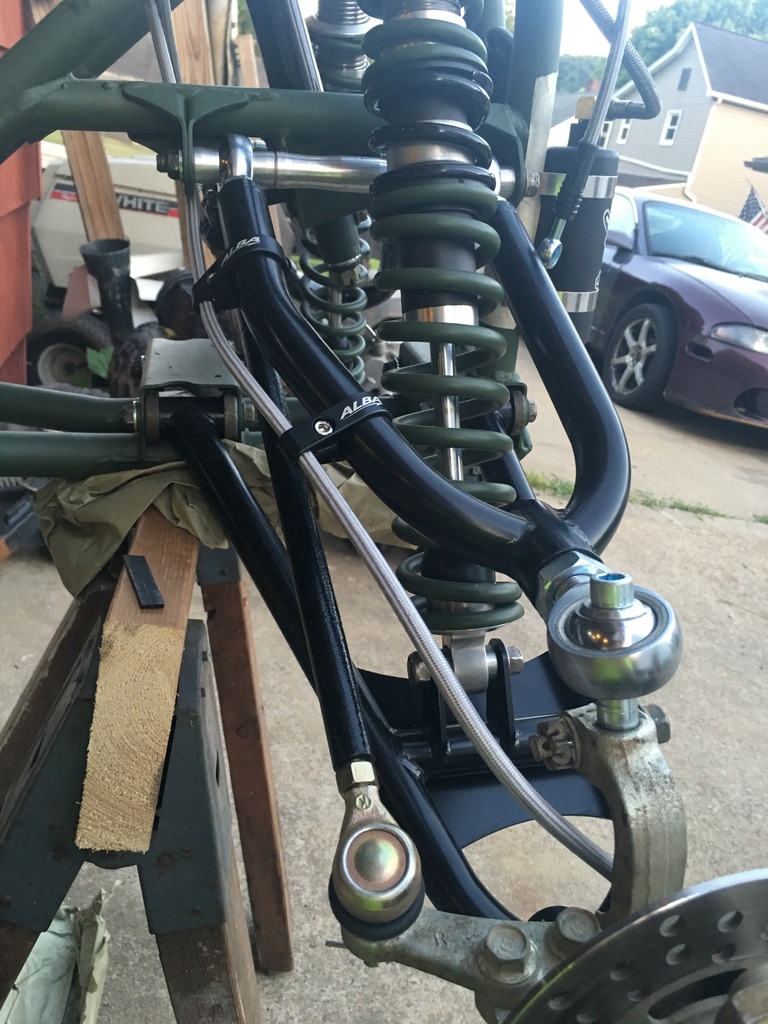

    Only pic I have of mine. Used 2 clamps on each side.

    [​IMG]

    jbuckster07, Aug 3, 2016
    #2
    Markblaster likes this.
  3. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Nice. running 2 lines by the look of it.

    Markblaster, Aug 3, 2016
    #3
  4. jbuckster07

    jbuckster07 Active Member

    Joined:
    Mar 20, 2011
    Messages:
    879
    Likes Received:
    264
    Trophy Points:
    115
    Occupation:
    Head Estimator/ Project Manager - Eclipse Co
    Location:
    Akron, Ohio
    Yeah 2 lines from master cylinder, instead of the 1 line, splitter then 2 lines.

    jbuckster07, Aug 3, 2016
    #4
  5. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Brake line clamps do they clamp the line tight or should they be a little loose in the clamp?

    Markblaster, Aug 13, 2016
    #5
  6. Awk08

    Awk08 Administrator Staff Member Technician

    Joined:
    Jan 30, 2009
    Messages:
    24,427
    Likes Received:
    2,289
    Trophy Points:
    175
    The ASR clamps I use allow the line to slide as needed.
    I only have 1 clamp per side

    Awk08, Aug 14, 2016
    #6
  7. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    Thanks dude wasnt to sure as the aluminum ones i have let the line move also

    Markblaster, Aug 14, 2016
    #7
  8. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175
    I have ended up going with 2 brake lines on the front like jbuckster07.

    Markblaster, Aug 16, 2016
    #8
  9. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175

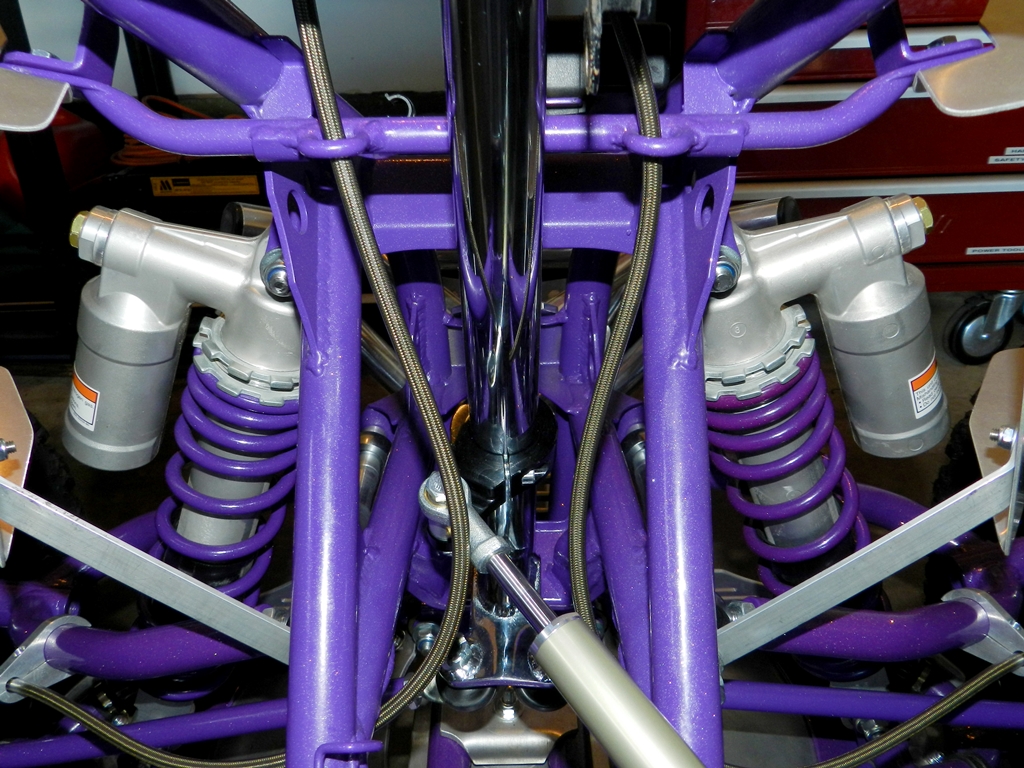

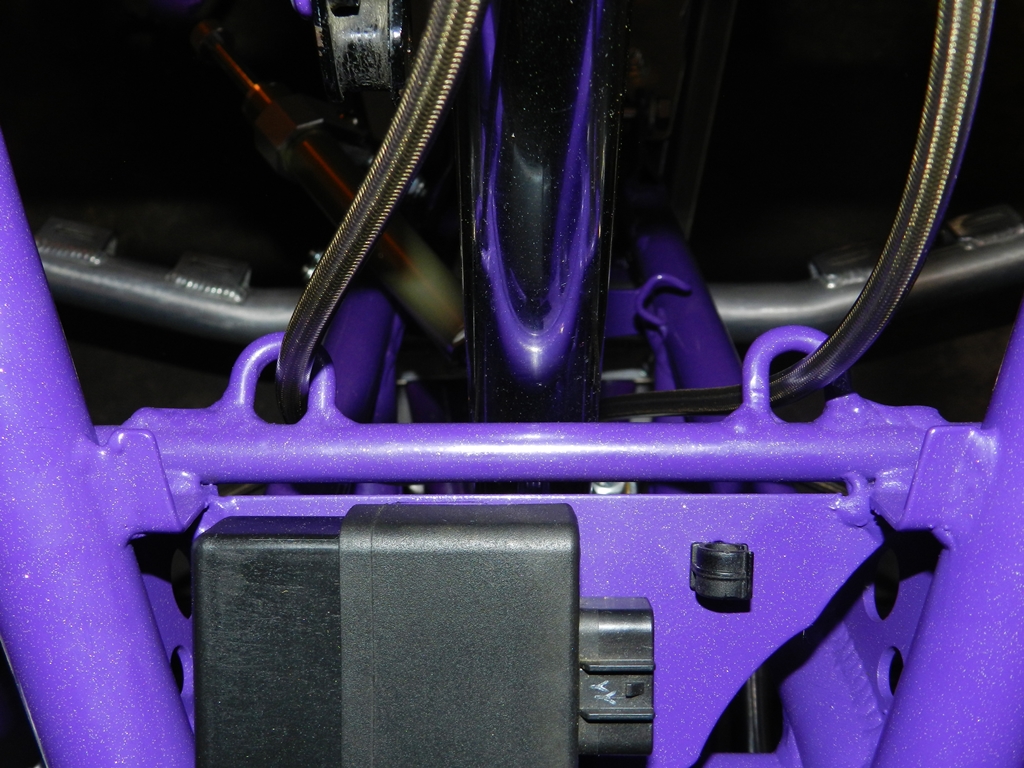

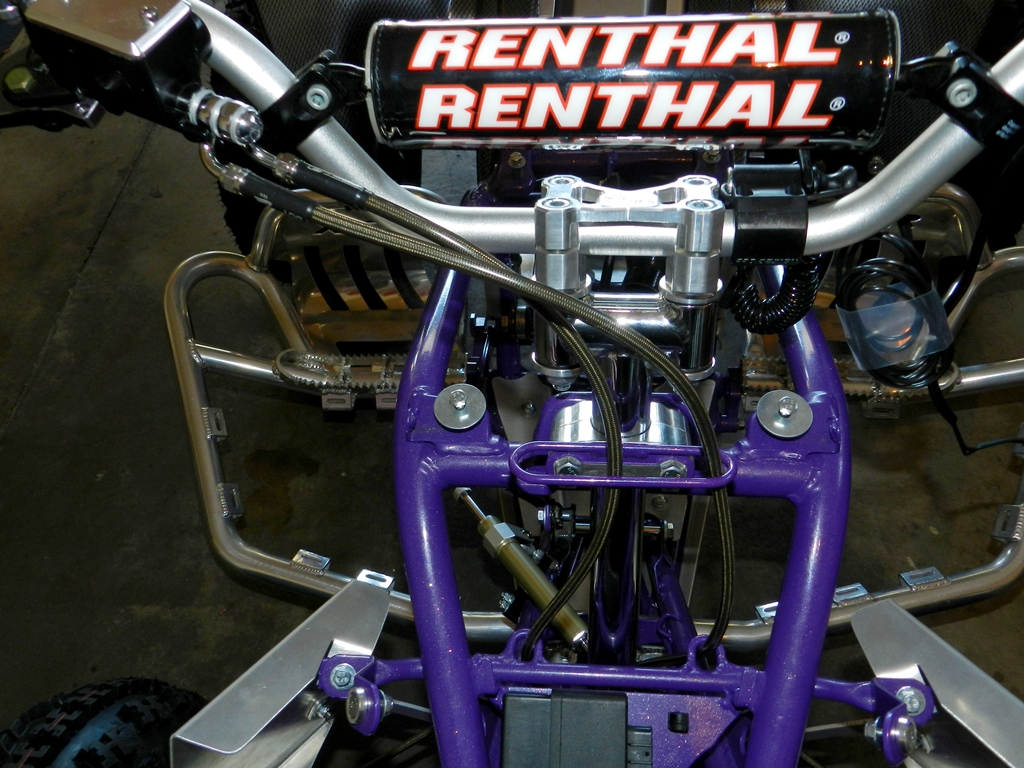

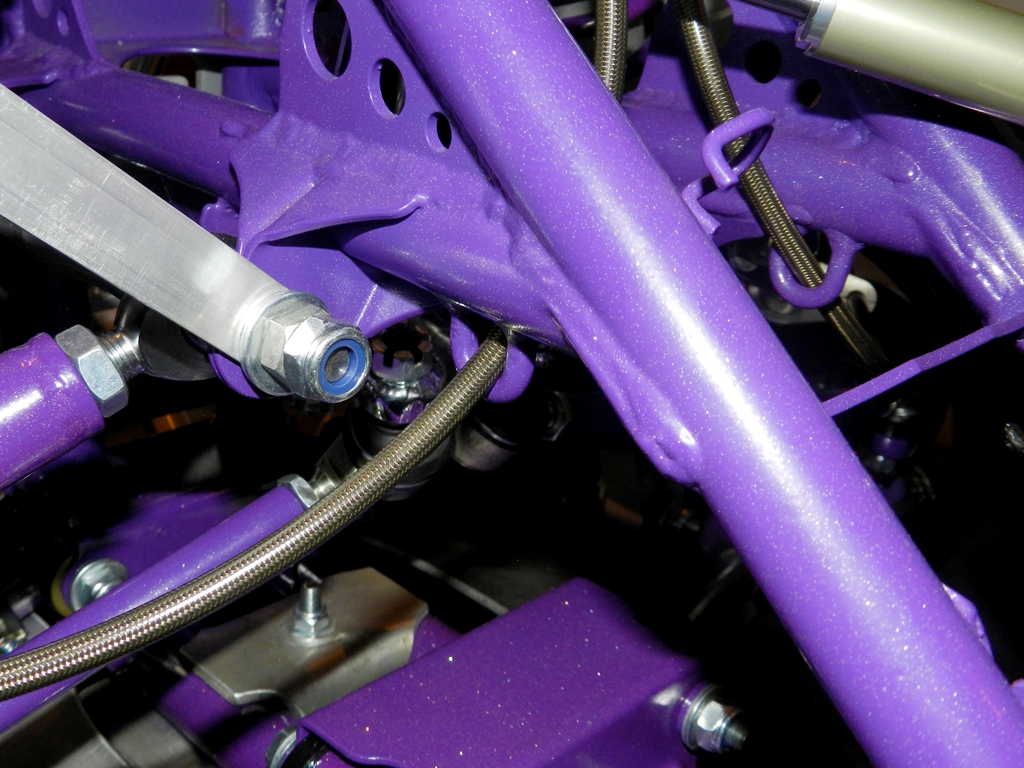

    How I set it up. Brake line on the left side when you are sitting on the bike is 1.5" longer to make it reach better as its a little long to go to the side.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Markblaster, Mar 11, 2017
    #9
  10. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    760
    Trophy Points:
    175

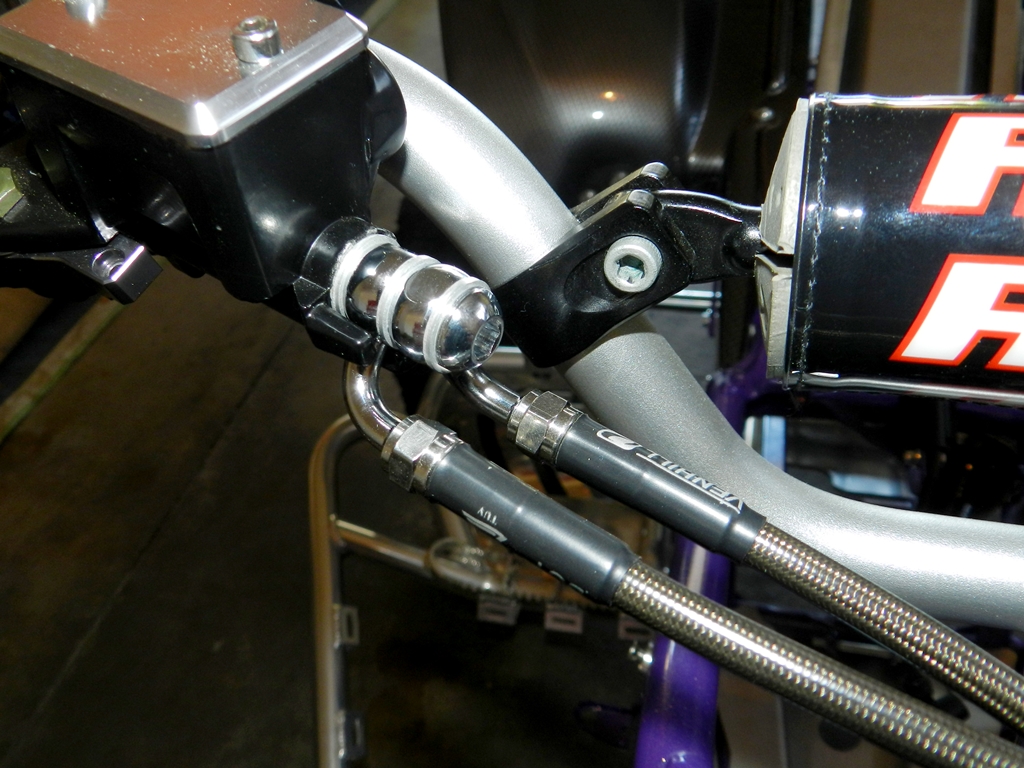

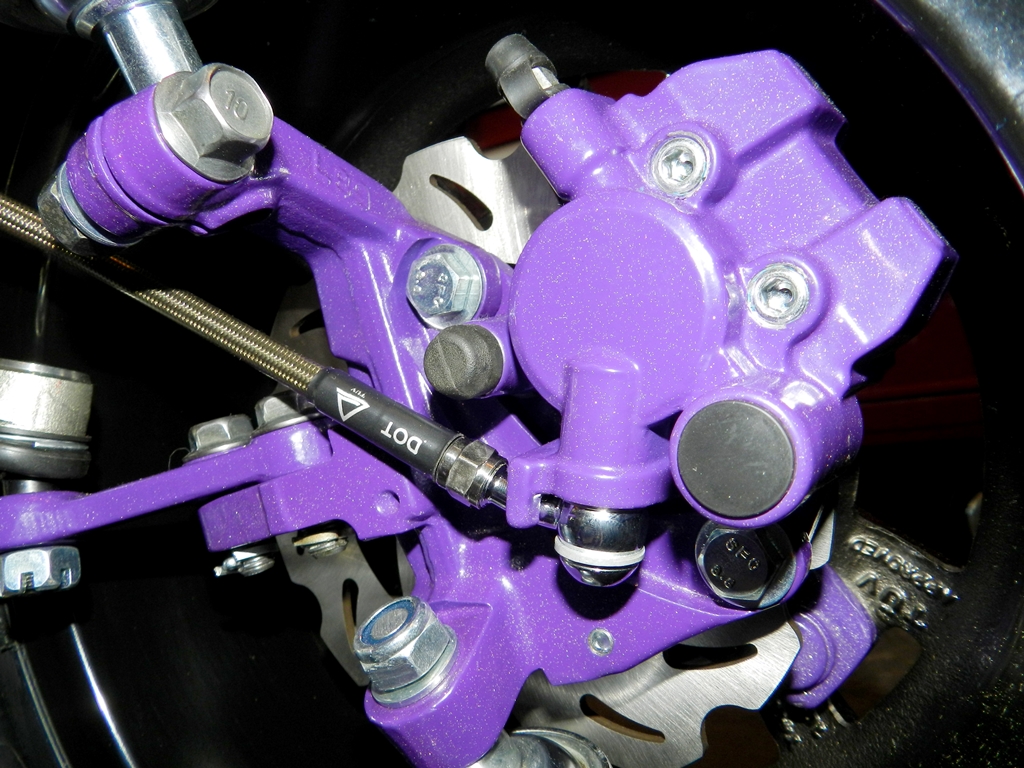

    Mounts I installed on frame to route the brake lines. I can wrap a bit of rubber hose around the brake line to help stop rubbing.

    [​IMG]

    [​IMG]

    Markblaster, Apr 14, 2017
    #10
  11. James Johnson

    James Johnson Member

    Joined:
    Jun 4, 2022
    Messages:
    26
    Likes Received:
    2
    Trophy Points:
    34
    Gender:
    Male
    What length hose do you have?

    James Johnson, Jan 12, 2023
    #11
