    Pretty much all Yamaha sport quads (Blaster, Banshee, Raptor, Wolverine) use pretty much the same rear brake setup, the same caliper and master cylinder.
    [​IMG]

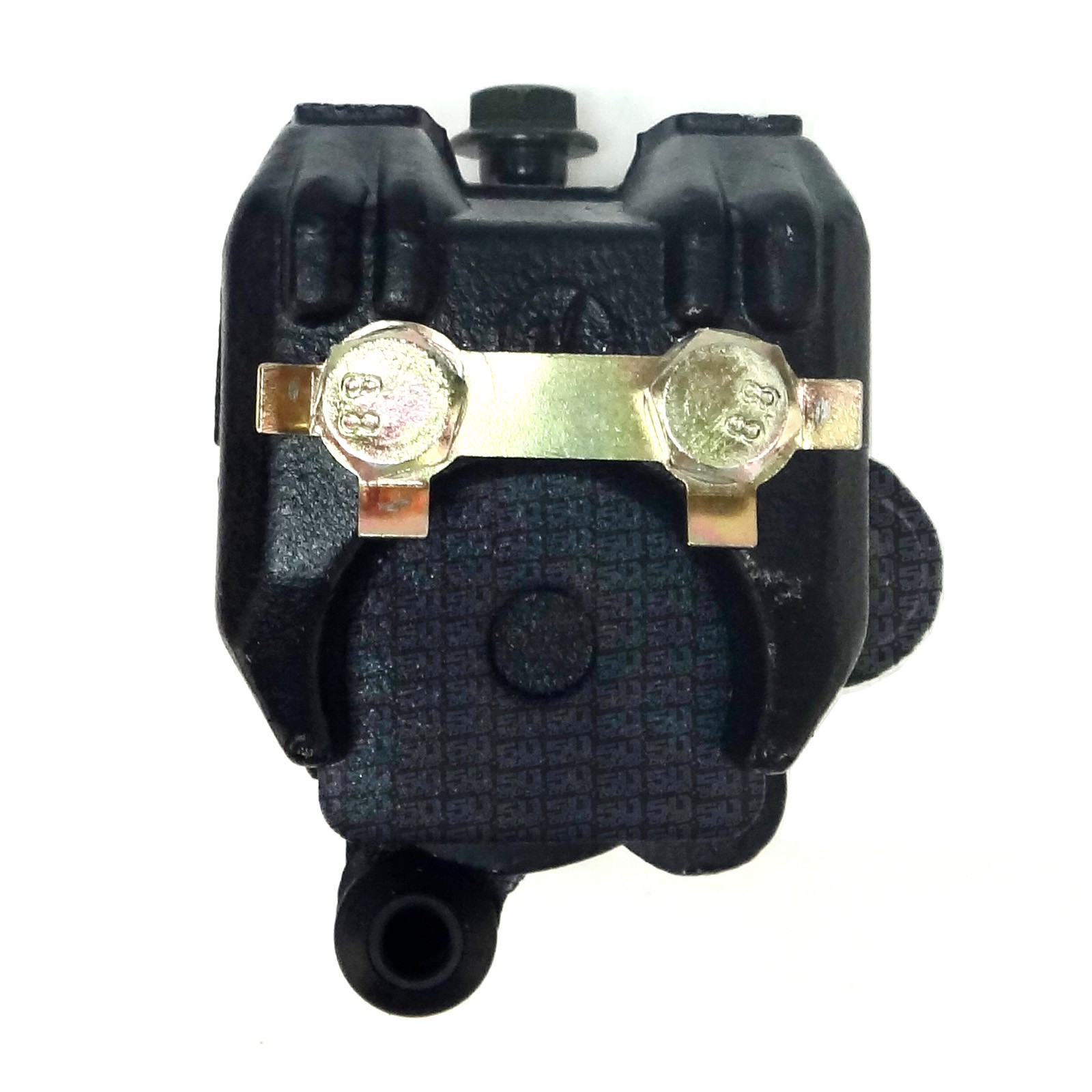

    Here is the typical rear caliper:
    [​IMG]
    The pre-2003 Blaster has a floating disc, so you don't need the floating plate. Take it off!
    You can take off the park brake mechanism too.
    [​IMG]
    Now you are going to have fabricate an adapter plate to mount the bare caliper to the pre-2003 swingarm bearing carrier:
    [​IMG]
    Bolt it on!
    [​IMG]
    Here it is from the other side:
    [​IMG]
    Now you need a master cylinder. Just about any mastercylinder will work:
    [​IMG]
    A tab has been welded on to the back of the cable brake lever to connect to the mastercylinder rod.
    A plate is mounted between the cable eye and the heelguard bolt. The M/C is bolted to that.
    A spacer is used to get the heelguard to clear the M/C:
    [​IMG]
    Connect up the hydraulic line, bolt the fill cup someplace out of the way, bleed the system and you are locking wheels and doing slidies my friends!
