blaster axle lonestar

[sillykid]

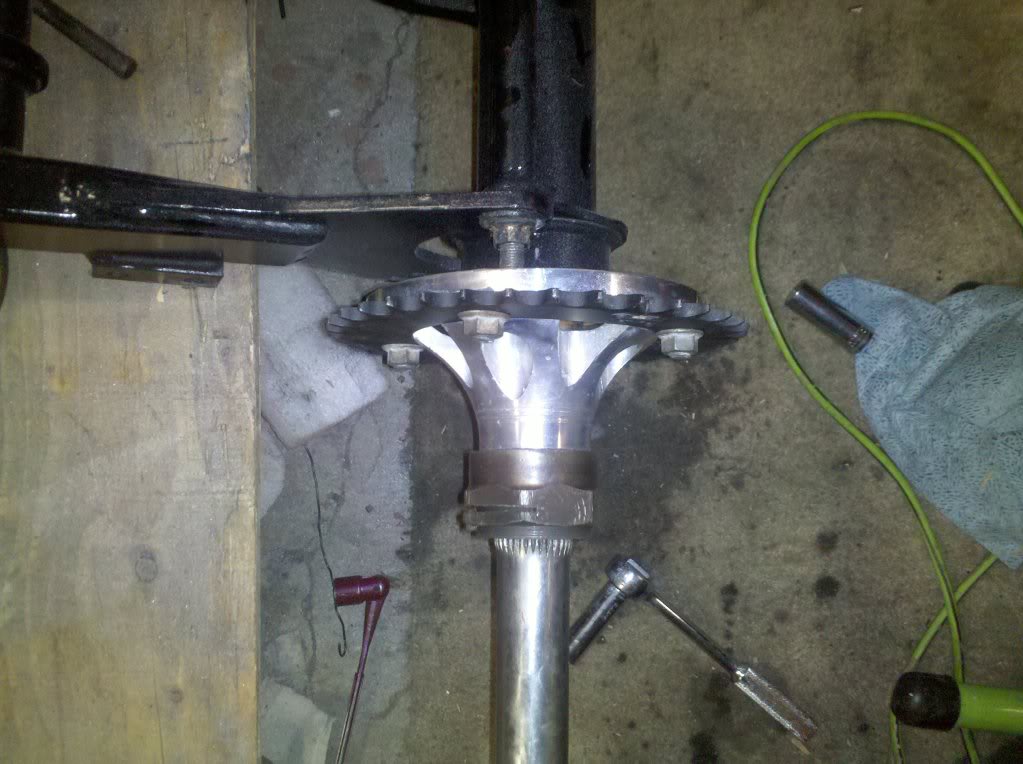

does this look right?



[lasxgames]

yes but if you can turn the axle housing bolts around are they stronger that way



['02 bLaStErKiD]

yes but if you can turn the axle housing bolts around are they stronger that way

x2 you do not want your housing bolts that way they are stronger the other way and you dont have the excess threads sticking out and it looks better in my opinion



[lasxgames]

most the pull in on the chain side and you do not want treads on that side. When I had that style I would bend and shear off bolts very other race unit will flipped them around with the bolt head chain side. along with the wider axle and any motor mods your are adding stresses more then stock. That's just our experience!



[sillykid]

thanks i wound up doing that accually and my 240 head just went out to get bored and ported at wildcard :]



[stephen12091985]

it doesnt look like ur chain will line up with the swingarm slider



[sillykid]

nah it will line up fine



[lasxgames]

it's offset 151515



[sillykid]

yesir you got it i want my parts in like a little kid at christmas lol



[lasxgames]

most the pull in on the chain side and you do not want treads on that side. When I had that style I would bend and shear off bolts very other race unit will flipped them around with the bolt head chain side. along with the wider axle and any motor mods your are adding stresses more then stock. That's just our experience!

spelling and errors!!! nutts



[sillykid]

it took me a few to decifer that but i got it



[lasxgames]

most the pull in on the chain side and you do not want treads on that side. When I had that style I would bend and shear off bolts very other race unit will flipped them around with the bolt head chain side. along with the wider axle and any motor mods your are adding stresses more then stock. That's just our experience!

ok sniffing to much race gas

Just think! most of the pull (stress) is on the chain side, so you do not want threads on that side (weak side of the bolt). When I had that style swingarm it would bend and shear off bolts every other race, Sol we flipped the bolts around with the bolt head on chain side. With the wider axle and motor mods your are adding even more stresses. That's just our experience!
