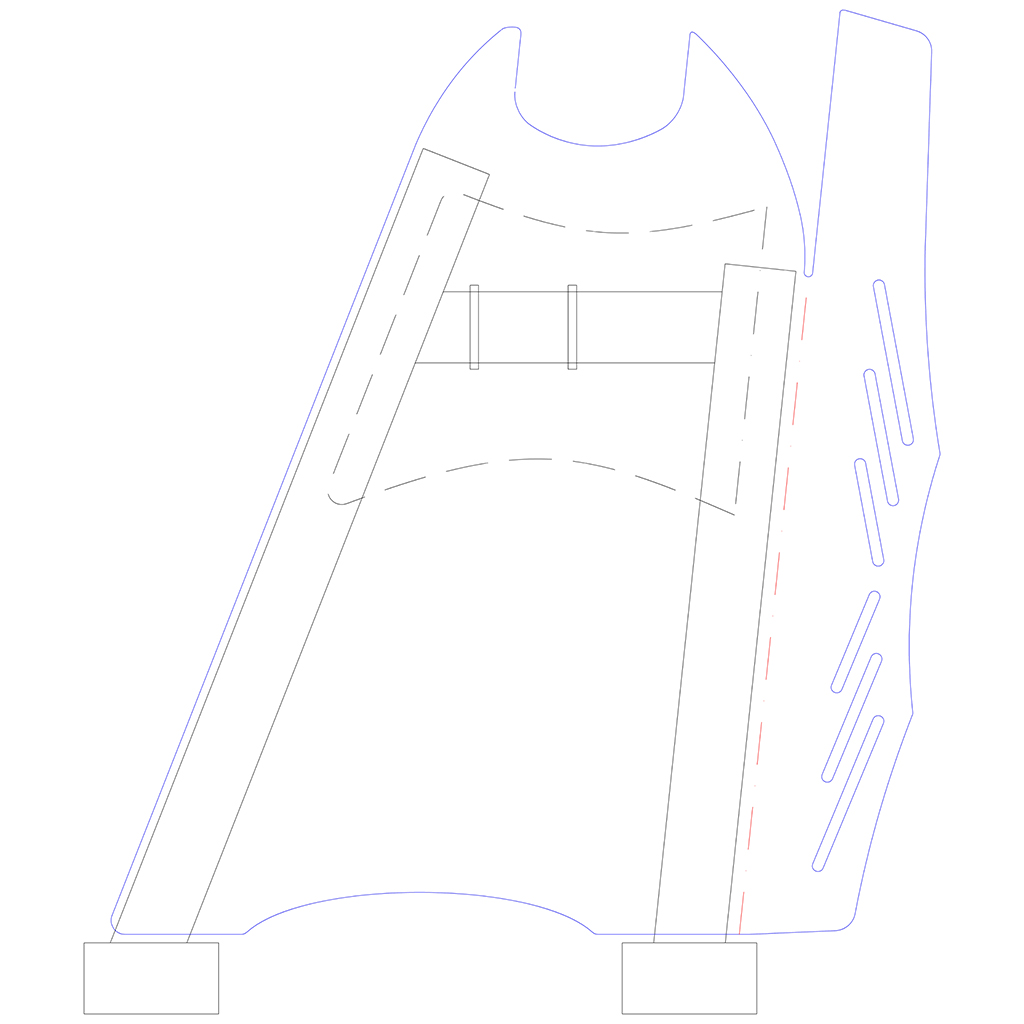

    Finished for tonight. Still need to mark out mounting holes and get a test one cut.
    [​IMG]

    [​IMG]

    Will be using rubber stainless P clamps to mount the skid to the A arm.

  2. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175
    I will be uploading the CAD file soon if you would like it. Let me know what file type you like. Flick a PM.

  3. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175

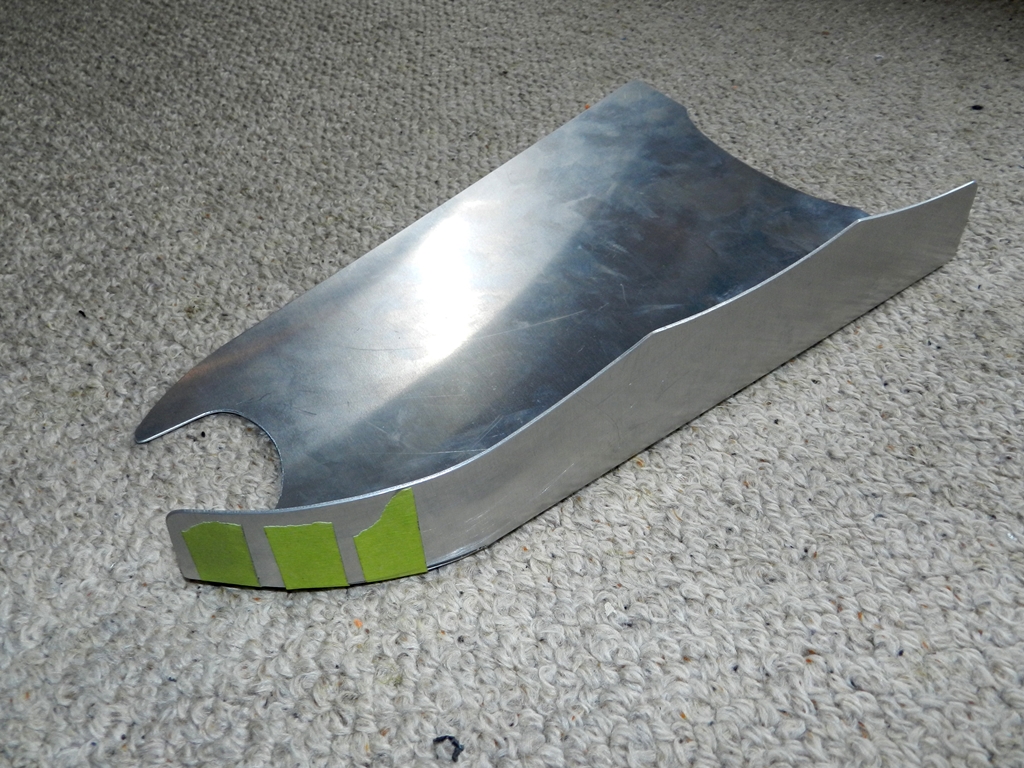

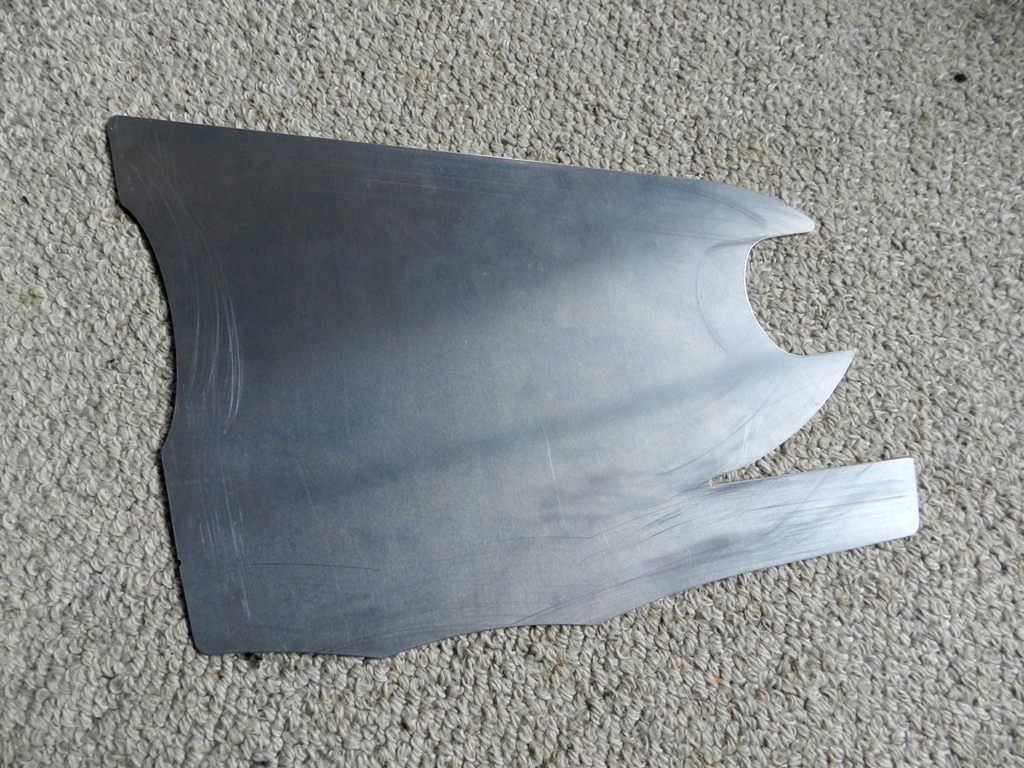

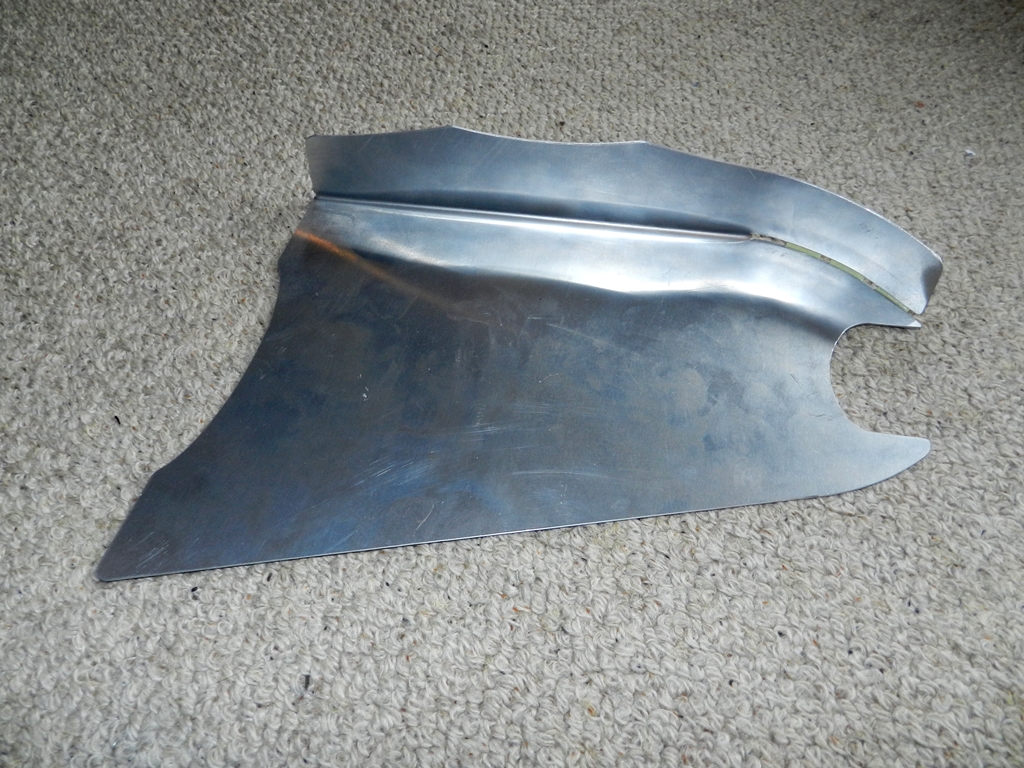

    Got my test plate today and it is perfect.
    [​IMG]

    [​IMG]

    [​IMG]

    Will be getting it cut out of 4mm think aluminum now and then it be off to shop to get bent and tig welded.

  4. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175

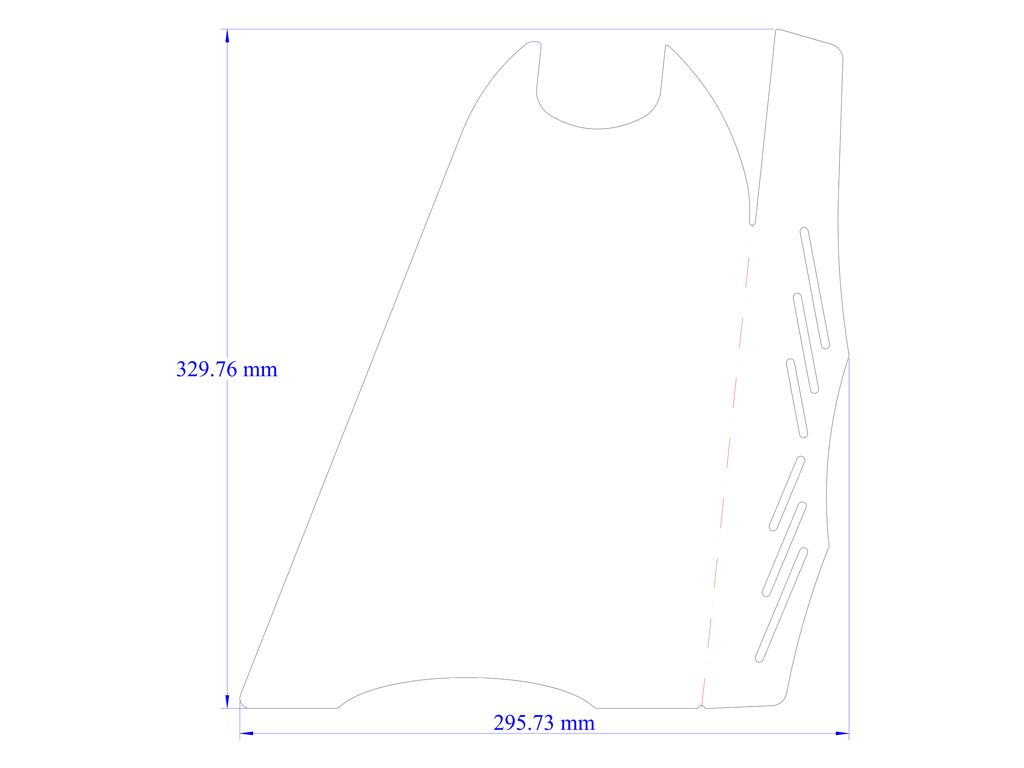

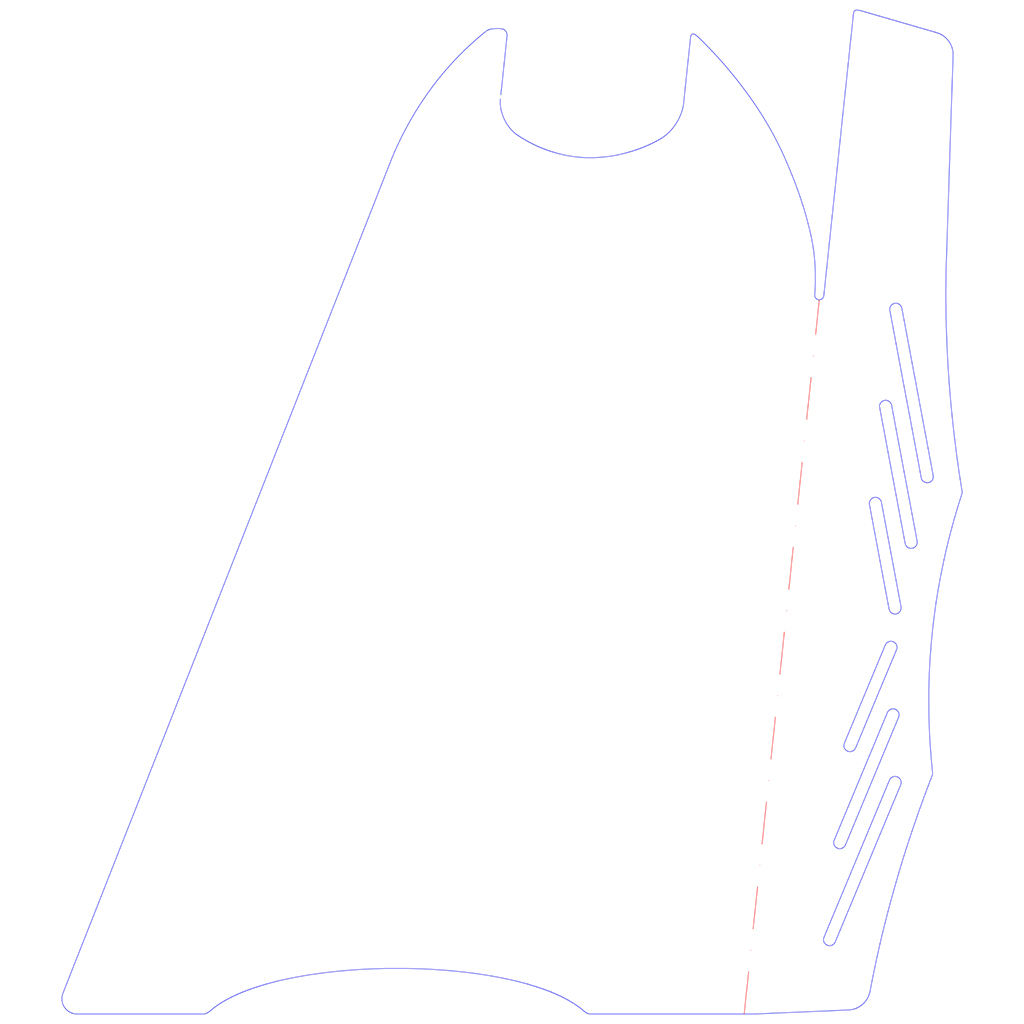

    Cad file. Get is CNC cut, laser cut or water jet. Or go caveman style and hand cut it. You will need to cut 2, 1 for each side.

    [​IMG]

    Download DXF: HERE
    Download PDF: HERE

  5. speedyslyder

    speedyslyder 2 STROKES RULE Technician

    Joined:
    Feb 14, 2014
    Messages:
    4,274
    Likes Received:
    827
    Trophy Points:
    178
    Gender:
    Male
    Location:
    massachusetts
    JPEG TO PDF CONVERTER..
    MAYBE IT MY PC BUT IT KEEPS BRINGING ME TO OTHER PAGES:)
    GO FIGURE I JUST DELETED IT A FEW DAYS AGO BUT I THINK I POSTED A LINK SOMEWHERES.
    NOT SAYING THIS DOE NOT WORK BUT I AM SAYING IT DOES NOT WORK FOR MY OLD AZZ LOL

    CAN YOU SINGLE CLICK ON THIS?????
    WARNING IT WILL DOWNLOAD immediately

    http://www.blasterforum.com/attachments/leakdown-test-pdf-download-pdf.14219/

    Last edited: Dec 9, 2016
  6. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175
    Are you wanting it as a JPG? I'm confused. lol

    speedyslyder likes this.
  7. speedyslyder

    speedyslyder 2 STROKES RULE Technician

    Joined:
    Feb 14, 2014
    Messages:
    4,274
    Likes Received:
    827
    Trophy Points:
    178
    Gender:
    Male
    Location:
    massachusetts
    no im just saying when i try to view it
    it keeps opening a thousand pagse???
    PROBABLY JUST my dino pc lol
    says summin about seen on screen?
    not everybody is running same internet experience ....
    and most are on a SMALL AZZ phone:D

  8. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175
    LOL oh ok. I just tryed it and work for me on my PC and on my cellphone. Make sure you have Adobe reader app installed on your cellphone.

    speedyslyder likes this.
  9. speedyslyder

    speedyslyder 2 STROKES RULE Technician

    Joined:
    Feb 14, 2014
    Messages:
    4,274
    Likes Received:
    827
    Trophy Points:
    178
    Gender:
    Male
    Location:
    massachusetts
    ok i will go with it lol:D
    like i said probably a error on my end,but had to ask:)
    and also i do not use a cellphone on BLASTERFORUM;)

  10. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175
    Dropped the Plates off at lunch time today to get bent. Got phone call at 2pm to say they are done. :eek: Pick up tomorrow.

  11. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175

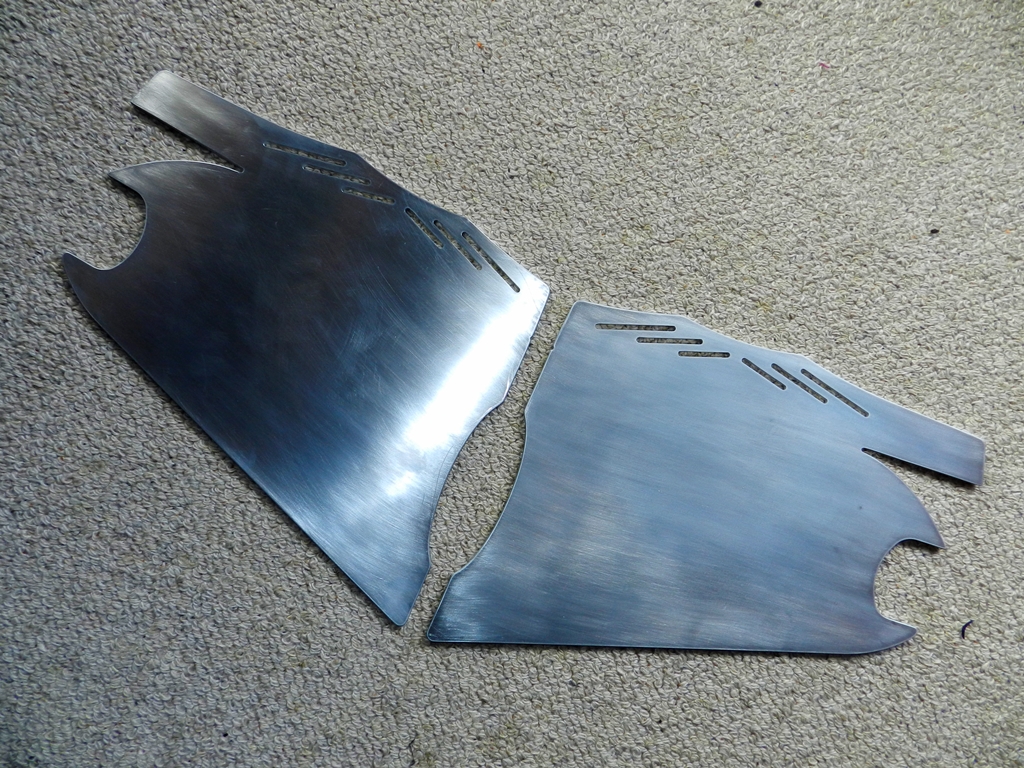

    CNC cut skid plates.
    [​IMG]

    [​IMG]

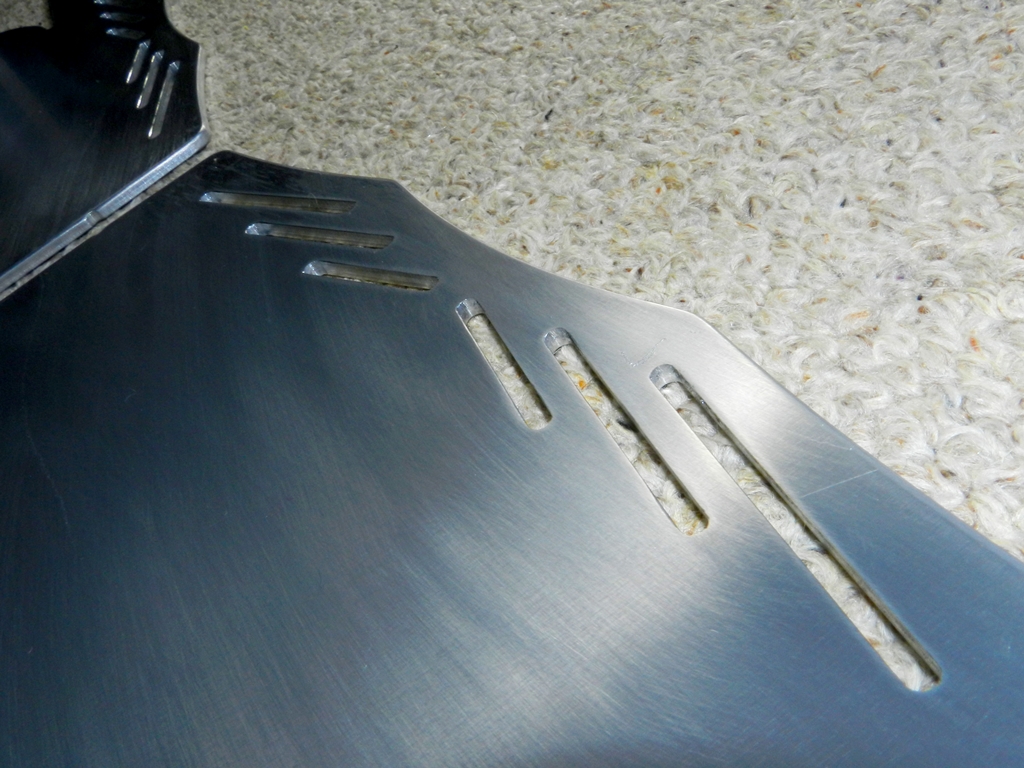

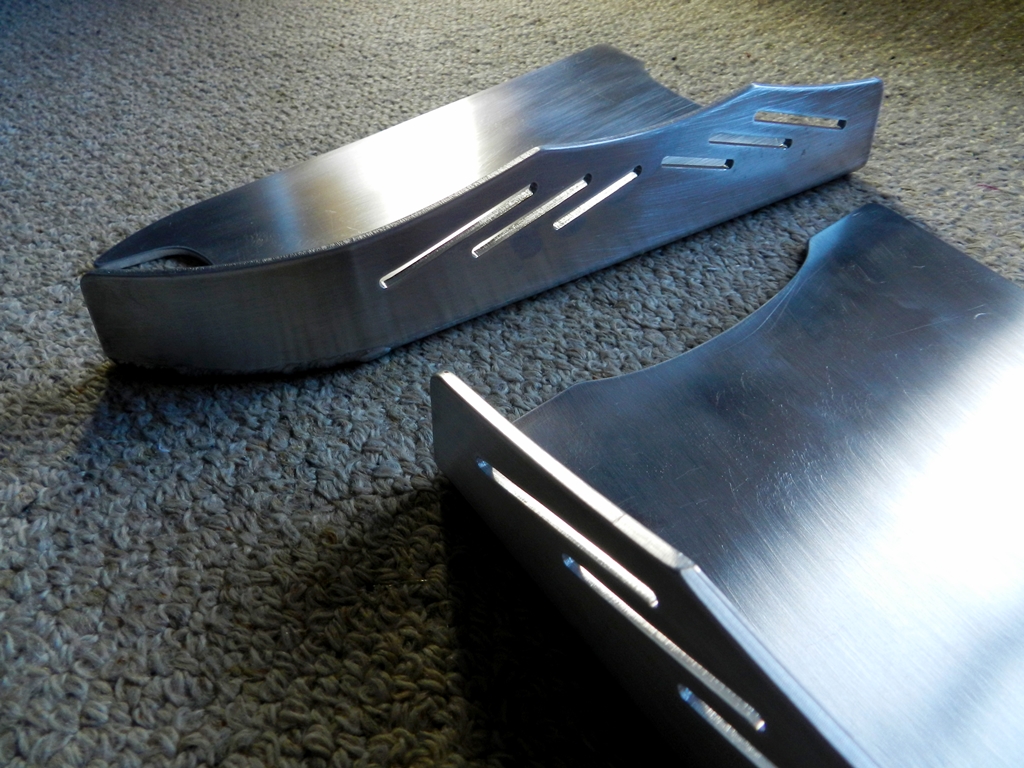

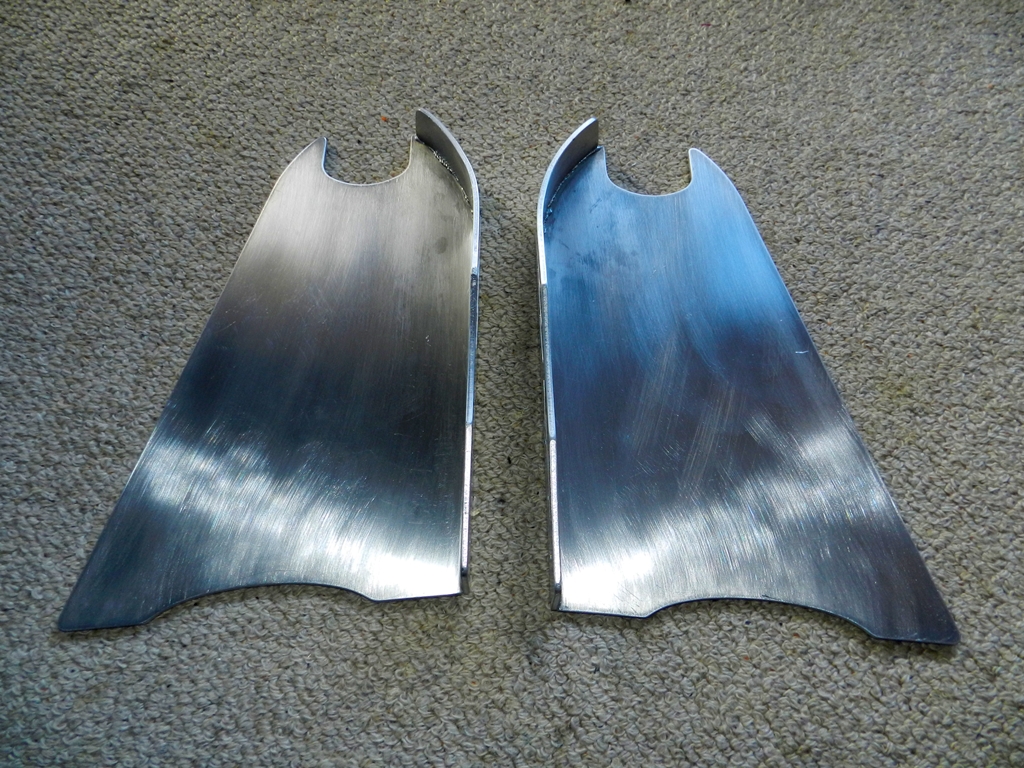

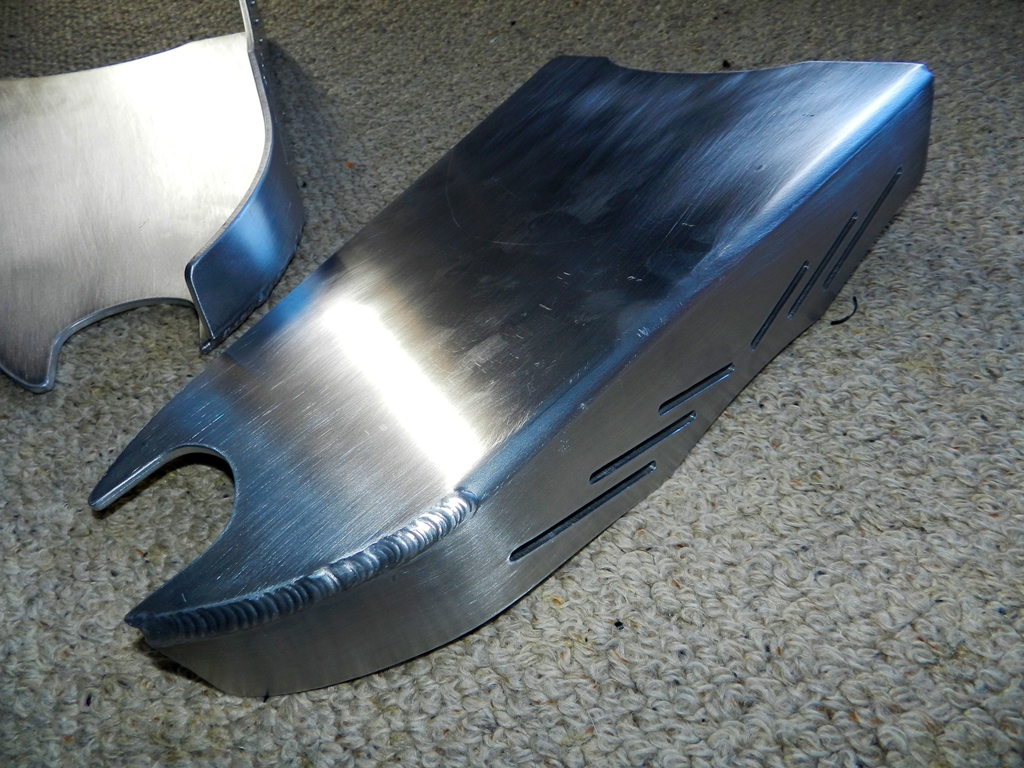

    After bending and weld.
    [​IMG]

    [​IMG]

    [​IMG]

    Need to drill holes for the mounts still.

    79 bronco likes this.
  12. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    2,311
    Likes Received:
    757
    Trophy Points:
    175
    Install.
    [​IMG]

    [​IMG]

    dirtysquared and best like this.
  13. dirtysquared

    dirtysquared DirtyDirty

    Joined:
    Jun 30, 2013
    Messages:
    2,825
    Likes Received:
    874
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Foreman For a Water Company
    Location:
    South Western PA
    Those look good! Should do the job well
