Yamaha Blaster 88-02 Fiche Diagrams and Part Number

Discussion in 'General Support' started by Blaner, Jul 22, 2011.

  1. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    PART 1

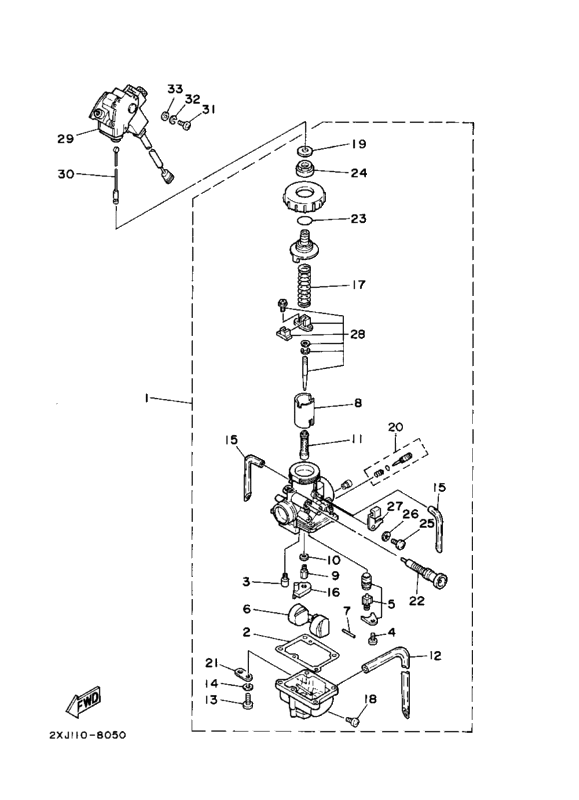

    CARBURETOR

    [​IMG]
    Ref No……………Part Description………………………………..Part Number……………………………………………………….Qty

    1……………………..CARBURETOR ASSY……………………………..2XJ-14101-01-00………………………………………………….1
    2…………………….. GASKET,FLOAT CHMBR……………………….304-14184-00-00………………………………………………….1
    3…………………….. JET, PILOT (32.5) ………………………………….260-14142-32-00……………………………………………….1
    4…………………….. SCREW,PAN HEAD……………………………….98580-04008-00 (replaces 98502-04008-00) …….1
    5…………………….. NEEDLE VALVE SET……………………………..2MA-14107-28-00……………………………………………….1
    6…………………….. FLOAT………………………………………….……...4L0-14185-00-00…………………………………………….….1
    7…………………….. PIN,FLOAT…………………………………….…….537-14186-00-00…………………………………….………….1
    8…………………….. VALVE, THROTTLE…………………….………..2XJ-14112-20-00………………………………………………….1
    9…………………….. JET,MAIN #230…………………………….……..137-14143-46-A1 (replaces 137-14143-46-00)……1
    10……………………..WASHER,MAIN JET…………………….……..137-14153-00-00………………………………………………….1
    11……………………..NOZZLE, MAIN……………………………..…..4L0-14141-46-00………………………………………………….1
    12……………………..HOSE………………………………………….…....90445-08684-00 (replaces 2NL-14197-00-00) …….1
    14……………………..WASHER,SPRING……………………….…...92990-04100-00……………………………………………………4
    15……………………..PIPE,AIRVENT……………………….…….…..4L0-14197-00-00…………………………………………………..2
    16……………………..RING……………………………………………....2GU-14153-00-00………………………………………………….1
    17……………………..SPRING,THRTL VALVE………………….….248-14131-00-00…………………………………………………..1
    18……………………..PLUG,DRAIN…………………………………...12R-14191-00-00…………………………………………………..1
    19……………………..WASHER……………………………………….....256-14954-00-00 (replaces 2GU-14952-00-00) ….1
    20……………………..AIR SCREW SET………………………………..10W-14104-00-00………………………………………………….1
    21……………………..PLATE………………………………………….…..500-14146-00-00…………………………………………………..1
    22……………………..PLUNGER, STARTER………………….……..2GU-14171-00-00………………………………………………….1
    23……………………..O-RING…………………………………………...558-14147-00-00………………………………………………….1
    24……………………..NUT,CABLE ADJUST. ……………………...2GU-14161-00-00………………………………………………….1
    25……………………..SCREW,PANHEAD……………………………..98507-05008-00 (replaces 98502-05008-00)…….1

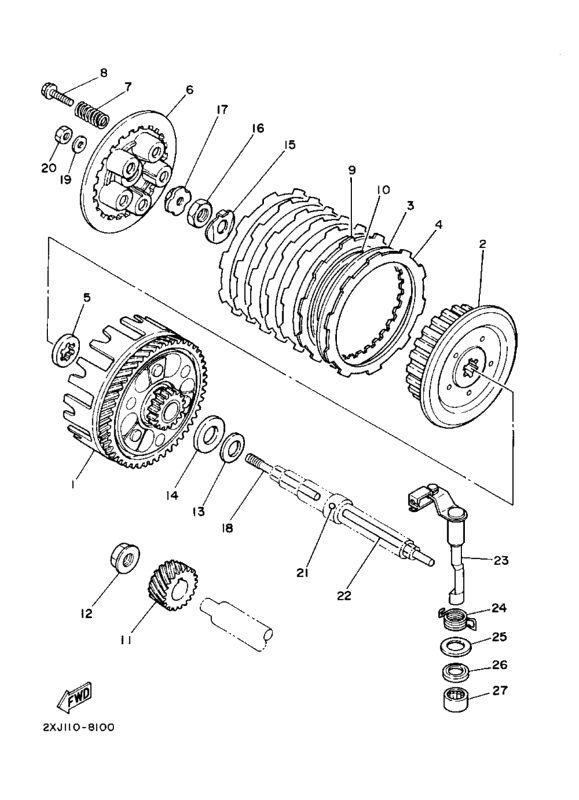

    CLUTCH

    [​IMG]

    Ref No……………Part Description………………………………..Part Number……………………………………………………….Qty

    1……………………..PRI DRIVEN GEAR…………………….........3JM-16150-01-00………………………………………………….1
    2…………………….. BOSS,CLUTCH……………………...............37F-16371-01-00……………………………………………….….1
    3…………………….. PLATE,CLUTCH 1……………………...........1V1-16324-00-00……………………………………………….….6
    4…………………….. PLATE,FRICTION……………………………...3XP-16321-00-00 (replaces 4V0-16321-00-00) ………6
    5…………………….. PLATE,THRUST 1……………………..........2TV-16154-00-00………………………………………………..….1
    6…………………….. PLATE,PRESSURE 1…………………………..37F-16351-00-00………………………………………………..….1
    7…………………….. SPRING,COMPRESSION……………………90501-20568-00……………………………………………….…….5
    8…………………….. BOLT,WITH WASHER……………………….90119-05001-00……………………………………………….…….5
    9…………………….. PLATE,FRICTION 2…………………………...1HX-16331-00-00……………………………………………..…….1
    10……………………..SPRING,CLUTCH BOSS……………………1HX-16383-00-00……………………………………………..…….1
    11……………………..GEAR,PRI DRIVE……………………………..4FU-16111-00-00 (replaces 2JK-16111-01-00) ………1
    12……………………..NUT,SPEC'L SHAPE………………………...90179-12335-00 (replaces 90179-12567-00) ……..…1
    13……………………..WASHER,CONICAL SPR…………………..90208-18046-00………………………………………………….….1
    14……………………..WASHER,PLATE……………………………..90201-180P2-00………………………………………………….….1
    15……………………..WASHER,LOCK……………………...........90215-12271-00………………………………………………….….1
    16……………………..NUT,HEXAGON……………………………..90170-12370-00……………………………………………………..1
    17……………………..PLATE,PUSH……………………..............1W1-16358-01-00………………………………………………..….1
    18……………………..ROD, PUSH 1…………………….............1W1-16356-02-00………………………………………………..….1
    19……………………..WASHER (6TA)……………………………...92907-06200-00…………………………………………………..….1
    20……………………..NUT (6TA) …………………………………….95317-06600-00 (replaces 95307-06600-00) …………1
    21……………………..BALL 3/16……………………………….....93503-16003-00…………………………………………………...1
    22……………………..ROD,PUSH 2……………………………….2J5-16357-00-00………………………………………………..….1
    23……………………..PUSH LEVER ASSY……………………...37F-16380-02-00…………………………………………………...1
    24……………………..SPRING,TORSION……………………...90508-20555-00………………………………………………….….1
    25……………………..WASHER,PLATE………………………...90201-14217-00……………………………………………………..1
    26……………………..OIL SEAL,SO-TYPE…………………....93104-14059-00 (replaces 93104-14004-00)……………1
    27……………………..BEARING,CYL.#15……………………...93315-21429-00…………………………………………………….1

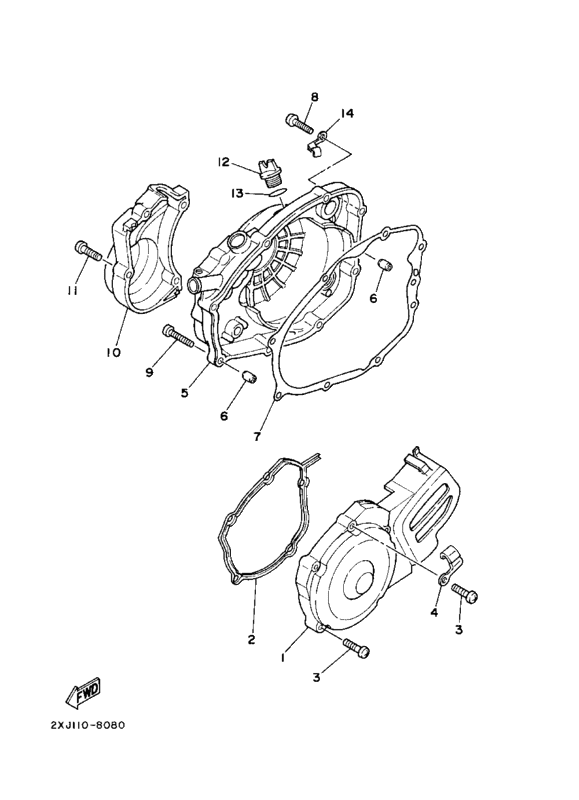

    CRANKCASE COVER

    [​IMG]

    Ref No……………Part Description………………………………..Part Number……………………………………………………….Qty

    1……………………..COVER,CRANKCASE (L) ……………....2XJ-15411-00-00…………………………………………………..….1
    2……………………..SEAL,CRANKCASE……………………….2XJ-15379-00-00…………………………………………………….….1
    3……………………..SCREW,PAN HEAD……………………...98517-06030-00 (replaces 98507-06030-00) ……………5
    4……………………..CLAMP………………………………………..90465-10069-00…………………………………………………..…….1
    5……………………..CRANKCASE COVER ASSY…………...2XJ-15420-01-00 (replaces 2XJ-15420-00-00)…………….1
    6……………………..PIN,DOWEL………………………………...99530-10014-00………………………………………………….…….2
    7……………………..GASKET, CRANKCASE CO………………3JM-15451-11-00……………………………………………….…….1
    8……………………..BOLT,SMALL FLANGE………………...95027-06030-00………………………………………………………….7
    9……………………..BOLT, SMALL FLANGE………………...95027-06035-00………………………………………………..……….1
    10……………………..COVER,OIL PUMP……………………..37F-15416-00-00…………………………………………………….….1
    11……………………..SCREW,PAN HEAD……………………..98517-06030-00 (replaces 98507-06030-00) ……………4
    12……………………..PLUG, OIL………………………………...3Y1-15363-10-00 (replaces 3Y1-15363-00-00) ……………1
    13……………………..O-RING…………………………………...93210-19123-00………………………………………………………..….1
    14……………………..HOLDER,OIL PIPE……………….…...367-13174-00-00………………………………………………….……….1

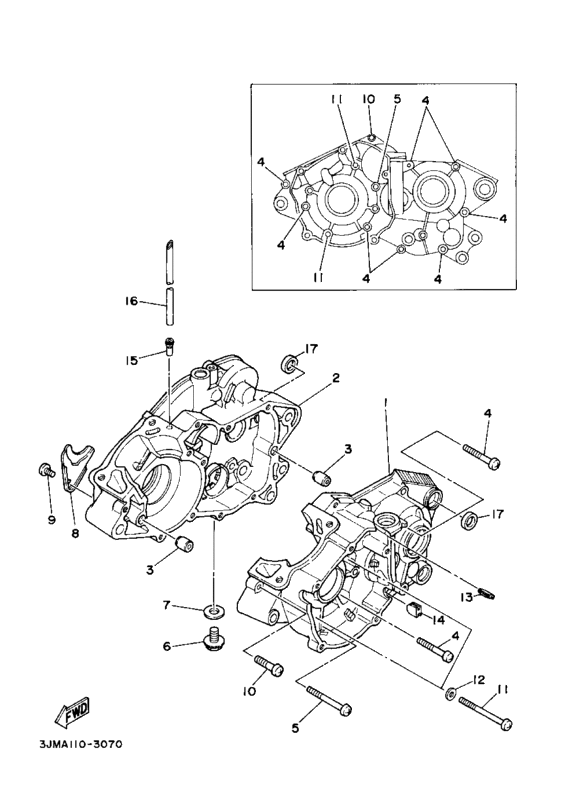

    CRANKCASE

    [​IMG]

    Ref No……………Part Description………………………………..Part Number……………………………………………………….Qty

    1……………………..CRANKCASE 1……………………………...2XJ-15111-01-00…………………………………………….………….1
    2……………………..CRANKCASE 2……………………………...2XJ-15121-00-00……………………………………………….……….1
    3……………………..PIN,DOWEL………………………………...99510-12016-00 (replaces 99530-12016-00) …………..…2
    4……………………..SCREW, PAN……………………………...98507-06045-00………………………………………………………….8
    5……………………..SCREW,PAN……………………………....98507-06060-00…………………………………………………….…….1
    6……………………..PLUG, STRAIGHT SCREW…………...90340-12006-00 (replaces 90340-12059-00) …………..…1
    7……………………..WASHER,PLATE…………………….…...90201-12172-00……………………………………………………….….1
    8……………………..HOLDER………………………………….....37F-15128-00-00…………………………………………………..…….1
    9……………………..SCREW, PAN……………………..……...98507-08010-00………………………………………………………..….1
    10……………………..SCREW,PAN HEAD…………………...98517-06030-00 (replaces 98507-06030-00) …………..…1
    11……………………..SCREW, PAN………………….………...98507-06075-00……………………………………………….………….2
    12……………………..WASHER, PLATE (6TA) ……….…...92907-06600-00………………………………………………….……….2
    13……………………..GROMMET……………………………....90480-01209-00………………………………………………………….1
    14……………………..PLUG,SPEC'L SHAPE………………...90338-09206-00………………………………………………….……….1
    15……………………..CONNECTOR,SCTN PPE…………...137-13115-01-00 (replaces 137-13115-00-00) ……………1
    16……………………..TUBE, FLEXIBLE……………………....91A20-05145-00 (replaces 90446-09155-00) …………...…1
    17……………………..WASHER,PLATE……………….……...90201-166L5-00………………………………………………………..….2

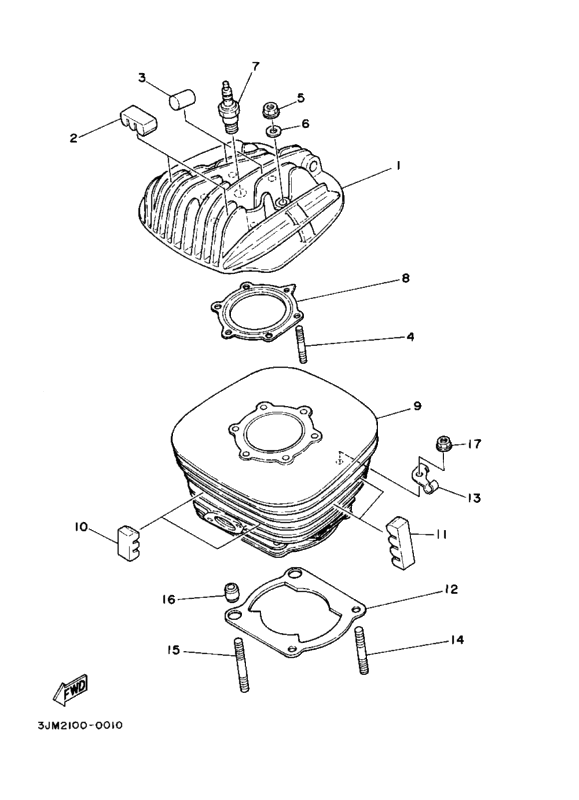

    CYLINDER AND HEAD

    [​IMG]

    Ref No…………....…Part Description………………………………..Part Number…………………………………………….....………….Qty

    1……………………..HEAD,CYLINDER 1……………………...2XJ-11111-00-00………………………………………………….…….1
    2……………………..ABSORBER 2……………………………...3R9-11162-00-00………………………………………………..…..….2
    3……………………..ABSORBER 3……………………………...576-11127-00-00 (replaces 1K6-11128-00-00) ………..…2
    4……………………..BOLT,STUD…………………………….....90116-08394-00………………………………………………………….6
    5……………………..NUT(6TA) ………………………………....95337-08600-00 (replaces 95317-08600-00) …………..…6
    6……………………..WASHER,PLATE………………………...90201-08649-00……………………………………………………….….6
    7……………………..B8ES NGK SPLUG 10P UR…………..B8E-S0000-00-00 (replaces NGK-B8ES0-00-00) ………..…1
    8……………………..GASKET,CYL HEAD 1………………….2XJ-11181-00-00………………………………………………………….1
    9……………………..CYLINDER 1……………………..……...2XJ-11311-02-00 (replaces 2XJ-11311-01-00) ………………1
    10……………………..ABSORBER 2……………………..…...3R9-11162-00-00…………………………………………………….…….2
    11……………………..ABSORBER 2…………………….…...3R6-11162-00-00…………………………………………………..……….4
    12……………………..GASKET, CYLINDER………………...3JM-11351-02-00 (replaces 3JM-11351-00-00) …….………1
    13……………………..HOLDER 1……………………………...10V-1131E-00-00……………………………………………………..…….1
    14……………………..BOLT,STUD……………………….....90116-08318-00……………………………………………………….…….2
    15……………………..BOLT,STUD…………………………...90116-08388-00……………………………………………………….…….2
    16……………………..PIN,DOWEL……………………..…...99510-10114-00……………………………………………………..……….2
    17……………………..NUT,SPEC'L SHAPE……………....90179-08491-00 (replaces 90179-08299-00) …………...……4

    CRANKSHAFT AND PISTON

    [​IMG]

    Ref No……………Part Description………………….....……………..Part Number……………………………………………………......….Qty

    1……………………..CRANKSHAFT ASSY……………………...37F-11400-00-00…………………………….………………………….1
    2……………………..CRANK 1……………………………………...37F-11412-00-00……………………………………..………………….1
    3……………………..CRANK 2……………………………………...37F-11422-00-00……………………………………..………………….1
    4……………………..ROD,CONNECTING……………………...43G-11651-00-00……………………………………………………….1
    5……………………..PIN,CRANK 1……………………….……...37F-11681-00-00………………………………….………………….1
    6……………………..WASHER,SPEC'L SHAPE……………....90209-22248-00………………………………………..…………….2
    7……………………..BEARING, CYL.(3XP) …………………...93310-523D2-00 (replaces 93310-522L4-00) …………1
    8……………………..PISTON (STD) ………………………….....2XJ-11631-01-97………………………………………………….….1
    8……………………..PISTON 0.25MM O/S AP……………...2XJ-11635-01-00……………………………………………….…….1
    8……………………..PISTON 0.50MM O/S AP……………...2XJ-11636-01-00………………………………………….………….1
    9……………………..PISTON RING SET, STD………………...3JM-11601-00-00…………………………………………………….1
    9……………………..PISTON RING O/S (.25 AP…………....3JM-11601-10-00………………………………………..………….1
    9……………………..PISTON RG O/S 0.50 AP……………....3JM-11601-20-00……………………………………………..…….1
    10……………………..BEARING, CYLINDR…………………....93310-316D6-00 (replaces 93310-316H6-00) ………..1
    11……………………..PIN,PISTON………………………………..4L0-11633-00-00……………………………………………….…….1
    12……………………..CIRCLIP,INNER…………………..……...93450-17044-00……………………………………………..……….2
    13……………………..BEARING…………………………………...93306-20562-00…………………………………………….……….1
    14……………………..BEARING…………………………………...93306-30556-00……………………………………………..……….1
    15……………………..OIL SEAL,SD-TYPE………….………...93102-25331-00………………………………………………..…….1
    16……………………..OIL SEAL,SW-TYPE…………………...93103-32183-00 (replaces 93103-32099-00) …………1
    17……………………..COLLAR…………………………………....90387-206K3-00…………………………………………….….…….1
    18……………………..KEY,WOODRUFF……………………...90280-03017-00…………………………………………….…….….1
    19……………………..KEY,STRAIGHT………………….……...90282-05047-00………………………………………..…..….…….1
    20……………………..GEAR,DRIVE…………………………....10V-11536-01-00………………………………………..…….…….1
    21……………………..WEIGHT 1…………………………….....37F-11454-00-00………………………………………..…….…….1
    22……………………..BEARING………………………………....93306-20211-00………………………………………..……..…….1
    23……………………..BEARING………………………………...93306-20335-00…………………………………………….…….….1
    24……………………..KEY,STRAIGHT…………….………...90282-05065-00 (replaces 90282-05013-00) ……….….1
    25……………………..BALANCER WEIGHT….…………...37F-11530-00-00………………………………………………..…….1
    26……………………..WASHER,LOCK……………………...90215-12272-00 (replaces 90215-12235-00) …….….…1
    27……………………..NUT,HEXAGON……………….…...90170-12337-00…………………………………………………....….1

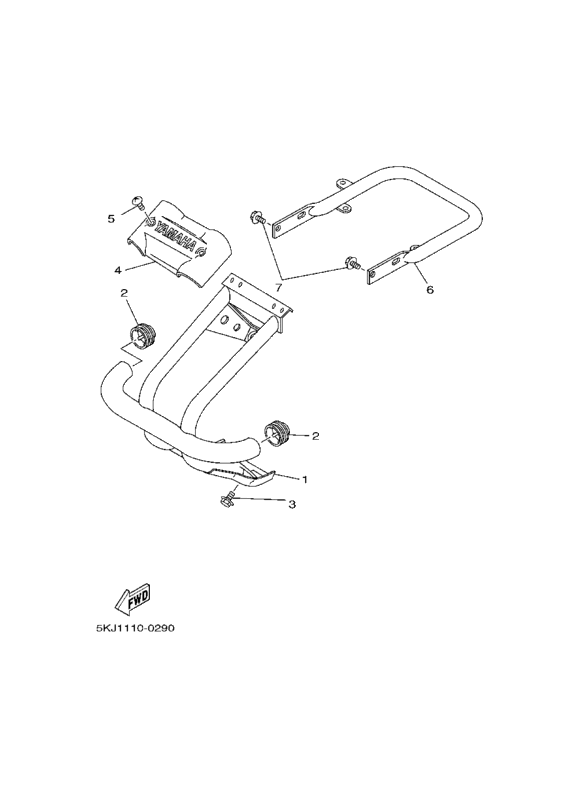

    BUMPERS

    [​IMG]

    Ref No……………Part Description…………………......……………..Part Number………………………………………………………......Qty

    1……………………..BAR, CARRY FRONT…………………...3JM-2845N-00-00……………………………………………..………1
    2……………………..DAMPER 1………………………………….2HR-28415-00-00…………………………………………….………..2
    3……………………..BOLT,FLANGE (JN5) …………………...95817-08016-00……………………………………………..…….….3
    4……………………..COVER 1……………………………………..2XJ-2842M-00-00……………………………………………….…….1
    5……………………..SCREW,BINDING(3XV) ……………...90154-05059-00…………………………………………………..…….2
    6……………………..BAR,CARRY REAR……………….……...3JM-2845R-00-00……………………………………………….…….1
    7……………………..BOLT,FLANGE (JN5) …………………...95817-08016-00……………………………………………..……….3

    ELECTRICAL

    [​IMG]

    Ref No……………Part Description…….....…………………………..Part Number…………………………….....………………………….Qty

    1……………………..CDI UNIT ASSY…………………………...3FL-85540-10-00…………………………………………………..…….1
    2……………………..SCREW,PAN HEAD………………….....98517-06020-00 (replaces 98507-06020-00) …………...1
    3……………………..WASHER,SPRING……………………...92907-06100-00…………………………………………………………..1
    4……………………..WASHER, PLATE (6TA) ……………...92907-06600-00…………………………………………………….…...1
    5……………………..IGNITION COIL ASSY…………………..3KJ-82310-10-00 (replaces 3NS-82310-10-00) ……….….1
    6……………………..BOLT, HEXAGON………………………..97017-06020-00 (replaces 97007-06020-00) ………….…1
    7……………………..WASHER,SPRING……………………....92907-06100-00…………………………………………………………1
    8……………………..BOLT………………………………………....90109-06723-00………………………………………………………...1
    9……………………..PLUG CAP ASSY…………………..…...8DG-82370-00-00 (replaces 1M1-82370-30-00) ………..2
    10……………………..VOLTAGE REG ASY……………….…...82F-81910-A0-00………………………………………………..…..1
    11……………………..SCREW,WITH WASHER……………...90159-06056-00…………………………………………………..….2
    12……………………..WIRE HARNESS ASSY………………...3JM-82590-10-00………………………………………………..…..1
    13……………………..BAND,SWITCH CORD………………….437-83936-11-00 (replaces 3TB-83936-00-00) …….…3
    14……………………..MAIN SWITCH ASSY…………………...2XJ-82510-01-00…………………………………….……………...1
    15……………………..CAP, KEY…………………………………….3HN-82579-00-00………………………………………………..….1
    16……………………..CONTROL UNIT ASSY………………...3GG-85590-00-00…………………………………………………….1
    17……………………..SCREW,PAN HEAD………………..…...98517-06020-00 (replaces 98507-06020-00) …………1
    18……………………..WASHER,SPRING…………………..…..92907-06100-00………………………………………………..…...1
    19……………………..WASHER, PLATE (6TA) ………………..92907-06600-00………………………………………….……..….1
    20……………………..PILOT LIGHT ASSY……………………...2XJ-83530-01-00……………………………………………….…….1
    21……………………..BULB (12V-3.4W) ……………………...2XJ-83516-00-00…………………………………………….……….1
    22……………………..LABEL………………………………………...4U3-83585-00-00…………………………………………….….….1
    23……………………..OIL LEVEL GAUGE ASSY…………....2XJ-85720-03-00 (replaces 2XJ-85720-02-00) …………1

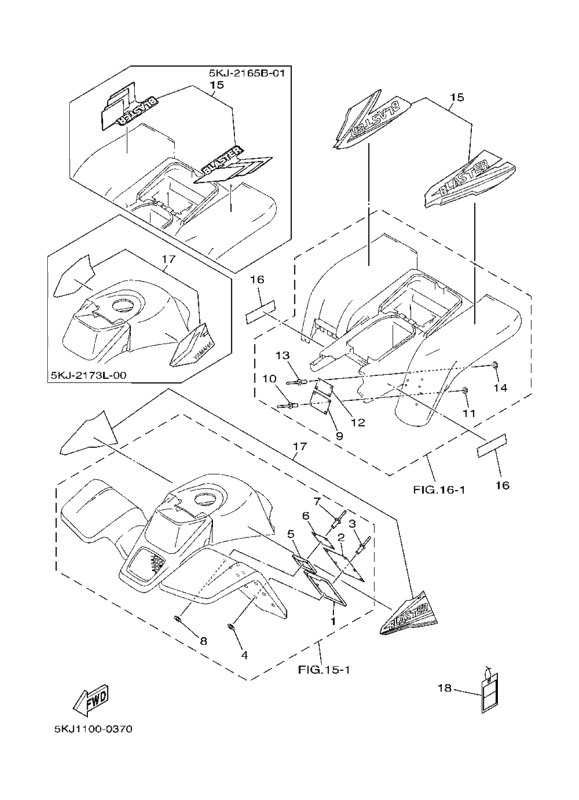

    EMBLEMS

    [​IMG]

    Ref No……………Part Description……………………....…………..Part Number……………………………………………….....……….Qty

    1……………………..STAY, PLT. FITTING 1 UR……………...4EM-21581-00-00……………………………..……………………….1
    1……………………..STAY, PLT. FITTING 1 UR……………...4EM-21581-20-00……………………………………..….…….…….1
    2……………………..LABEL, WARNING…………………….....5FE-21568-01-00…………………………………………..…….…….1
    3……………………..WASHER,PLATE…………………………....90201-03313-00……………………………………………..……..….6
    5……………………..STAY, PLT. FITTING 2…………………....3JM-21591-00-00……………………………………………..……….1
    5……………………..STAY, PLT. FITTING 2 …………………..3JM-21591-10-00…………………………………………………...….1
    6……………………..LABEL, WARNING AGE…………….....4D3-2816L-00-00 (replaces 5FE-21697-01-00).………..…1
    7……………………..RIVET, BLIND………………………..…....90267-32198-00……………………………………………………….4
    8……………………..WASHER,PLATE……………………….....90201-03313-00……………………………………………………….4
    9……………………..LABEL, CAUTION…………………..…...3JM-21696-41-00…………………………………………………..…1
    10……………………..RIVET,BLIND………………………….....90267-32071-00 (replaces 90267-32018-00) ………....4
    11……………………..WASHER,PLATE………………………...90201-03313-00…………………………………………………...….4
    12……………………..LABEL 5…………………………………....5FE-2151H-01-00…………………………………………………..….1
    13……………………..RIVET,BLIND……………………………...90267-32071-00 (replaces 90267-32018-00) ………...4
    14……………………..WASHER,PLATE……………..………...90201-03313-00……………………………………………………….4
    15……………………..GRAPHIC SET,RR……………………...3JM-2165B-60-00………………………………………………..……1
    15……………………..GRAPHIC SET,RR ……………………...5KJ-2165B-01-00………………………………………………………1
    16……………………..EMBLEM, YAMAHA (RW) ………...99244-00160-00…………………………………………………...….2
    17……………………..GRAPHIC SET 1 UR FOR R………...3JM-2173L-60-00…………………………………………………..….1

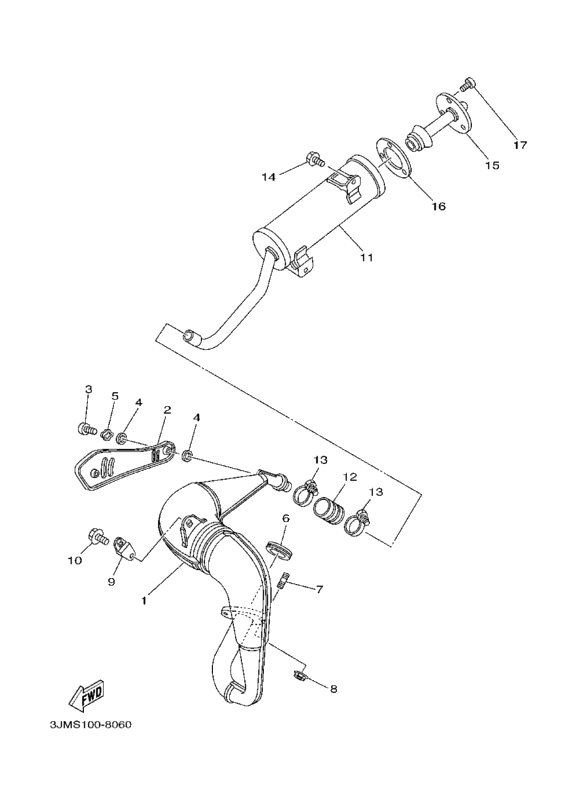

    EXHAUST

    [​IMG]

    Ref No……………Part Description………....………………………..Part Number…………………....…………………………………….Qty

    1……………………..EXHAUST PIPE ASSY …………………...2XJ-14610-00-00………………………………………………………1
    2……………………..PROTECTOR,MUFF 1…………………...2XJ-14718-00-00………………………………………………………1
    3……………………..SCREW, BINDING…………………….....98907-06010-00……………………………………………………….2
    4……………………..WASHER,PROTECTER…………………...4BD-14766-00-00……………………………………………….……4
    5……………………..WASHER, WAVE…………………………...90206-06090-00………………………………………………….….2
    6……………………..GASKET,EXST PIPE………………….…...3PA-14613-10-00………………………………………………..……1
    7……………………..BOLT,STUD…………………………………...90116-08042-00………………………………………………..……2
    8……………………..NUT,SPEC'L SHAPE……………………...90179-08270-00………………………………………………..…….2
    9……………………..STAY,MUFFLER 1…………………….…...565-14771-00-00………………………………………………..……1
    10……………………..BOLT, FLANGE…………………………...95817-06012-00……………………………………………….…….2
    11……………………..SILENCER,EXHAUST…………………...2XJ-14753-00-00…………………………………………………….1
    12……………………..GASKET,MUFFLER……………………...1W2-14714-00-00………………………………………………….1
    13……………………..CLAMP,HOSE………………………….....90460-37130-00 (replaces 90460-37026-00) ……….2
    14……………………..BOLT,FLANGE (JN5) …………………...95817-08016-00………………………….……………………….2
    15……………………..PIPE,OUTLET……………………………...2XJ-14752-00-00……………………………….………………….1
    16……………………..GASKET,SILENCER……………………...2XJ-14755-10-00……………………………….………………….1
    17……………………..SCREW, BINDING……………………...98907-06010-00………………………………………….………….3
    Last edited: Jul 22, 2011
    blasterdemon7 likes this.
  2. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    Re: Yamaha Blaster Fiche Diagrams and Part Number

    PART 2

    [​IMG]
    Ref No. Part Description Part Number Qty
    1 FRAME (SL) SL 2XJ-21110-11-35 1
    2 BOLT,WASHER BASED 90105-10712-00 (replaces 90105-10328-00) 1
    3 WASHER,PLATE 90201-10774-00 1
    4 NUT,SELF-LOCKING 90185-10060-00 1
    5 BOLT,WASHER BASED 90105-08721-00 1
    6 TENSIONER 30X-22178-00-00 2
    7 BUSH 4V4-22184-00-00 2
    8 WASHER, PLATE 8AT 90201-081R9-00 (replaces 90201-08753-00) 2
    9 BOLT, FLANGE 95817-08012-00 (replaces 95807-08012-00) 2
    10 BUSH,SOLID 90381-15040-00 2
    11 O-RING 93210-15566-00 (replaces 93210-15414-00) 2
    12 NIPPLE,GREASE 93700-06M03-00 (replaces 93700-06004-00) 1
    13 PLUG,SPEC'L SHAPE 90338-23172-00 2
    14 TOOL KIT 2XJ-28100-00-00 1
    15 GAUGE,AIR 1NV-2811A-01-00 (replaces 1NV-2811A-00-00) 1

    [​IMG]

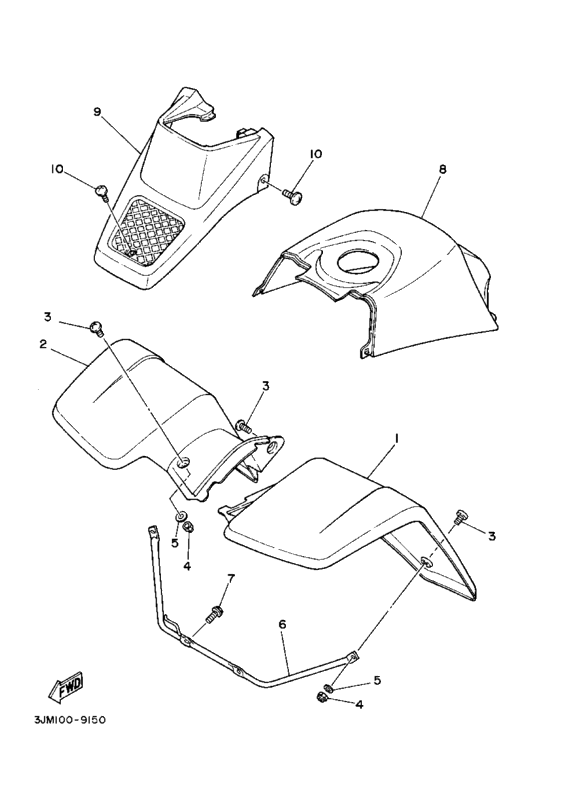

    Ref No. Part Description Part Number Qty
    1 FENDER,FRONT COMP. 2XJ-W2151-C1-00 1
    2 FENDER, FRONT 2 (RW) UR FOR RW 2XJ-21556-B0-00 1
    2 FENDER, FRONT 2 (DPB UR FOR DPBSE 2XJ-21556-C0-00 1
    3 SCREW (3JM) 90149-06306-00 6
    4 NUT,U 95617-06100-00 (replaces 95607-06100-00) 4
    5 WASHER (6TA) 92907-06200-00 4
    6 STAY,FENDER 1 2XJ-21513-00-00 1
    7 BOLT, FLANGE 95817-06012-00 (replaces 95827-06012-00) 2
    8 COVER, TOP (RW) UR FOR RW 2XJ-2171A-90-00 1
    8 COVER, TOP (DPBSE) UR FOR DPBSE 2XJ-2171A-C0-00 1
    9 PANEL, FRONT UR FOR RW 2XJ-23391-90-00 1
    9 PANEL, FRONT UR FOR DPBSE 2XJ-23391-C0-00 1
    10 SCREW, BINDING 90154-05051-00 3

    [​IMG]

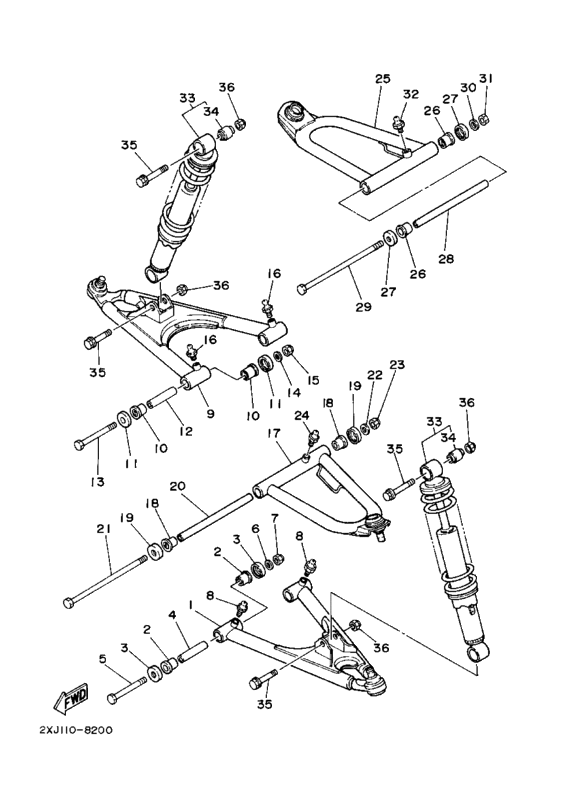

    Ref No. Part Description Part Number Qty
    1 FRT.LWR. ARM (L) SL 3JM-23570-00-35 1
    2 BUSH,SOLID 90381-15088-00 4
    3 COVER, THRUST 1 5YT-23517-00-00 (replaces 1UY-23517-00-00) 4
    4 COLLAR 90387-101R3-00 2
    5 BOLT 90101-10655-00 2
    6 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 2
    7 NUT,SELF-LOCKING 90185-10120-00 2
    8 NIPPLE,GREASE 93700-06M03-00 (replaces 93700-06004-00) 2
    9 FRT.LWR.ARM (R) SL 3JM-23580-00-35 1
    10 BUSH,SOLID 90381-15088-00 4
    11 COVER, THRUST 1 5YT-23517-00-00 (replaces 1UY-23517-00-00) 4
    12 COLLAR 90387-101R3-00 2
    13 BOLT 90101-10655-00 2
    14 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 2
    15 NUT,SELF-LOCKING 90185-10120-00 2
    16 NIPPLE,GREASE 93700-06M03-00 (replaces 93700-06004-00) 2
    17 FRT. UPPER ARM (L) 2XJ-23540-01-35 (replaces 2XJ-23540-01-00) 1
    18 BUSH,SOLID 90381-15088-00 2
    19 COVER, THRUST 1 5YT-23517-00-00 (replaces 1UY-23517-00-00) 2
    20 COLLAR 90387-101U6-00 1
    21 SHAFT,PIVOT 336-22141-00-00 1
    22 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 1
    23 NUT,SELF-LOCKING 90185-10120-00 1
    24 NIPPLE,GREASE 93700-06M03-00 (replaces 93700-06004-00) 1
    25 FRT. UPPER ARM (R) 2XJ-23550-01-35 (replaces 2XJ-23550-01-00) 1
    26 BUSH,SOLID 90381-15088-00 2
    27 COVER, THRUST 1 5YT-23517-00-00 (replaces 1UY-23517-00-00) 2
    28 COLLAR 90387-101U6-00 1
    29 SHAFT,PIVOT 336-22141-00-00 1
    30 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 1
    31 NUT,SELF-LOCKING 90185-10120-00 1
    32 NIPPLE,GREASE 93700-06M03-00 (replaces 93700-06004-00) 1
    33 SHOCK ASSY-WHITE 12 WW 2XJ-23350-00-36 2
    33 SHOCK ASSY W RED SPR NTR 2XJ-23350-00-6W 2
    34 DAMPER, BUSH 2 2XJ-2331R-00-00 2
    35 BOLT,WASHER BASED 90105-10388-00 4
    36 NUT,SELF-LOCKING 90185-10060-00 4


    [​IMG]

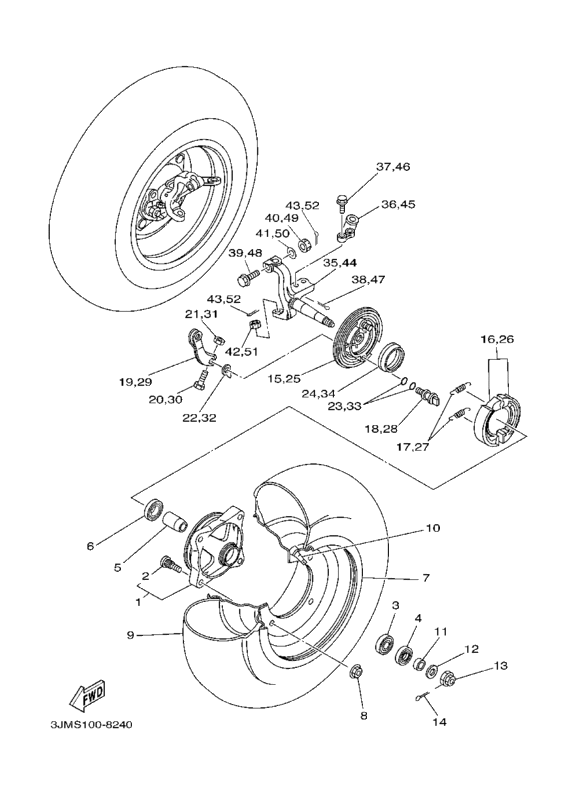

    Ref No. Part Description Part Number Qty
    1 HUB,FRONT 2XJ-25111-00-00 2
    2 BOLT, STUD (38W) 90114-10007-00 4
    3 BEARING 93306-20205-00 2
    4 OIL SEAL,SD-TYPE 93102-22216-00 2
    5 SPACER,BEARING 1UY-25117-00-00 2
    6 BEARING 93306-90403-00 2
    7 WHEEL,FRONT (SL) SL 2XJ-25180-00-35 2
    8 NUT,FLANGE (8AB) 95707-10500-00 8
    9 AT21X7-10 94107-100X3-00 (replaces 94107-106WD-00) 2
    10 VALVE,RIM TAIHEIYO 93900-00030-00 (replaces 93900-00022-00) 2
    11 COLLAR 90387-150R1-00 2
    12 WASHER,PLATE 90201-14220-00 (replaces 90201-14586-00) 2
    13 NUT,CASTLE(2UJ) 90171-14056-00 (replaces 90171-14020-00) 2
    14 PIN,COTTER 91490-30030-00 (replaces 91401-30025-00) 2
    15 PLATE,BRAKE SHOE (LE 2XJ-25121-00-00 1
    16 BRAKE SHOE KIT 4BE-W253E-00-00 (replaces 4BE-W2536-00-00) 1
    17 SPRING,TENSION 90506-15260-00 2
    18 CAMSHAFT 5G3-25351-02-00 1
    19 LEVER,CAMSHAFT 1 52H-25155-00-00 1
    20 BOLT 90101-06278-00 1
    21 NUT (6TA) 95317-06600-00 (replaces 95307-06600-00) 1
    22 PLATE,INDICATOR 52H-2513A-00-00 1
    23 O-RING 93210-12790-00 (replaces 93210-12327-00) 2
    24 OIL SEAL,SDD-TYPE 93105-49023-00 1
    25 PLATE,BRAKE SHOE 2 ( 2XJ-25169-00-00 1
    26 BRAKE SHOE KIT 4BE-W253E-00-00 (replaces 4BE-W2536-00-00) 1
    27 SPRING,TENSION 90506-15260-00 2
    29 LEVER,CAMSHAFT 2 52H-25156-00-00 1
    30 BOLT 90101-06278-00 1
    31 NUT (6TA) 95317-06600-00 (replaces 95307-06600-00) 1
    32 PLATE,INDICATOR 52H-2513A-00-00 1
    33 O-RING 93210-12790-00 (replaces 93210-12327-00) 2
    34 OIL SEAL,SDD-TYPE 93105-49023-00 1
    35 KNUCKLE,STEER 1 (LEF 3JM-23511-01-00 1
    36 ARM,KNUCKLE 1 2XJ-23512-01-00 1
    37 BOLT,WASHER BASED 90105-10507-00 2
    38 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2
    39 BOLT,WASHER BASED 90105-10549-00 1
    40 NUT (6TD) 95337-10600-00 1
    41 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 1
    42 NUT,CASTLE 90171-10046-00 1
    43 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2
    44 KNUCKLE,STEER 2 (RIG 3JM-23521-01-00 1
    45 ARM,KNUCKLE 2 2XJ-23522-01-00 1
    46 BOLT,WASHER BASED 90105-10507-00 2
    47 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2
    48 BOLT,WASHER BASED 90105-10549-00 1
    49 NUT (6TD) 95337-10600-00 1
    50 WASHER,PLATE 90201-100F7-00 (replaces 90201-10430-00) 1
    51 NUT,CASTLE 90171-10046-00 1
    52 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2

    [​IMG]

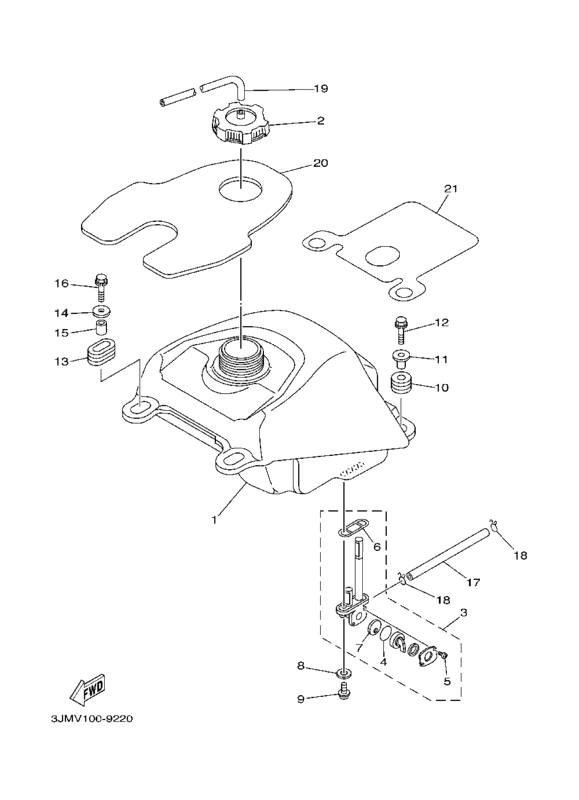

    Ref No. Part Description Part Number Qty
    1 FUEL TANK 2XJ-24110-00-00 1
    2 CAP ASSY 5MV-24610-00-00 (replaces 1UY-24610-00-00) 1
    3 FUEL weiner ASSY 1 55W-24500-02-00 (replaces 55W-24500-01-00) 1
    4 SEAL, weiner 3AJ-24534-01-00 (replaces 3AJ-24534-00-00) 1
    5 SCREW,PAN HEAD 98580-03008-00 (replaces 97801-03008-00) 2
    6 O-RING 4X8-24512-00-00 1
    7 VALVE PACKING 3AC-24523-00-00 (replaces 3AJ-24523-00-00) 1
    8 WASHER,PLATE 90202-05187-00 (replaces 90202-05193-00) 2
    9 SCREW,SPEC'L SHAPE 90149-06011-00 2
    10 GROMMET 90480-18290-00 2
    11 COLLAR 90387-066H4-00 2
    12 BOLT,WITH WASHER 90119-06073-00 2
    13 GROMMET 90480-01400-00 2
    14 WASHER, PLATE 90201-06090-00 (replaces 90201-060L5-00) 2
    15 COLLAR 90387-07598-00 2
    16 BOLT,WITH WASHER 90119-06073-00 2
    17 HOSE 90445-10752-00 (replaces 90445-100E9-00) 1
    18 CLIP,SCISSOR 90467-09006-00 2
    19 HOSE 90445-083J5-00 (replaces 90445-084J1-00) 1
    20 TRIM,COVER PANEL 2XJ-2414H-01-00 1
    21 GUARD 3JM-2414J-00-00 1

    [​IMG]

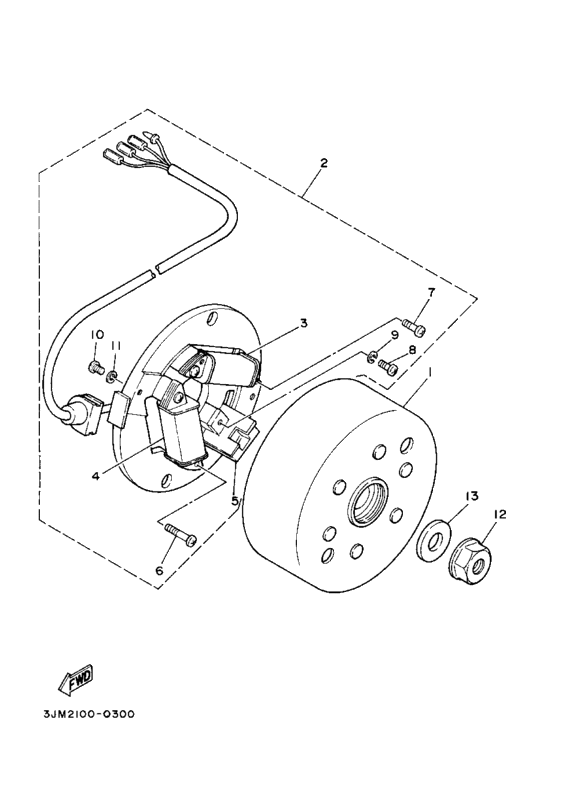

    Ref No. Part Description Part Number Qty
    1 ROTOR ASSY 2XJ-85550-M1-00 (replaces 2XJ-85550-M0-00) 1
    2 BASE ASSY 3JM-85560-00-00 1
    3 COIL,CHARGE 37A-85520-M1-00 (replaces 14L-85520-M0-00) 1
    4 COIL, LIGHTING 2XJ-81313-M0-00 1
    5 COIL, PULSER 2AL-85580-M0-00 1
    6 SCREW,PAN HEAD 98517-04020-00 (replaces 98511-04020-00) 2
    7 SCREW,PANHEAD 98517-04012-00 (replaces 98511-04012-00) 2
    8 SCREW,PAN HEAD 98580-04010-00 (replaces 98501-04100-00) 1
    9 WASHER,SPRING 92990-04100-00 (replaces 92901-04100-00) 1
    10 SCREW,PAN HEAD 98580-04008-00 (replaces 98501-04008-00) 1
    11 WASHER,SPRING 92990-04100-00 (replaces 92901-04100-00) 1
    12 NUT,SPEC'L SHAPE 90179-12657-00 (replaces 90179-12248-00) 1
    13 WASHER, PLATE 90201-123L6-00 1

    [​IMG]

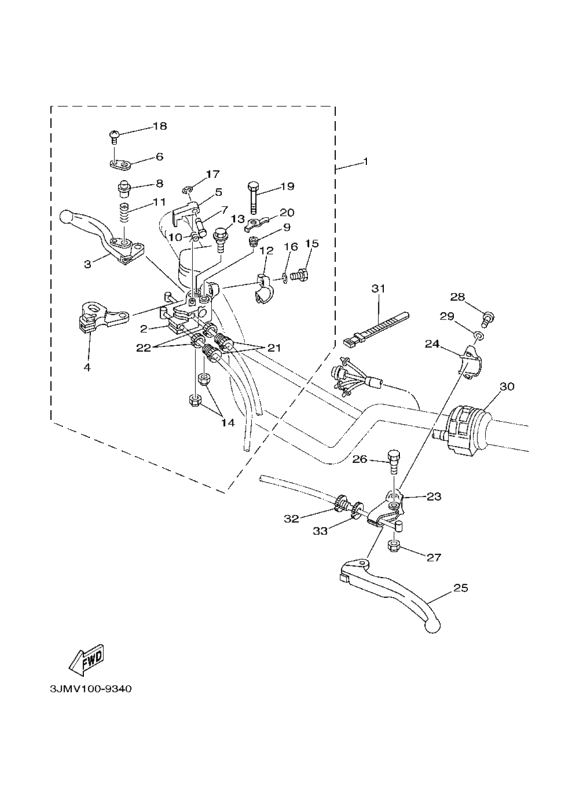

    Ref No. Part Description Part Number Qty
    1 LEVER HOLDER ASSY 2 3JM-82920-10-00 1
    2 HOLDER, LEVER 2 3GH-82921-01-00 1
    3 LEVER 2 3GH-83922-00-00 1
    4 LEVER 1 3GH-83912-00-00 1
    5 LEVER, LOCK 3JM-83965-00-00 1
    6 COVER 1UY-83935-00-00 1
    7 PIN, LOCK 1 3FA-83967-00-00 1
    8 PIN, LOCK 1 1UY-83967-00-00 1
    9 COLLAR, LEVER 1 1UY-83913-00-00 1
    10 SPRING, RETURN 3GH-83966-00-00 1
    11 SPRING 1UY-83962-00-00 1
    12 HOLDER,LEVER LWR 1 2XJ-82913-00-00 1
    13 BOLT (3GB) 90109-061F3-00 (replaces 90109-06797-00) 1
    14 NUT,U 95617-06100-00 (replaces 95607-06100-00) 2
    15 BOLT,HEXAGON 97017-06025-00 (replaces 97027-06025-00) 2
    16 WASHER,SPRING 92907-06100-00 2
    17 RING, SNAP 3FA-26466-00-00 1
    18 SCREW, PAN 98517-03008-00 (replaces 98507-03008-00) 1
    19 BOLT,FLANGE 95817-06040-00 (replaces 95807-06040-00) 1
    20 PLATE, STOPPER 3JM-8331L-10-00 1
    21 BOLT 90123-08046-00 2
    22 NUT,SPEC'L SHAPE 90179-08148-00 2
    23 HOLDER,LEVER 1 38V-82911-00-00 1
    24 HOLDER,LEVER LWR 1 38V-82913-00-00 1
    25 LEVER 1 1NV-83912-01-00 (replaces 1NV-83912-00-00) 1
    26 BOLT 90109-06799-00 1
    27 NUT,U 95617-06100-00 (replaces 95607-06100-00) 1
    28 SCREW, PAN HEAD 98517-05020-00 (replaces 98507-05020-00) 2
    29 WASHER(3SX) 92907-05100-00 2
    30 SWITCH, HANDLE 2 2XJ-83975-09-00 (replaces 2XJ-83975-01-00) 1
    31 BAND,SWITCH CORD 437-83936-01-00 2
    32 BOLT 90123-08046-00 1
    33 NUT,SPEC'L SHAPE 90179-08148-00 1

    [​IMG]

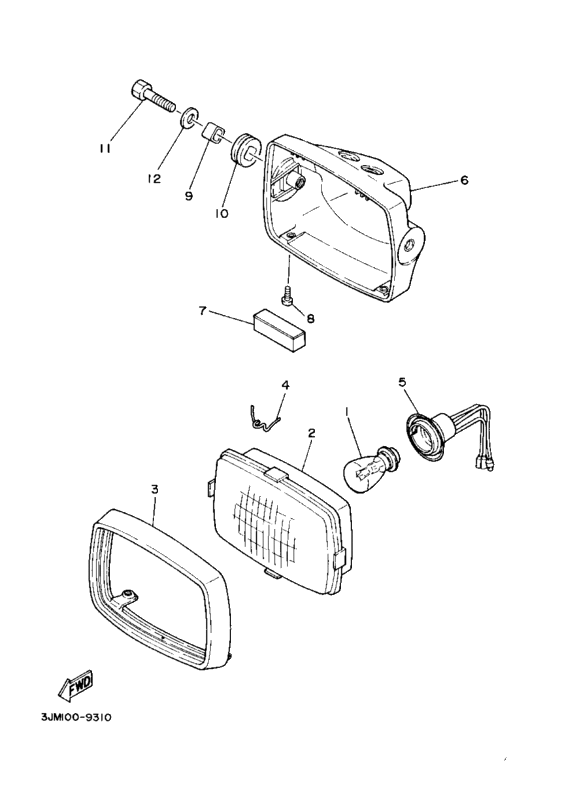

    Ref No. Part Description Part Number Qty
    1 BULB,H.L.12V45/45W 21V-84314-00-XX (replaces 21V-84314-00-00) 1
    2 LENS ASSY 52H-84320-00-00 1
    3 RIM,HEADLIGHT 52H-84315-00-00 1
    4 SPRING,REFLECTOR 52H-84324-00-00 4
    5 SOCKET CORD ASSY 1 52H-84340-00-00 1
    6 BODY ASSY 2XJ-84330-00-00 1
    7 SEAL 5X4-14462-00-00 (replaces 2XJ-84345-00-00) 1
    9 COLLAR,BODY FITTING 52H-84338-00-00 2
    10 DAMPER,HEADLIGHT 52H-84345-00-00 2
    11 BOLT,HEXAGON 97017-08030-00 (replaces 97007-08030-00) 2
    12 WASHER, PLATE 8AT 90201-081R9-00 (replaces 90201-08753-00) 2
  3. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    Re: Yamaha Blaster Fiche Diagrams and Part Number

    PART 3

    [​IMG]

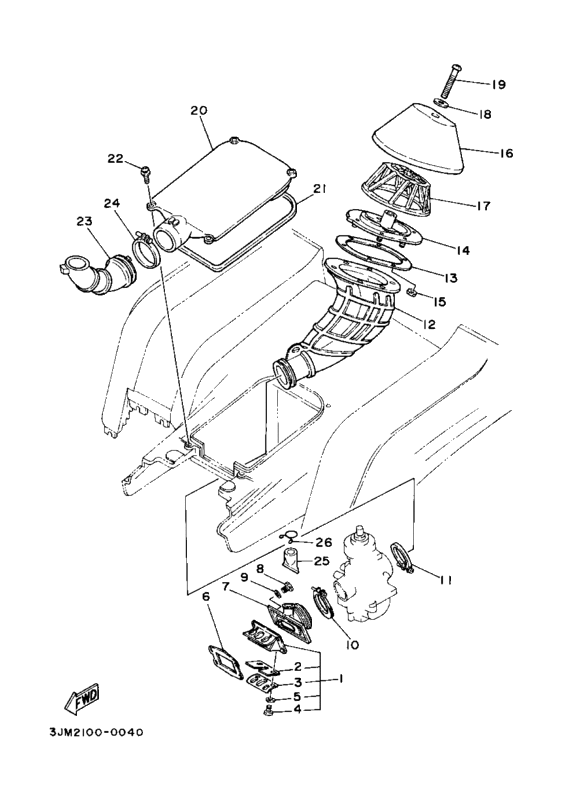

    Ref No. Part Description Part Number Qty
    1 REED VALVE ASY 2HF-13610-01-00 1
    2 REED,VALVE 2HF-13613-00-00 2
    3 STOPPER,REED VALVE 58T-13616-01-00 2
    4 SCREW, PAN 98517-03008-00 4
    6 GASKET,VALVE SEAT 3JM-13621-00-00 1
    7 JOINT,CARBURETOR 2XJ-13565-00-00 1
    8 BOLT,HEXAGON 97017-06025-00 (replaces 97007-06025-00) 4
    9 WASHER, PLATE (6TA) 92907-06600-00 4
    10 HOSE CLAMP ASSY 90450-44046-00 1
    11 CLAMP,HOSE 90460-49058-00 1
    12 JOINT,AIR CLNR 1 2XJ-14453-00-00 1
    13 PLATE 2XJ-14477-00-00 1
    14 HOLDER,GUIDE 2XJ-14459-00-00 1
    15 NUT,U 95617-05100-00 (replaces 95607-05100-00) 6
    16 ELEMENT,AIR CLNR 2XJ-14451-00-00 1
    17 GUIDE,ELEMENT 2XJ-14458-00-00 1
    18 WASHER,SPEC'L SHAPE 90209-06096-00 1
    19 SCREW,PAN 98507-06060-00 1
    20 CAP,CLEANER CASE 1 2XJ-14412-01-00 1
    21 SEAL 1VJ-14462-00-00 (replaces 15A-14462-00-00) 1
    22 SCREW WITH WASER 90159-06085-00 4
    23 DUCT 2XJ-14437-00-00 1
    24 HOSE CLAMP ASSY 90450-56001-00 (replaces 90460-56105-00) 1
    25 SEAL 59V-14457-00-00 1
    26 CLIP,SCISSOR 90467-22080-00 1

    [​IMG]

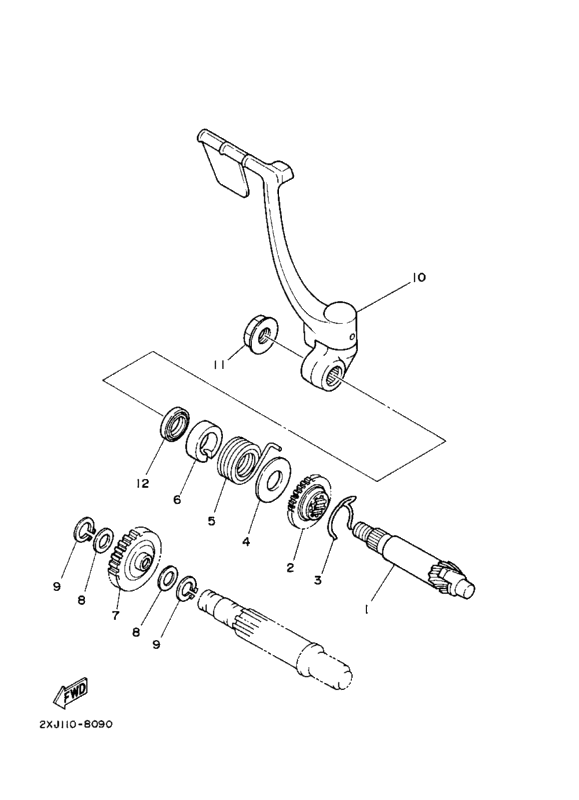

    Ref No. Part Description Part Number Qty
    1 KICK AXLE ASSY 10V-15660-00-00 1
    2 GEAR,KICK 10V-15641-00-00 1
    3 CLIP 90468-26048-00 1
    4 WASHER, PLATE 90201-200J7-00 1
    5 SPRING,TORSION 90508-26667-00 1
    6 GUIDE, SPRING 5HP-15664-00-00 (replaces 10V-15666-00-00) 1
    7 GEAR,KICK IDLE 10V-15651-00-00 1
    8 WASHER, PLATE 90201-154E8-00 2
    9 CIRCLIP (55X) 99009-15400-00 2
    10 KICK CRANK ASSY 2XJ-15620-10-00 1
    11 NUT, (1FE) 90179-12659-00 1
    12 SEAL, OIL 93109-20069-00 (replaces 93109-20014-00) 1





    [​IMG]

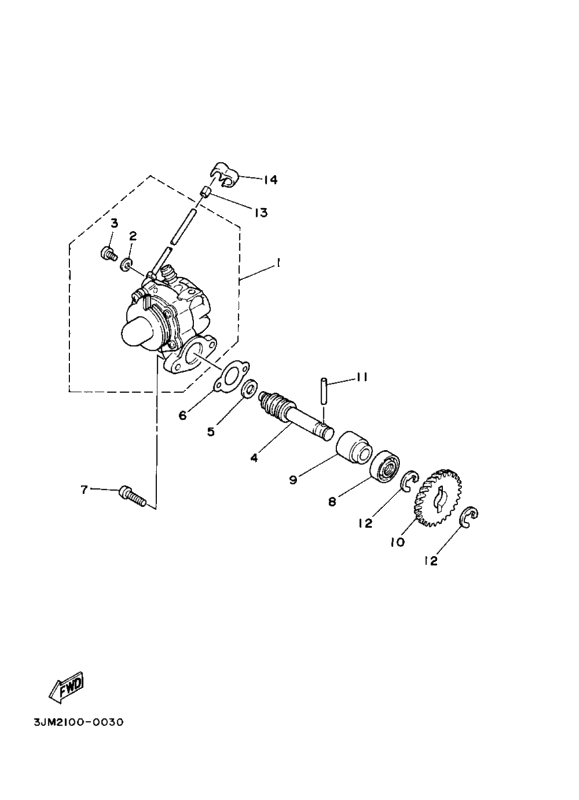

    Ref No. Part Description Part Number Qty
    1 OIL PUMP ASY 2XJ-13101-00-00 (replaces 2XJ-13100-00-00) 1
    2 GASKET 90430-04004-00 1
    3 SCREW, BINDING 98907-04008-00 1
    4 SHAFT,WORM 10V-13175-00-00 1
    5 WASHER,PLATE 90201-08624-00 1
    6 GASKET,PUMP CASE 126-13116-01-00 1
    7 SCREW, PAN 98507-05014-00 2
    8 OIL SEAL,S-TYPE 93101-10090-00 (replaces 93101-10001-00) 1
    9 METAL,WRM SHAF OTR 137-13176-00-00 1
    10 GEAR,PUMP DRIVE 10V-13178-01-00 1
    11 PIN,DOWEL 93603-22028-00 1
    12 CIRCLIP,E-TYPE 93430-08007-00 2
    13 CLIP 90468-02033-00 1
    14 CLIP 90468-15020-00 1

    [​IMG]

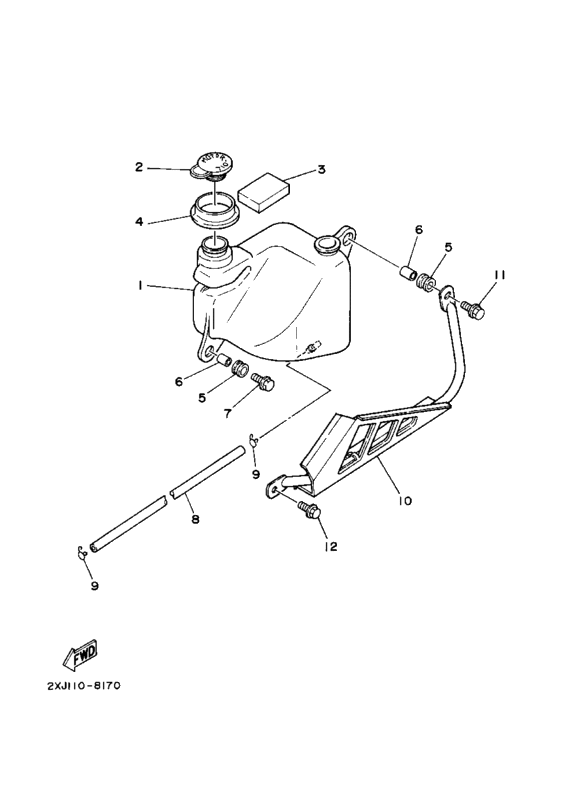

    Ref No. Part Description Part Number Qty
    1 TANK, OIL 2XJ-21751-01-00 1
    2 BODY,CAP 2N3-21771-01-00 1
    3 DAMPER 2XJ-21746-00-00 1
    4 GROMMET 90480-48493-00 1
    5 GROMMET 90480-13238-00 2
    6 COLLAR 90387-07391-00 2
    7 BOLT,FLANGE 95817-06025-00 (replaces 95827-06025-00) 1
    8 HOSE (3GG) 90445-084J0-00 (replaces 90445-084J3-00) 1
    9 CLIP,SCISSOR 90467-08021-00 (replaces 90467-08075-00) 2
    10 COVER 2XJ-2172W-00-00 1
    11 BOLT,FLANGE 95817-06025-00 (replaces 95827-06025-00) 1
    12 BOLT,FLANGE 95817-06025-00 (replaces 95827-06025-00) 1

    [​IMG]

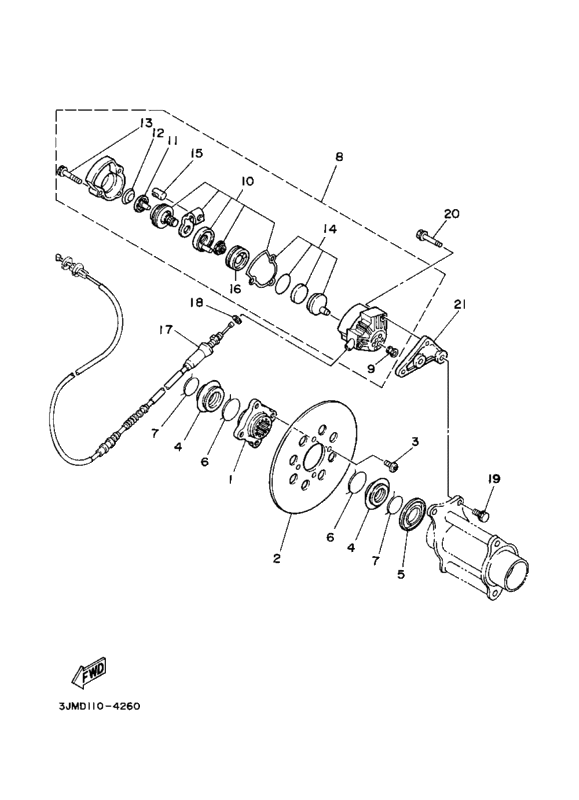

    Ref No. Part Description Part Number Qty
    1 BRACKET,DISC 2XJ-25712-00-00 1
    2 DISC,BRAKE 2XJ-25831-50-00 1
    3 BOLT 90109-08789-00 (replaces 90109-081F0-00) 4
    4 COVER 1 2XJ-25715-00-00 2
    5 COVER,HUB DUST 2XJ-25367-00-00 1
    6 CIRCLIP 93440-44158-00 2
    7 CIRCLIP 93440-36159-00 2
    8 CALIPER ASSY 2XJ-25810-50-00 1
    9 PLUG 2XJ-25916-00-00 1
    10 BRAKE LEVER SET 2XJ-25726-01-00 1
    11 RATCHET, ADJUSTING 2XJ-25771-00-00 1
    12 SPRING,RATCHET FIX 2XJ-25772-00-00 1
    13 BOLT, CALIPER 2XJ-25818-00-00 3
    14 PAD, CALIPER 2 2XJ-25811-00-00 1
    15 PIN 1 2XJ-25734-00-00 1
    16 PLATE, GUIDE 2XJ-25689-00-00 1
    17 CABLE, BRAKE 2XJ-26351-02-00 (replaces 2XJ-26351-01-00) 1
    18 WASHER,PLATE 90201-080L7-00 (replaces 90201-08609-00) 1
    19 BOLT,WASHER BASED 90105-08520-00 2
    20 BOLT,WASHER BASED 90105-08521-00 2
    21 BRACKET,CALIPER 2XJ-25721-00-00 1

    [​IMG]

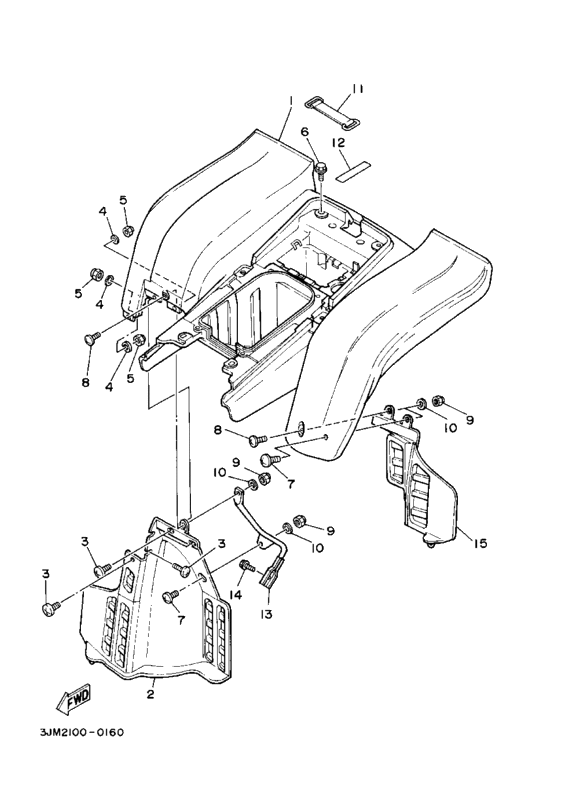

    Ref No. Part Description Part Number Qty
    1 FENDER,REAR COMP. (R UR FOR RW 2XJ-W2161-N1-00 1
    1 FENDER,REAR COMP. (D UR FOR DPBSE 2XJ-W2161-R1-00 1
    2 FLAP 3JM-21621-00-00 1
    3 SCREW,BINDING 90154-05005-00 5
    4 WASHER,PLAIN 92907-05200-00 5
    5 NUT,U 95617-05100-00 (replaces 95607-05100-00) 5
    6 BOLT, WITH WASHER 90119-06152-00 (replaces 90119-06056-00) 6
    7 SCREW (3JM) 90149-06306-00 2
    8 SCREW, ROUND HEAD 90150-06037-00 2
    9 NUT,U 95617-06100-00 (replaces 95607-06100-00) 4
    10 WASHER (6TA) 92907-06200-00 4
    11 BAND,BATTERY 2T4-82131-00-00 1
    12 O-RING 93210-61750-00 1
    13 STAY,FENDER 2 2XJ-21614-00-00 1
    14 BOLT,BUTTON 92017-08012-00 1
    15 FLAP 3JM-21691-00-00 1

    [​IMG]

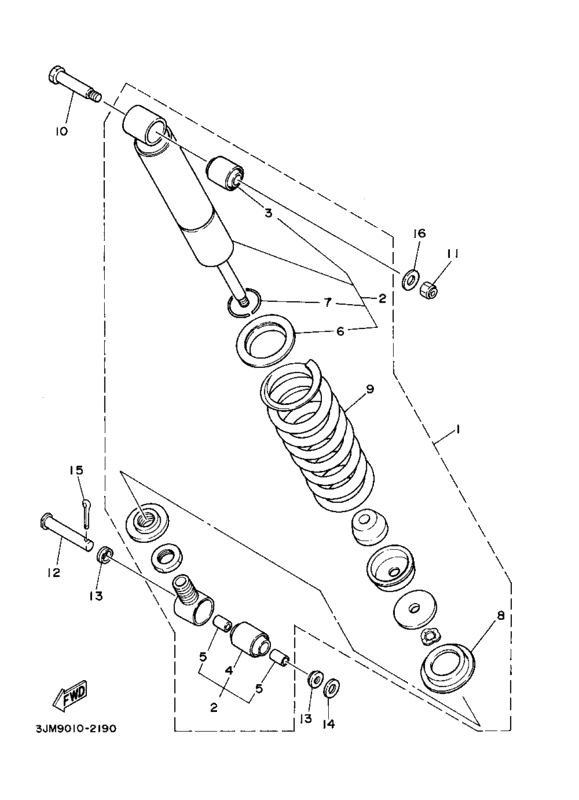

    Ref No. Part Description Part Number Qty
    1 SHOCK ABSORBER ASSY UR WW 2XJ-22210-20-36 (replaces 2XJ-22210-10-36) 1
    1 SHOCK ABSORBER ASSY UR NTR 2XJ-22210-20-6W (replaces 2XJ-22210-10-6W) 1
    2 DAMPER SUB-ASSY 2XJ-22201-20-00 (replaces 2XJ-22201-10-00) 1
    3 BUSH,RR SHOCK ABSORB 1NU-22216-00-00 1
    4 BUSH,SHOCK ABS LWR 1NU-22226-00-00 1
    5 BUSH,SOLID 90380-12051-00 2
    6 SEAT,SPRING LOWER 22W-22223-00-00 1
    7 CIRCLIP,OUTER 93440-42101-00 1
    8 GUIDE, SPRING 1 3P6-22214-00-00 (replaces 22W-22214-01-00) 1
    9 SPRING (WW) WW 2XJ-22212-00-36 1
    9 SPRING NTR 2XJ-22212-00-P2 (replaces 2XJ-22212-00-6W) 1
    10 BOLT 90109-10736-00 1
    11 NUT,U 95617-10100-00 (replaces 95607-10100-00) 1
    12 PIN,CLEVIS 90240-12092-00 1
    13 COVER,THRUST 1 1W1-22128-00-00 2
    14 WASHER 92907-12600-00 1
    15 PIN,COTTER 91490-30030-00 (replaces 91401-30025-00) 1
    16 WASHER,PLATE 90201-102G9-00 (replaces 90201-10126-00) 1

    [​IMG]

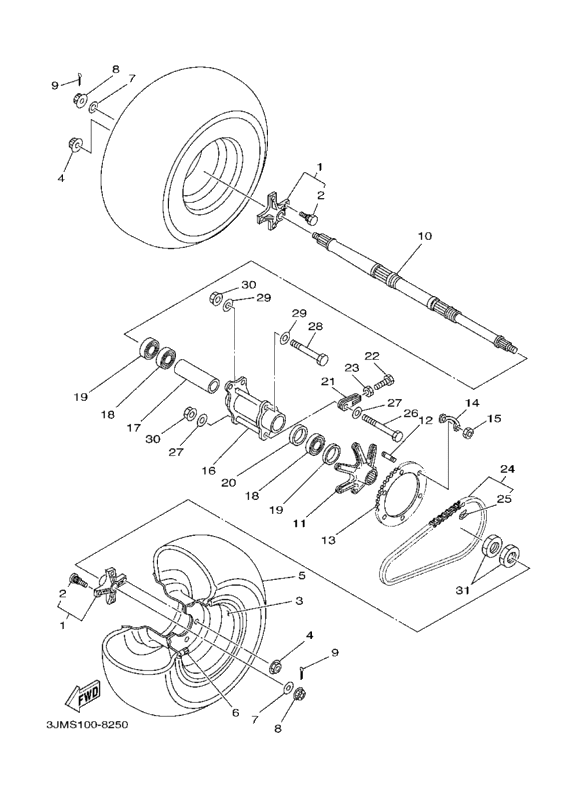

    Ref No. Part Description Part Number Qty
    1 COLLAR, WHEEL 2XJ-25383-40-00 (replaces 2XJ-25383-00-00) 2
    2 BOLT, SERRATION 90114-10014-00 (replaces 90114-10010-00) 4
    3 WHEEL,REAR (SL) SL 2VY-25390-00-35 2
    4 NUT,FLANGE (8AB) 95707-10500-00 4
    5 AT21X10-8* DUN KT895 UR DUNLOP 94110-085W9-00 2
    7 WASHER, PLATE 90201-14022-00 (replaces 90201-14226-00) 2
    8 NUT,CASTLE 90171-14037-00 2
    9 PIN,COTTER 91490-30030-00 (replaces 91401-30030-00) 2
    10 AXLE,WHEEL 2XJ-25381-00-00 1
    11 COLLAR,SPRKT AXLE 2XJ-25386-00-00 1
    12 BOLT,STUD 90116-08507-00 6
    13 SPROCKET, DRIVEN (40 2XJ-25440-21-00 (replaces 2XJ-25440-20-00) 1
    14 WASHER 2XJ-25412-00-00 3
    15 NUT,HEXAGON 90170-08258-00 6
    16 HUB,REAR (SL) SL 2XJ-25311-00-35 1
    17 SPACER,BEARING 2XJ-25317-00-00 1
    18 BEARING 93306-00705-00 2
    19 OIL SEAL 93106-42026-00 (replaces 93102-42260-00) 2
    20 COLLAR 90387-561U7-00 1
    21 PULLER,CHAIN 1 2XJ-25388-00-00 2
    22 BOLT(4SR) 90101-08777-00 2
    23 NUT(6TA) 95337-08600-00 (replaces 95307-08600-00) 2
    24 CHAIN 9Y581-87091-00 (replaces 94581-08092-00) 1
    25 JOINT, CHAIN 94681-87011-00 (replaces 94681-08011-00) 1
    26 BOLT 90101-10678-00 1
    27 WASHER, PLATE 90201-106F2-00 2
    28 BOLT 90101-10678-00 1
    29 WASHER, PLATE 90201-106F2-00 2
    30 NUT,FLANGE (8AB) 95707-10500-00 2
    31 NUT,HEXAGON 90170-33376-00 2
  4. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    Re: Yamaha Blaster Fiche Diagrams and Part Number

    PART 4

    [​IMG]

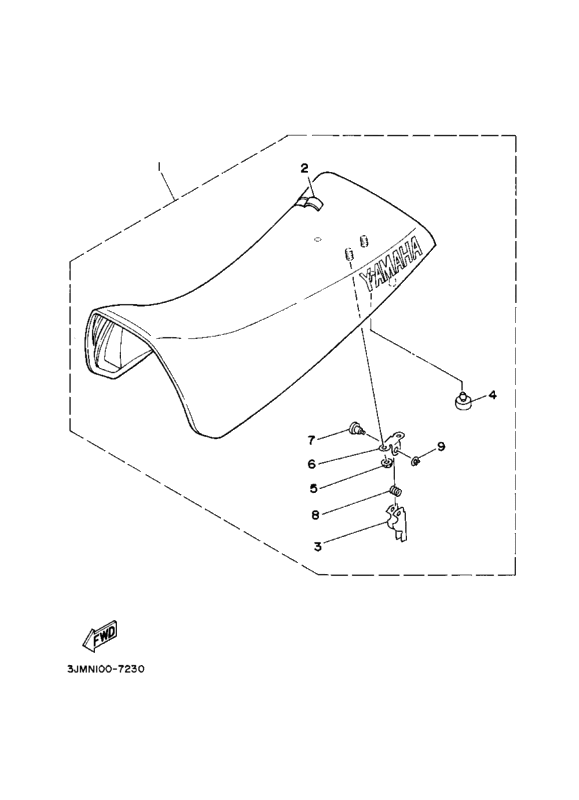

    Ref No. Part Description Part Number Qty
    1 SINGLE SEAT ASSY (DP UR FOR DPBSE) 5KJ-24710-00-00 1
    1 SINGLE SEAT ASSY (RW UR FOR RW) 5KJ-24710-10-00 1
    2 COVER, SEAT (DPBSE) UR FOR DPBSE) 5KJ-24731-00-00 1
    2 COVER, SEAT (RW) UR FOR RW 5KJ-24731-10-00 1
    3 LEVER,SEAT 29U-24776-00-00 1
    4 STOPPER,MAIN STAND 371-27114-00-00 2
    5 NUT,FLANGE (4MV) 95707-06500-00 4
    6 BRACKET,SEAT LEVER 4K0-24775-00-00 1
    7 PIN 4K0-24774-01-00 1
    8 SPRING,TORSION 3FA 90508-20779-00 1
    9 CLIP 99080-04600-00 (replaces 93440-04002-00) 1

    [​IMG]

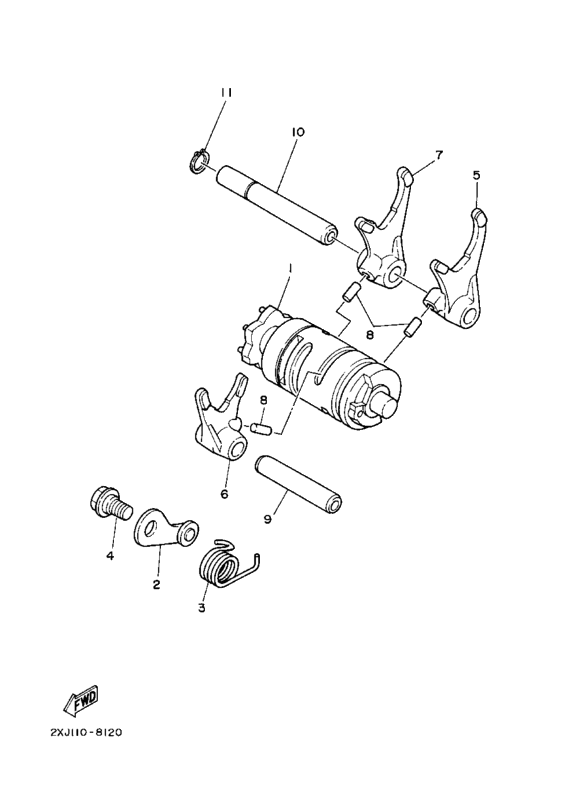

    Ref No. Part Description Part Number Qty
    1 SHIFT CAM ASSY 5KJ-18540-00-00 (replaces 2XJ-18540-01-00) 1
    2 STOPPER LEVER ASSY 10V-18140-00-00 1
    3 SPRING, TORSION 90508-29749-00 1
    4 BOLT 90109-06190-00 (replaces 90109-063F7-00) 1
    5 FORK,SHIFT 1 37F-18511-00-00 1
    6 FORK,SHIFT 2 37F-18512-00-00 1
    7 FORK,SHIFT 3 37F-18513-00-00 1
    8 PIN,STRAIGHT 90250-06013-00 3
    9 BAR,SHIF FRK GDE 1 4BA-18531-00-00 (replaces 5X5-18531-01-00) 1
    10 BAR,SHIFT FORK GUIDE 34X-18535-00-00 1
    11 CIRCLIP 99009-10400-00 1

    [​IMG]

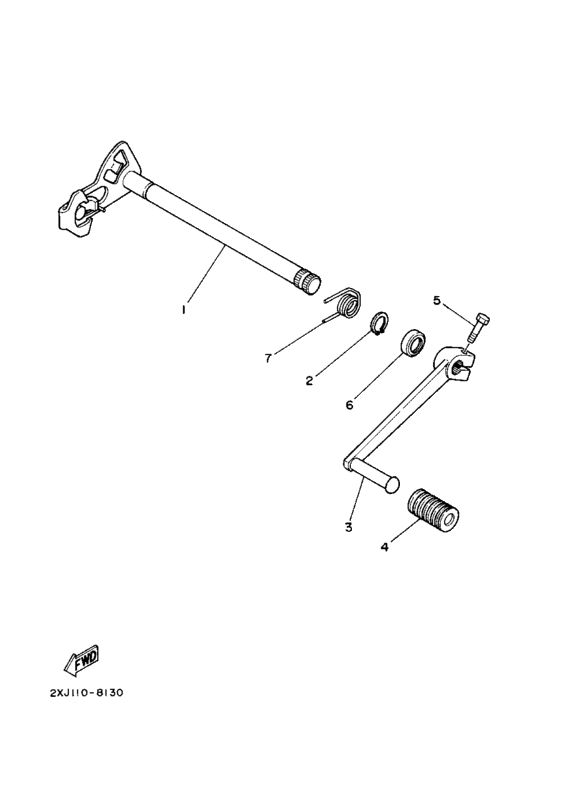

    Ref No. Part Description Part Number Qty
    1 SHIFT SHAFT ASSY 37F-18101-02-00 1
    3 SHIFT PEDAL ASSY 2XJ-18110-10-00 (replaces 2XJ-18111-00-00) 1
    4 COVER,SHIFT PEDAL 132-18113-01-00 1
    5 BOLT, HEXAGON 97017-06020-00 1
    6 OIL SEAL,S-TYPE 93101-12173-00 1
    7 SPRING,TORSION 90508-32553-00 1

    [​IMG]

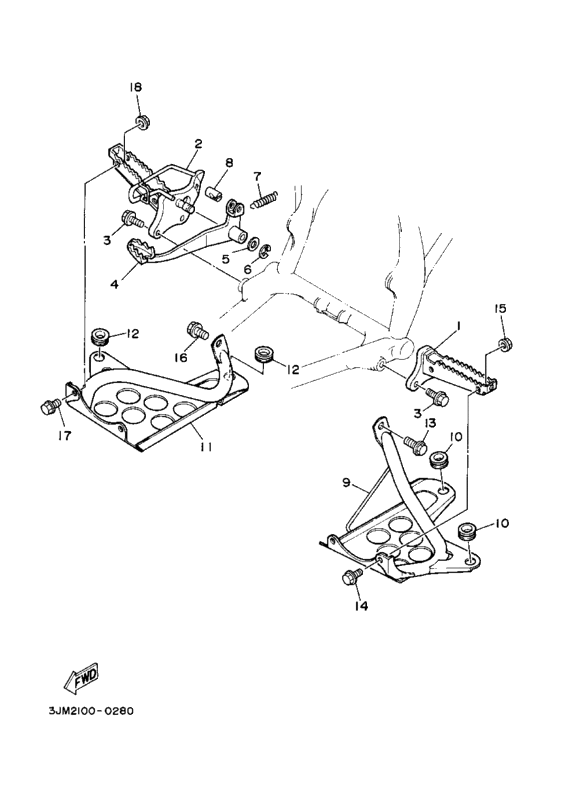

    Ref No. Part Description Part Number Qty
    1 FOOTREST 1 3JM-27411-01-00 1
    2 FOOTREST 2 3JM-27421-01-00 1
    3 BOLT,FLANGE (3GD) 95817-10025-00 4
    4 PEDAL, BRAKE 3JM-27211-10-00 (replaces 3JM-27211-00-00) 1
    5 WASHER,PLATE 90201-15797-00 1
    6 CIRCLIP,E-TYPE 93430-12008-00 1
    7 SPRING,TENSION 90506-20193-00 1
    8 PIN,SPEC'L SHAPE 90249-14202-00 1
    9 PLATE 1 3JM-27445-00-00 1
    10 GROMMET 90480-18411-00 2
    11 PLATE 2 3JM-27446-00-00 1
    12 GROMMET 90480-18411-00 2
    13 BOLT,FLANGE (JN5) 95817-08016-00 (replaces 95827-08016-00) 1
    14 BOLT,BUTTON 92017-08016-00 2
    15 NUT,FLANGE (JN5) 95707-08500-00 2
    16 BOLT,FLANGE (JN5) 95817-08016-00 (replaces 95827-08016-00) 1
    17 BOLT,BUTTON 92017-08016-00 2
    18 NUT,FLANGE (JN5) 95707-08500-00 2




    [​IMG]
    Ref No. Part Description Part Number Qty
    1 COLUMN,STEERING 2 2XJ-23813-01-00 1
    2 PLUG,TAPER 90336-28053-00 1
    3 HOLDER,HANDLE UPR 1E6-23441-00-00 (replaces 8K1-23814-00-00) 2
    4 BOLT,FLANGE 95817-08035-00 (replaces 95827-08035-00) 4
    5 STAY 2GU-2629K-00-00 1
    6 BEARING,STEERING 1UY-23812-00-00 2
    7 OIL SEAL (1UY) 93112-31011-00 2
    8 BRACKET,STRG LOWER 2XJ-23868-00-00 1
    9 BOLT,HEXAGON 97017-08060-00 (replaces 97027-08060-00) 2
    10 WASHER,LOCK 1 1UY-23894-01-00 1
    11 COLLAR 90387-106T4-00 (replaces 90387-090R0-00) 2
    12 WASHER,PLATE 90201-10774-00 1
    13 NUT,SELF-LOCKING 90185-10115-00 1
    14 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 1
    15 ROD,TIE 2XJ-23831-01-00 1
    16 JOINT,UNIVERSAL 1 1UY-23841-01-00 1
    17 JOINT,UNIVERSAL 2 1UY-23845-01-00 1
    18 NUT 95317-10700-00 (replaces 95307-10700-00) 1
    19 NUT,HEXAGON (L/H THR) 90170-10186-00 1
    20 ROD,TIE 2XJ-23831-01-00 1
    21 JOINT,UNIVERSAL 1 1UY-23841-01-00 1
    22 JOINT,UNIVERSAL 2 1UY-23845-01-00 1
    23 NUT 95317-10700-00 (replaces 95307-10700-00) 1
    24 NUT,HEXAGON (L/H THR) 90170-10186-00 1
    25 NUT,CASTLE 90171-10046-00 2
    26 NUT,CASTLE 90171-10046-00 2
    27 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2
    28 PIN,COTTER 91490-20025-00 (replaces 91401-20020-00) 2
    29 STAY,HEADLIGHT 2XJ-23174-00-00 1
    30 BOLT,FLANGE 95817-08014-00 (replaces 95807-08014-00) 4

    [​IMG]

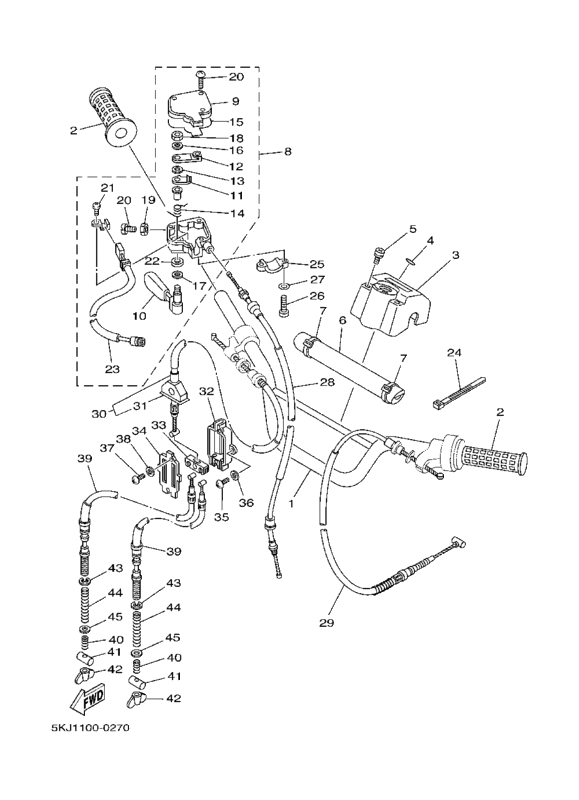

    Ref No. Part Description Part Number Qty
    1 HANDLEBAR 2GU-26111-00-00 1
    2 GRIP L/H 3GB-26241-00-00 2
    3 PROTECTOR,HANDLEBAR 2GU-26124-01-00 1
    4 TUNING FORK MARK 5GT-2836B-10-00 (replaces 5GT-2836B-00-00) 1
    5 SCREW,WITH WASHER 90159-06093-00 2
    6 PROTECTOR 1 3GD-2622K-00-00 1
    7 BAND,SWITCH CORD 437-83936-01-00 2
    8 THROTTLE LEVER ASSY 3GG-26250-00-00 1
    9 CAP, GEAR 2GU-2628F-00-00 1
    10 LEVER,THROTTLE 2GU-2625G-01-00 1
    11 ARM, THROTTLE 1 2GU-2625H-00-00 1
    12 ARM, THROTTLE 2 2GU-2625J-00-00 1
    13 COLLAR 2GU-26259-00-00 1
    14 SPRING 2GU-26314-00-00 1
    15 GASKET 2GU-2628G-00-00 1
    16 WASHER 2GU-26398-00-00 1
    17 WASHER 1NV-26129-00-00 1
    18 NUT,U 95617-05100-00 (replaces 95602-05100-00) 1
    19 NUT,HEXAGON SMALL 95317-05700-00 (replaces 95306-05700-00) 1
    20 SCREW, PAN HEAD 98517-05020-00 (replaces 98506-05020-00) 4
    21 SCREW BINDING 98907-03006-00 (replaces 98902-03006-00) 1
    22 OIL SEAL,SO-TYPE 93104-09025-00 1
    23 SWITCH, THROTTLE 3GG-82567-00-00 1
    24 BAND,SWITCH CORD 437-83936-01-00 2
    25 HOLDER,LEVER LWR 1 4V4-82913-00-00 1
    26 SCREW, PAN HEAD 98517-05020-00 (replaces 98507-05020-00) 2
    27 WASHER(3SX) 92907-05100-00 2
    28 CABLE, THROTTLE 1 2XJ-26311-01-00 1
    29 CABLE, CLUTCH 2XJ-26335-01-00 1
    30 CABLE, BRAKE 4 4BD-26373-01-00 (replaces 2XJ-26373-01-00) 1
    31 BOOT 52H-26362-00-00 1
    32 HOUSING,BRAKE LINK 52H-26371-00-00 1
    33 JOINT,CABLE 52H-26347-01-00 1
    34 PLATE 52H-2631G-00-00 1
    35 SCREW, PAN HEAD 98507-05016-00 2
    36 WASHER (1RW) 92907-05600-00 2
    37 SCREW, PAN 98517-03008-00 (replaces 98507-03008-00) 2
    38 WASHER(3SX) 92907-03600-00 2
    39 CABLE, BRAKE 2XJ-26361-01-00 2
    40 SPRING,COMPRESSION 90501-10782-00 2
    41 PIN,SPEC'L SHAPE 90249-12008-00 2
    42 NUT,WING 90175-06013-00 2
    43 CIRCLIP 99001-06600-00 2
    44 SPRING,COMPRESSION 90501-123A0-00 2
    45 WASHER,SPEC'L SHAPE 90209-06265-00 2

    [​IMG]

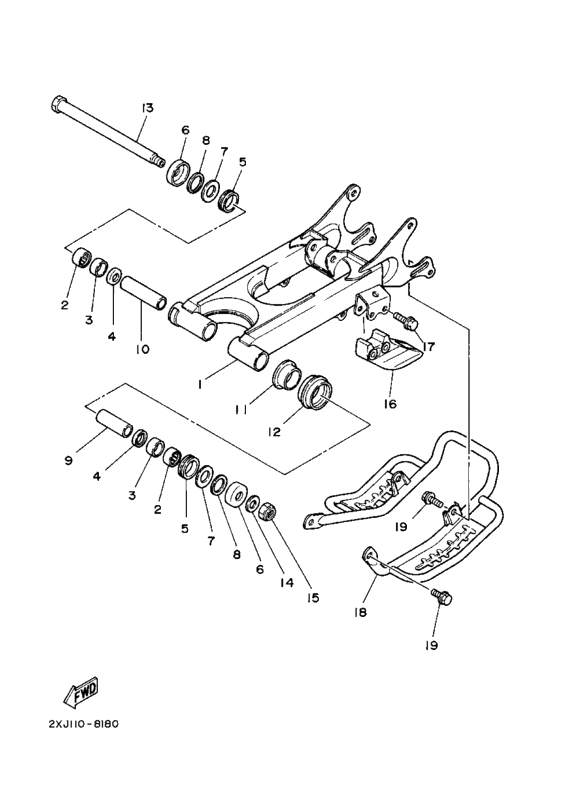

    Ref No. Part Description Part Number Qty
    1 REAR ARM COMP. SL 5VM-22110-10-00 (replaces 2XJ-22110-00-35) 1
    2 BEARING,CYL.#17 93317-32231-00 (replaces 93317-22237-00) 2
    3 BUSH,SOLID 90380-22111-00 2
    4 OIL SEAL,DD-TYPE 93106-22019-00 2
    5 OIL SEAL,OSO-TYPE 93108-35004-00 2
    6 COVER,THRUST 1 2K6-22128-01-00 2
    7 WASHER,PLATE (2VM) 90201-247L2-00 (replaces 90201-244A9-00) 2
    8 SHIM 156-22127-00-00 1
    9 BUSH 1 2XJ-22123-00-00 1
    10 BUSH 2 2XJ-22124-00-00 1
    11 COLLAR 2GU-22155-00-00 1
    12 SEAL, GUARD 2GU-22151-10-00 1
    13 SHAFT,PIVOT 2JN-22141-00-00 1
    14 WASHER,PLATE 90201-14215-00 1
    15 NUT,SELF-LOCKING 90185-14070-00 1
    16 SUPPORT,CHAIN 38W-22199-00-00 1
    17 BOLT, FLANGE 95817-08040-00 (replaces 95807-08040-00) 2
    18 COVER 2XJ-2219X-00-00 1
    19 BOLT, FLANGE 95817-08012-00 (replaces 95827-08012-00) 4

    [​IMG]

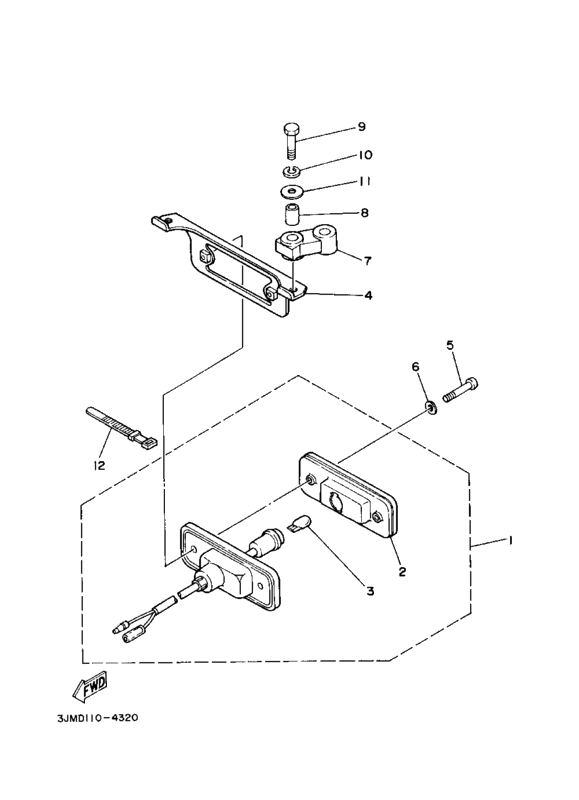

    Ref No. Part Description Part Number Qty
    1 TAILLIGHT UNIT ASSY 38W-84710-00-00 1
    2 LENS,TAILLIGHT 38W-84721-00-00 1
    3 BULB,METER 12V3.8W 3F9-84744-00-XX (replaces 38W-84714-00-00) 1
    4 BRACKET, TAILLIGHT 1UY-84702-10-00 (replaces 1UY-84702-00-00) 1
    5 SCREW,PAN HEAD 98517-04020-00 (replaces 98507-04020-00) 2
    6 WASHER (JF2) 92907-04600-00 2
    7 DAMPER,TAIL 1 38W-84736-00-00 2
    8 COLLAR 90387-07598-00 (replaces 90387-06299-00) 4
    9 BOLT,HEXAGON 97017-06025-00 (replaces 97007-06025-00) 4
    10 WASHER, PLATE (6TA) 92907-06600-00 4
    11 WASHER,PLATE 90201-06380-00 4
    12 BAND,SWITCH CORD 437-83936-01-00 1

    [​IMG]

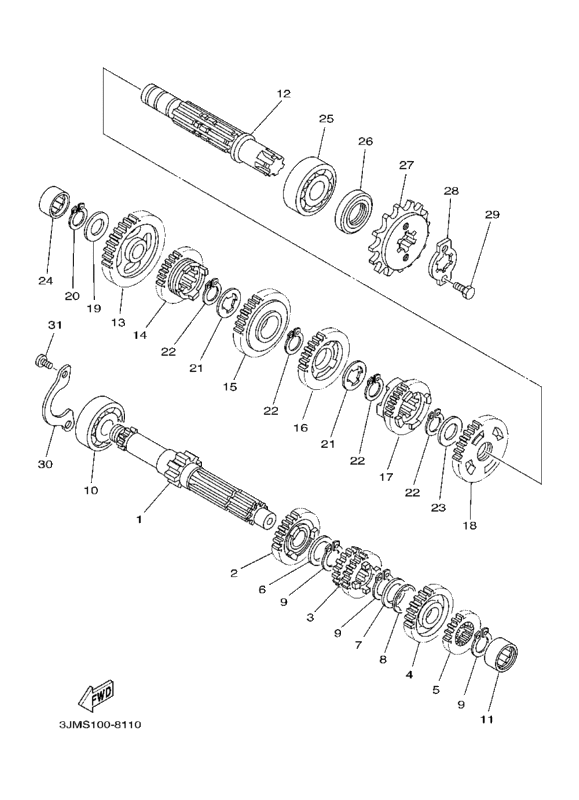

    Ref No. Part Description Part Number Qty
    1 AXLE,MAIN 2XJ-17411-00-00 1
    2 GEAR,5TH PINION 2XJ-17151-00-00 1
    3 GEAR,3RD PINION 2XJ-17131-00-00 1
    4 GEAR,6TH PINION 2XJ-17161-00-00 1
    5 GEAR,2ND PINION 2XJ-17121-00-00 1
    6 WASHER,PLATE 90201-20266-00 1
    7 WASHER,PLATE 90201-206L6-00 1
    8 WASHER,SPEC'L SHAPE 90209-16133-00 1
    9 CIRCLIP,S-TYPE 93410-20038-00 3
    10 BEARING 93306-20431-00 1
    11 BEARING,CYL.(2TV) 93311-31567-00 (replaces 93311-31576-00) 1
    12 AXLE,DRIVE 37F-17421-01-00 1
    13 GEAR,1ST WHEEL 2XJ-17211-00-00 1
    14 GEAR,5TH WHEEL 2XJ-17251-00-00 1
    15 GEAR,3RD WHEEL 2XJ-17231-00-00 1
    16 GEAR,4TH WHEEL 2XJ-17241-00-00 1
    17 GEAR,6TH WHEEL 2XJ-17261-00-00 1
    18 GEAR,2ND WHEEL 2XJ-17221-01-00 1
    19 WASHER,PLATE 90201-150J4-00 1
    20 CIRCLIP,OUTER 93440-15012-00 1
    21 WASHER,SPEC'L SHAPE 90209-18135-00 2
    22 CIRCLIP,S-TYPE 93410-22039-00 4
    23 WASHER,PLATE 90201-22555-00 1
    24 BEARING,CYL.#11 93311-51554-00 1
    25 BEARING 93306-30421-00 (replaces 93306-30438-00) 1
    26 OIL SEAL,SD-TYPE 93102-20143-00 1
    27 SPROCKET,DRIVE 13T 93832-13164-00 1
    28 HOLDER,SPROCKET 5H0-17456-00-00 1
    29 BOLT 97017-06012-00 (replaces 97027-06012-00) 2
    30 PLATE,COVER 10V-17471-00-00 1
    31 SCREW,PAN 98517-06012-00 (replaces 98507-06012-00) 2


    all yamaha models can be found here..........
    http://api.viglink.com/api/click?fo...arts Catalog&jsonp=vglnk_jsonp_13649023802565


    all others can be found here.........
    http://www.cernics.com/fiche_select2.asp?category=ATVs&make=Yamaha&year=2001&fveh=1006
    Last edited by a moderator: Apr 2, 2013
  5. blasterdemon7

    blasterdemon7 I'm not mad. I'm winning.

    Joined:
    Nov 19, 2009
    Messages:
    13,391
    Likes Received:
    174
    Trophy Points:
    68
    Gender:
    Male
    Occupation:
    Automotive dismantler
    Location:
    Delaware
    Re: Yamaha Blaster Fiche Diagrams and Part Number

    I think this would be a great sticky thread. It would help alot to point out a part your talking about. A great help to a newbe that's not sure what the part is called and can point it out. Rep for this thread.
  6. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    Re: Yamaha Blaster Fiche Diagrams and Part Number

    this is for a Year 2000 blaster, so certain things may be different such as the hydro brakes on the post 2003 models, i will do an update sometime with the newer components.

    I will also edit this to make it more readable, not right now tho! its taken me the whole day to get it organized. so hold on for the edited version!
  7. Blaner

    Blaner Member

    Joined:
    Mar 26, 2008
    Messages:
    3,035
    Likes Received:
    55
    Trophy Points:
    48
    Occupation:
    Geologist
    Location:
    East London, South Africa
    have edited the 1st section, its tough getting the formatting right as the forum doesnt support tab stops from Word!

    doesnt seem like too many are interested, if there is no interest shown i wont bother to format the rest, its VERY time consuming, thought it would be useful tho.

Share This Page
