Speed Sensor mount plate

Markblaster

Custom blaster
Dec 6, 2015
2,311
760
175

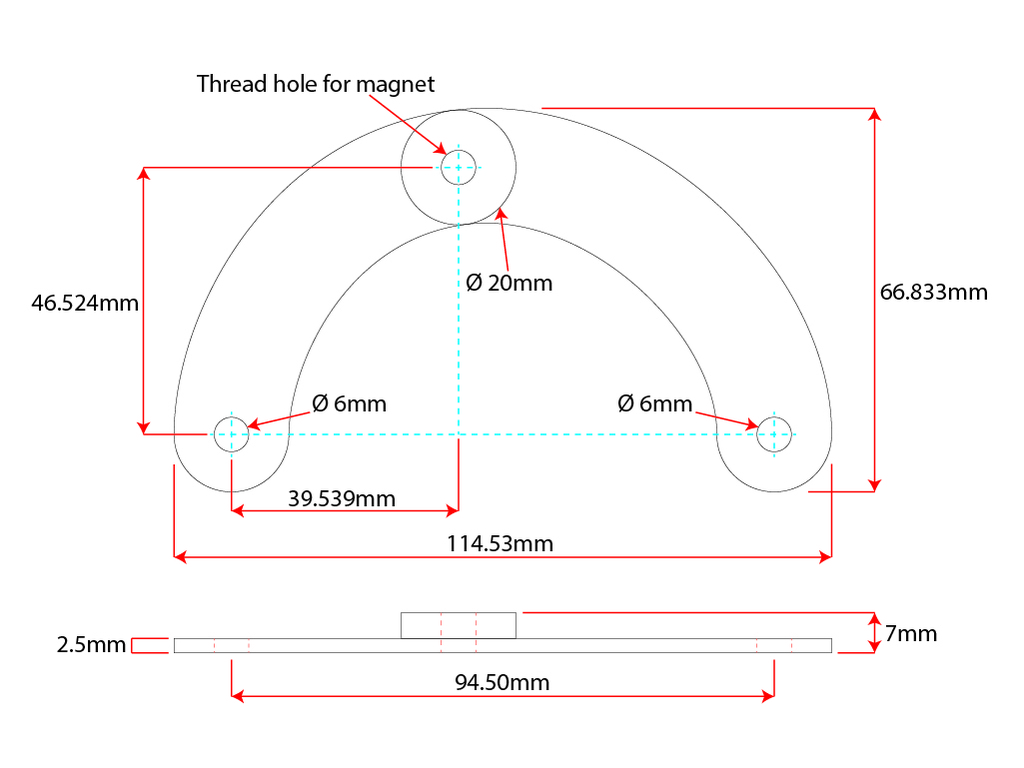

Found the drawing for my mounting plate for the Trail Tech Endurance II. This plate could be used for other models also.

PDF Download: http://www.4shared.com/office/NVpWjQIfce/Yamaha_Blaster_Trail_tech_Spee.html

EPS Download: http://www.4shared.com/file/TPsK3Uprce/Yamaha_Blaster_Trail_tech_Spee.html

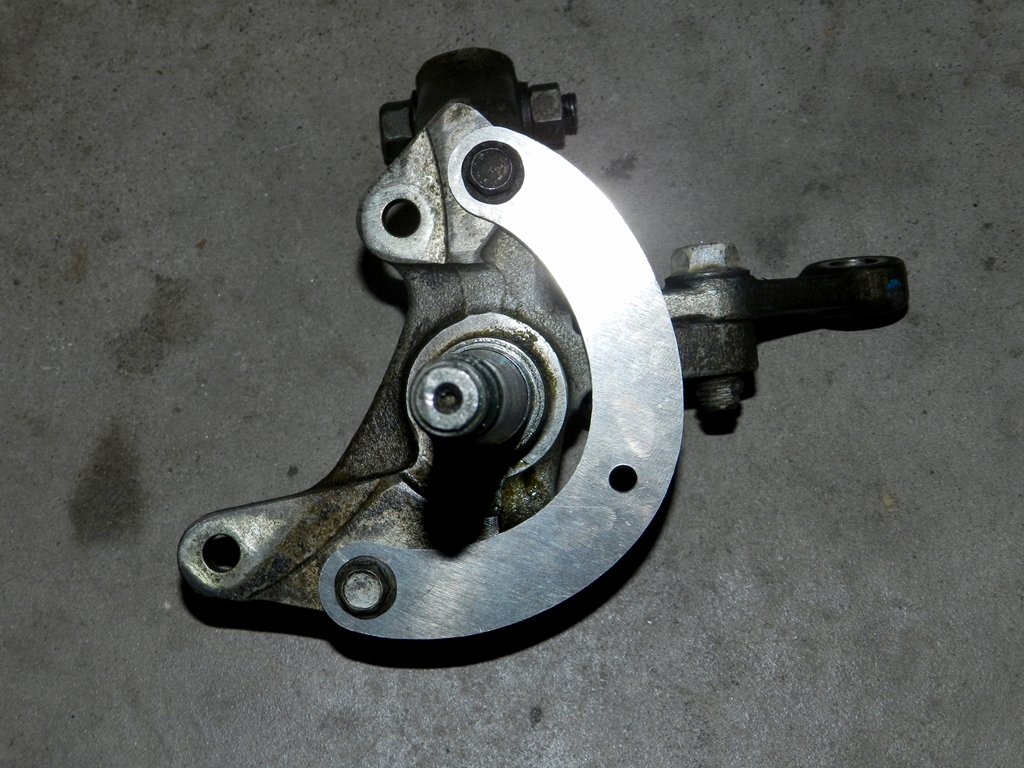

Photos of a CNC part.

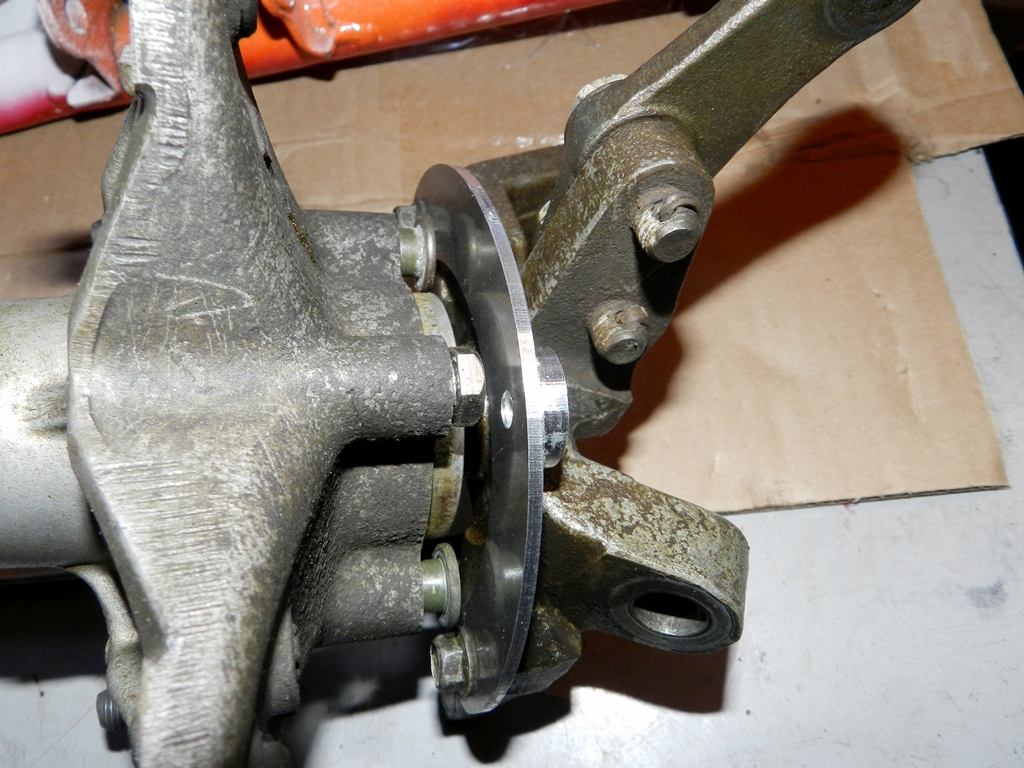

Bracket installed.

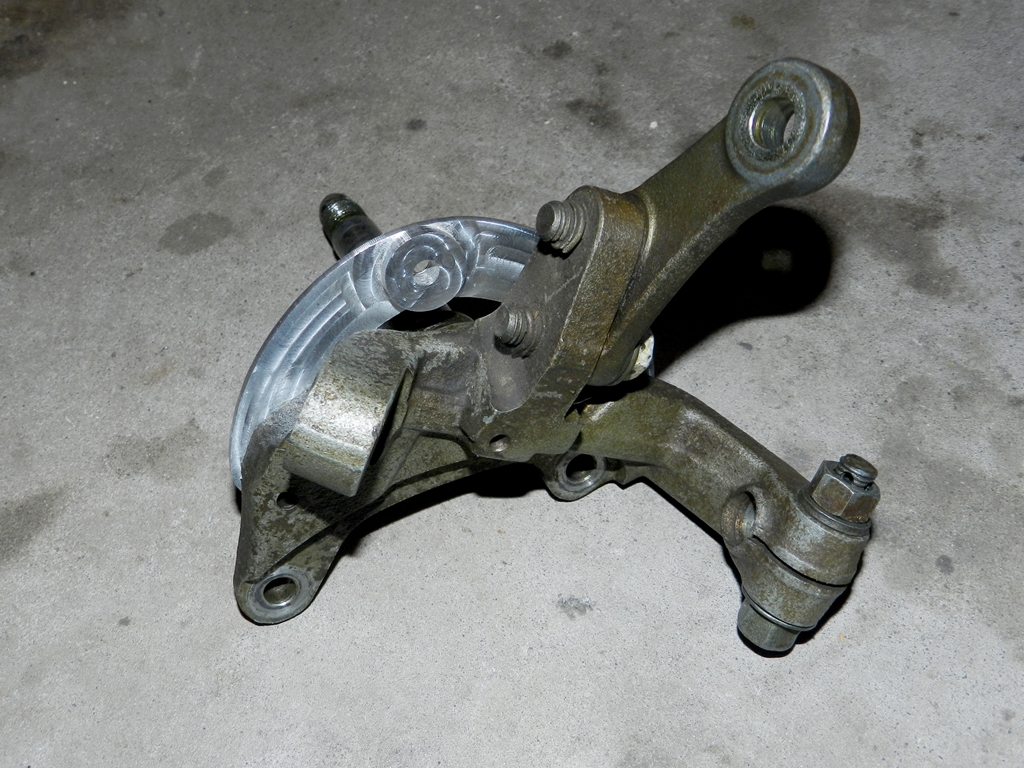

Lots of clearance for cable.


Magnet in disc mounting hole.


Might help if some one wants to make there own.
