inner case bearings how to remove?

Discussion in 'Engine' started by Mborso1029, Jan 10, 2011.

  1. Mborso1029

    Mborso1029 New Member

    Joined:
    Oct 2, 2009
    Messages:
    403
    Likes Received:
    5
    Trophy Points:
    0
    Occupation:
    Ford Tech
    Location:
    SouthEast MI
    i am in the process of trying to powdercoat my cases, well i have removed crank bearings and output shaft bearing from the stator side case half....i have one bearing left to remove and i believe it is the one for the ilder shaft, there are 2 that cannot be pressed out from the other side because they dont go all the way through the case, well i got 1 of them out, with a 2 jaw puller and a slide hammer but its just not working for this other one...does anyone have any experience removing these?

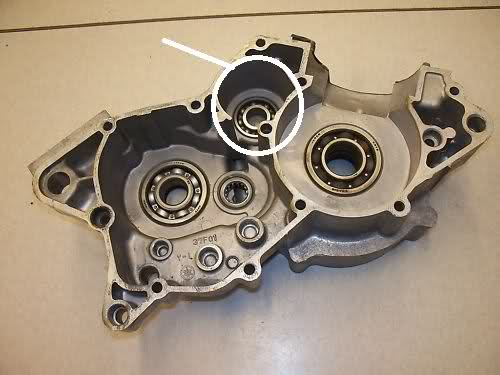

    nice little diagram for yall

    [​IMG]
  2. royalt67

    royalt67 New Member

    Joined:
    May 12, 2009
    Messages:
    2,023
    Likes Received:
    41
    Trophy Points:
    0
    Occupation:
    Mechanic
    Location:
    Klamath Falls, Southern Oregon
    The slide hammer is the right tool. You might get a small chunk of dry ice and cool the bearing down. If that isn't enough, a small amount of heat (propane torch, gently) applied to the case around it at the same time should help.
  3. liljatownboy

    liljatownboy New Member

    Joined:
    Feb 24, 2008
    Messages:
    1,518
    Likes Received:
    8
    Trophy Points:
    0
    Occupation:
    school, and working on engines
    Location:
    forsyth county, GA
    get it out? when i had to swap case i stuck my cases in the oven worked great if there flat bearing will fall right out
  4. Mborso1029

    Mborso1029 New Member

    Joined:
    Oct 2, 2009
    Messages:
    403
    Likes Received:
    5
    Trophy Points:
    0
    Occupation:
    Ford Tech
    Location:
    SouthEast MI
    i got it, i heated with oxygen accey, i didnt want to just because i didnt want to take a chance on making the cases brittle or warp, but came out pretty easy after that. so im all good for now, but im pretty sure i am going to need help putting the trans back together after i powder coat the cases.
  5. blasterbogger

    blasterbogger New Member

    Joined:
    Mar 10, 2010
    Messages:
    371
    Likes Received:
    4
    Trophy Points:
    0
    Occupation:
    Selling Candy At School!!
    Location:
    Miami,Florida
    I got some water in a big pan threw the cases in it, stuck it in the BBQ boiled it slipped right out..
  6. scotj77

    scotj77 Member

    Joined:
    Feb 11, 2010
    Messages:
    5,541
    Likes Received:
    67
    Trophy Points:
    48
    Occupation:
    Cabinet installer
    Location:
    Orlando, fl
    if you don't own a clymers/haynes manual you need to get one. it will answer all those little questions on how to reassemble things
  7. liljatownboy

    liljatownboy New Member

    Joined:
    Feb 24, 2008
    Messages:
    1,518
    Likes Received:
    8
    Trophy Points:
    0
    Occupation:
    school, and working on engines
    Location:
    forsyth county, GA
    just throw the bearings in the freezer
  8. Mborso1029

    Mborso1029 New Member

    Joined:
    Oct 2, 2009
    Messages:
    403
    Likes Received:
    5
    Trophy Points:
    0
    Occupation:
    Ford Tech
    Location:
    SouthEast MI
    i have a shop press, to put them back in, i was seeing if anyone had a special tool, so i didnt have to take the chance on warping the cases.

    i have a clymer manual, and in my opinion the transmission section is horrible on reassembly very general
  9. royalt67

    royalt67 New Member

    Joined:
    May 12, 2009
    Messages:
    2,023
    Likes Received:
    41
    Trophy Points:
    0
    Occupation:
    Mechanic
    Location:
    Klamath Falls, Southern Oregon
    Cases in the oven at about 200 is perfectly safe. Bearings in the freezer. Should drop right in.
  10. Paulie B

    Paulie B New Member

    Joined:
    Jan 17, 2008
    Messages:
    3,407
    Likes Received:
    55
    Trophy Points:
    0
    Occupation:
    Working
    Location:
    SOMD
    Put the whole case in the oven at 350-400.
    After about 10 minutes it will most likely just fall out.
    You don't need it out to PC anyways just mask it with silicone tape or tin foil.
  11. Drifz1

    Drifz1 New Member

    Joined:
    May 24, 2010
    Messages:
    2,296
    Likes Received:
    9
    Trophy Points:
    0
    Location:
    mayo,ireland
    i beive rocky mtn has a tool that can take bearings out
