DG Rear bumper mounting

[Markblaster]

Hi all. Just wanted to share my mounting files for the DG performance swing arm bumper. If you are going to install a DG bumper on your blaster that has a aftermarket skid plate and extended swing arm you will need to do this. You Will need 2 longer bolts for the lower mounts, 1 upper mount and 2 lower spacers.

I have done this on a Swingarm Shop heavy duty +3 swing arm with a PRM Products 1/4 think skid plate.

Upper Mount
Download PDF: CLICK HERE
Download DXF: CLICK HERE

Lower Spacers
Download PDF: CLICK HERE
Download DXF: CLICK HERE

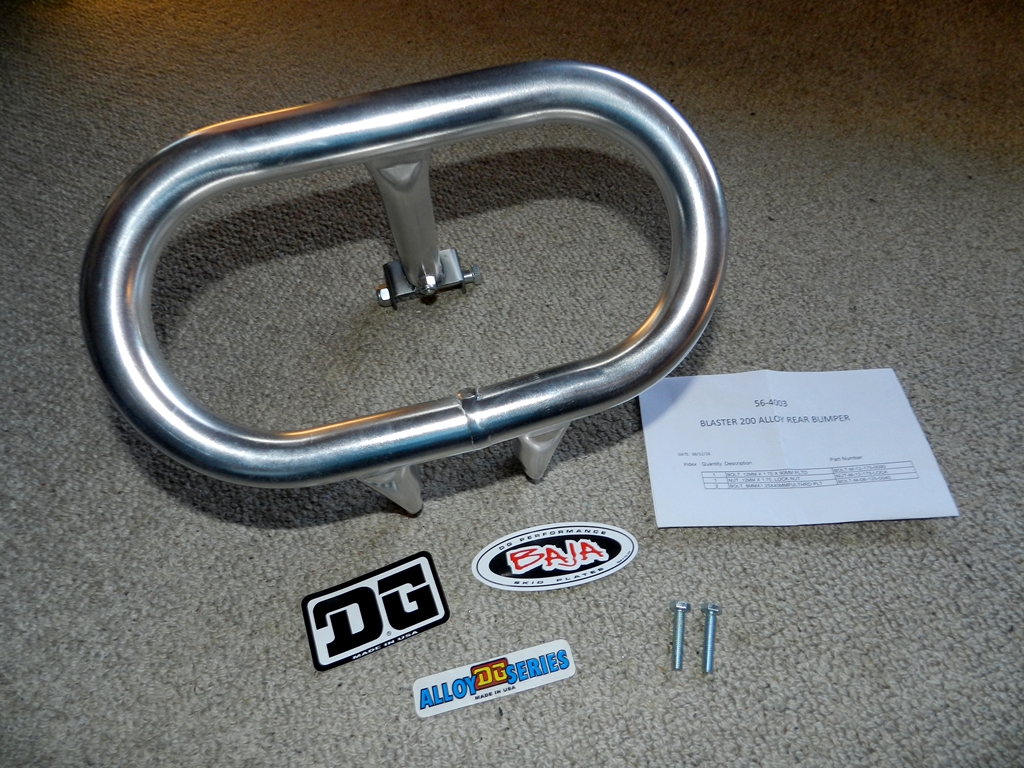

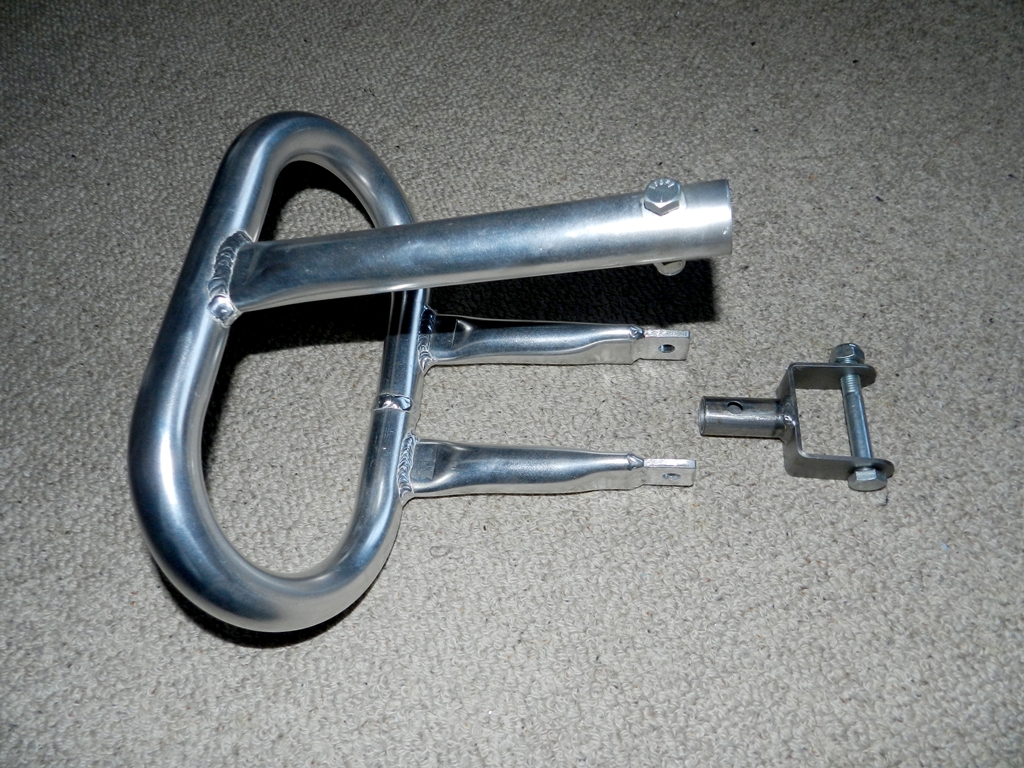

The product.

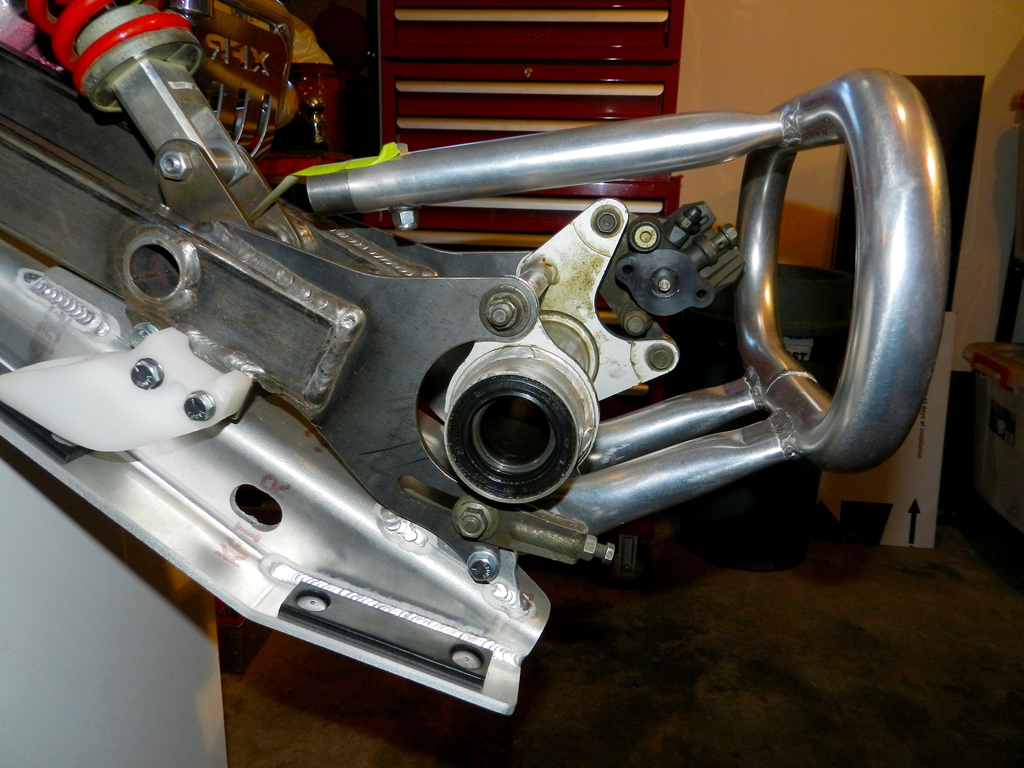

Unbolt the upper bracket.

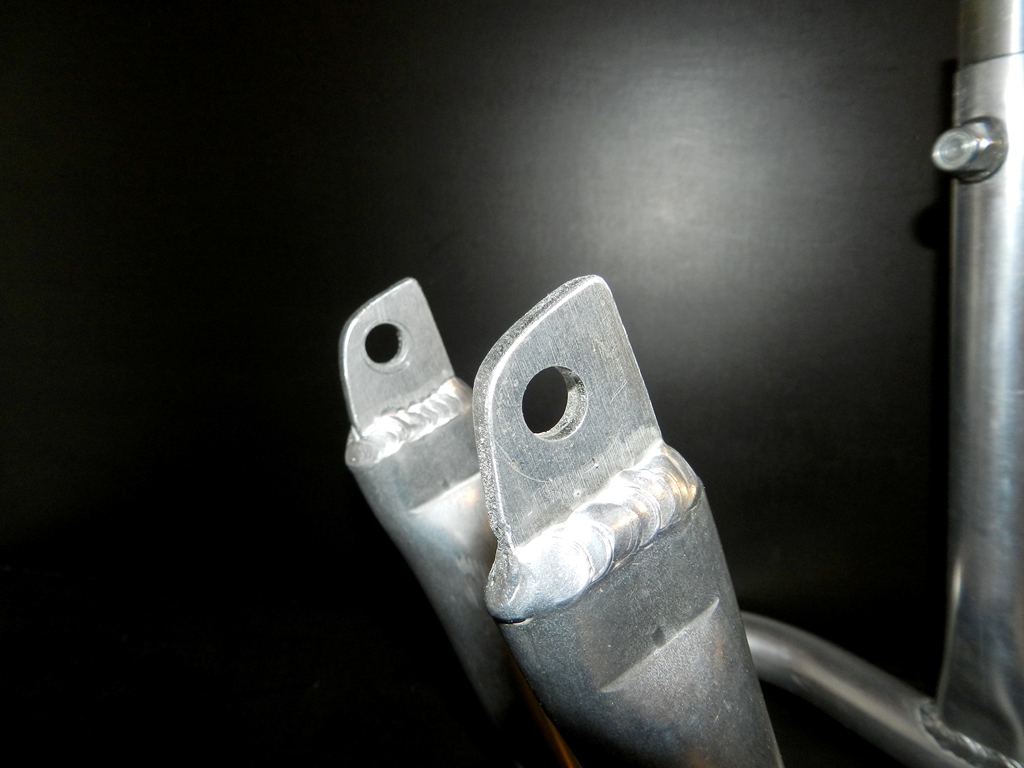

Grind / file the lower tabs round.

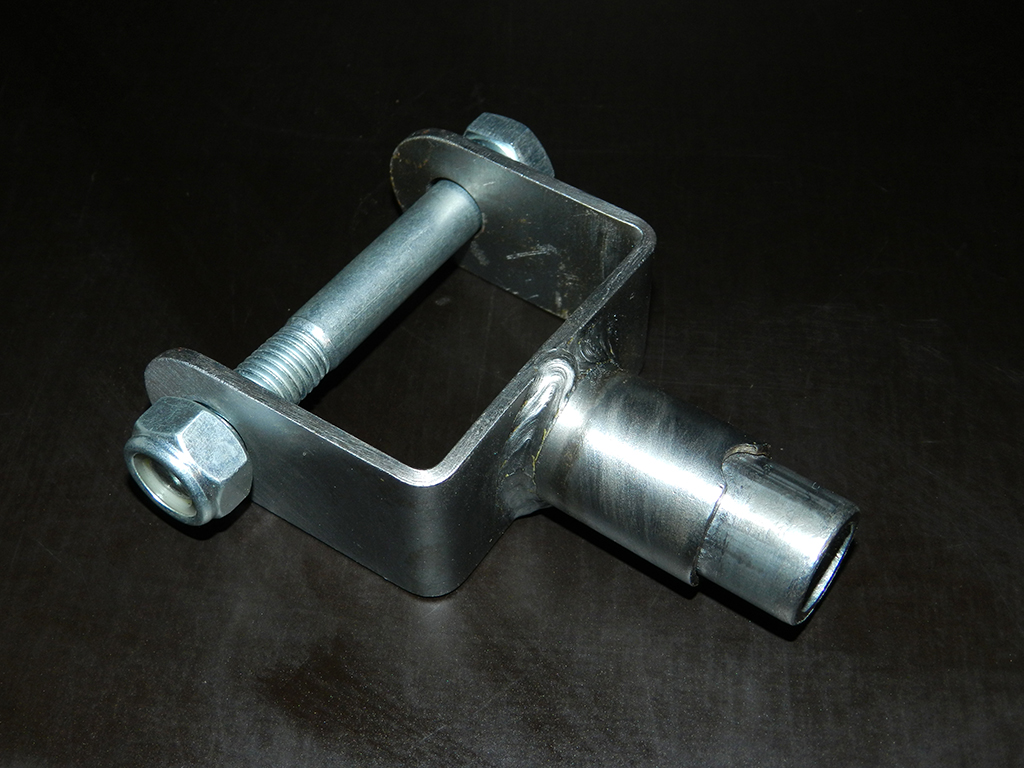

Make the new mount for the upper bracket and bolt it into the tube.

Make the 2 lower spacers. You will need longer bolts for mounting.

You will need to pull up on the upper mount tube a little to get it inline with the shock lower mount.

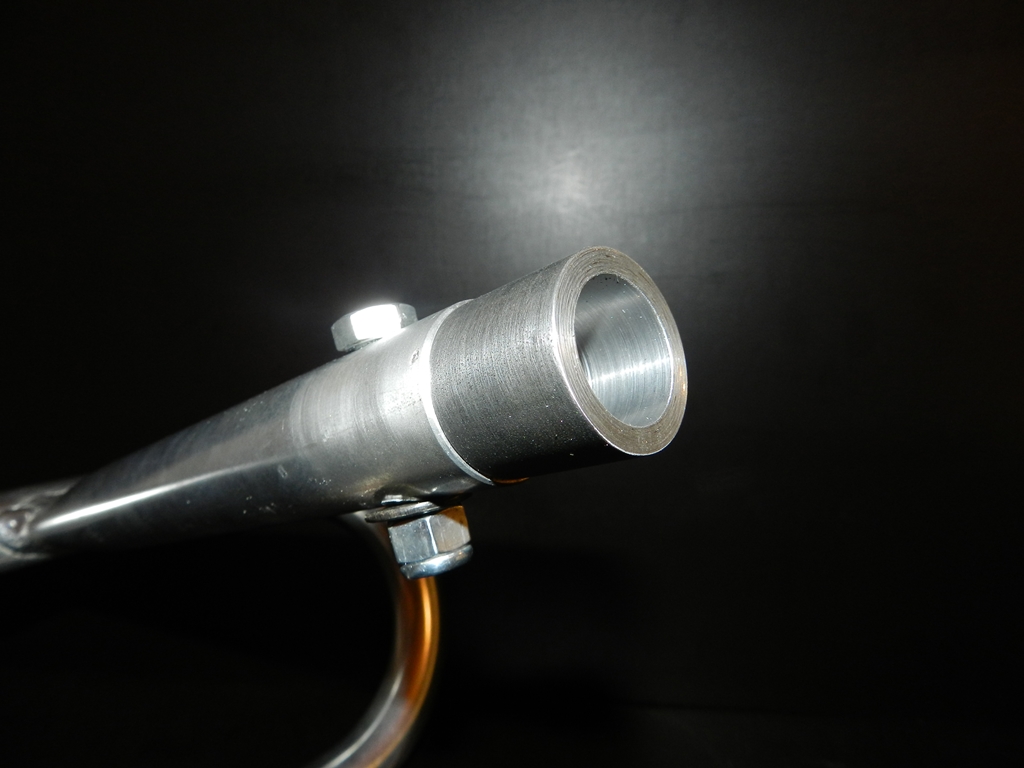

You will need to shorten the tube of the bracket that comes with the bumper. Also insert a short bit of tube into it. If you have a +4 or longer you will have to shorten it more. If you are running a +2 swing arm you may not have to shorten it.

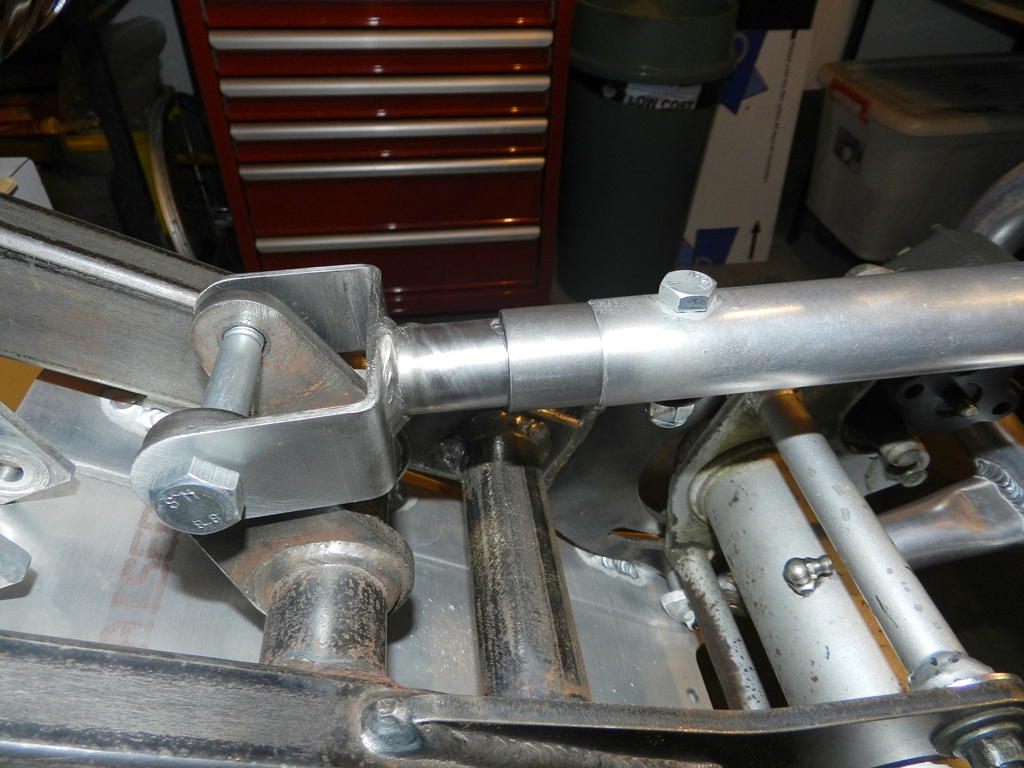

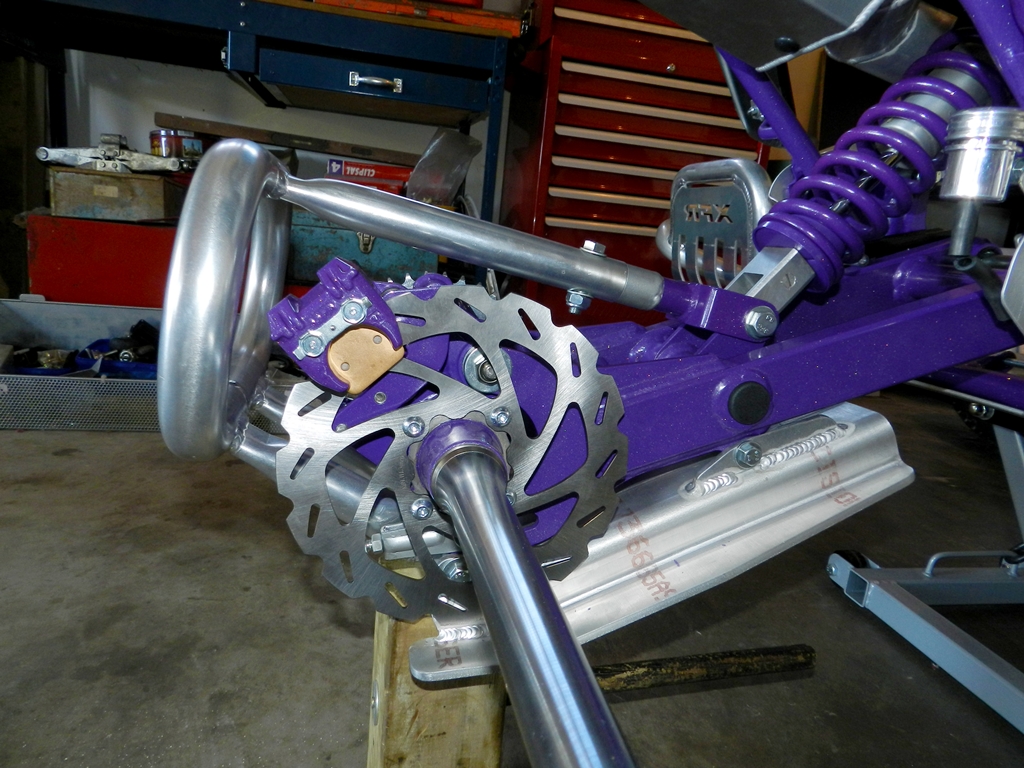

Upper bracket installed. Just needs to be welded.

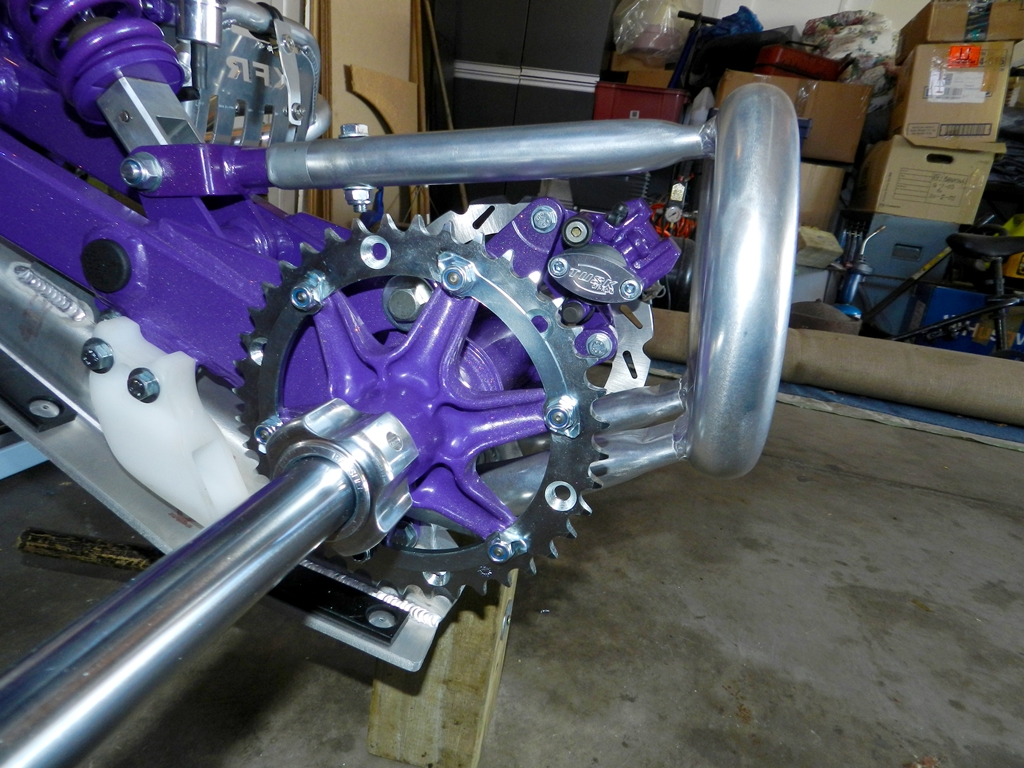

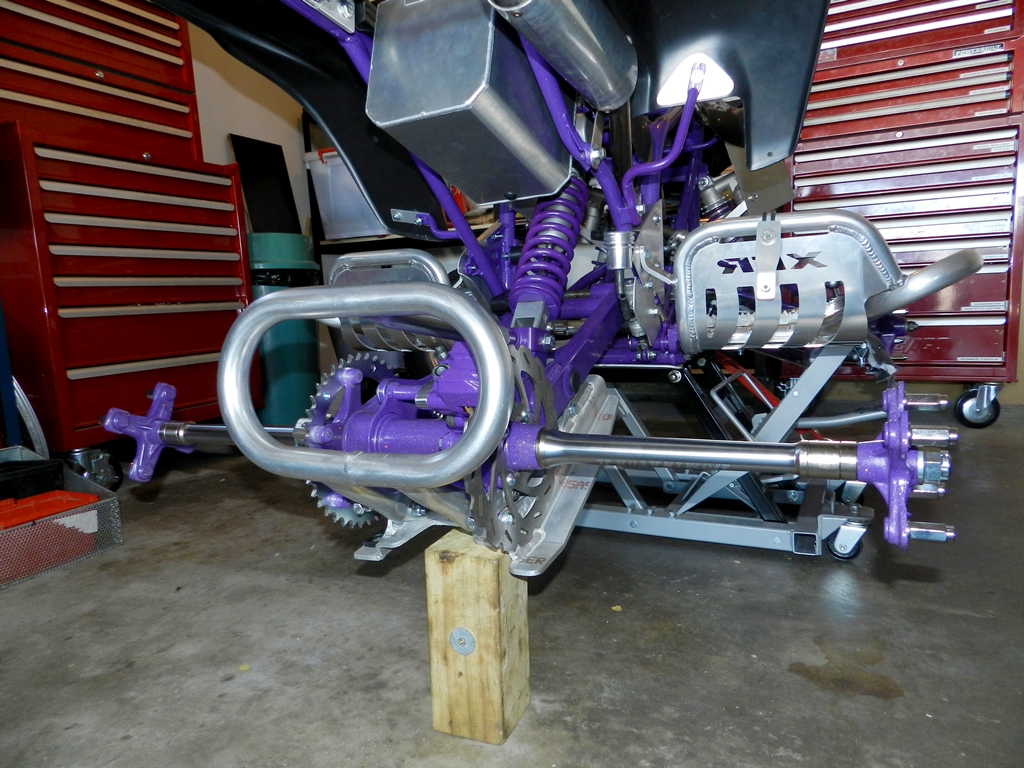

Finished.

Might help if some one wants to make there own.
