    Im converting to a Dual Bearing Chain Roller. like this>>> Chain Roller YFZ 450 Raptor 700 YFM 700 YTZ 250 34mm CR02 34 | eBay

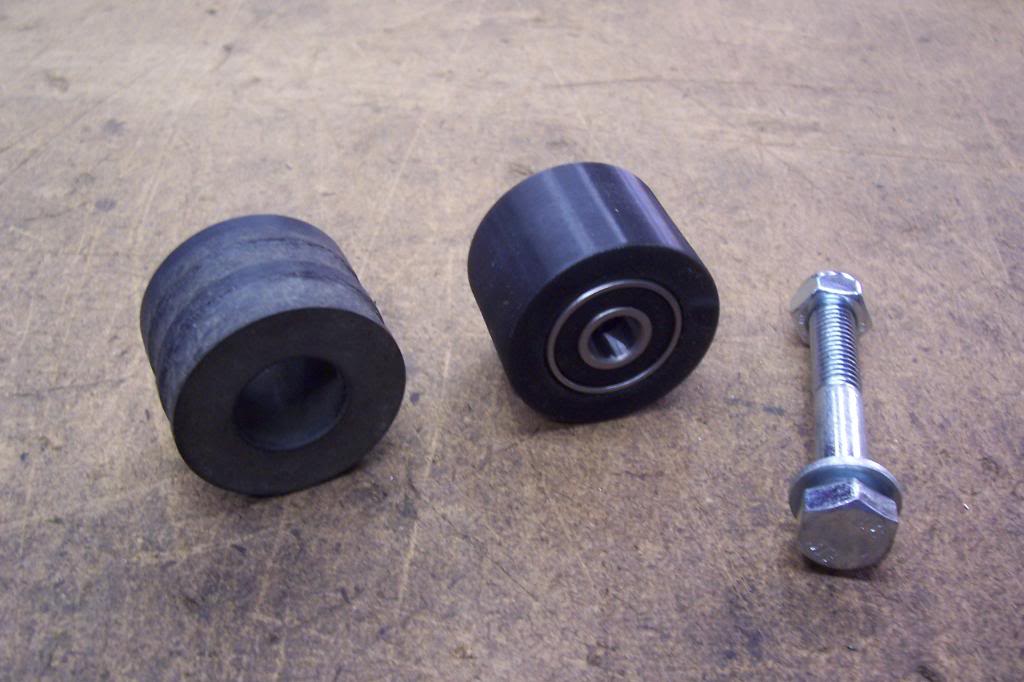

    Stock on left, Dual Bearing on right.
    [​IMG]

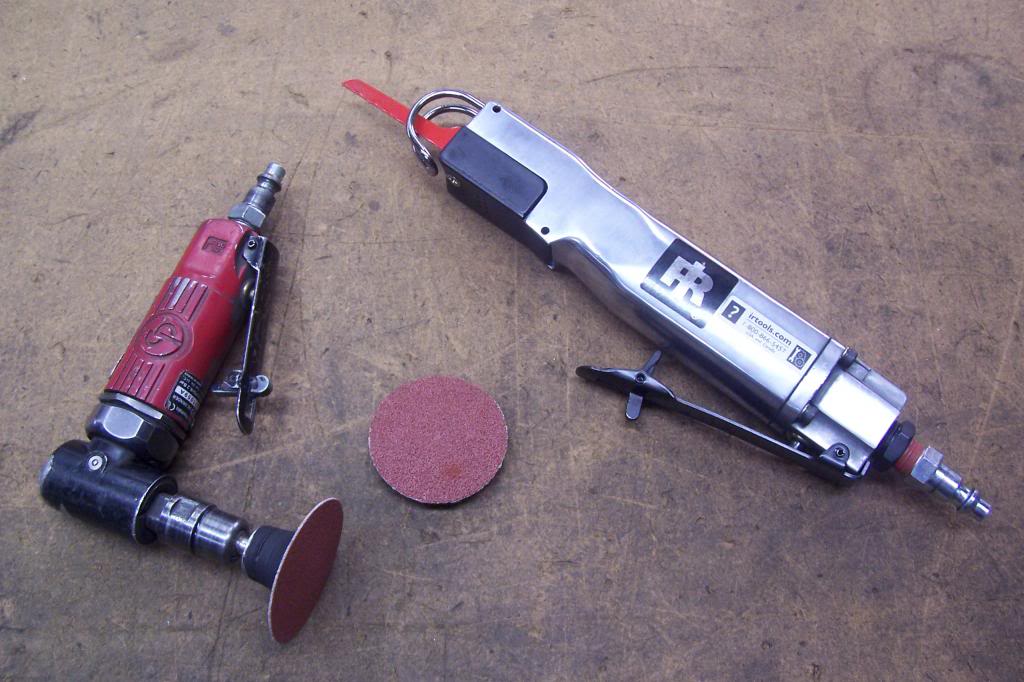

    My weapons of choice to do the job.
    [​IMG]

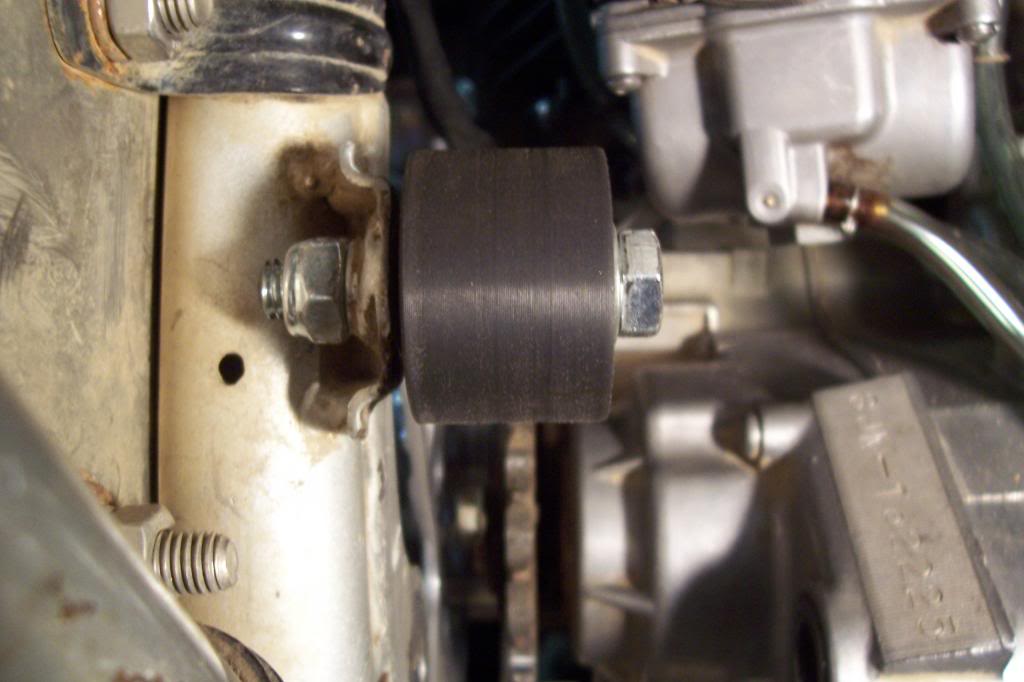

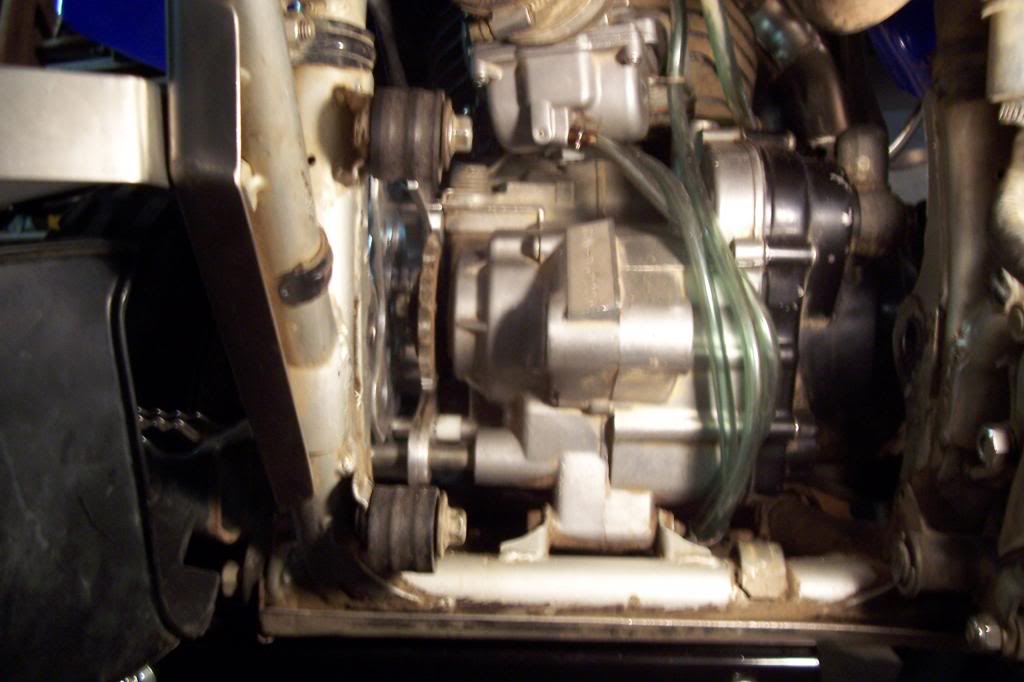

    Stock rollers.
    [​IMG]

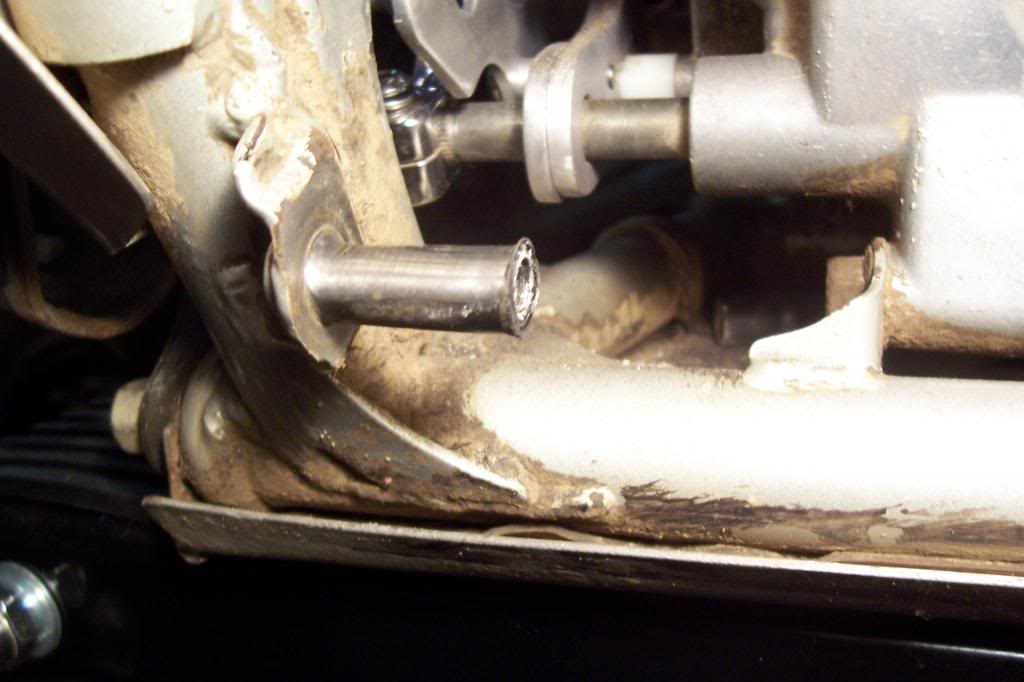

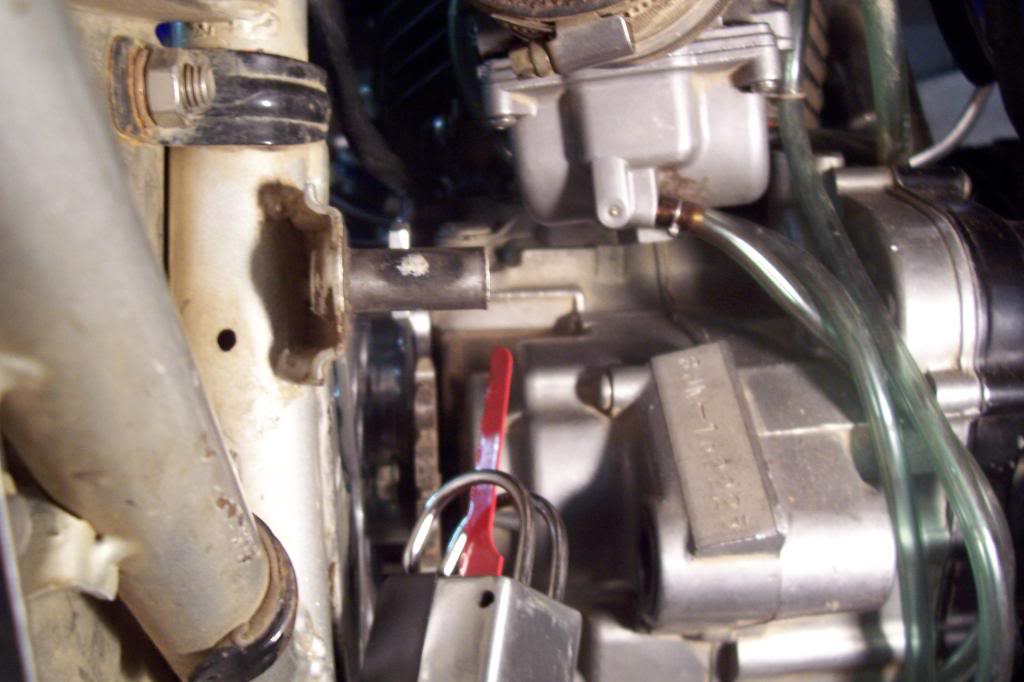

    The roller is off and this is the shaft that has to be removed.
    [​IMG]

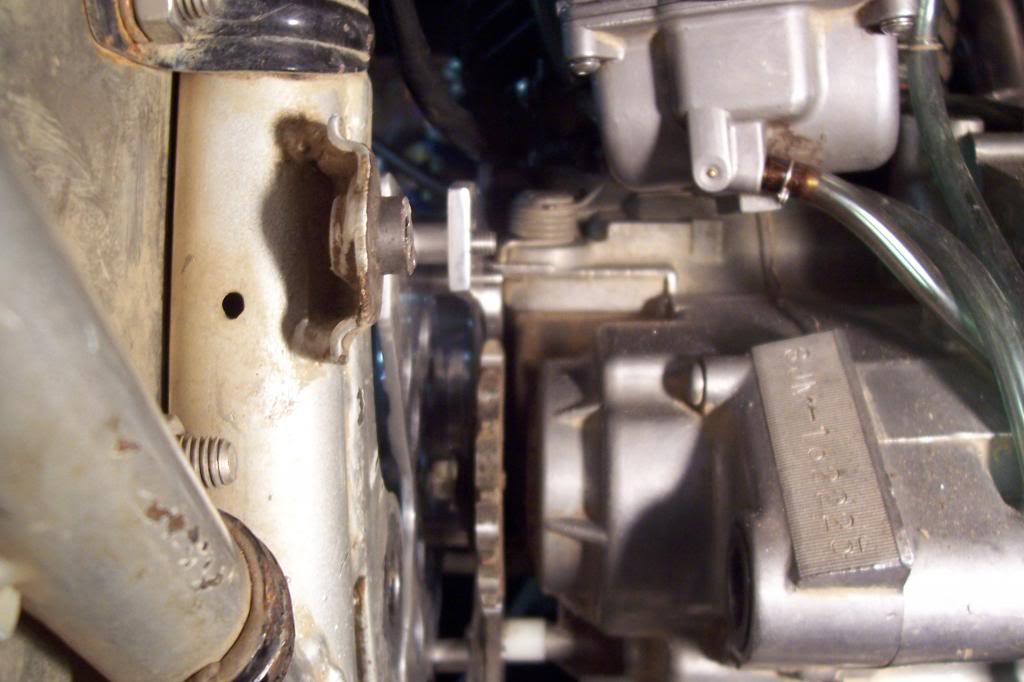

    Most of it is removed.
    [​IMG]

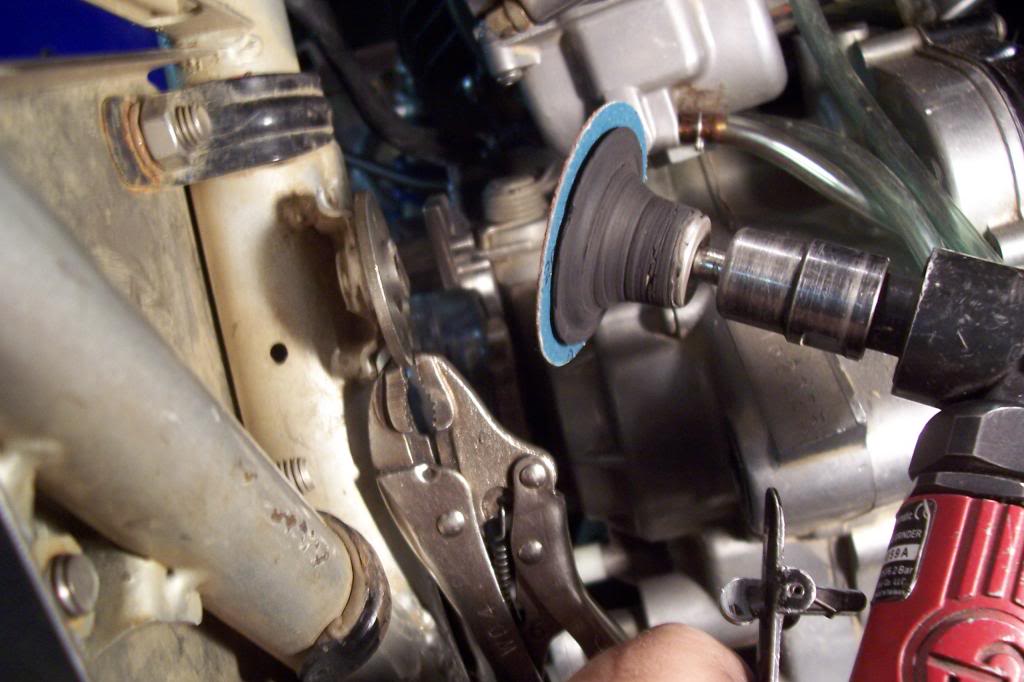

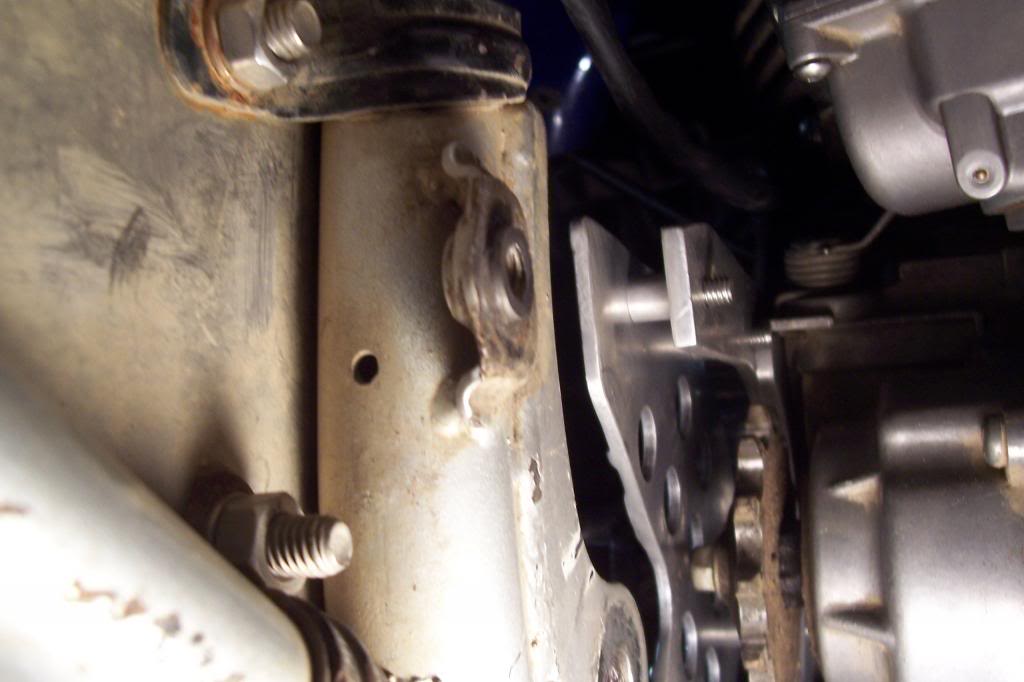

    Im using a 1/2 flat washer and sanding the shaft flat until i hit the washer.
    [​IMG]

    [​IMG]

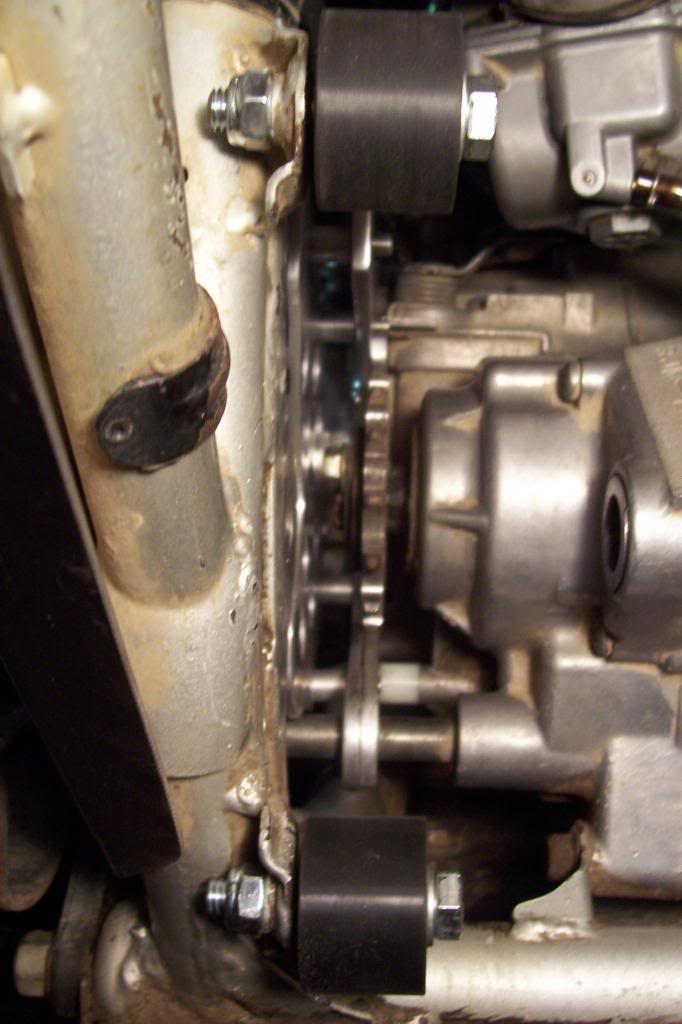

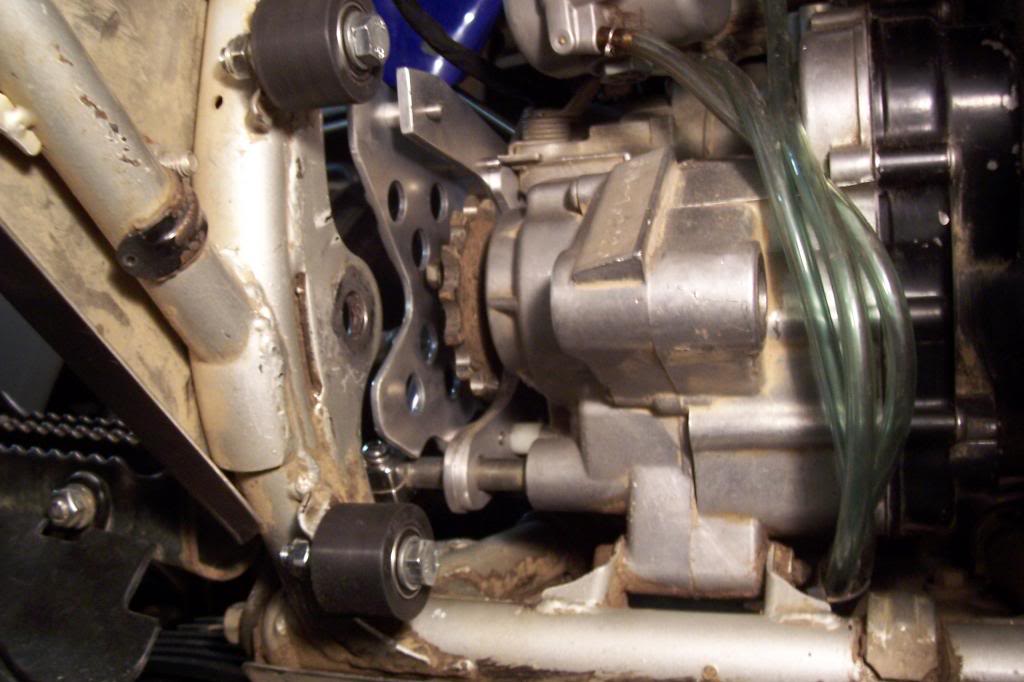

    The new Dual Bearing Chain Roller.
    [​IMG]

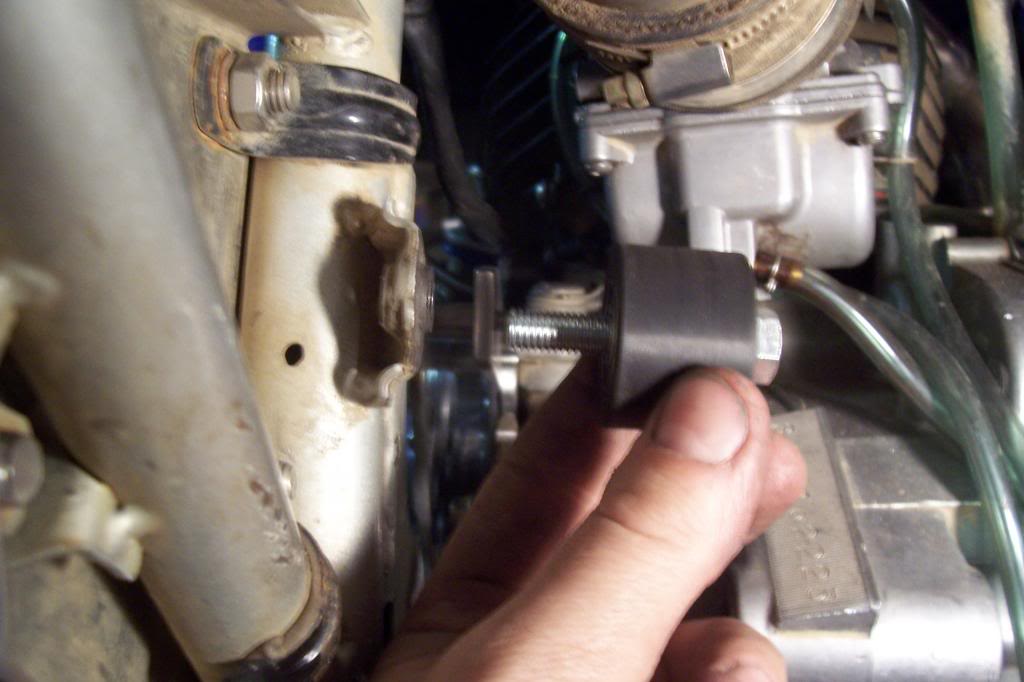

    Use the nut to lock it in good.
    [​IMG]

    Last edited: Oct 10, 2014
    gridlock likes this.
  2. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,293
    Likes Received:
    727
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
    [​IMG]

    [​IMG]

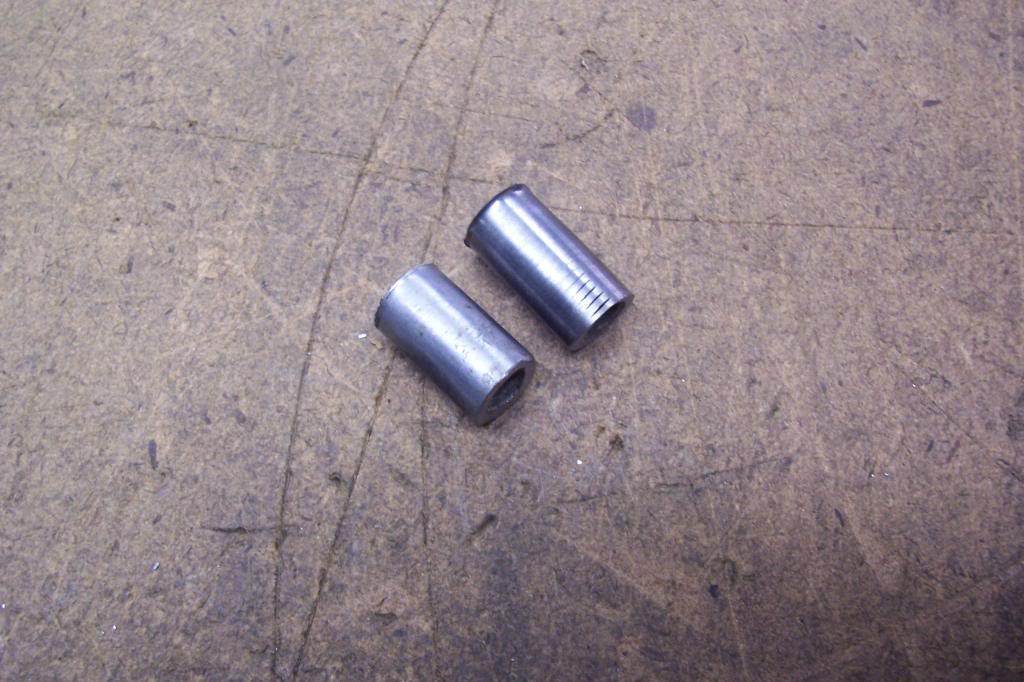

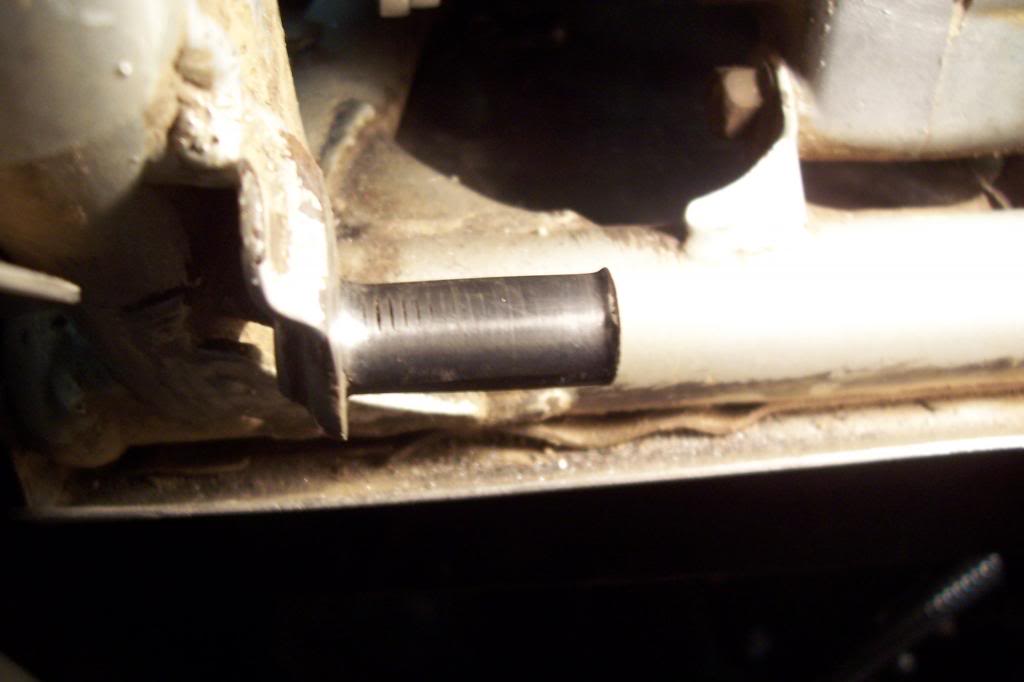

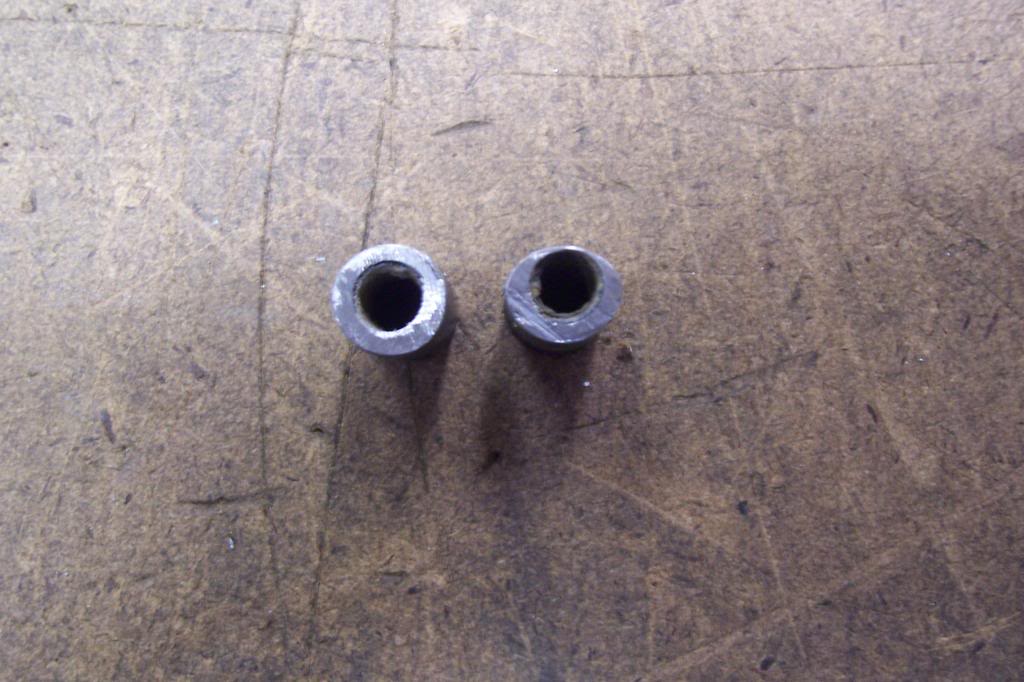

    The bottom roller shaft was not in good shape.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  3. Awk08

    Awk08 Moderator Staff Member Technician Forum Supporter

    Joined:
    Jan 30, 2009
    Messages:
    23,385
    Likes Received:
    1,911
    Trophy Points:
    175
    Occupation:
    Electrician/Contractor
    Location:
    Pa.
    Nice visuals Doug, exactly how i do them.
    have some greens, and a sticky
    this needed documented !

    Last edited: May 18, 2013
  4. gizzy2014

    gizzy2014 Rippin' Hard

    Joined:
    Jul 22, 2012
    Messages:
    1,469
    Likes Received:
    38
    Trophy Points:
    85
    Gender:
    Male
    Occupation:
    working on semi's and oil trailers
    Location:
    dickinson ND
    well thats similar to how i did mine.... might take some tips from urs and go change mine alitttle bit....

  5. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,293
    Likes Received:
    727
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
  6. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
    Nice work dude. Did the same thing on my Yamaha warrior when I had it. Might do it on my blaster as the lower one has started to wear.

  7. joebush44

    joebush44 New Member

    Joined:
    Jun 6, 2016
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    17
    Gender:
    Male
    My quad didn't come with the stock rollers on it, just the pegs on the frame. I'd like to convert to the ball bearing rollers like you've done. Do I just need to make sure it's a 34mm roller? Can someone point me to a roller that will work for me? Thanks!

  8. 79 bronco

    79 bronco Moderator & Self Custom Psycho Staff Member

    Joined:
    Apr 9, 2010
    Messages:
    5,293
    Likes Received:
    727
    Trophy Points:
    178
    Gender:
    Male
    Occupation:
    Custom metal fabricator
    Location:
    I don"t know???????
  9. joebush44

    joebush44 New Member

    Joined:
    Jun 6, 2016
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    17
    Gender:
    Male
  10. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
  11. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand

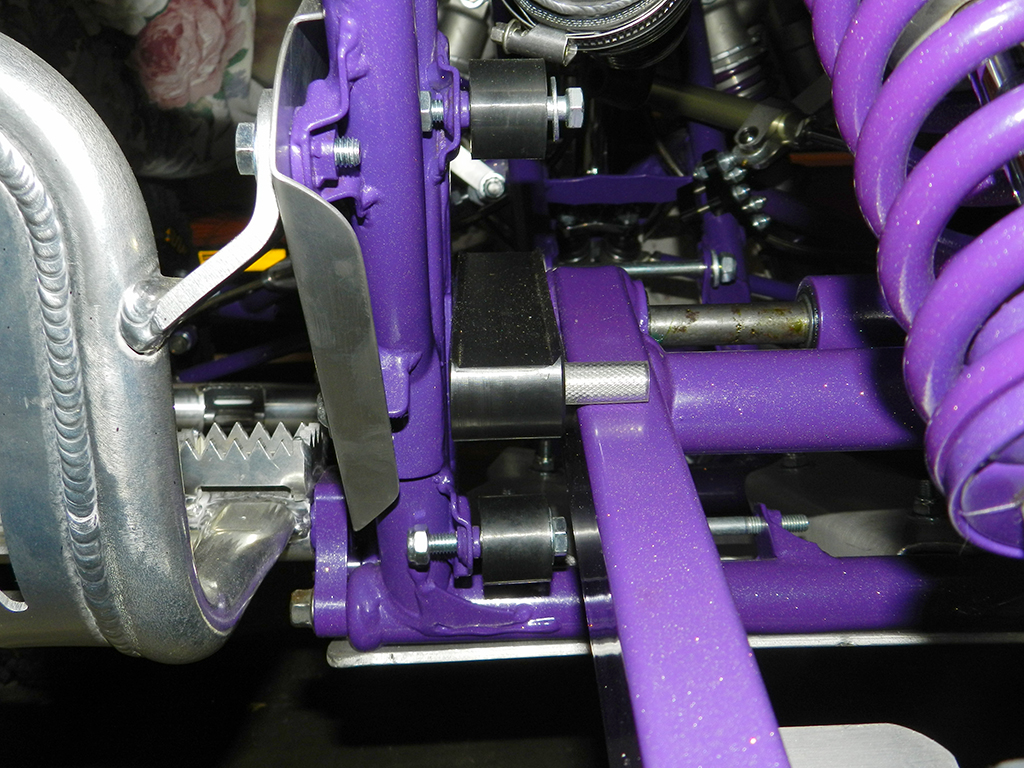

    Chain rollers finished.
