Coil Mounting Bracket

Markblaster

Custom blaster
Dec 6, 2015
2,311
760
175
Hi all, Just finished drawing up my bracket I made in my build that replaces the stock coil mount. Also has a gusset that goes up to the bracket in the same design as the gusset kit I did. You will need 2 nuts to go on your bolts to mount coil or weld 2 nuts to the plate or thread the 2 holes.

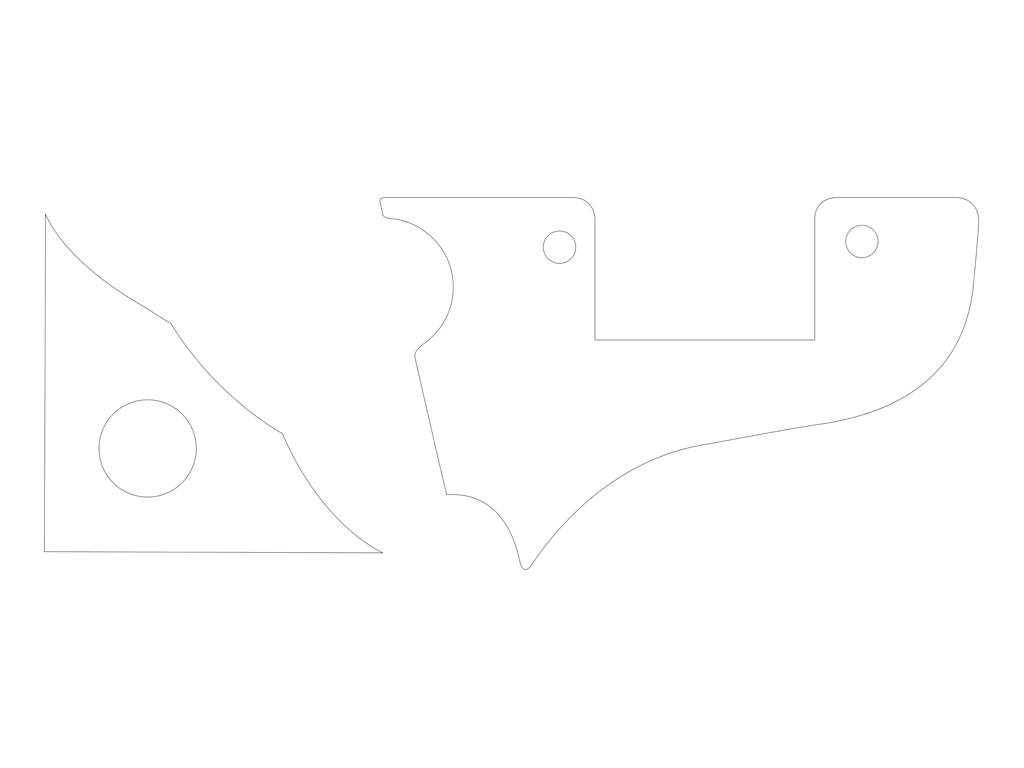

PDF Download: http://www.4shared.com/office/bMmoCV5Ace/Coil_Mounting_Bracket.html

DXF Download: http://www.4shared.com/file/iYIjbLi0ce/Coil_Mounting_Bracket.html



Might help others if your bracket is broken. Mine was broken in to spots.

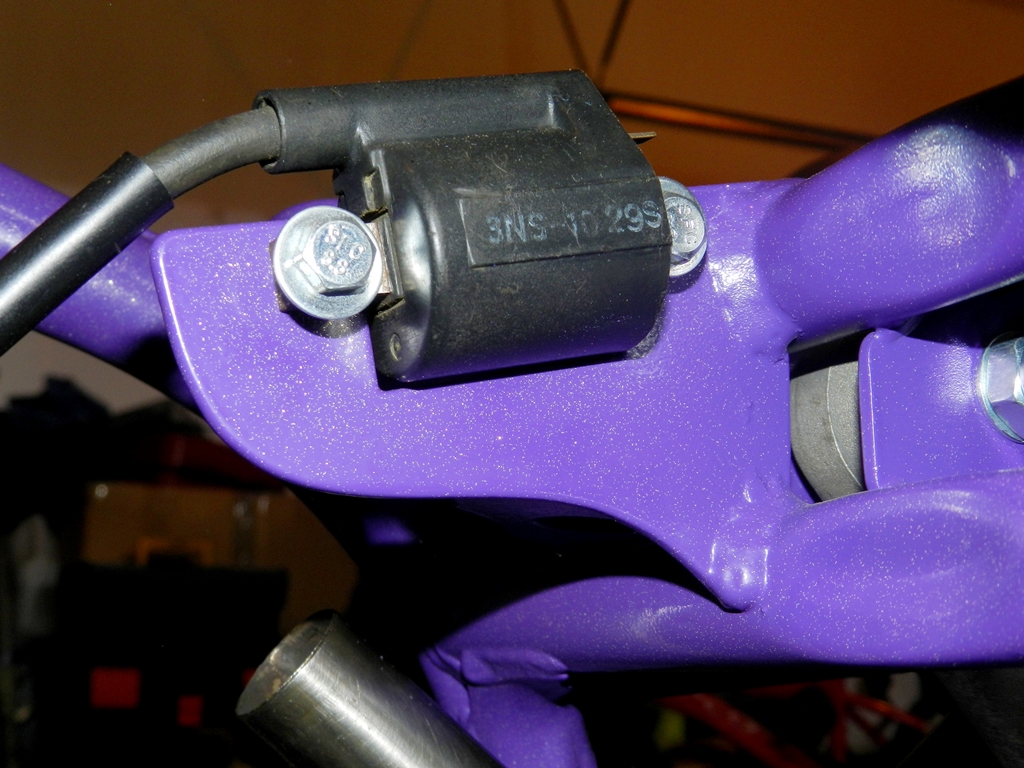

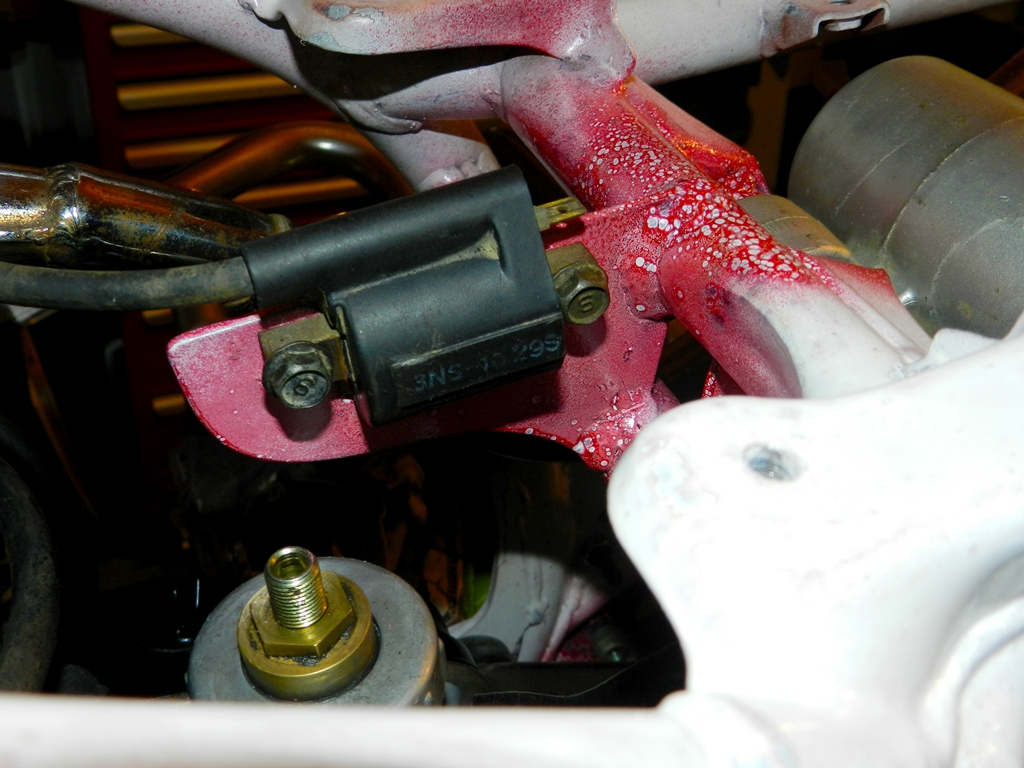

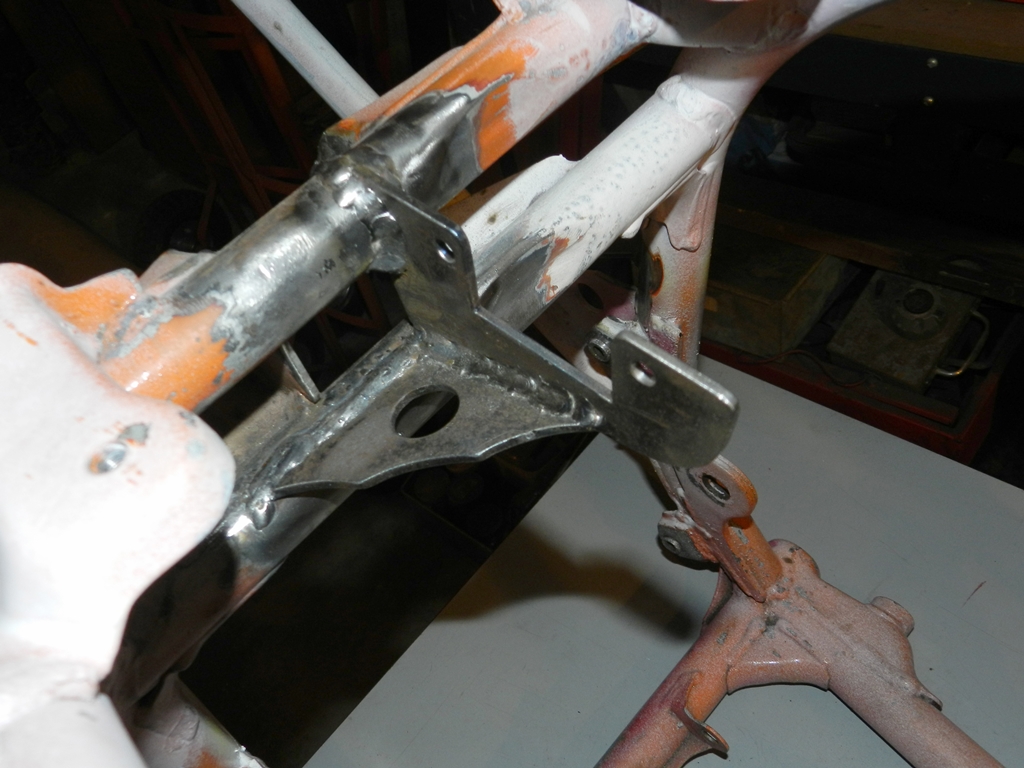

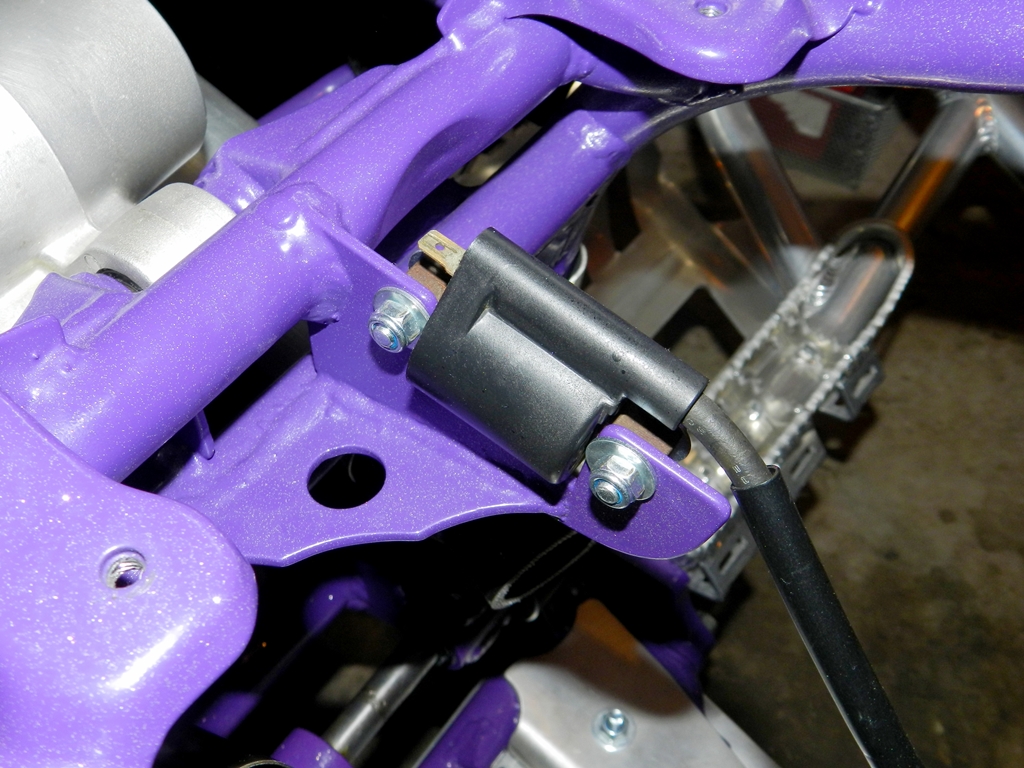

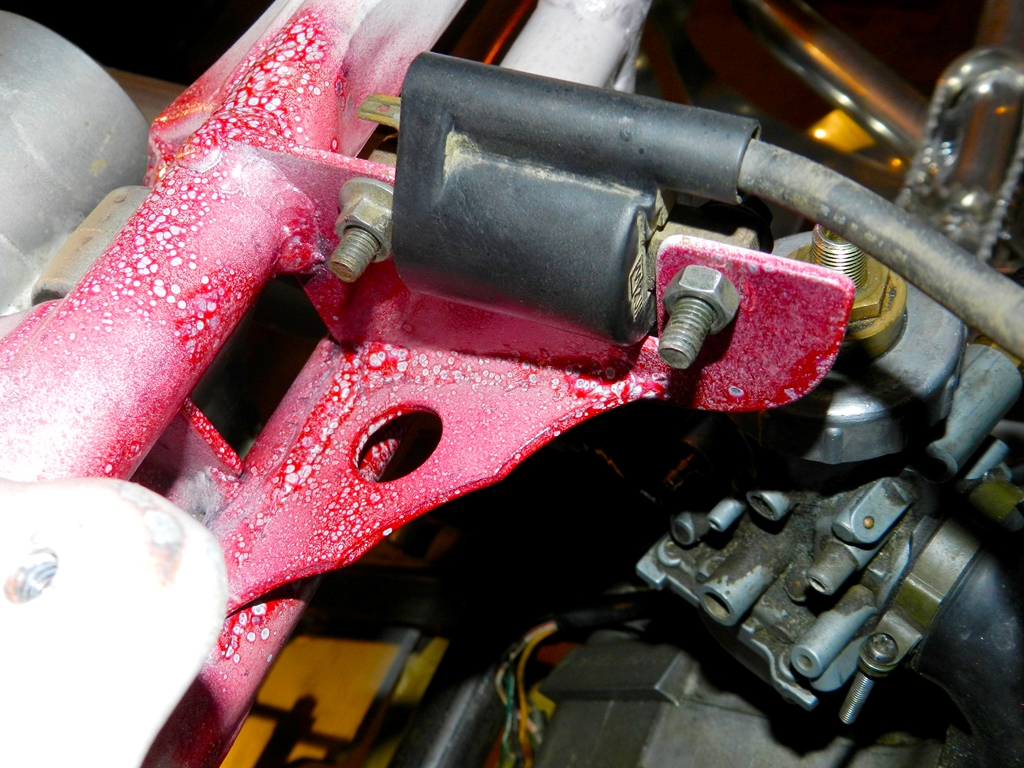

Photo of bracket.
