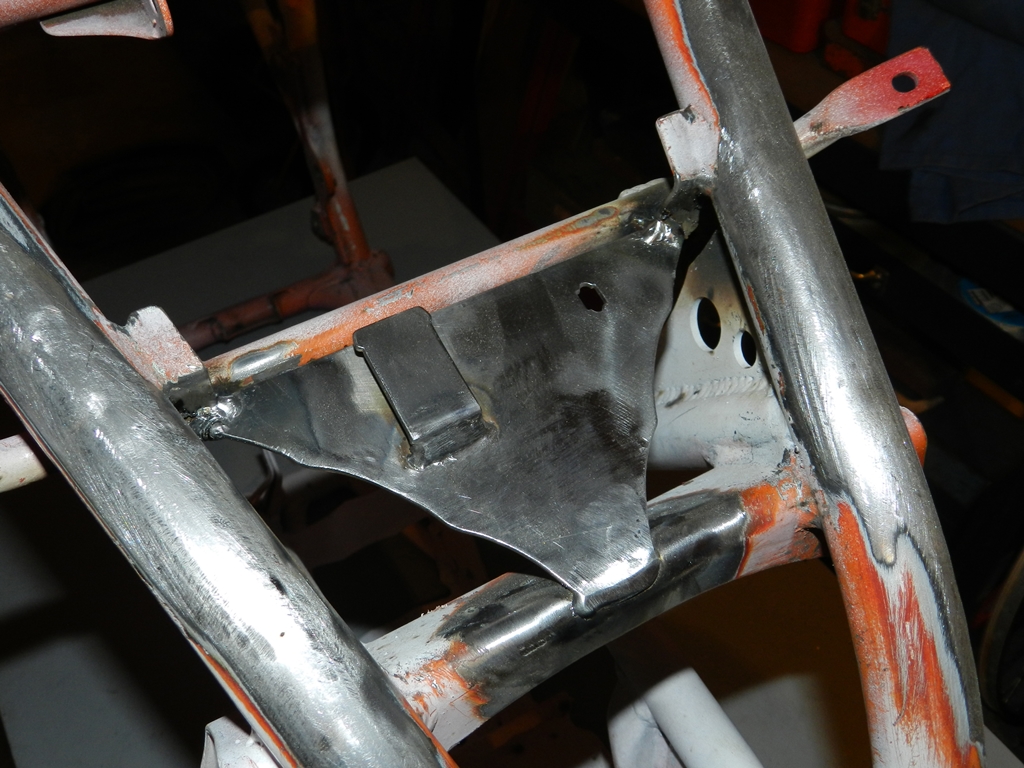

    Hi all. Just finished drawing up my new CDI mount and also holds the breather hose.

    This plate is only needed if you have removed your headlight and voltage regulator and don't plan on installing it again.

    1st you need to cut the stock headlight mount out that also holds the CDI and voltage regulator.

    [​IMG]

    [​IMG]

    All gone
    [​IMG]

    [​IMG]

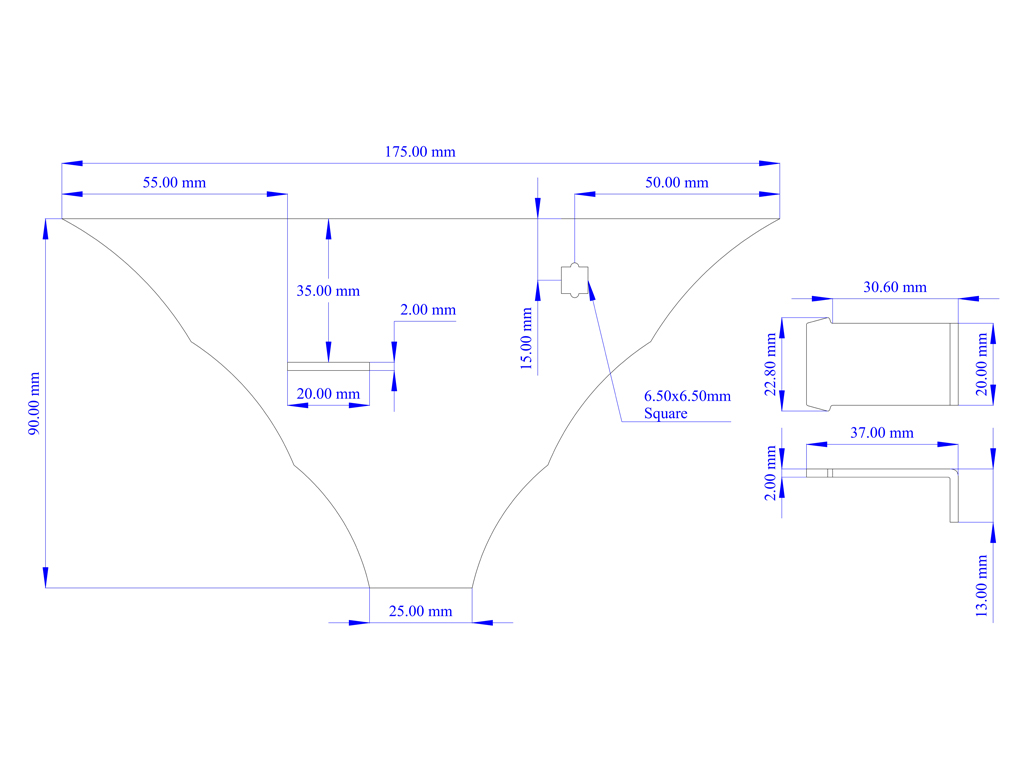

    Download PDF: CLICK HERE
    Download DXF: CLICK HERE

    Might help if some one wants to make there own.

    Upload photos of finished product tomorrow.

    Last edited: Jun 17, 2016
  2. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
  3. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand

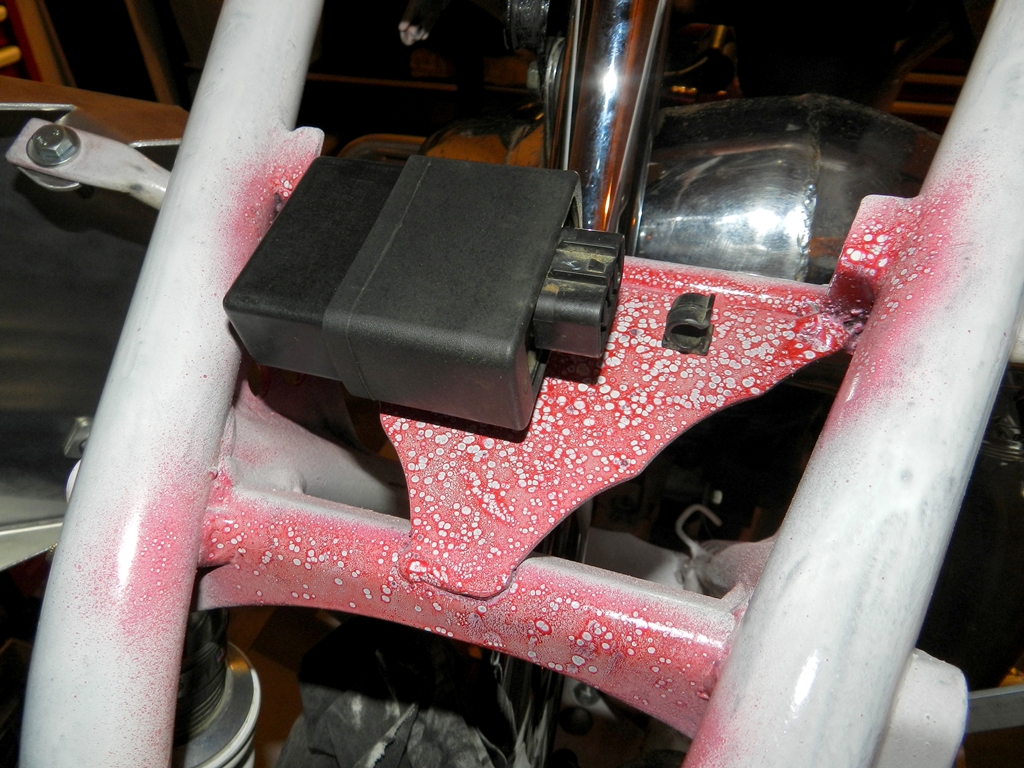

    CDI bracket installed. Also breather hose mount for engine still goes up here.
    [​IMG]

  4. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
  5. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
  6. Markblaster

    Markblaster Custom blaster

    Joined:
    Dec 6, 2015
    Messages:
    1,924
    Likes Received:
    571
    Trophy Points:
    175
    Gender:
    Male
    Occupation:
    Graphics / Signage
    Location:
    New Zealand
    One last thing I had to do was drill a hole to mount the earth wire. Only needed if you have a Kompulsive Concepts harness.
